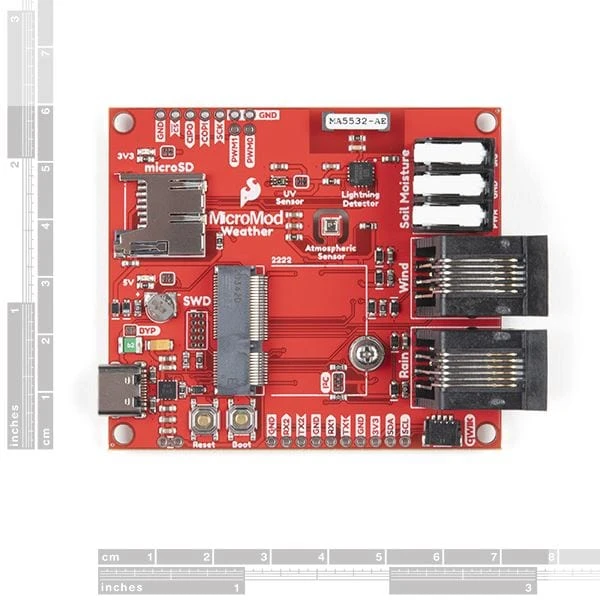

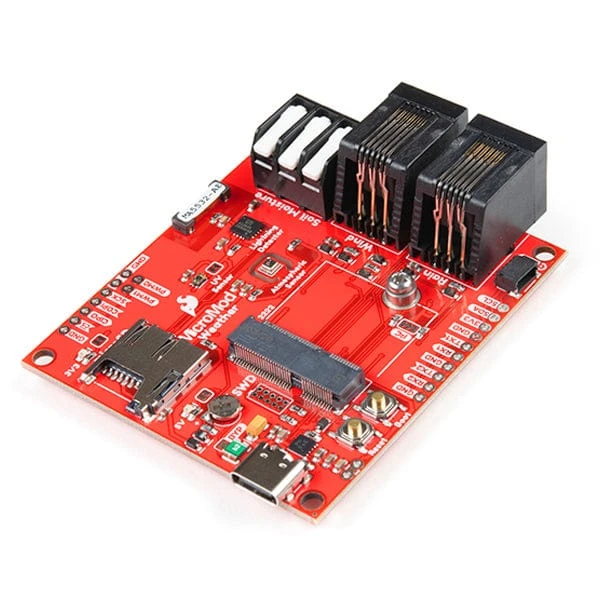

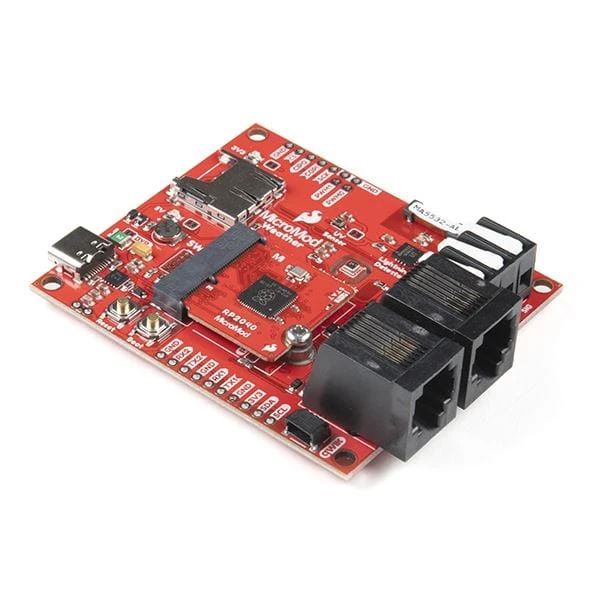

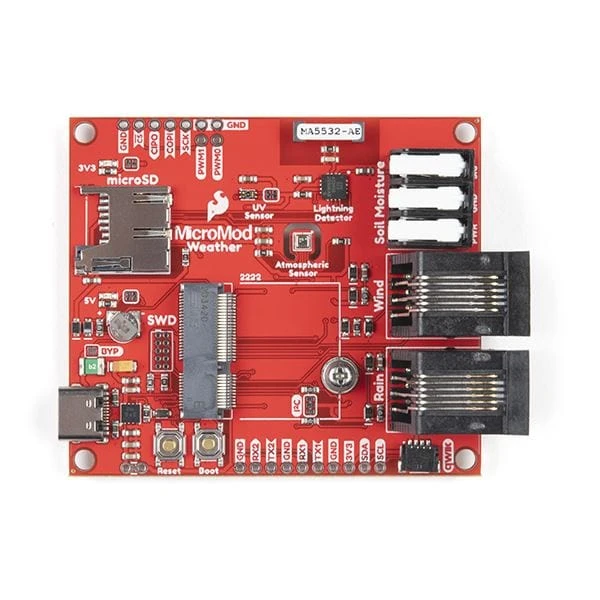

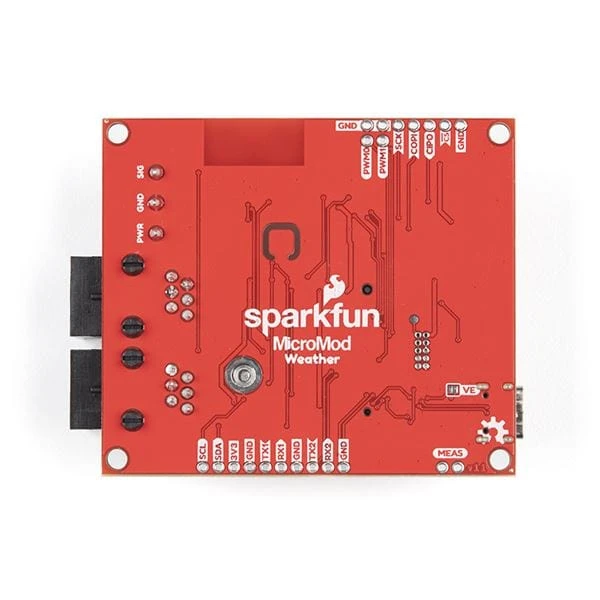

SparkFun MicroMod Weather Carrier Board

The MicroMod Weather Carrier Board is a peripheral for the

MicroMod ecosystem

that allows you to create your own weather station with one of a multitude of processors. The carrier board includes three sensors: the BME280 temperature, pressure and humidity sensor, the VEML6075 UV sensor and the AS3935 Lightning detector.

Along with these onboard sensors, there is a 3-pin latch terminal to add an external soil moisture sensor as well as a pair

RJ11

jacks to plug in the wind and rain sensors included with a Weather Meter Kit. To top it all off there is a microSD card slot so you can plug in an SD card to log all of that glorious weather data using the MicroMod processor of your choosing!

Get Started with the Micromod Weather Carrier Board Guide

Features

• Barometric Pressure/Humidity/Temperature Sensor – BME280
  • Operated in I²C mode. I²C address: 0x77
• UV Light Sensor – VEML6075
  • I²C address: 0x10
• Lightning Detector – AS3935
  • Operated in SPI mode.
• 2 x RJ11 Connectors to connect Wind/Rain sensors.
• 3-pin Latch Terminal to connect Soil Moisture sensor.

Resources

MicroMod Weather Carrier Board Documentation:

• Schematic

• Eagle Files

• Hookup Guide

• Board Dimensions

• Hardware GitHub Repo

• BME280 Datasheet (PDF)

• VEML6075 Datasheet

• AS3935 Datasheet

Weather Carrier Board Sensor Arduino Libraries:

• BME280 Arduino Library

• VEML6075 Arduino Library

• AS3935 Arduino Library

MicroMod Documentation:

• Full MicroMod Range

• Getting Started with MicroMod

• Designing with MicroMod

• MicroMod Info Page

• MicroMod Forums
