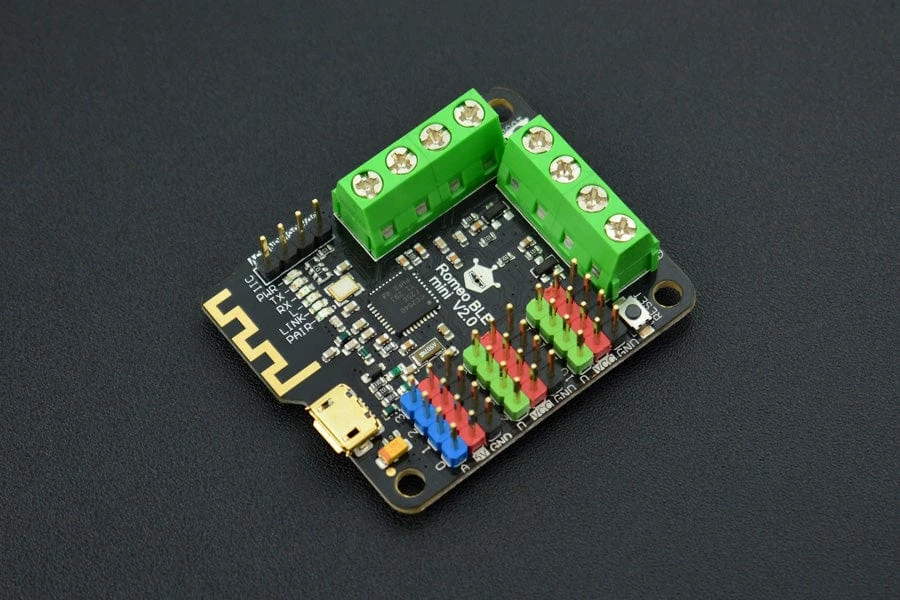

Romeo BLE Mini – Small Control Board For Robot – Arduino Compatible – Bluetooth 4.0

Romeo BLE mini is a simplified version of Romeo family. It inherits all functions of

Romeo BLE

. Moreover, IT GOT A SMALLER SIZE! Yes, you got it all. It has 8 Digital pins, 4 analog pins and integrates Bluetooth 4.0 wireless communication function. And it can easy to drive the mobile platform using two 1.2A H-bridged Motor Driver to meet the needs of small scale robots. We hope Romeo BLE mini will be a good assistant to makers. You may also check

Bluetooth Microcontrollor Selection Guide

to get more information.

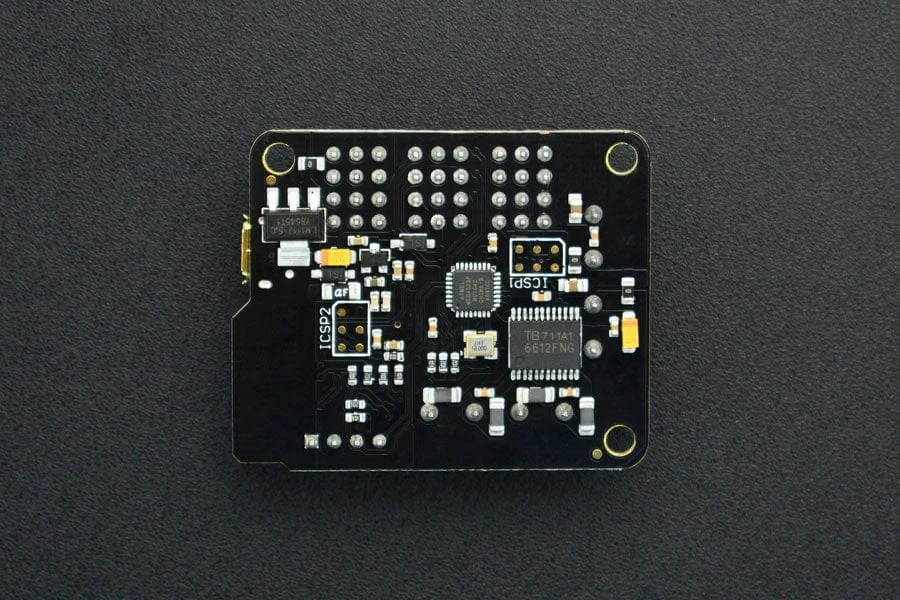

Version Update: V2.0 has upgraded its motor driver IC, it replaces HR8833 with TB6612 motor driver chip. TB6612 has the same control logic with L298 motor driver. The code will be compatible with Romeo robot control board. And it finally breakouts 2 interrupt pins now! You can connect encoders to make PID motor control.

• Support Gravity-3Pin interface, color-coded, compatible with servos and Gravity sensors & modules
• Support external power supply automatically switch, can simultaneously USB and external power supply
• Support wireless download program / wireless communication function
• Support mobile phone APP control
• Two-way H-bridged Motor Driver
• Support servo external power input
• Supports AT commands to configure BLE
• Support serial transmission
• Support master and slave switch

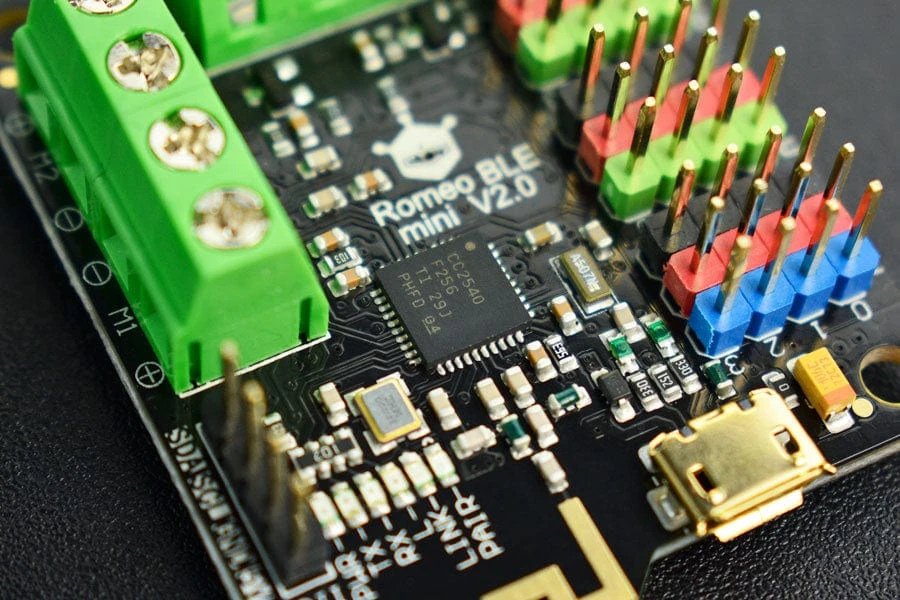

• BLE chip: TI CC2540
• Transmission distance: 30m (open area)
• Microprocessor: ATmega328P
• Board selection: Arduino UNO
• Flash: 32 KB (ATmega328P) of which 0.5 KB used by bootloader
• SRAM2: KB (ATmega328P)
• EEPROM: 1 KB (ATmega328P)
• Clock Frequency: 16 MHz
• Digital I/O Pins: 8
• PWM Digital I/O Pins: 4 (D3, D9, D10, D11)
• Analog Input Pins: 4
• Output current: 1.2A single-channel continuous drive current
• Start / Peak Current: 2A (continuous pulse) / 3.2A (single pulse)
• Motor Drive Pins: D4, D5, D6, D7
• microUSB connector
• 2x2A H-bridge motor driver

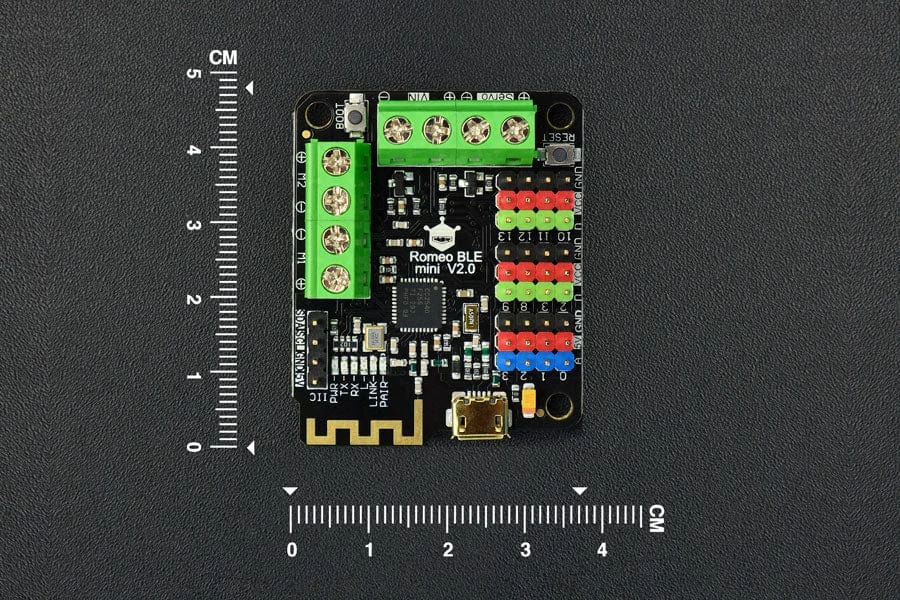

• Size: 45×38.5mm

Romeo BLE Mini V2 WIKI

Romeo BLE Mini V1 WIKI

More Documents

• Romeo BLE mini V2.0 x1
