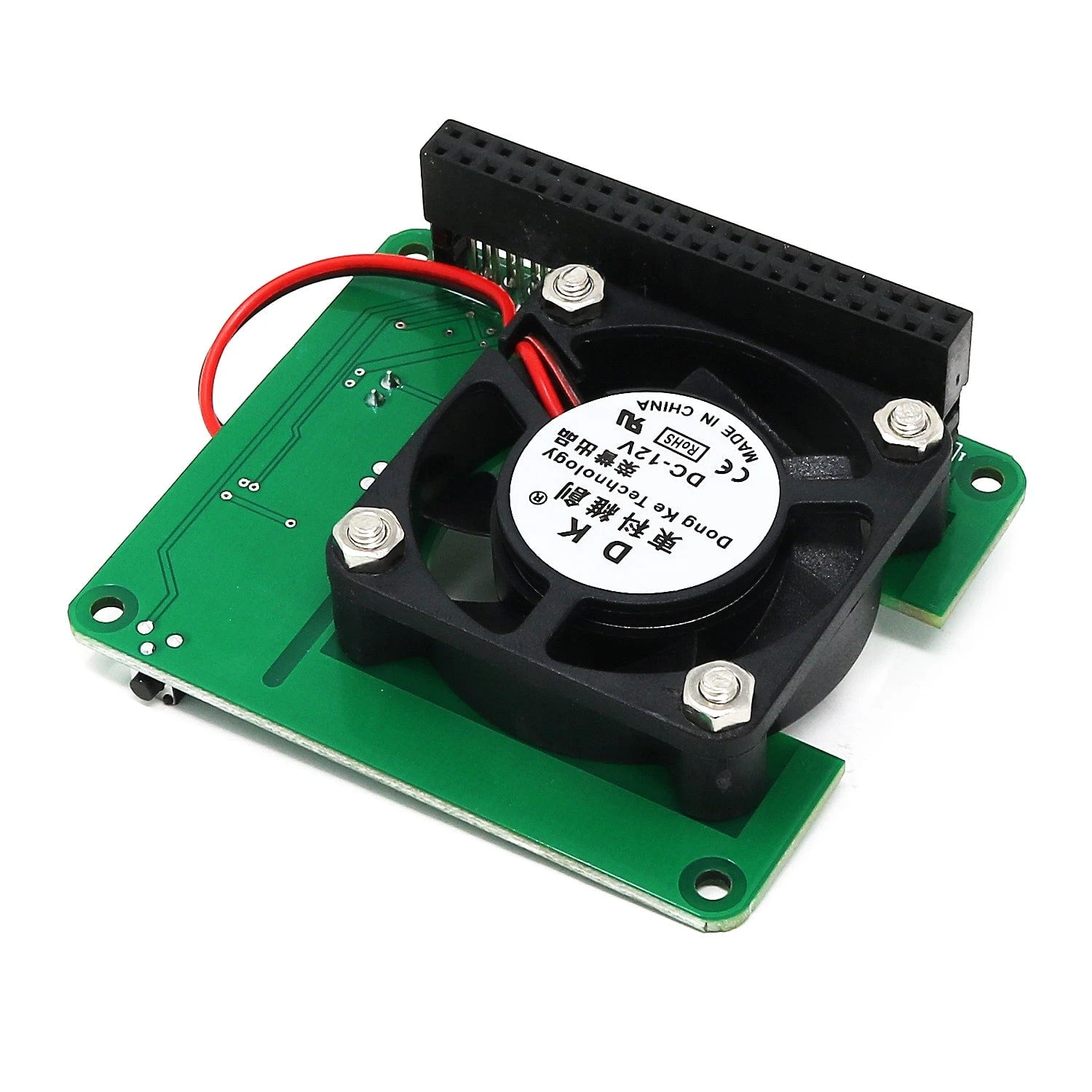

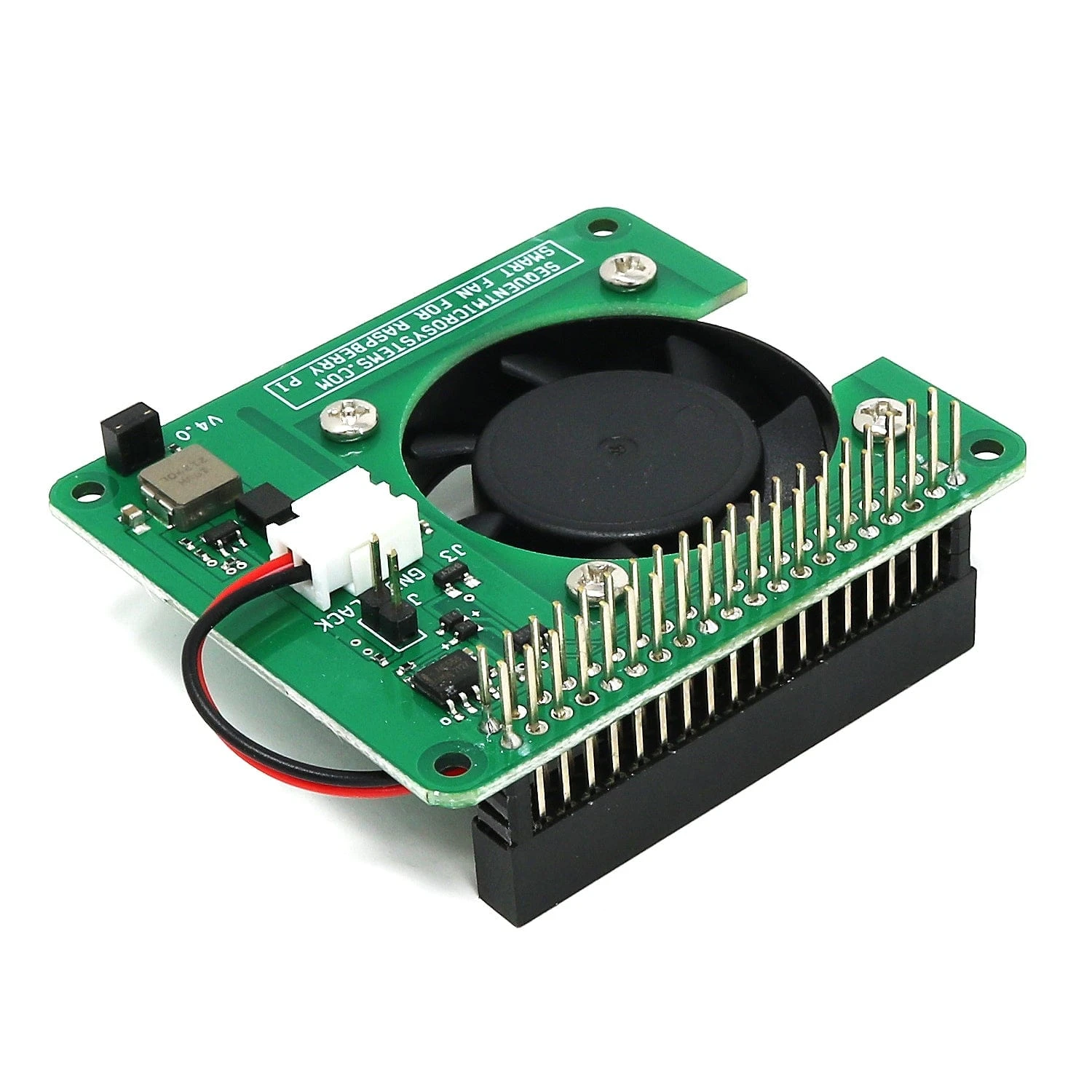

Smart Fan HAT For Raspberry Pi V4.0

The Smart Fan HAT is an inexpensive cooling solution for your

Raspberry Pi 4

with a 40mm fan and its own 32-bit processor for smart cooling.

The 32-bit processor receives commands from Raspberry Pi via the I2C interface. A step-up power supply converts the 5V provided by Raspberry Pi to 12V, ensuring precise speed control. Using pulse width modulation, it powers the fan just enough to maintain a constant temperature of the Raspberry Pi processor.

The Smart Fan preserves all the GPIO pins, allowing any number of HATs to be stacked on top of Raspberry Pi. If another add-on card has to dissipate power, a secondary Smart Fan can be added to the stack.

Two Smart Fans can be installed on top of each Raspberry Pi. The assumption is that you have one more card in the stack which requires cooling. The bottom side of the Smart Fan has a jumper which needs to be installed on the second fan, in order for the Raspberry Pi to differentiate the two I2C addresses.

Software Control

The Smart Fan can be controlled from any program using simple

command line

 or

Python

 functions. A

Node-Red interface

 lets you set and monitor the temperature from the browser. The software can maintain the temperature history in a log file which can be plotted in Excel, an example loop can be found

here

.

Controlling the Fan Speed

Since the Smart Fan is a slave to the I2C interface, Raspberry Pi must tell it what to do.

Command line and Python functions are available to control the fan speed. Raspberry Pi needs to monitor the processor temperature and control the fan speed accordingly. A PID loop sample program can be downloaded from GitHub. In case of malfunction, if the temperature exceeds a safe limit, Raspberry Pi must shut itself off to prevent burnout.

Self-test

The Smart Fan has a LED controlled by the local processor. At power up, the processor powers up the fan for 1 second, so the user can make sure the system is functional.

The onboard LED shows the status of the fan. When the fan is off, the LED blinks 1 time per second. When the fan is turned on, the LED blinks between 2 to 10 times per second, proportional to the speed of the fan.

Features

• 40x40x10mm fan with 6 CFM airflow
• Step-up 12V power supply for precise fan speed control
• PWM Controller modulates the fan to keep a constant temperature
• Draws less than 100mA of power
• Stackable to itself, 2 fans can be added to Raspberry Pi
• Fully stackable allows adding other cards to Raspberry Pi
• Uses only I2C interface, leaves full use of all GPIO pins
• Super quiet and efficient
• Smart Fan Raspberry Pi

• Command Line Interface

• Python Library

• Python Example

• Node-RED node

Resources

• User’s Guide

• Open Source Hardware Schematic V2

• Open Source Hardware Schematic V4

• Open Source Hardware Schematic V5

• 2D CAD Drawing

• 3D STEP Model

• Command line

• Python Libraries

• Node-RED Nodes

• RoHS and REACH Compliance Declaration

Package Contents

• 1x Smart Fan HAT board
• 1x 40mm fan

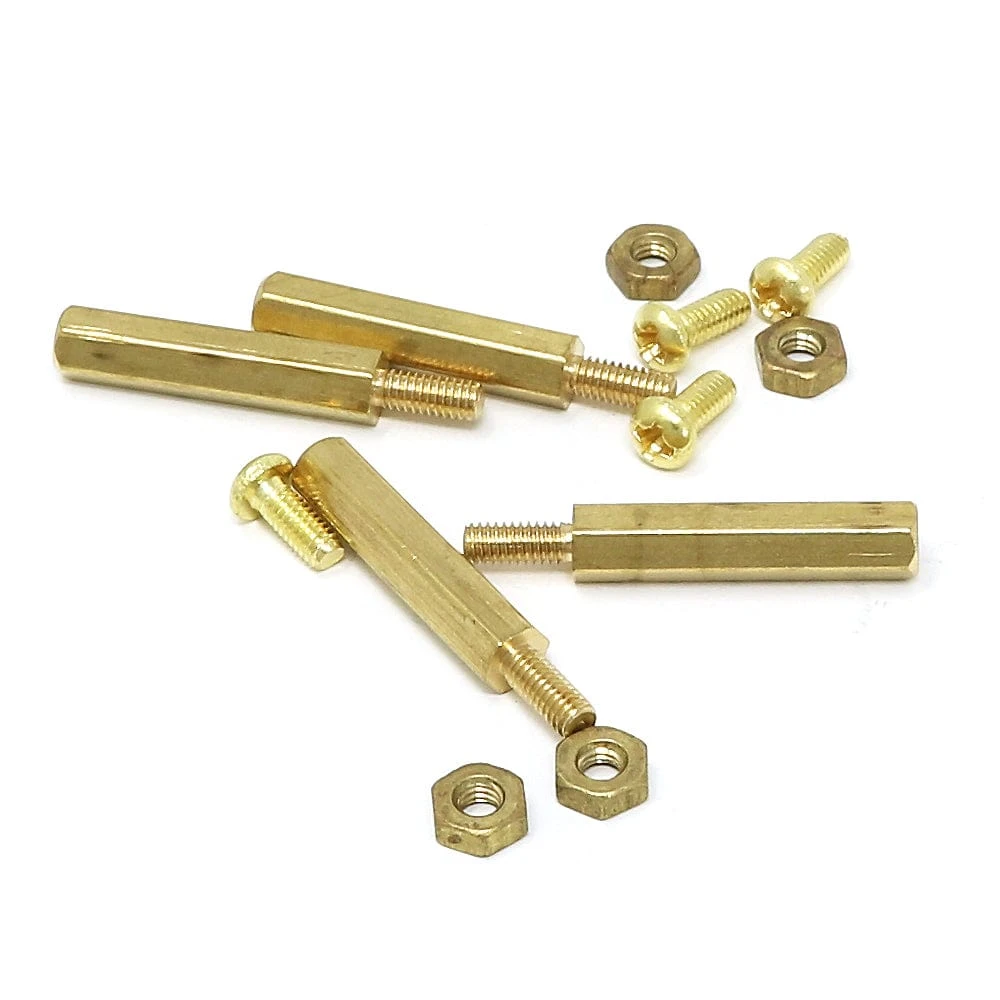

• Mounting hardware and fixings

Raspberry Pi not included

Revision History

• As of 15/12/2023 – We are now stocking an updated version, which includes some board changes and a much shorter tidier fan wire
