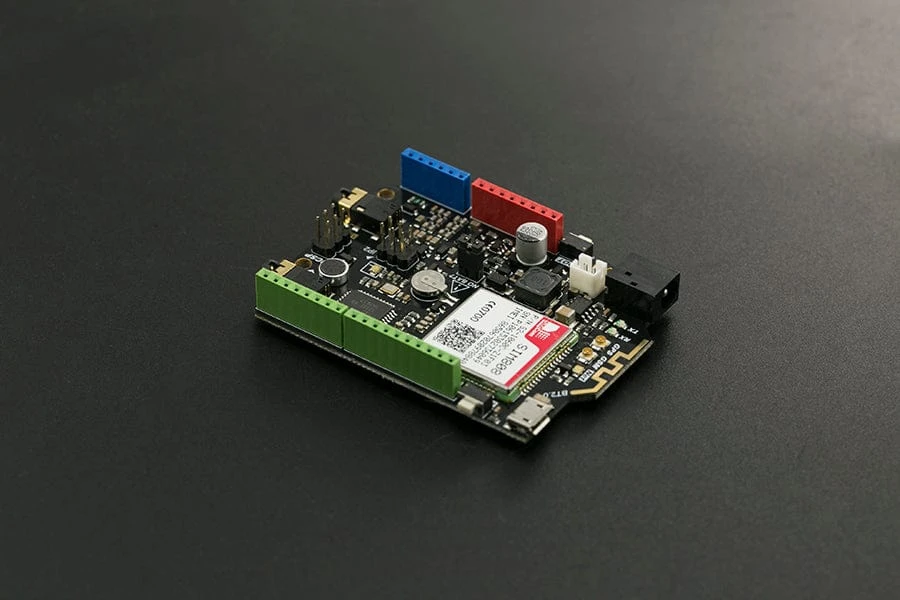

SIM808 GSM/GPRS/GPS IoT Board (Arduino Leonardo Compatible)

This is an SIM808 GSM/GPRS/GPS IoT Board based on Arduino Leonardo. The SIM808 with Leonardo mainboard is the latest development board for multi-purpose applications. The onboard SIM808 module includes an integrated quad-band GSM/GPRS and GPS satellite navigation module, and a 4 layer PCB integrates the microcontroller, microphone, headphone jack and GPRS/GPS, giving this board the tiny footprint of a regular credit card! Meanwhile, the board includes a sleep mode feature for extra-low power consumption. And an on-board 3.7V Lipo battery power supply and battery-charging circuit has been integrated into the board, making it ideal for applications such as real-time car tracking, security patrolling, and IoT projects.

Compared with the existing SIM808 modules on the market, this SIM808 uses the latest version with better stability. And it has Bluetooth now.
how to track and locate objects or people with the sim808 using GPS and SMS and google maps

• AVR Arduino MCU: ATmega32u4 (Bootloader: Leonardo)
• Operating voltage: 5V
• Input Voltage: 5V (USB)/7~23V(Vin)/3.5~4.3V (BAT)
• Low-power consumption: (100mA@7V-GSM mode)
• Digital I/O Pins: 20
• PWM Channels: 7
• Analog Input Pins: 12
• DC Current per I/O Pin: 40 mA
• DC Current for 3.3V Pin: 50 mA
• Flash Memory: 32 KB (of which 4 KB is used by the bootloader)
• SRAM: 2.5 KB
• EEPROM: 1 KB
• Clock Speed: 16 MHz
• Wireless Module: SIM808 GSM/GPRS/GPS module
• Quad-band 850/900/1800/1900MHz – 2G GSM network
• GPRS multi-slot class 12/10
• GPRS mobile station class B
• Compliant to GSM phase 2/2+
  • Class 4 (2 W @ 850/900MHz)
  • Class 1 (1 W @ 1800/1900MHz)
• Bluetooth: Compliant with 3.0 + EDR
• Time-To-First-Fix
  • Cold starts: 30s (typ.)
  • Hot starts: 1s (typ.)
  • Warm starts: 28s (typ.)
• Accuracy: Horizontal position 2.5m CEP
• Update rate: 5Hz
• Control: AT command (GSM07.07, 07.05 and SIMCom enhanced AT commands)
• Dimension: 73*54mm / 2.87* inches
• Weight: 50g

• Wiki

• Related Documents

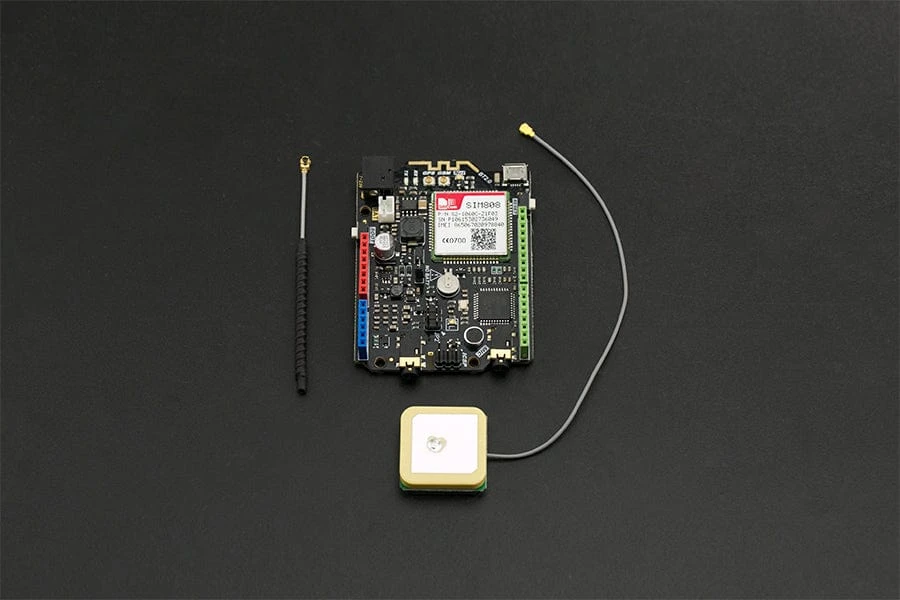

• SIM808 with Leonardo mainboard x1
• Built-in Spring GSM Antenna x1

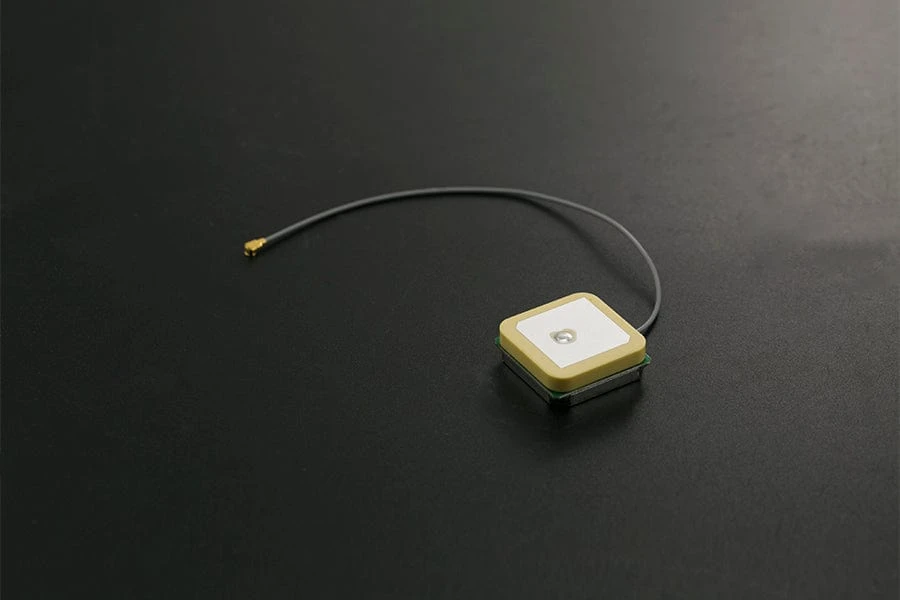

• Built-in GPS antenna x1
