RP2040-LCD

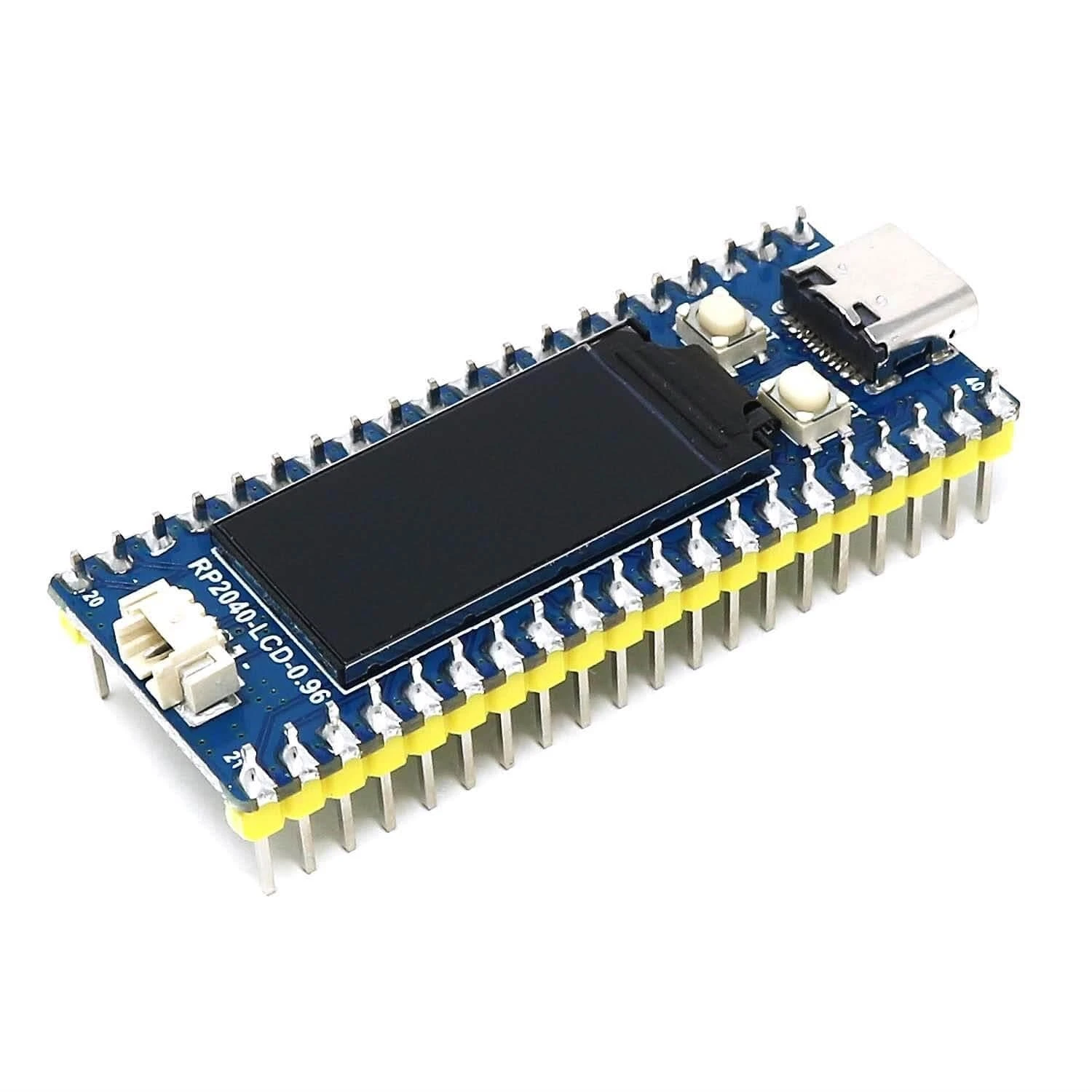

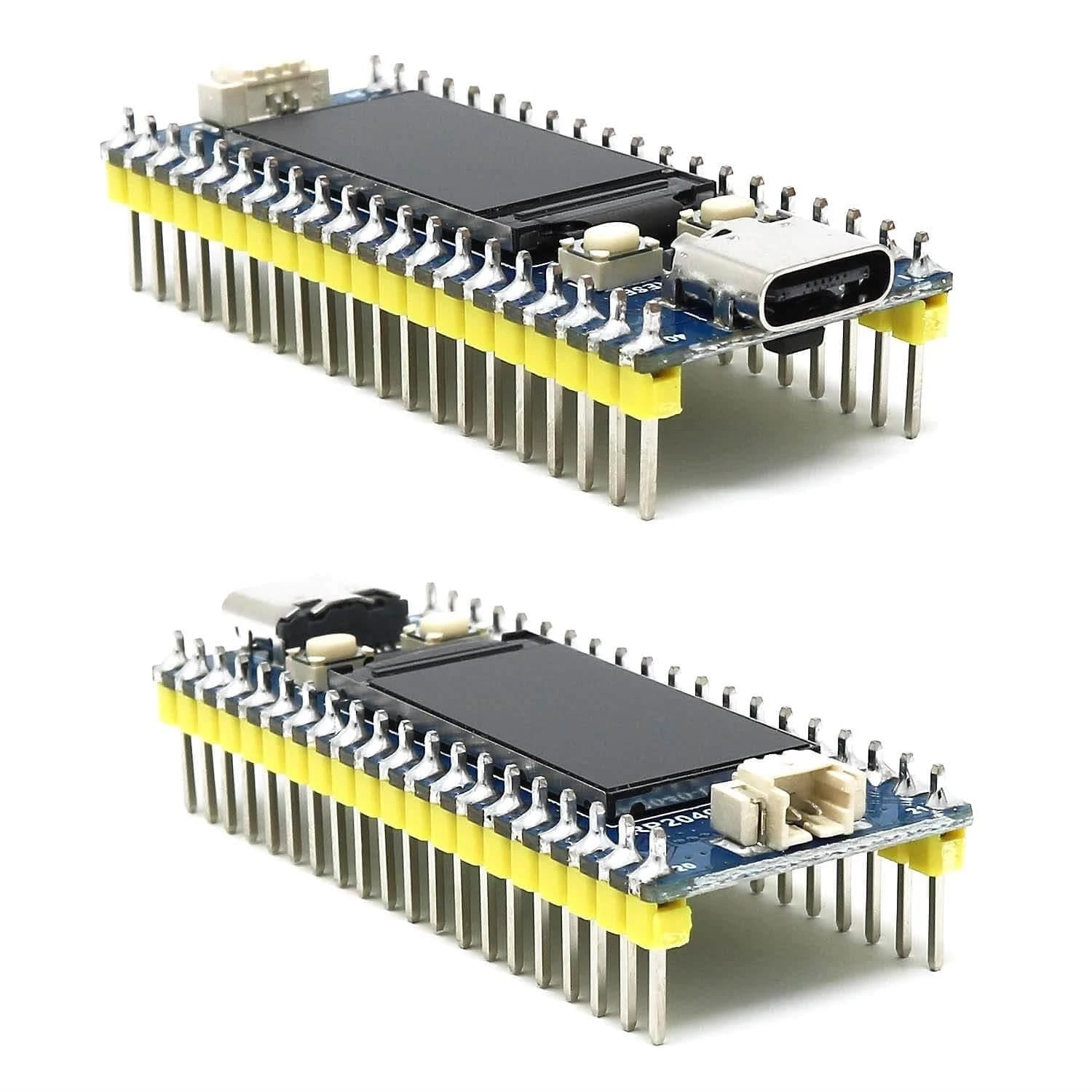

The RP2040-LCD is a development board based on the

Raspberry Pi RP2040

and inspired by the

Raspberry Pi Pico

, with an 0.96″ IPS LCD display, USB-C connection, onboard LiPo battery charging and pre-soldered headers!

Using the same GPIO pinout as the Raspberry Pi Pico, the same environment/SDK and a similar board shape and size, the RP2040-LCD offers users additional features in the familiar Pico format, including:

• 0.96″ IPS LCD display
• USB-C Connector (with 1800mA regulator)
• Battery recharge circuit and header for 3.7V LiPo batteries
• Pre-soldered headers
• 2MB onboard Flash memory
• Reset button

The board also includes reset/boot buttons and flat debug pads. Your existing Raspberry Pi Pico add-on boards are pin-compatible and can be used with the same libraries and software – use it just like you would a Raspberry Pi Pico!

We are currently only stocking the pre-soldered version, removing the need to solder pin headers yourself. Don’t forget to grab a

USB-C cable

!

Features

• RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
• Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
• 264KB of SRAM, and 2MB of onboard Flash memory
• USB-C connector
• 0.96″ 160×80 pixels 65K colorful IPS LCD display
• Lithium battery recharge/discharge header, suitable for mobile devices
• Onboard DC-DC chip TPS63000, high-efficiency DC-DC buck-boost chip, 1.8A current switch
• USB 1.1 with device and host support
• Low-power sleep and dormant modes
• Drag-and-drop programming using mass storage over USB
• 26 × multi-function GPIO pins
• 2 × SPI, 2 × I2C, 2 × UART, 3 × 12-bit ADC, 16 × controllable PWM channels
• Accurate clock and timer on-chip
• Temperature sensor
• Accelerated floating-point libraries on-chip
• 8 × Programmable I/O (PIO) state machines for custom peripheral support
• Dimensions: 51mm x 21mm

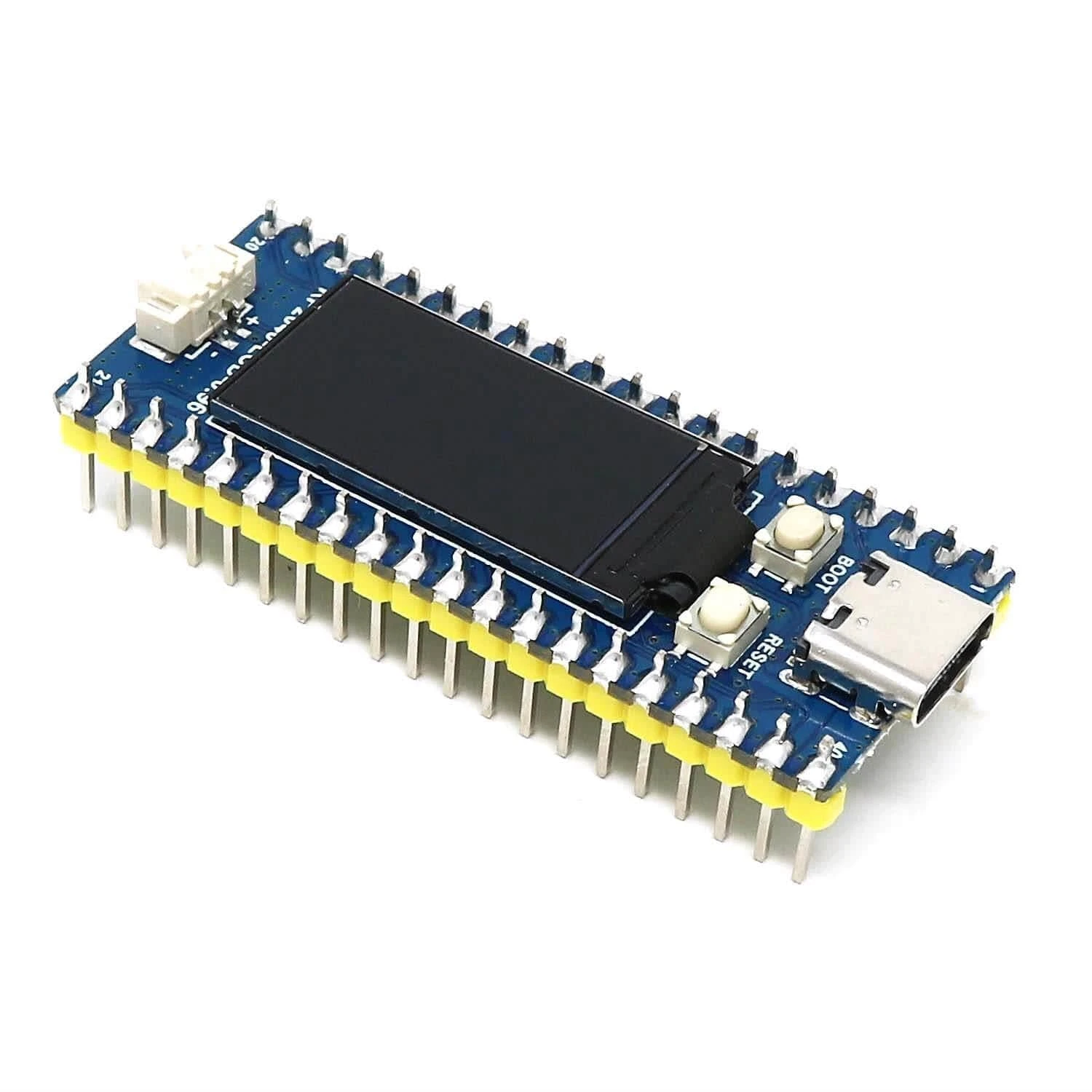

What’s Onboard?

1) USB Type-C connector
2) BOOT button
 – Press to reset and enter download mode
3) RESET button
4) 0.96″ IPS LCD display
 – 160 × 80 pixels, 65K colorful
5) Battery header
 – MX1.25 header, for 3.7V Lithium battery, allows recharging the battery and powering the board at the same time
6) TPS63000
 – High-efficiency DC-DC buck-boost chip
7) ETA6096
 – High-efficiency Lithium battery recharge manager
8) RP2040
 – Dual-core processor, up to 133MHz operating frequency
9) W25Q16JVUXIQ
 – 2MB NOR-Flash
10) DEBUG points
11) Pinout
 – Compatible with Raspberry Pi Pico

Package Contents

• 1x RP2040-LCD board (with soldered headers)

Resources

• Product Wiki

• Schematic

• Demo Code

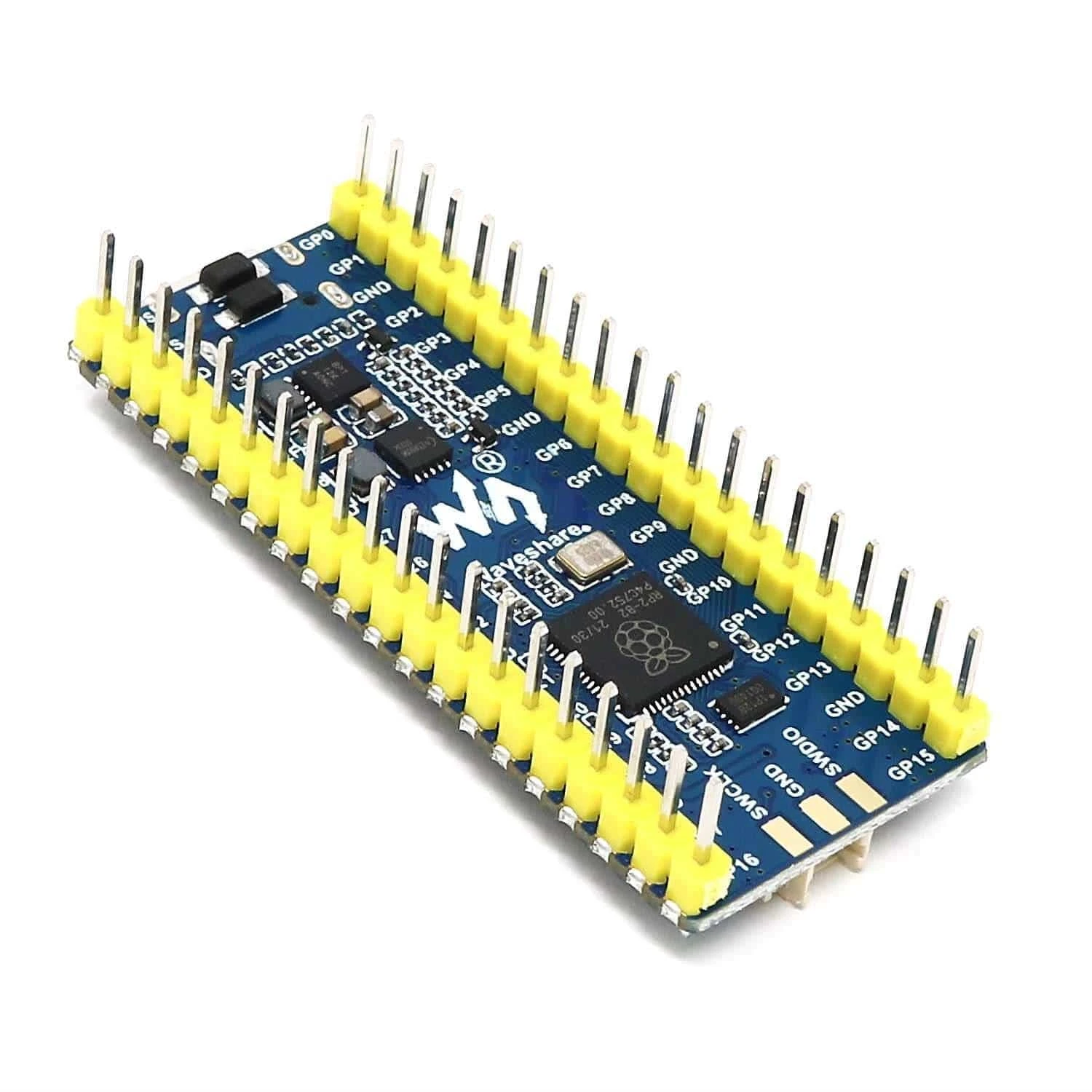

Pinout
