RasPiBox Zero – Pi Zero Prototyping DIN Rail Case (inc. 5V Regulator)

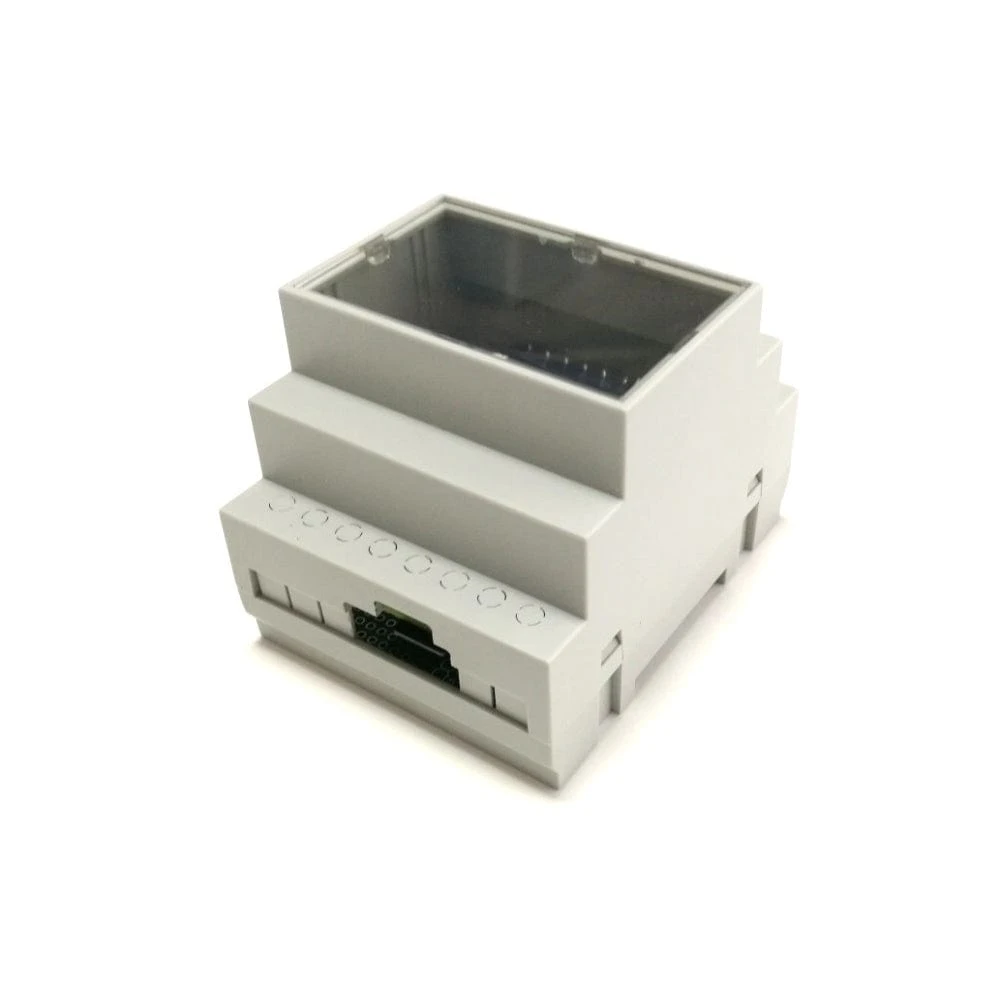

RasPiBox Zero is a DIN rail enclosure set for the Raspberry Pi Zero.

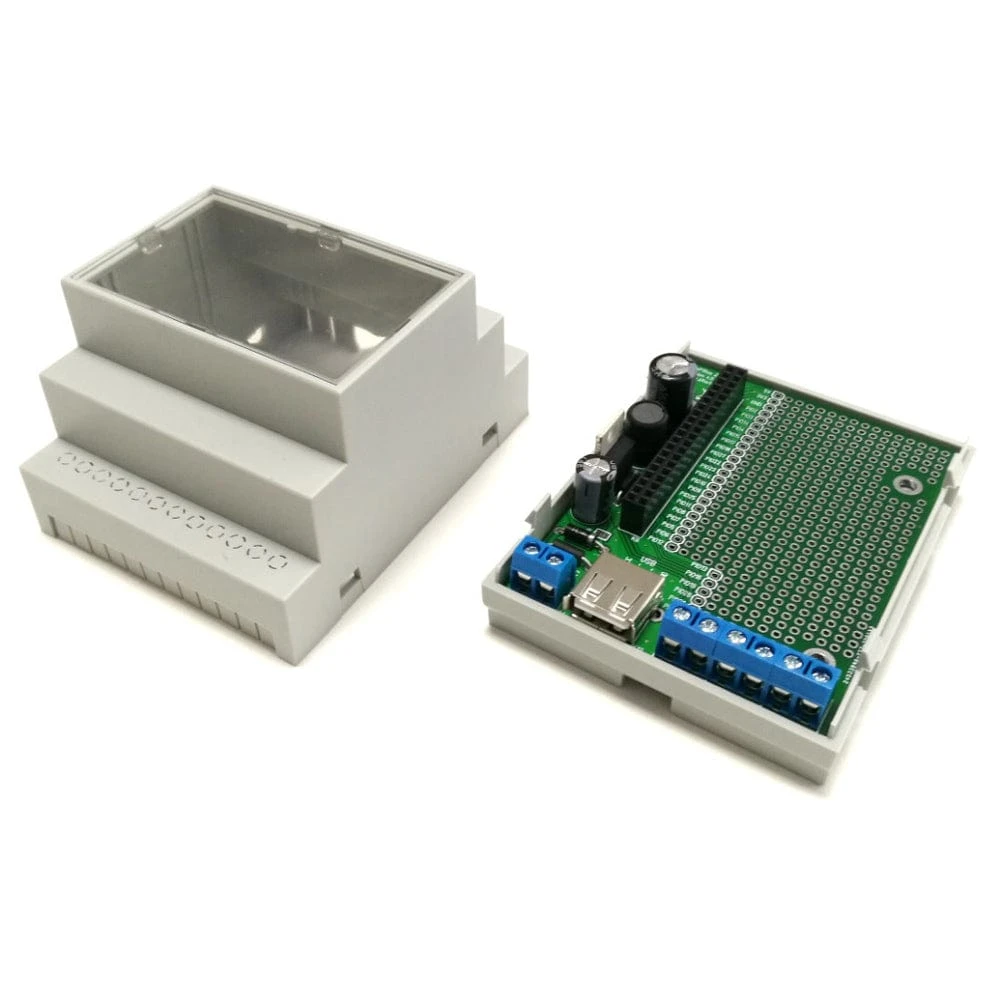

At the heart of the enclosure is an additional PCB with an integrated voltage regulator (soldering required) and a prototyping area. It fits together with the PiZero in a 4 module DIN rail enclosure and allows you to add your own custom circuit!

Note: Pi Zero not included. Assembly required including soldering.

Features

• Milled 4 module DIN rail enclosure
• Top shell with grey or transparent cover
• Designed for EN50022 DIN rails
• PCB with 40-pole female pin header to plug a Raspberry Pi Zero
• Integrated voltage regulator (input voltage 9-35V via 2-way terminal block)
• Protoboard for own circuits
• All GPIO pins are marked and placed beside the breadboard area
• 3x 2-way terminal blocks to connect external components to the breadboard
• USB-A socket to bring the internal USB of the Pizero outside the housing
• Removable protections for terminals
• Opening for SD card on the top side
• Raspberry Pi Zero (WH/1.3)
