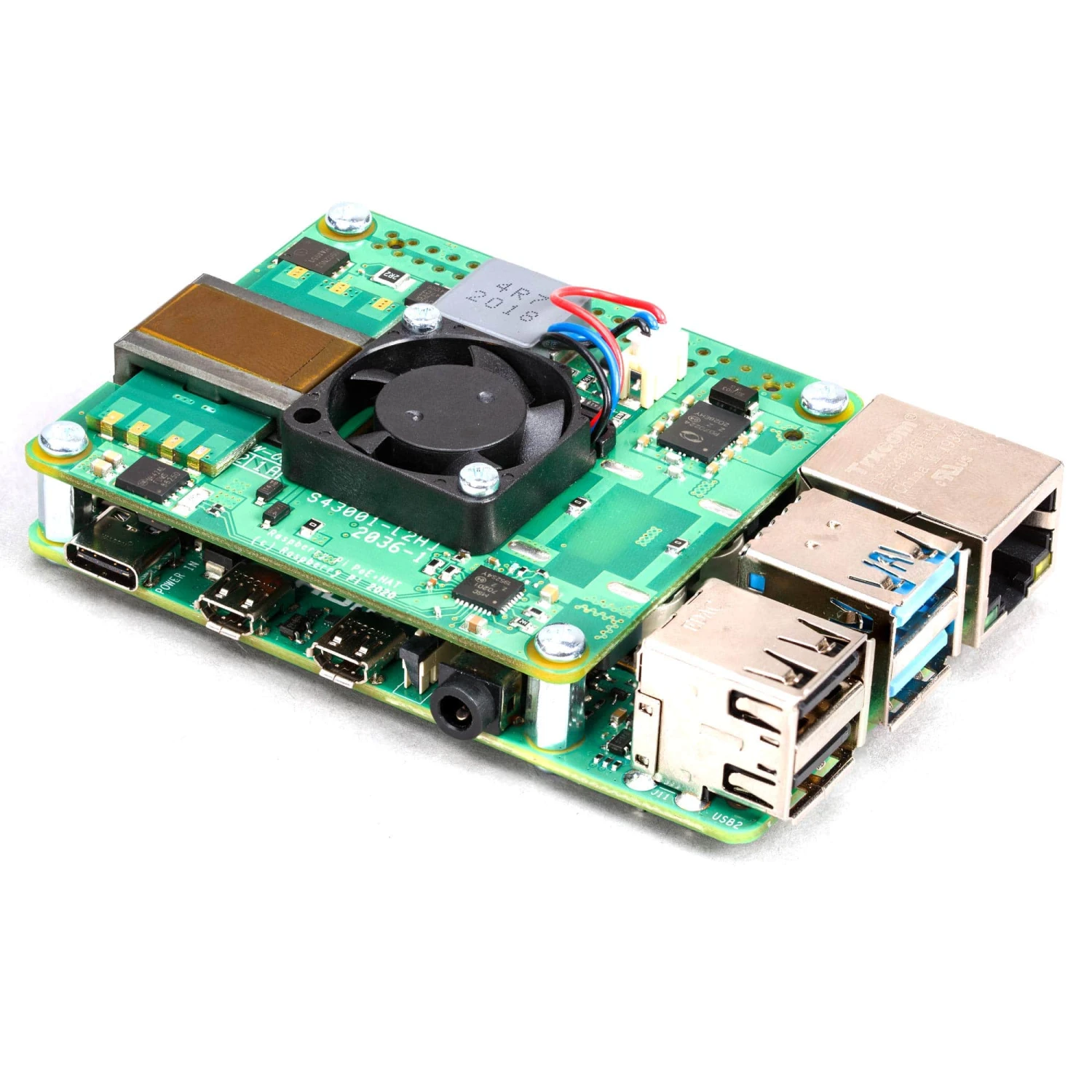

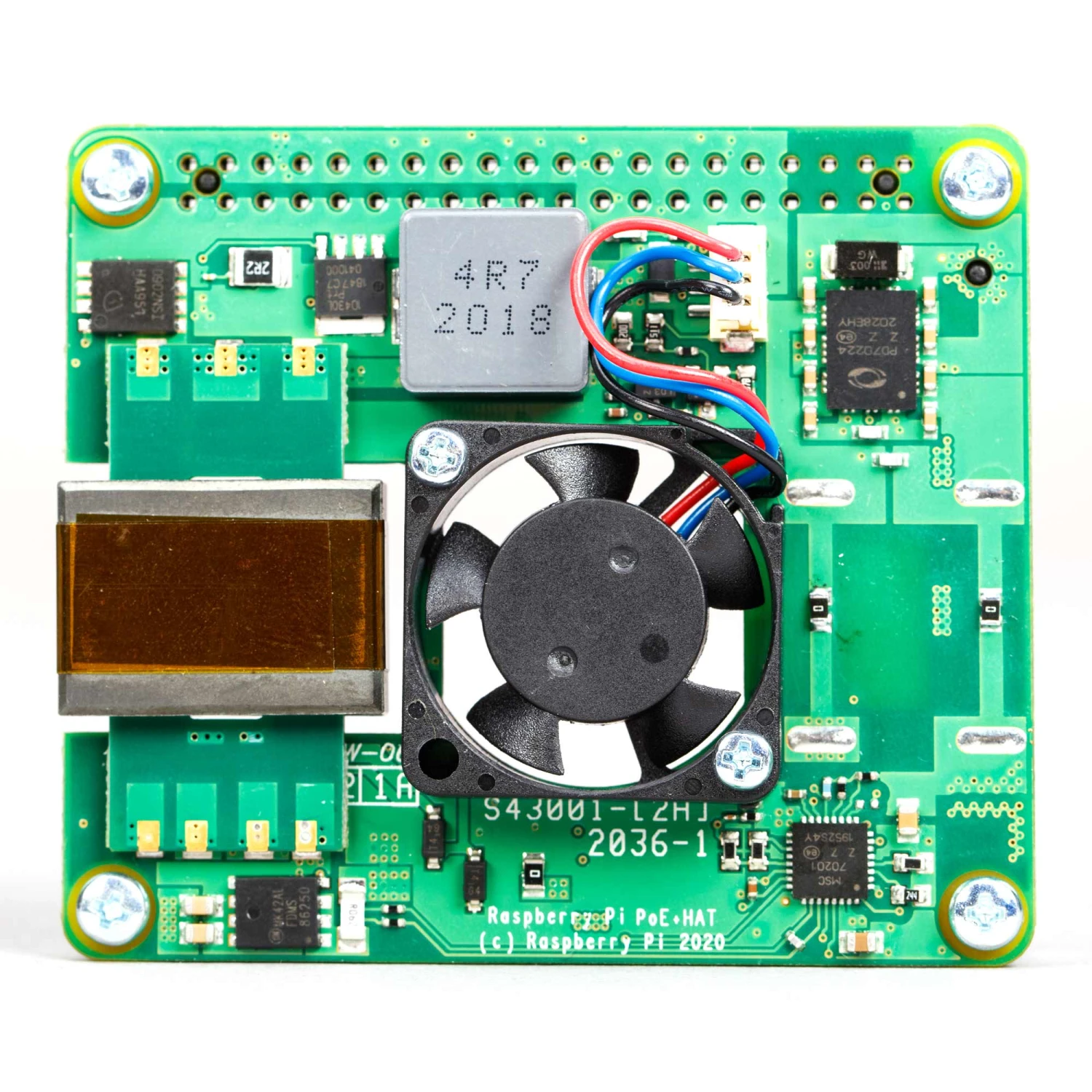

Raspberry Pi PoE+ HAT

The Raspberry Pi PoE+ HAT is a new version of the original Raspberry Pi PoE HAT, now with 5V 4A output for the most demanding Raspberry Pi applications! It is designed to replace the original PoE HAT in all new and existing designs and meets all requirements of the IEEE 802.3af (802.3at Type 1) specifications.

The PoE+ HAT is an add-on board for Raspberry Pi boards with PoE (Power over Ethernet) pins i.e. the

Raspberry Pi 4

and

Raspberry Pi 3B+

. Not compatible with raspberry Pi 5.

It is used to power a Raspberry Pi via an Ethernet cable, provided that power-sourcing equipment is installed on the Ethernet network. The HAT also includes a fan that will cool the Raspberry Pi processor.

The cooling fan is temperature-controlled, which starts to spin (at a slow speed initially) at 40 degrees. The fan then speeds up as the temperature increases (around every additional 5 degrees) ensuring cool and quiet operation.

We also offer a great PoE+ HAT case here

 and a

stacking header set for adding HATs on top of your PoE+ HAT

!

Important Notes

• An up to date copy of Raspberry Pi OS (and the latest kernel) is required for this HAT to function correctly. We recommend a fresh install of Raspberry Pi OS.
• Take care when separating the HAT from the Pi. Pull evenly so that it detaches from all the pins at the same rate; do not pull one end of the connector off before the other!

Raspberry Pi PoE+ HAT Features

• Standard: IEEE 802.3at-2003 PoE
• Input voltage: 37–57 V DC, Class 4 device
• Output power: 5V DC / 4 A
• Cooling: 25mm × 25mm brushless fan delivering 2.2 CFM for processor cooling
• Fully isolated switched-mode power supply
• Fan Control
• Weight: 39g
• Operating temperature: 0 °C to +50°C
• Production lifetime: The Raspberry Pi PoE+ HAT will remain in production until at least January 2027
• Compliance: For a full list of local and regional product approvals, please visit

  www.raspberrypi.org/compliance

Package Contents

• Raspberry Pi PoE Plus HAT
• GPIO Header
• Standoffs and fixings

Also required

• A PoE-compatible Raspberry Pi

• Power-sourcing equipment for an 802.3af Power over Ethernet network (such as a

  PoE Injector

  or PoE-compatible Router/Switch)

• Ethernet cable

Additional information

• No modification to the Raspberry Pi board is required for this product to function
• Please ensure that your Raspberry Pi software is up to date for all functionality to be available

PoE+ HAT Dimensions

The Raspberry Pi PoE+ HAT’s overall dimensions are 56.5mm x 65mm (identical to the original PoE HAT).
