Raspberry Pi High Quality Camera Module

The new official Raspberry Pi High Quality Camera module (HQ Camera) for the

Raspberry Pi

is here – take your Raspberry Pi camera projects up a gear with the 12-megapixel Sony sensor, integrated aluminium tripod mount and

interchangeable lens

compatibility!

To use this camera with a Raspberry Pi 5, you will need to buy this

adapter cable

!

To use this camera with a Raspberry Pi Zero, you will need to buy this

adapter cable

!

We now also stock an

M12 version of the High Quality Camera

which accepts most M12 format lenses.

Lens required!

This camera module will not function without a lens (purchased separately). We have a

huge selection of great lens options

in the store.

…or use your own Canon lens with

these adapters

!

We also stock different tripods which fit the Raspberry Pi HQ Cam tripod mounting point perfectly:

• Small 75mm Tripod for HQ Camera

• Medium 150mm Tripod for HQ Camera

• Large 250mm Tripod for HQ Camera

Features

The incredible new High Quality (HQ) Camera module from Raspberry Pi offers a higher resolution (12 megapixels, compared to 8 megapixels), and sensitivity (approximately 50% greater area per pixel for improved low-light performance) than the

Camera Module v2

.

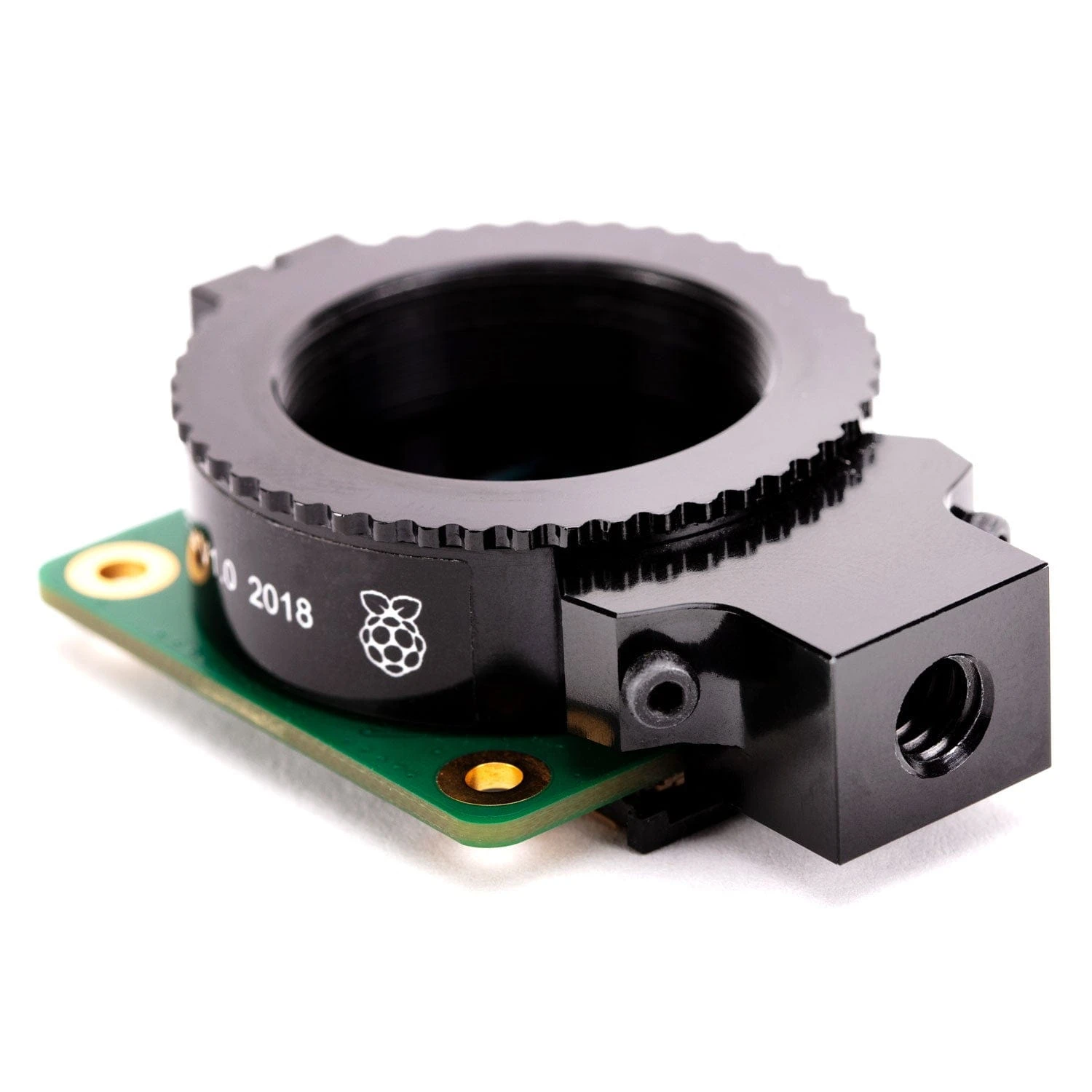

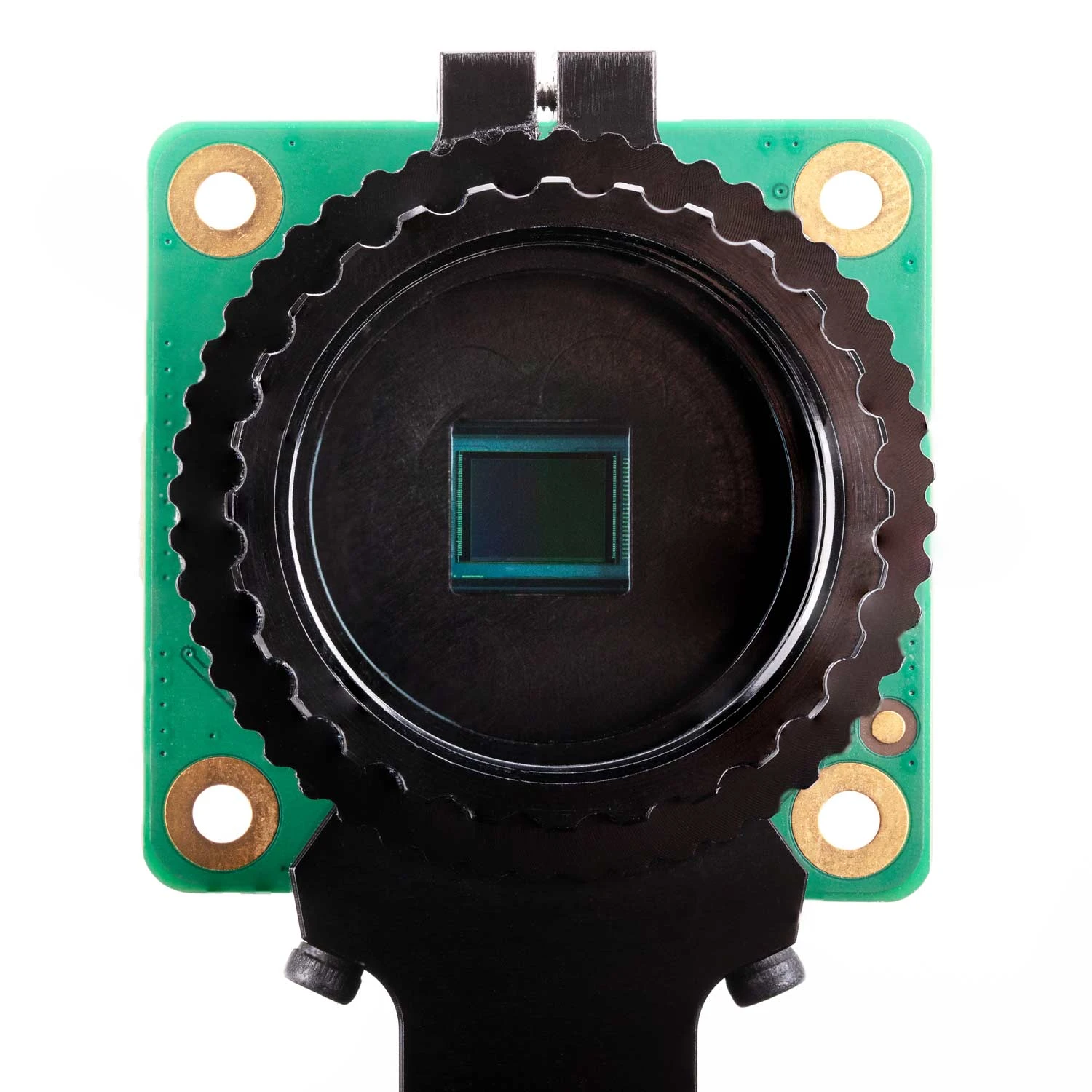

It features a Sony IMX477 sensor, a 200mm FPC cable for connection to your Raspberry Pi, a milled aluminium lens mount with integrated 1/4” -20 tripod mount and focus adjustment ring, and a C- to CS-mount adapter.

A lens cover is also included with the module and comes pre-fitted. There’s even a small screwdriver in the box for making adjustments.

It’s designed to work with

interchangeable lenses

in both C- and CS-mount form factors giving you ultimate flexibility with your Raspberry Pi camera projects. A C-CS mount adapter comes pre-fitted to the module.

Familiar coding

The High Quality (HQ) Camera uses the same commands as the standard Raspberry Pi Camera Module, such as libcamera (or raspistill/raspivid if you’re using Buster or an even older OS image)

libcamera and similar commands will query the camera firmware for the resolution of the sensors (as they already do today) and will default to 12 megapixels for the High Quality Camera.

The drivers for the High Quality (HQ) Camera are built-in to Raspberry Pi OS too, so upgrading your camera project with the High Quality Camera is a simple task.

Magnificent for Makers

A huge range of popular projects from time-lapse photography to Raspberry Pi CCTV-style systems can be made double-awesome with the new High Quality Camera module. Shoot in greater detail, with improved low-light performance and take advantage of the range of available lenses to get the perfect shot.

Incredible for Industry

The High Quality Camera provides an alternative to the Camera Module v2 for industrial and consumer applications, including security cameras which require the highest levels of visual fidelity and/or integration with specialist optics.

Compatibility

The HQ Camera is compatible with all Raspberry Pi boards with a full-size camera connector (CSI connector).

• To use this camera with a Raspberry Pi 5 (which has a smaller CSI connector), you will need to use

  a Raspberry Pi 5 camera adapter cable

• To use this camera with a Raspberry Pi Zero (which has a smaller CSI connector), you will need to use

  an adapter cable

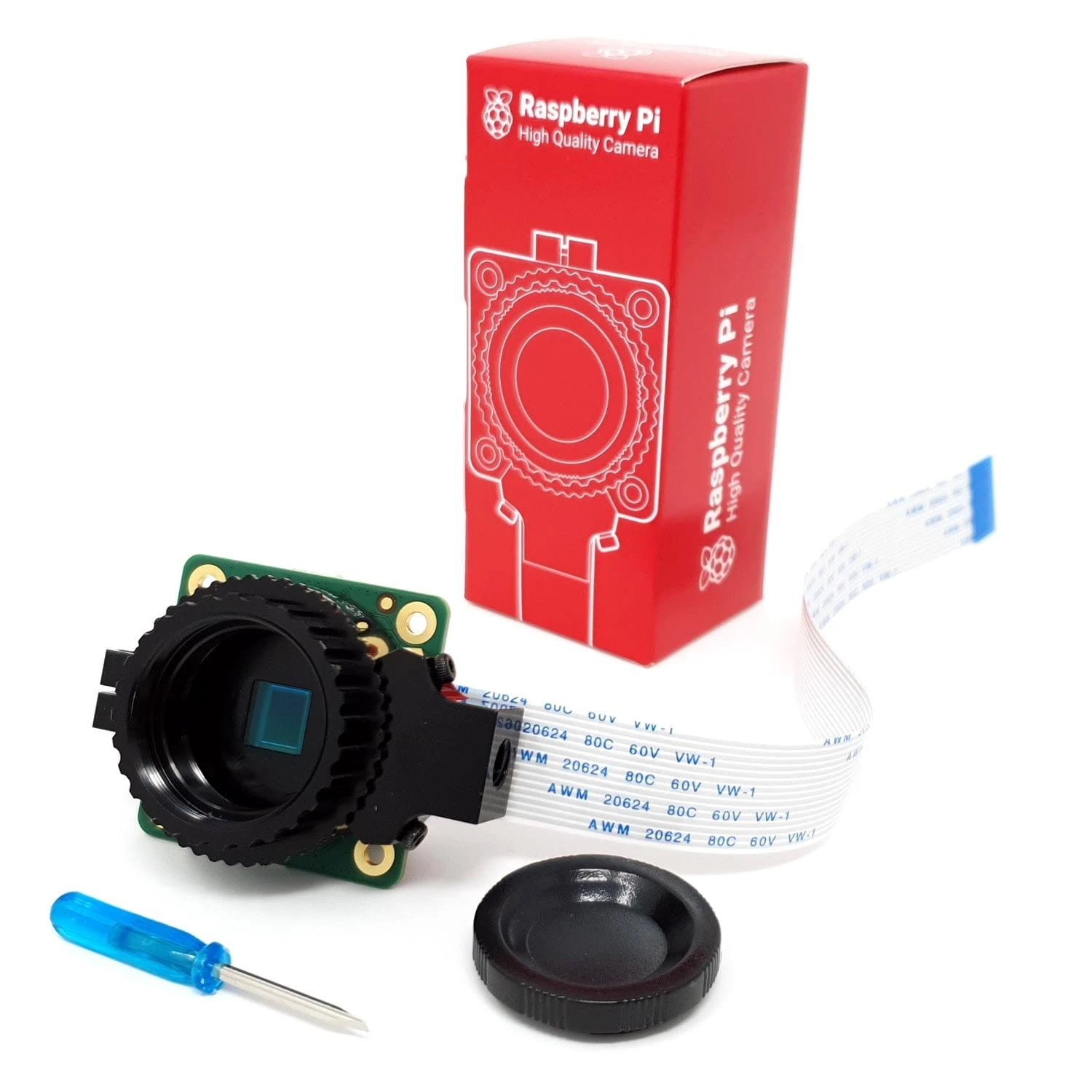

In the box

• High Quality (HQ) Camera module with integrated tripod mount (fitted)
• Lens cover (fitted)
• C-CS lens adaptor (fitted)
• 200mm ribbon cable (fitted)
• Small flat-head screwdriver for adjustments

Resources

• High Quality Camera Getting Started Guide

• C-Mount Lens Guide

• CS-Mount Lens Guide

• Official Product Information Sheet

Technical Specification

Sensor:

• Sony IMX477R stacked, back-illuminated sensor
• 12.3 megapixels
• 7.9 mm sensor diagonal
• 1.55 μm × 1.55 μm pixel size

Output: RAW12/10/8, COMP8

Back focus: Adjustable (12.5 mm–22.4 mm)

Lens standards: C-mount / CS-mount (C-CS adapter included)

IR cut filter: Integrated

Ribbon cable length: 200 mm

Tripod mount: 1/4”-20

Compliance:

• FCC 47 CFR Part 15, Subpart B, Class B Digital Device
• Electromagnetic Compatibility Directive (EMC) 2014/30/EU
• Restriction of Hazardous Substances (RoHS) Directive 2011/65/EU
