Raspberry Pi High Quality Camera Lens

The new High Quality Camera from Raspberry Pi is compatible with C or CS-mount lenses. We have two options available in this listing – 6mm 3MP Wide Angle and 16mm 10MP Telephoto (select option above).

We also have a number of other lens options in the store!

Please note: This listing is for one lens. Select either the 6mm or 16mm from the available options. Raspberry Pi High Quality Camera not included –

available separately here

.

Which HQ Camera lens do I need?

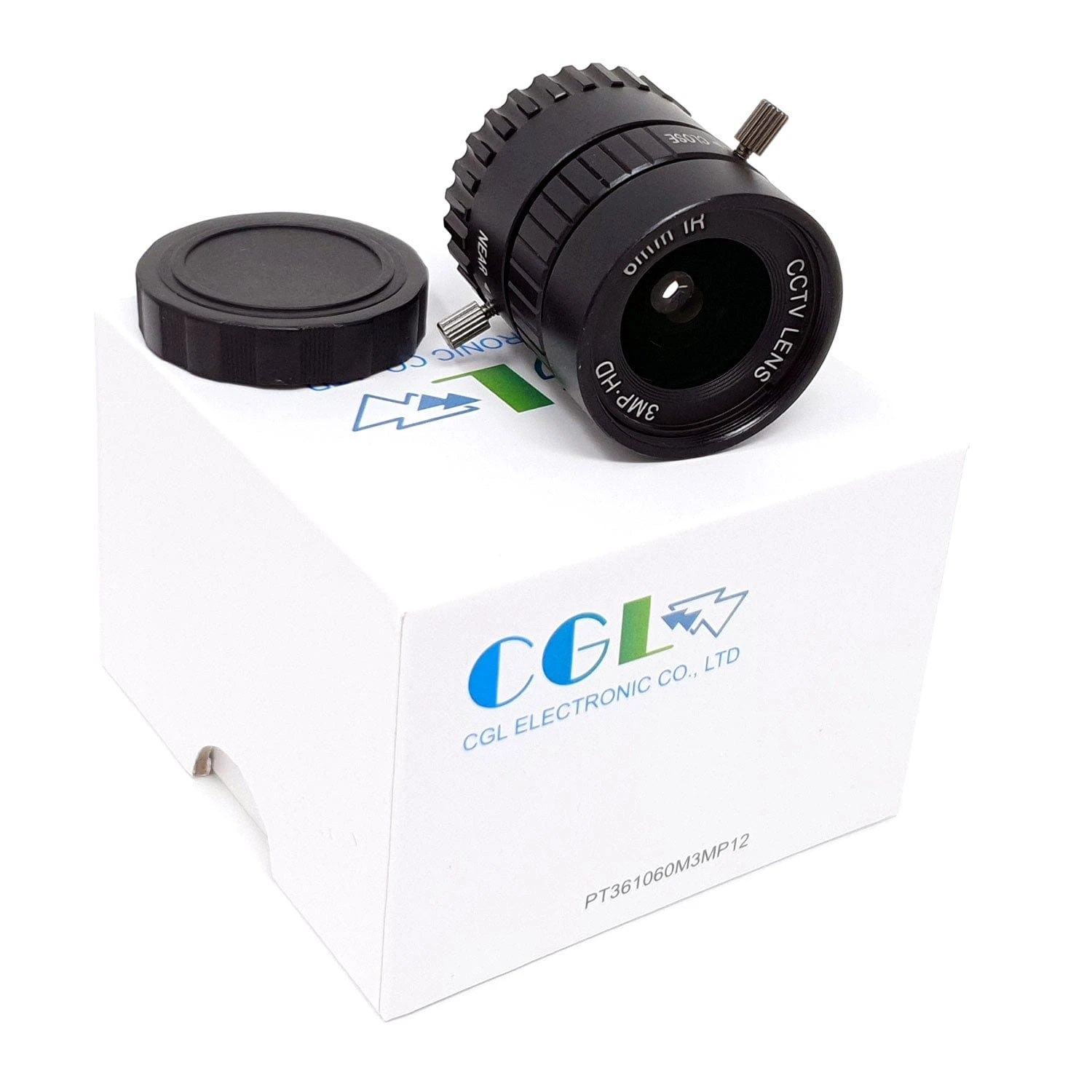

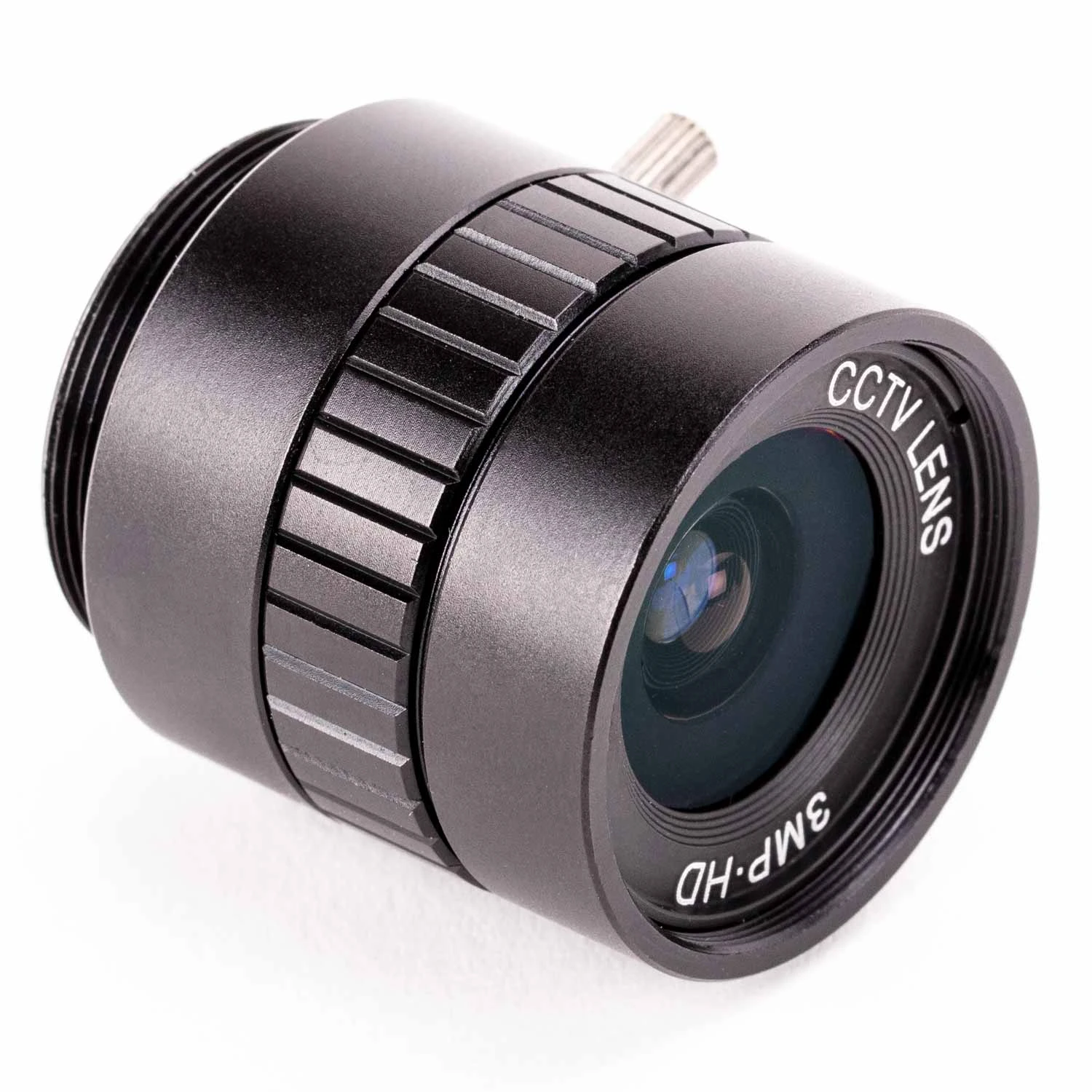

The 6mm 3MP Wide Angle lens is great for CCTV-style applications with its wide field of view, allowing you to see more of the overall target area (do not use the lens adapter with the 6mm lens or everything will be blurry!)

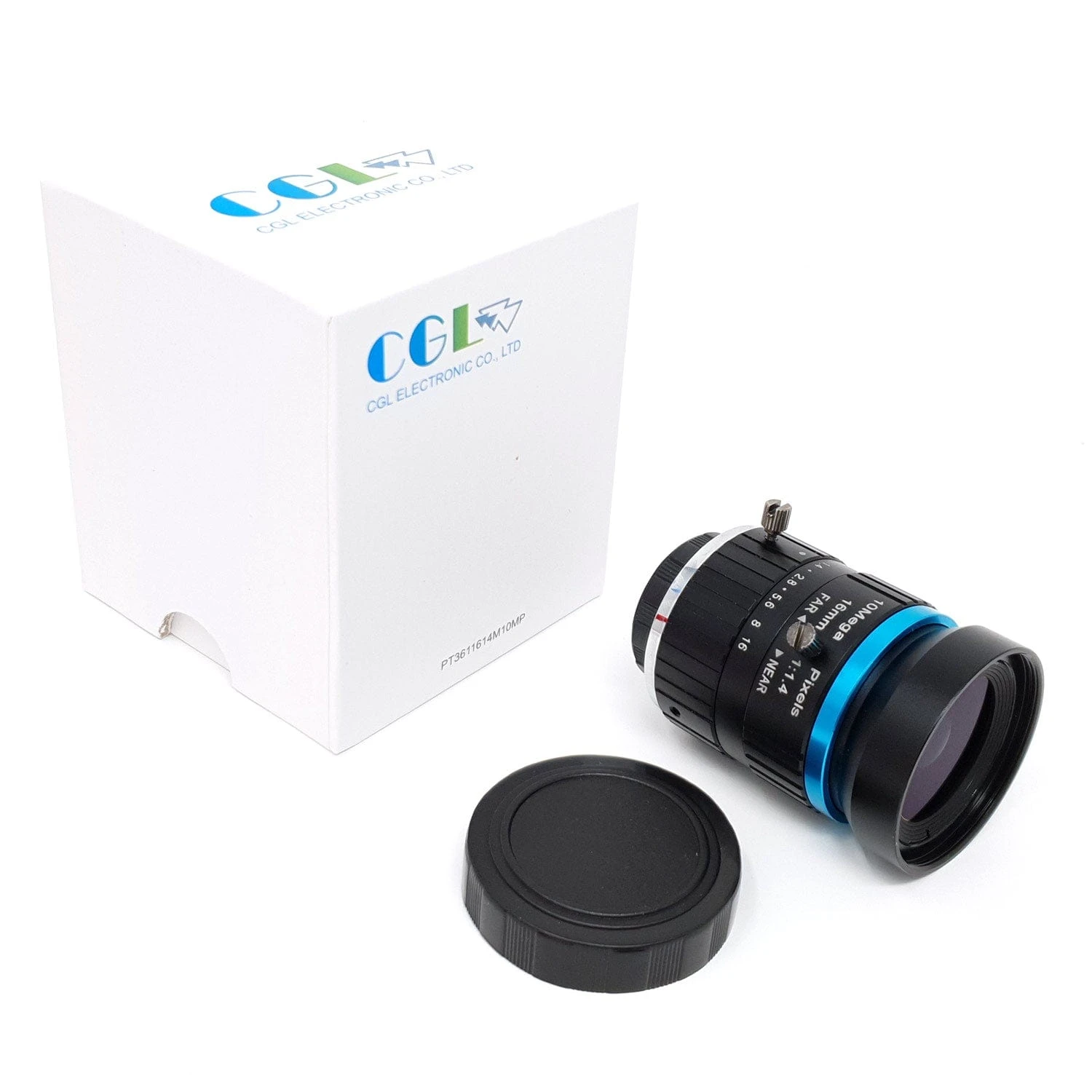

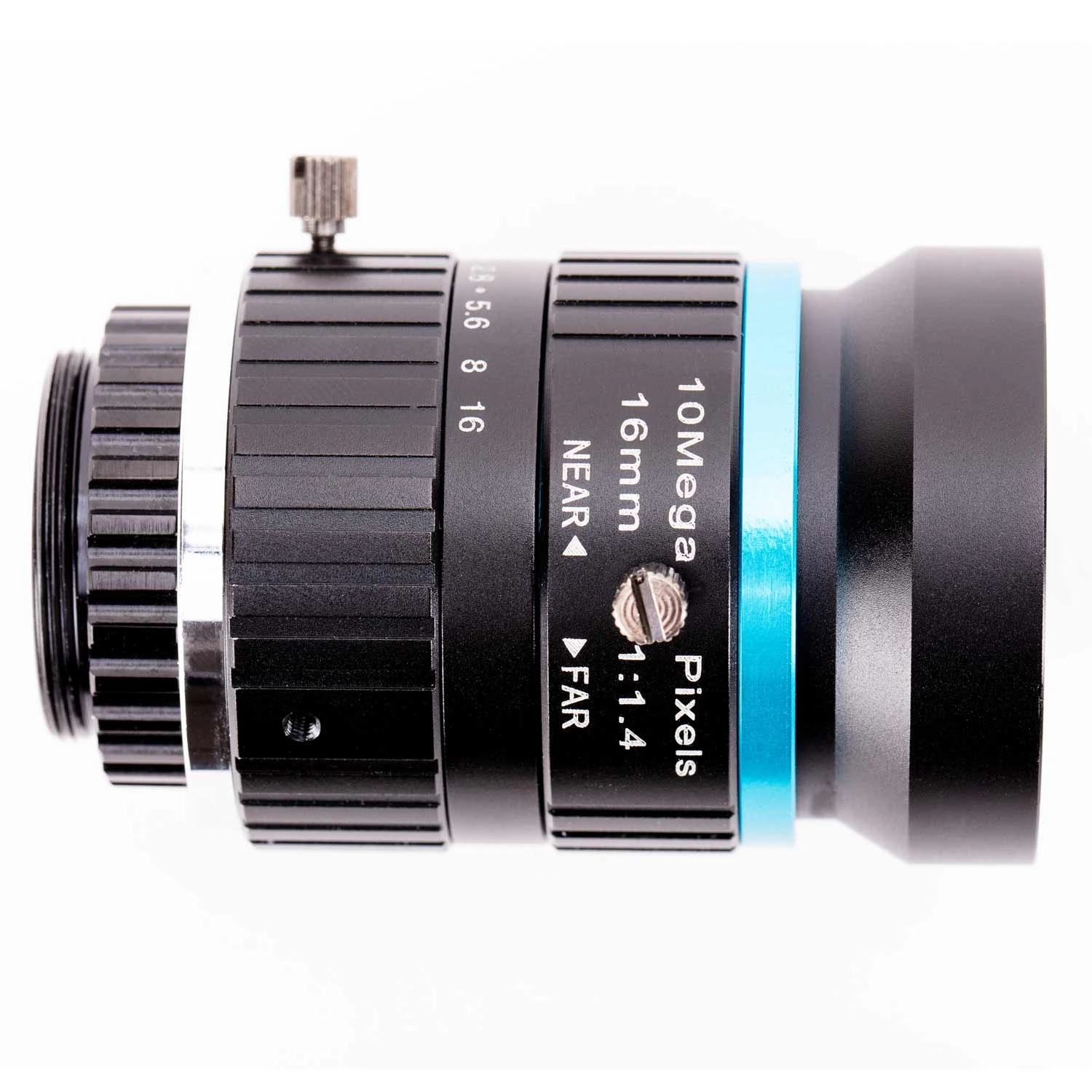

The 16mm 10MP Telephoto lens offers a high level of zoom, for targeting your camera on specific subjects.

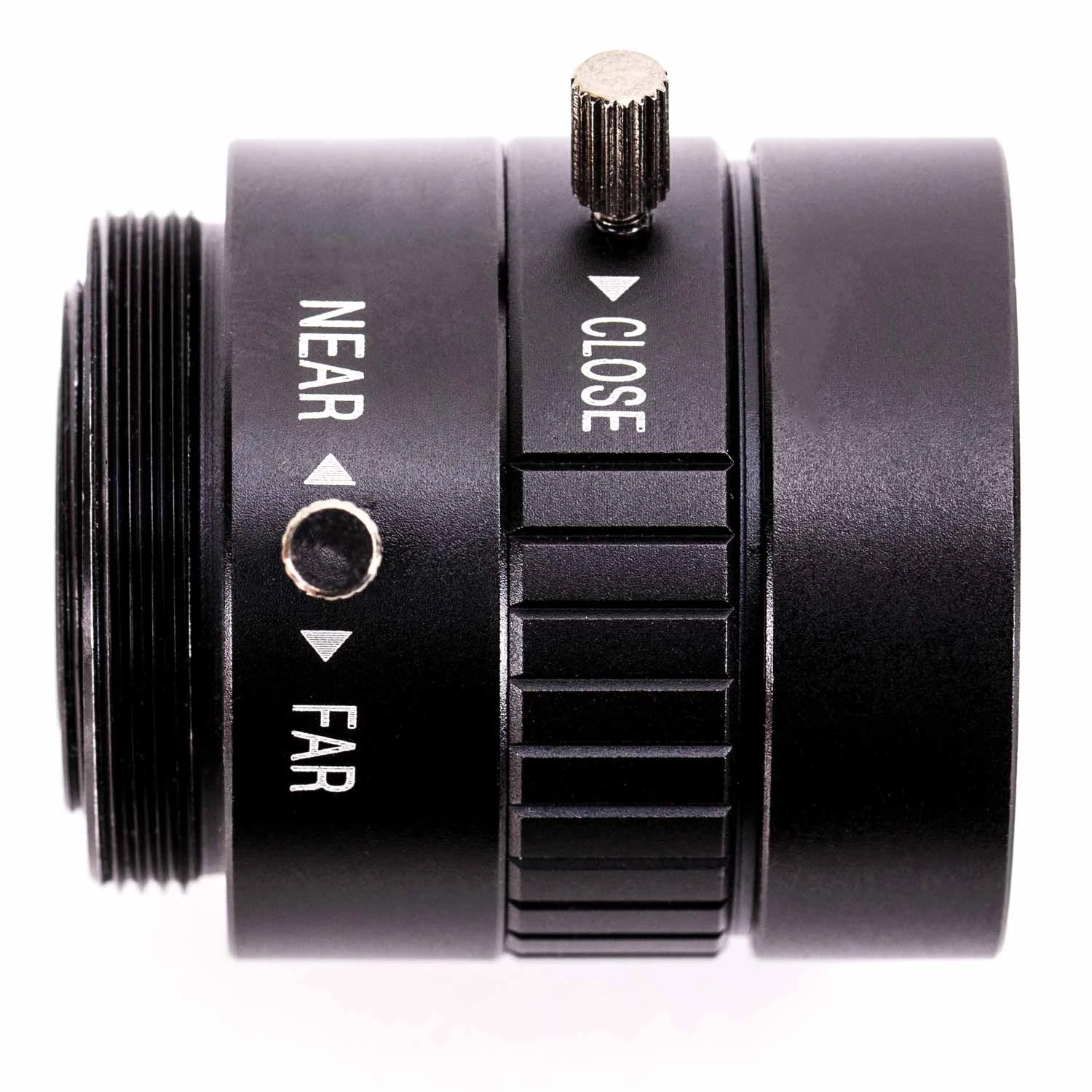

The lenses screw directly onto the Raspberry Pi High Quality Camera and feature multiple adjustment options (via thumbscrews) for greater flexibility and image refinement. Covers for the front and rear of the lenses are included and come pre-fitted.

Check out our

lens section

for other lens options!

Features

• Compatible with the

  Raspberry Pi High Quality Camera

• Thumbscrew adjustment
• Covers on front and back

Resources

• C-Mount Lens Guide

• CS-Mount Lens Guide

Specification

Feature	6mm 3MP	16mm 10MP
Image format	1/2″	1″
Focal length	6mm	16mm
Resolution	3 Megapixel	10 Megapixel
Aperture	F1.2	F1.4 to F16
Mount	CS	C
Field Angle	63°	1″ 44.6°× 33.6° 2/3″ 30.0°× 23.2° 1/1.8” 24.7°× 18.6° 1/2″ 21.8°× 16.4°
Distortion	–	1″ (-0.7%) 1/2″ (-0.5%) 1/3″ (-0.15%)
M.O.D	0.2m	0.2m
Back focal length	7.53mm	17.53mm
Optical length	–	67.53mm
Filter thread size	27mm	37mm
Dimensions	30x34mm	39x50mm
Weight	53g	133.7g
