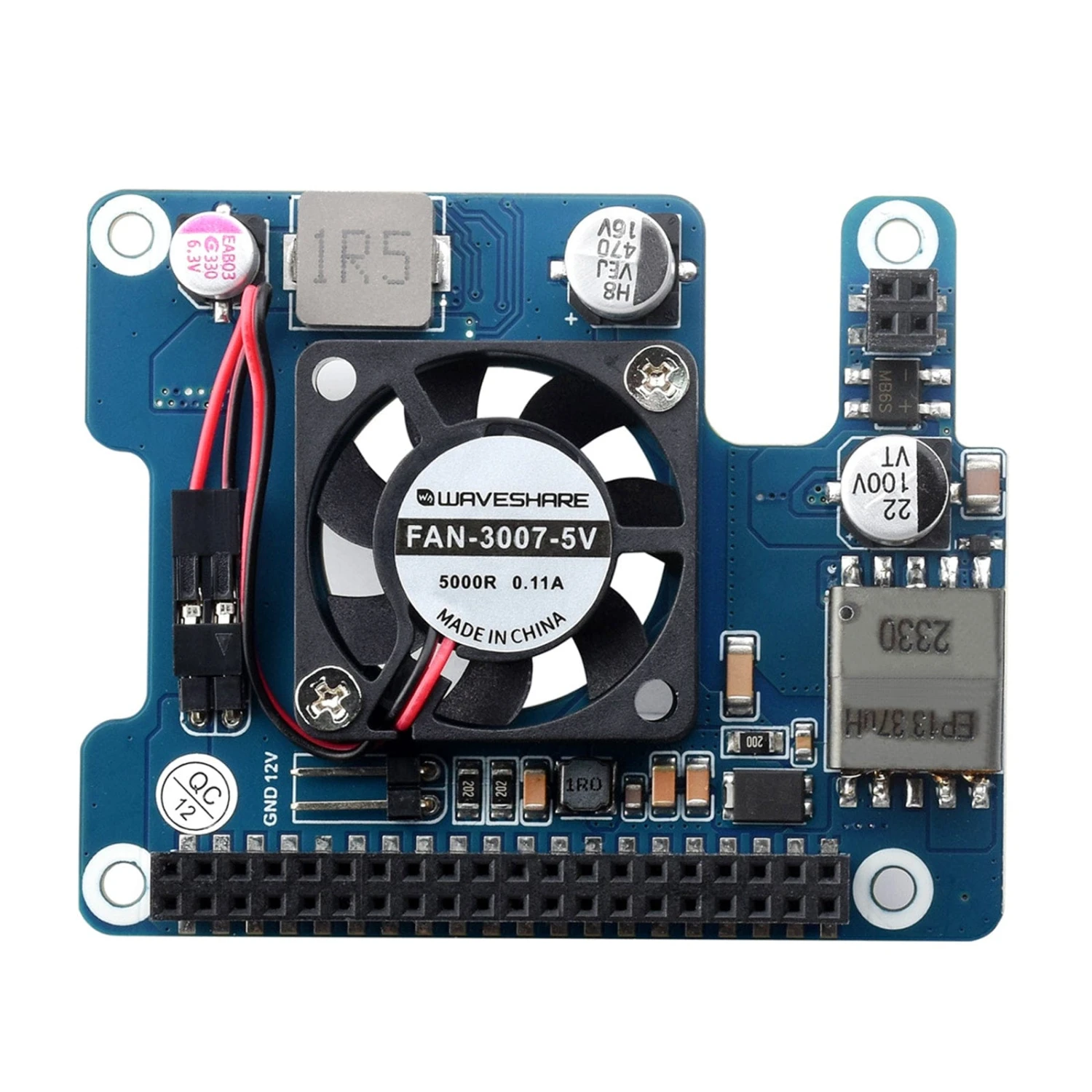

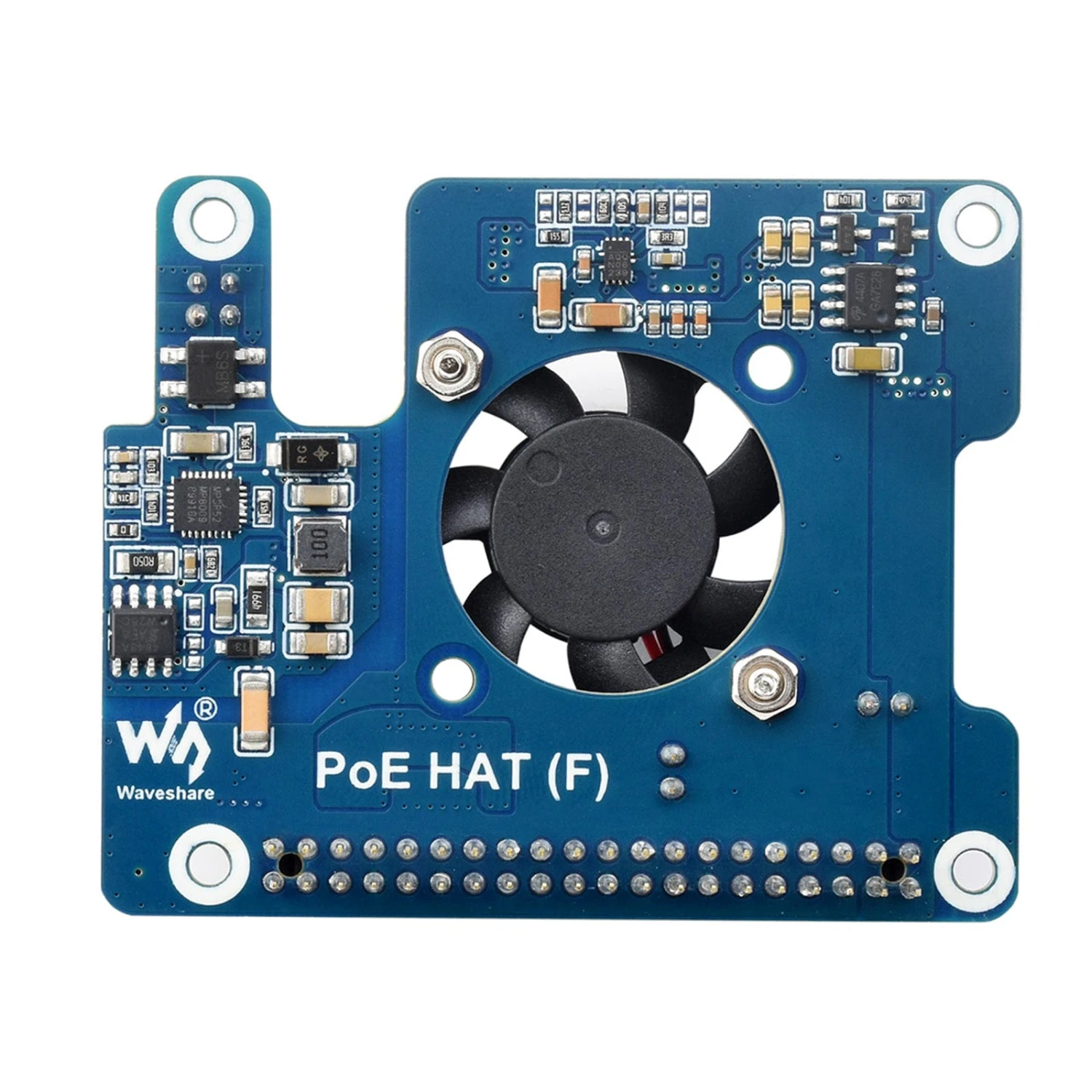

PoE HAT For Raspberry Pi 5 With Cooling Fan (5V And 12V Outputs)

This PoE HAT has been designed specifically for Raspberry Pi 5 (the new PoE pin position) and is compliant with IEEE 802.3af/at standards, enabling you to power your

Raspberry Pi 5

directly through a power-injected ethernet cable.

The HAT can provide up to 5V 4.5A for the Raspberry Pi, covering most projects and use cases. There is also a separate header offering 12V 2A to power other devices as part of your project.

The HAT has a fully isolated Switched-Mode Power Supply (SMPS), protecting your Raspberry Pi 5 from electrical noise and surges. It also includes an onboard active cooling fan coupled with a metal heatsink to keep your board cool.

Note: Raspberry Pi 5 not included

Features

• Designed for Raspberry Pi 5 PoE pins
• 5V output for Raspberry Pi (4.5A max)
• Separate 12V header (2A max) for other devices
• PoE (Power Over Ethernet) IEEE 802.3af/at-compliant
• Fully isolated switched-mode power supply (SMPS)
• Onboard active cooling fan, with metal heatsink

Specifications

POE Power Input	37V ~ 57V DC in
Power Output	GPIO header: 5V 4.5A (MAX)
	2P header: 12V 2A (MAX)
Dimensions	56.5 x 70.0mm
Network Standard	IEEE 802.3af/at PoE

Resources

• Product Wiki

Package Contents

• 1x PoE HAT (F)
• 1x Metal heatsink
• 3x Thermal tape
