M5StackESP32 Core Ink Development Kit (1.54” Elnk Display)

A compact ESP32-based dev kit with a built-in E-ink/ePaper display (as well as Wi-Fi, Bluetooth and an onboard lipo battery).

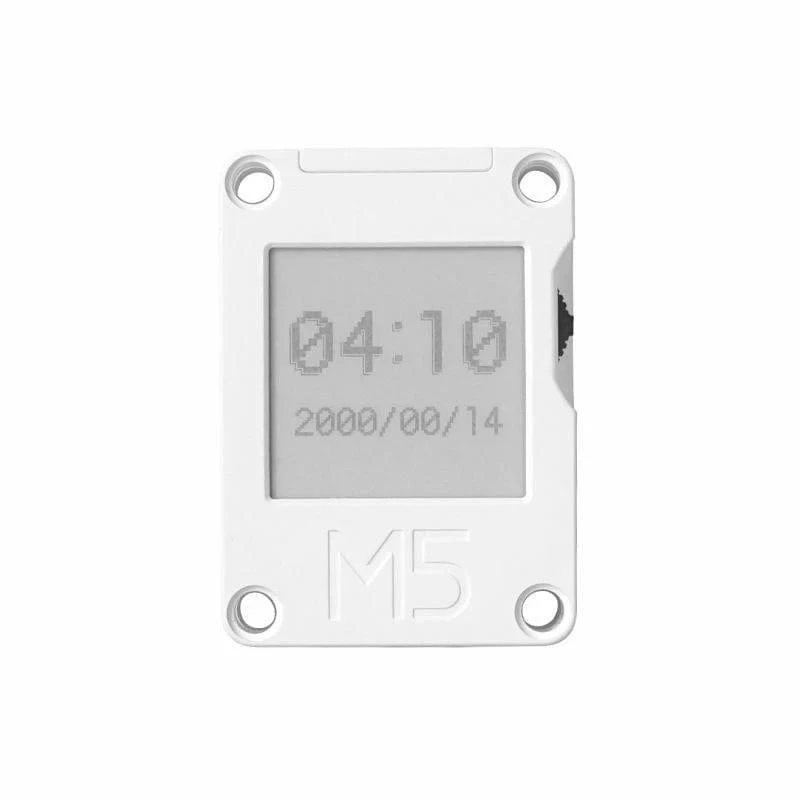

Controlled by the ESP32-PICO-D4 this new device includes a 200×200 1.54″ Black and White E-Ink Display. Compared to a regular LCD E-ink displays are easier on the eyes, which makes them a great choice for reading or viewing for longer periods. Other benefits are low power consumption and the ability to retain the image even if power to the display is lost.

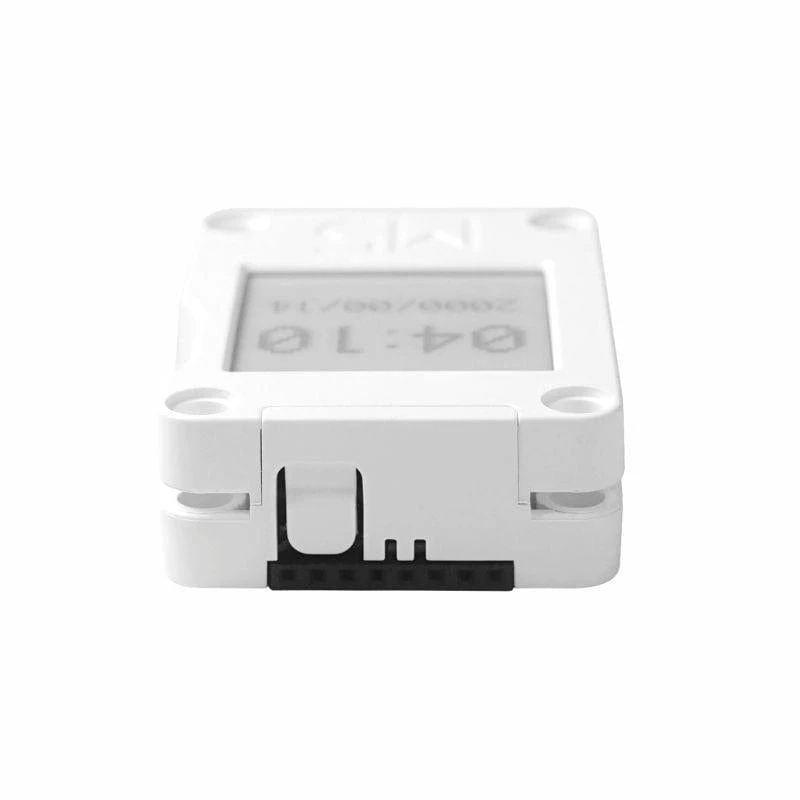

For control, the CoreInk integrates a multi-function button, a physical button, integrated status LED and buzzer. The device also includes a 390mAh Lipo RTC (BM8563) for controlling accurate timing and deep sleep functionality. CoreInk features independent reset and power buttons, expansion ports (HY2.0-4P, M-BUS, HAT expansion) for attaching external sensors to expand functionality for unlimited possibilities。

Warning: Please avoid using high refresh rates, recommended refresh rate is 15s/per refresh. Do not expose to ultraviolet rays for a long time, otherwise, it may cause irreversible damage to the ink screen.

---

Lithium Battery Shipping:Due to courier restrictions, this product can only be shipped within England/Wales. With this item in your cart, your shipping options will be limited and may cost more than our usual rates.

Why?

---

Features

• ESP32 Standard wireless functions WiFi, Bluetooth
• Internal 4M Flash
• Low Power Display
• 180-degree viewing angle
• Expansion ports
• Built-in Magnet
• Internal Battery
• Expandable

Package Contents

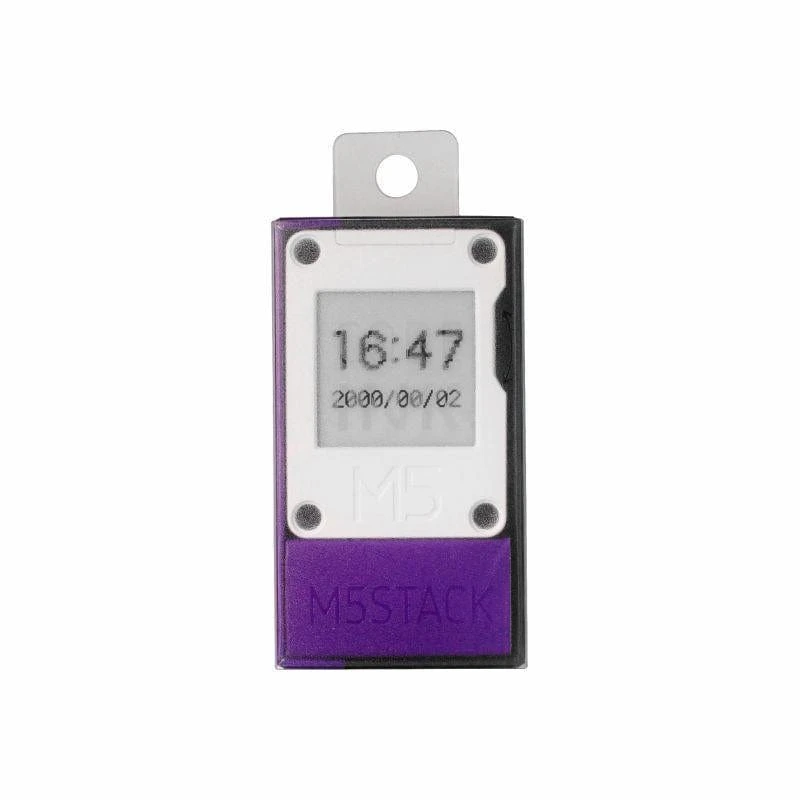

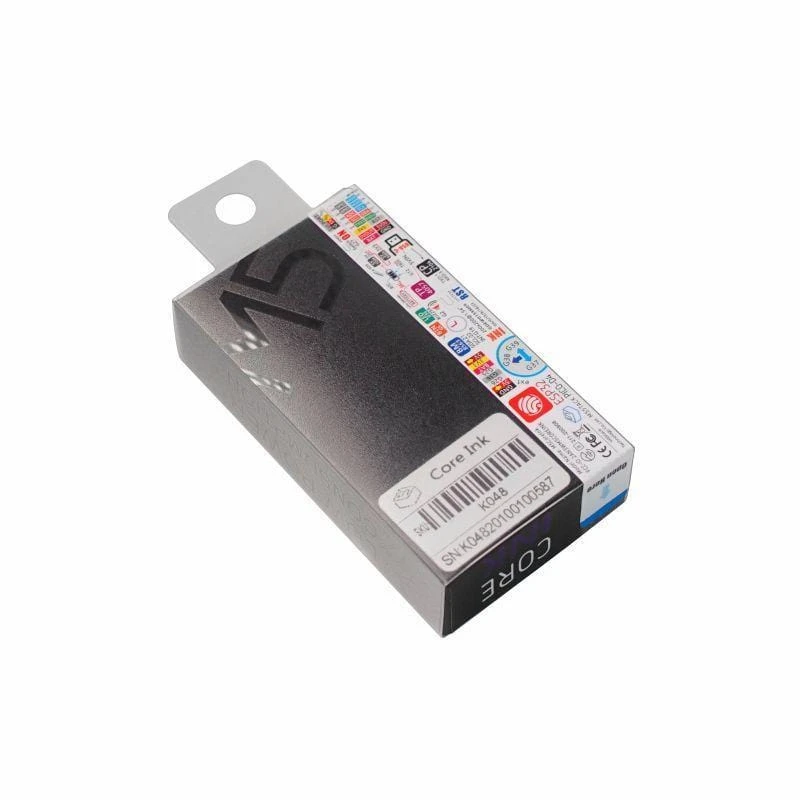

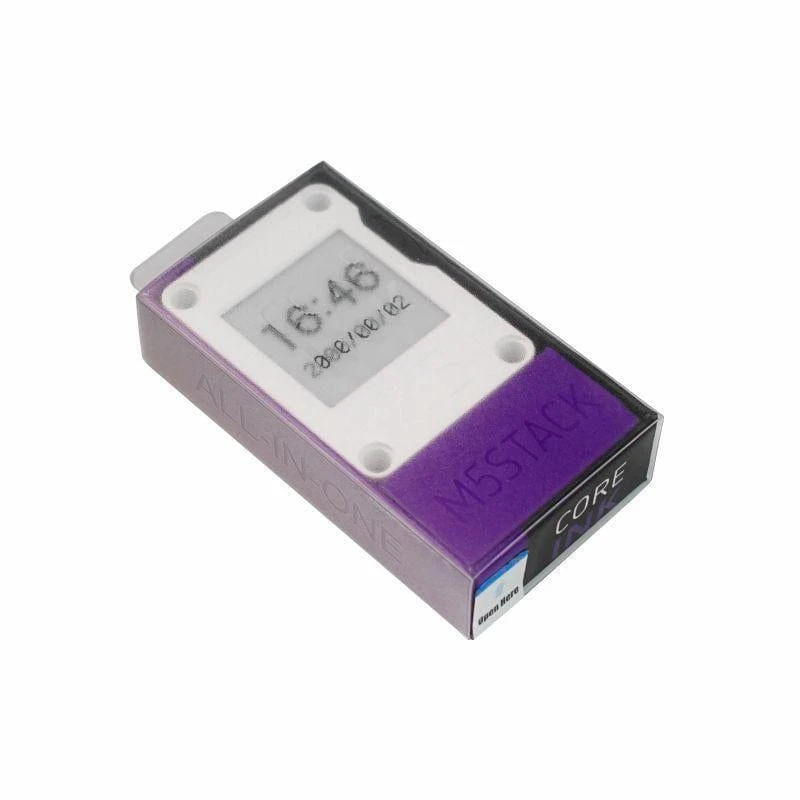

• 1x CoreInk
• 1x Type-C USB(20cm)

Application

• IoT Terminal
• E-Book
• Industrial Control Panel
• Electronic Tag

Specification

Resource	Parameter
ESP32-PICO-D4	240MHz dual core, 600 DMIPS, 520KB SRAM, Wi-Fi, dual mode Bluetooth
Flash	4MB Flash
Input Voltage	5V @ 500mA
Ports	TypeC*1, HY2.0-4P*1 , M-BUS Female Connector，Pin Array/ Hat Expansion
Screen	GDEW0154M09 | SPI Port | 200*[email protected]″ | Dpi:184 | 1-bit Black & White(Grayscale：2) | Viewing Area(mm)：27.6×27.6 | Dot pitch(mm) 0.138×0.138 | Refresh Time（s） 0.82 /Partial refresh（s） 0.24
Physical Buttons	Programmable *1 ， Reset *1， Power *1
LED	Green LED x 1
RTC	BM8563
Buzzer	Passive Buzzer*1
Wifi	2.4G 3D Antenna
PINS	G25, G26, G36, G23, G34, G18, G21, G22, G14, G13
Battery	[email protected]
Working Temp	32°F to 104°F ( 0°C to 40°C )
Net Weight	32g
Gross Weight	55g
Dimensions	56*40*16mm
Package Size	82*46*20mm
Case Material	Plastic ( PC )
