M5Stack Tough ESP32 IoT Development Board Kit

The

M5Stack

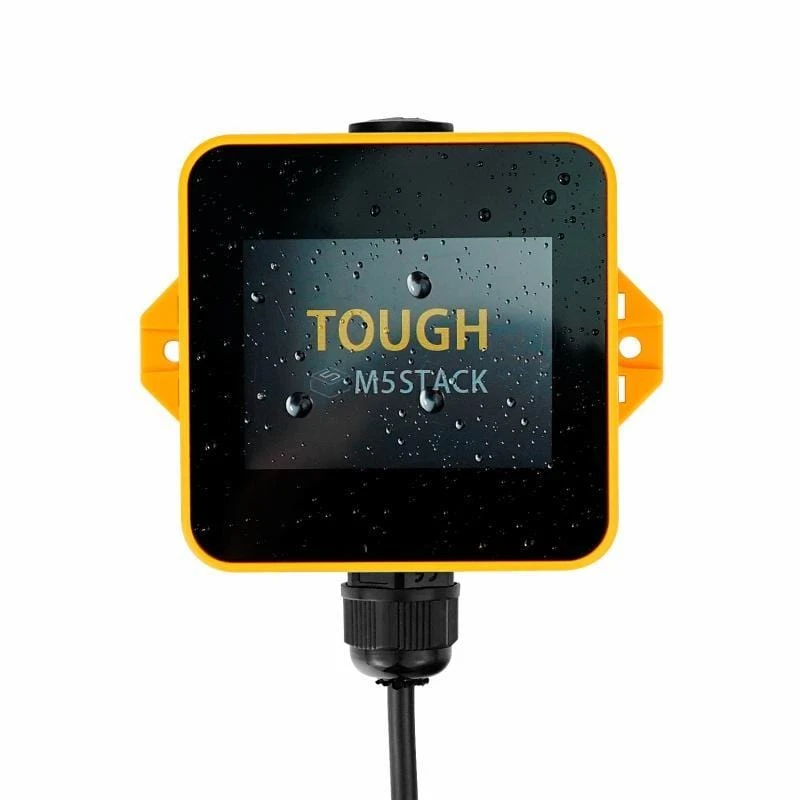

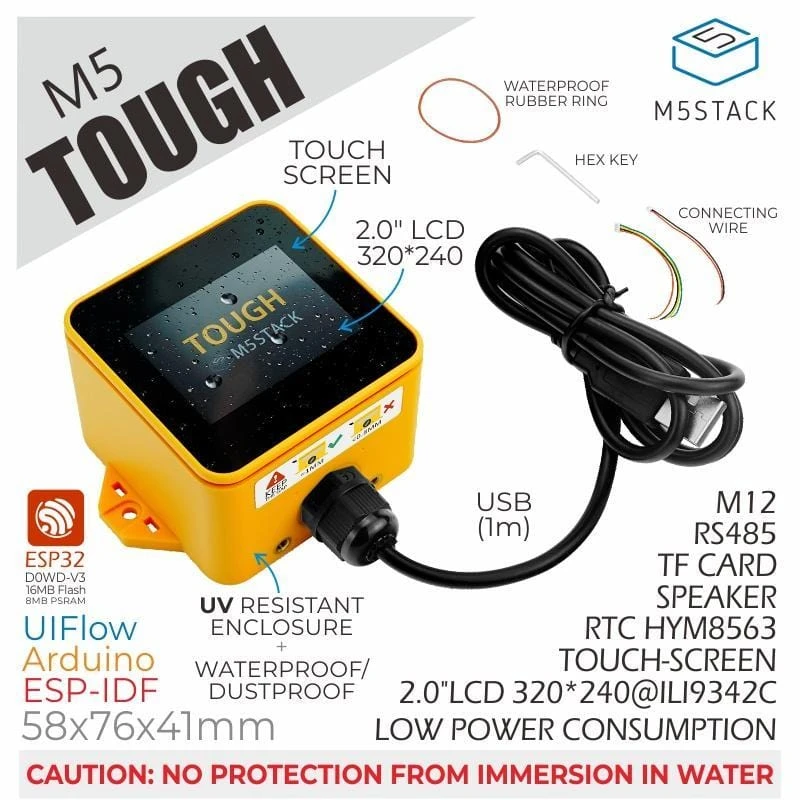

TOUGH Waterproof** ESP32 embedded controller is an industrial-grade programmable embedded controller featuring an Espressif ESP32 chipset with integrated WiFi & Bluetooth dual-mode.

It is equipped with dual-core low power Xtensa® 32-bit LX6 microprocessor with a clock frequency of up to 240MHz. It’s a solid combination of 8M PSRAM + 16M FLASH memory, integrated 2″ HD IPS display panel + high-sensitive capacitive touch screen + rich peripherals and expansion interface.

The M5Stack TOUGH has full-coverage support making it dustproof and waterproof**, which can ensure the stability of circuit operation even in complex industrial applications.

The M5 TOUGH is ideal for industrial control, smart buildings, outdoor node data acquisition and other applications.

**Caution: Please DO NOT immerse the enclosure in water. There is no protection from immersion.

Features

Key Features

• ESP32-D0WD-V3
• 16MB Flash + 8MB PSRAM
• Waterproof and Dustproof
• UV resistant enclosure design protection
• 2″ LCD capacitive Multi-touch screen
• Advanced low power techniques: Wake Up with an RTC Alarm Clock
• Integrated with 12v->5V flexible DC/DC converter. Flexible power supply
• RS485/I2C/GPIO/UART interface
• Development platform：
  • Arduino/UIFlow/ESP-IDF

Structural Design

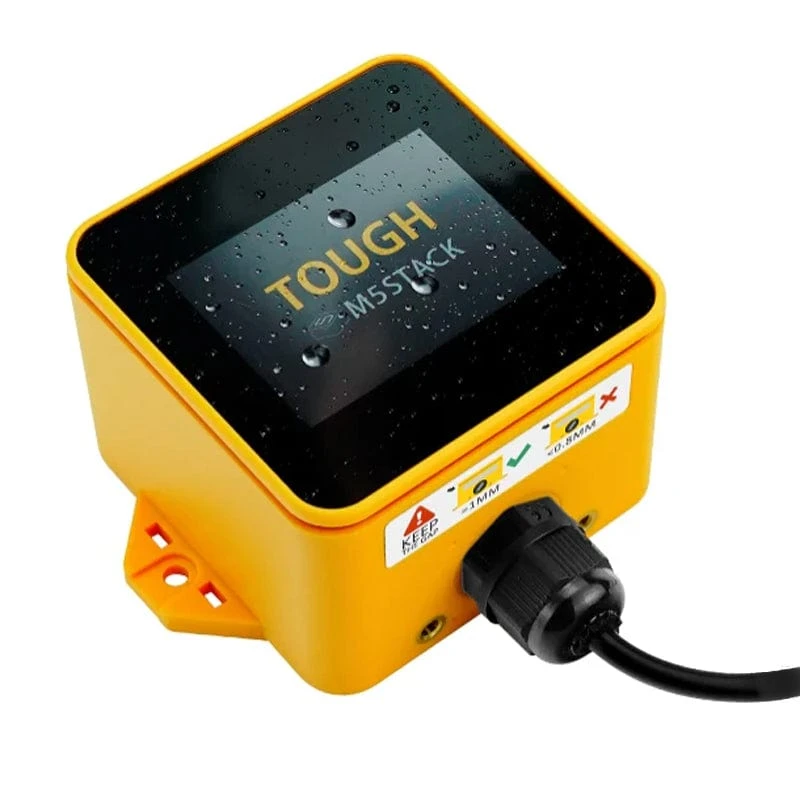

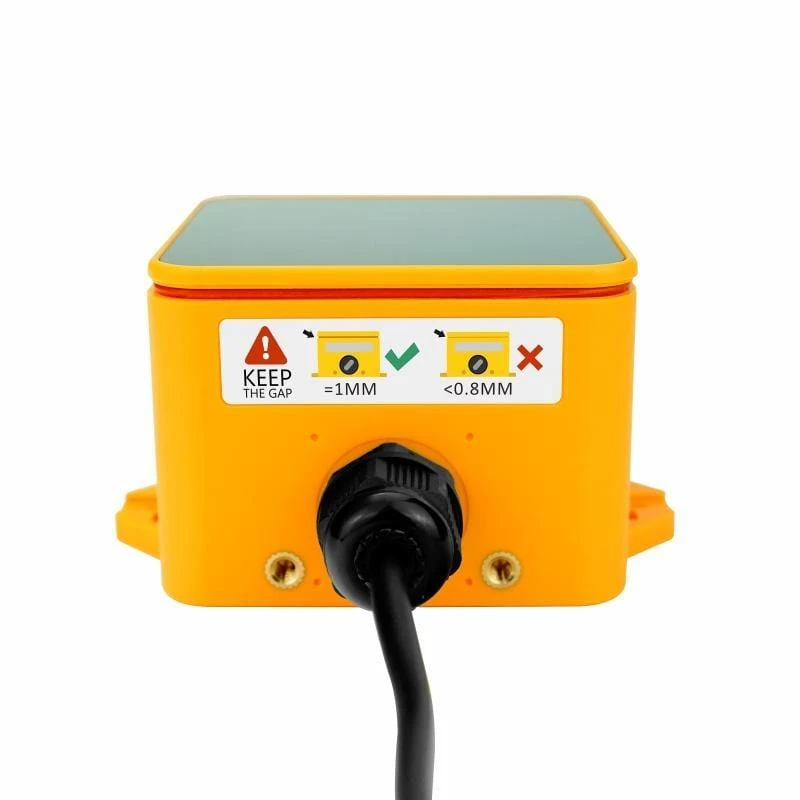

• Water-resistant with an ‘o-ring sealing’ contains Waterproof M12 Connectors can complete against solid objects, dust, sand, and dirt and against the effects of immersion
• UV resistant enclosure design

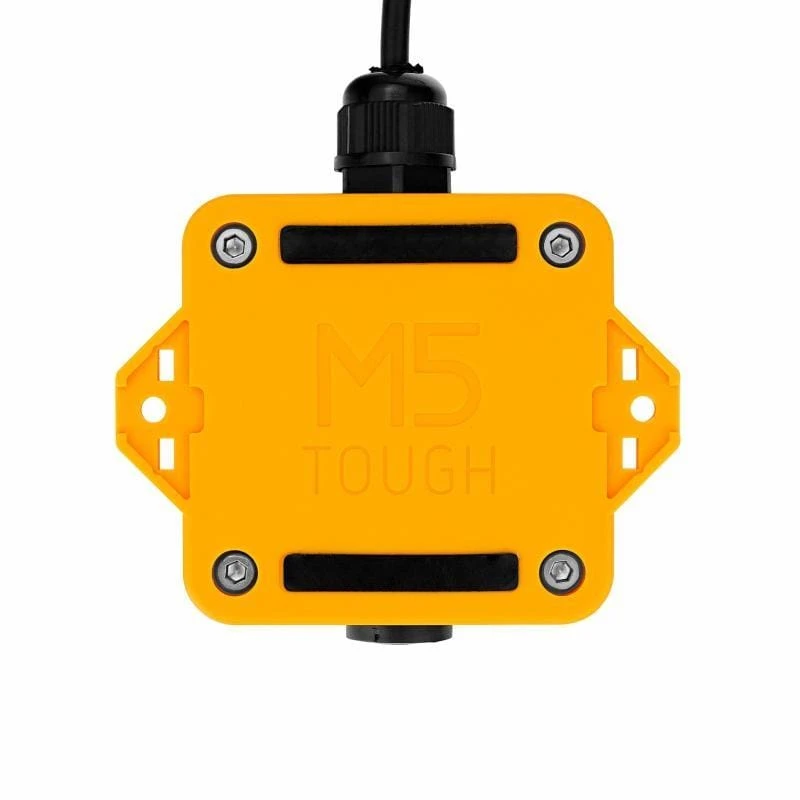

• A variety of installations Screw, Rolled strip, Magnetic, Adhesive Back
• Waterproof M12 Connectors

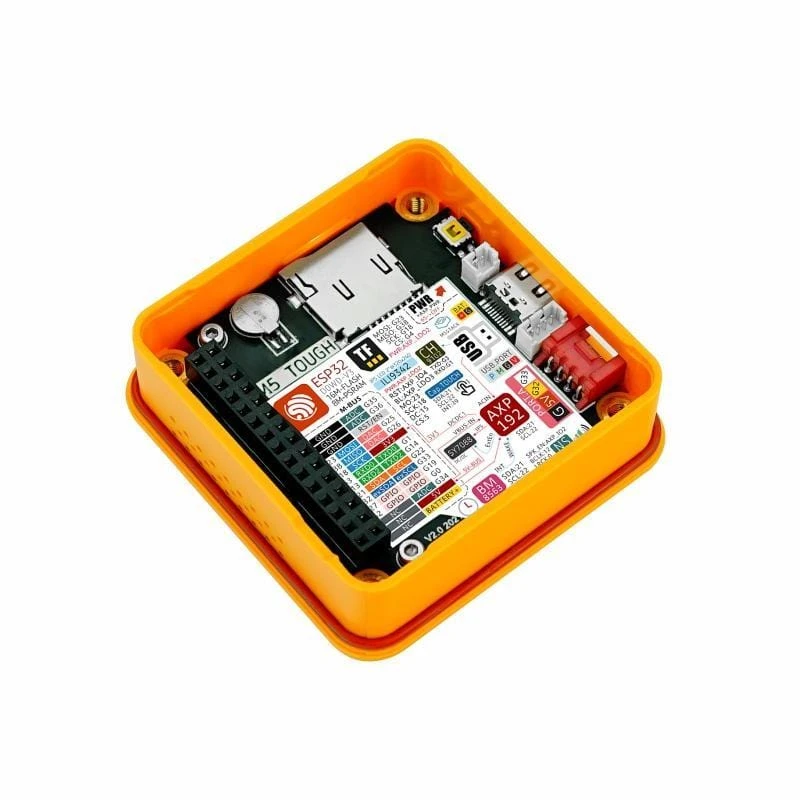

High integration

• 2″ LCD capacitive Multi-touch screen
• NS4168 16bits I2S power amplifier + 1W speaker

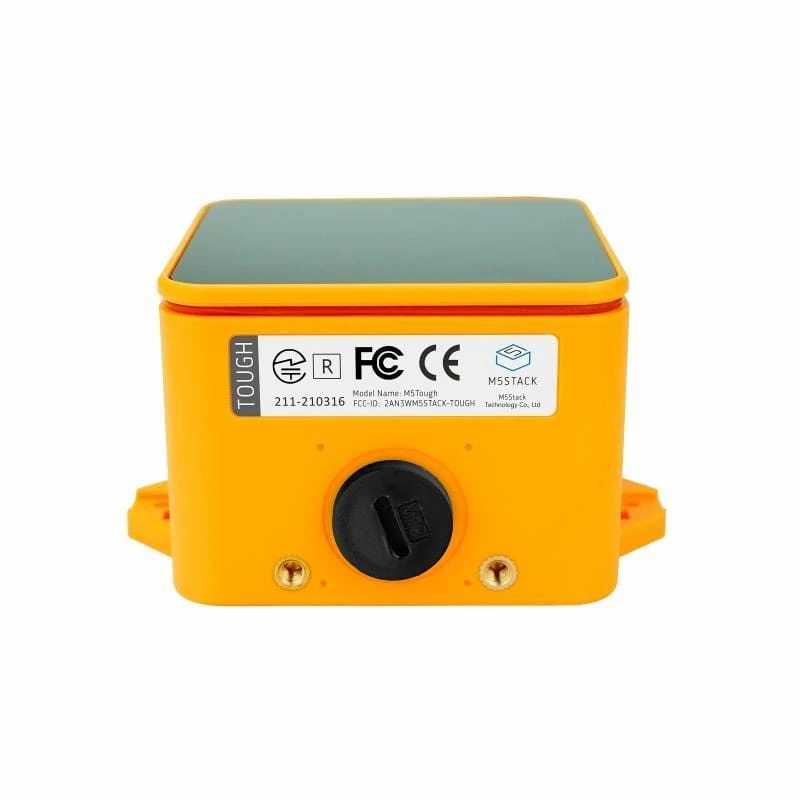

• TFCard slot
• AXP192 power management chip + BM8563-RTC clock -> Low-power power solution, Wake Up with an RTC Alarm Clock
• Delicate RF circuit delivers robust and consistent wireless communication

Strong expandability

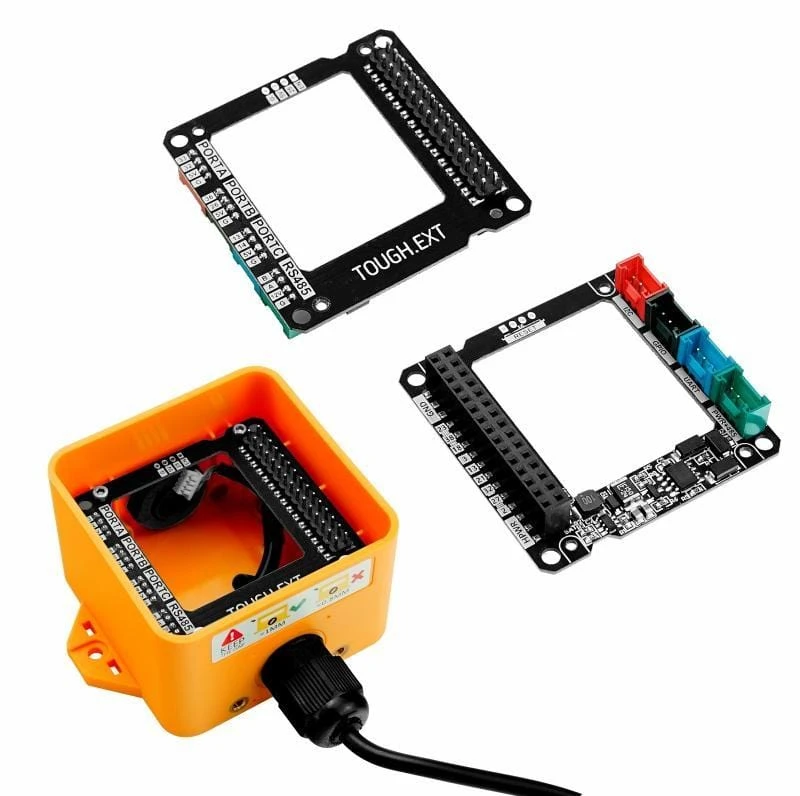

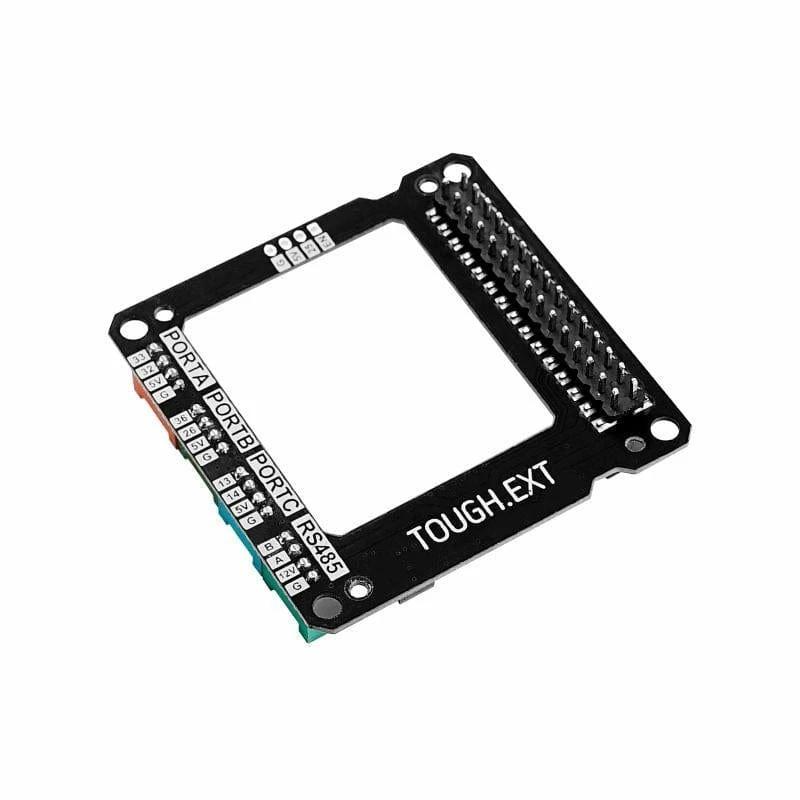

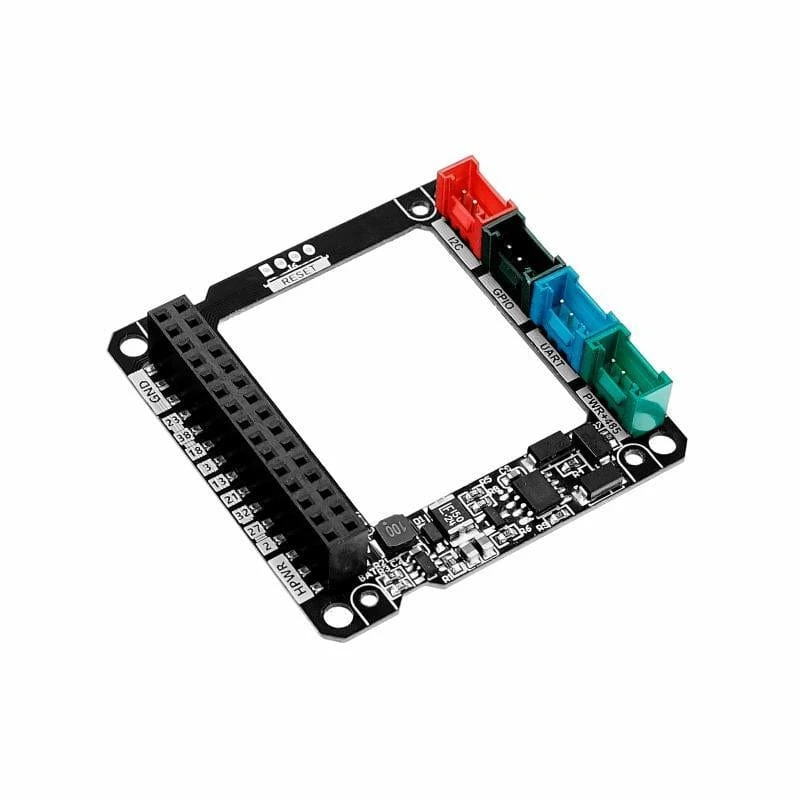

• Equipped with programable expansion board
  • Integrated with 12v->5V flexible DC/DC converter. flexible power supply
  • RS485 conversion circuit
  • PortA, B, C/ 3x Grove expansion interface
• Easy access to M5Stack’s software and hardware system, plug-and-play sensor expansion

Low code development

• Support UIFlow graphical programming platform, scripting-free, cloud push
• Fully compatible with Arduino, ESP32-IDF, and other mainstream development platforms
• Executing Dual-core processor on FreeRTOS to run multiple tasks for better performance

Package Contents

• 1x M5Stack TOUGH
• 1x Type-C USB (1m)
• 1x 2.5mm hexagon wrench
• 1x 1.25-2P single head terminal line
• 1x 1.25-4P single head terminal line
• 1x Waterproof O-ring

Specifications

Specifications	Parameters
ESP32-D0WDQ6-V3	240MHz dual-core, 600 DMIPS, 520KB SRAM, Wi-Fi, dual-mode Bluetooth
Flash	16MB
PSRAM	8MB
Protection level	Waterproof/Dustproof
Input voltage	USB(5V @ 500mA) RS485 DC Input (12V @ 1A)
Interface	TypeC x 1, GROVE x4 (RS485/I2C/G/UART interface)
IPS LCD	2.0″@320*240 ILI9342C full-colour display, maximum brightness 853nit
Touch Panel Driver Chip	CHSC6540
Speaker configuration	NS4168 16bit I2S amplifier + 1W speaker
RTC clock chip	HY8563
PMU	AXP192
USB chip	CH9102 USB-TTL serial port/program download circuit
TF card slot	Maximum support 16GB memory card
Antenna	3D-WiFi/BLE Antenna
Shell material	UV-resistant plastic
Net weight	108g
Gross weight	139g
Product size	58 * 76 * 41 mm
Packing size	99 * 80 * 45 mm

Resources

• M5Stack TOUGH Documentation

• Schematic

  /

  Secondary

• Arduino M5Tough-Tools

• Arduino M5Tough-Lib
