M5Stack Display Module 13.2

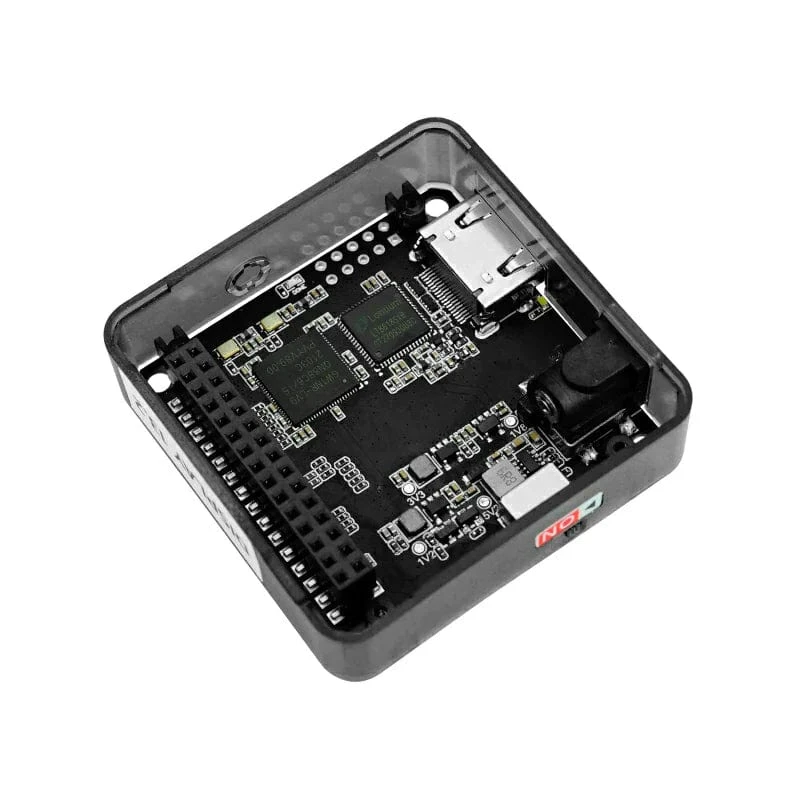

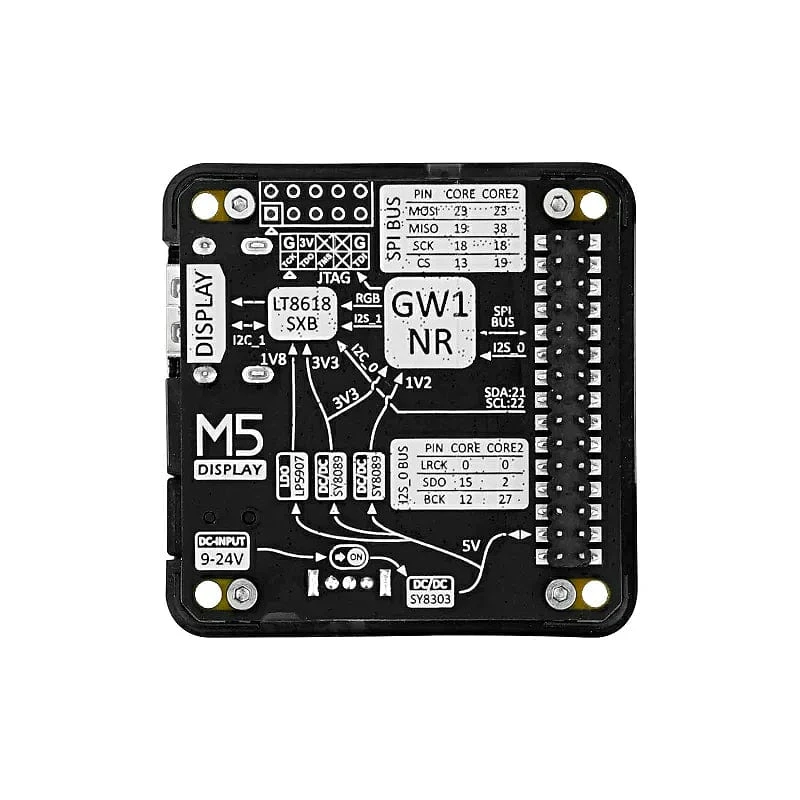

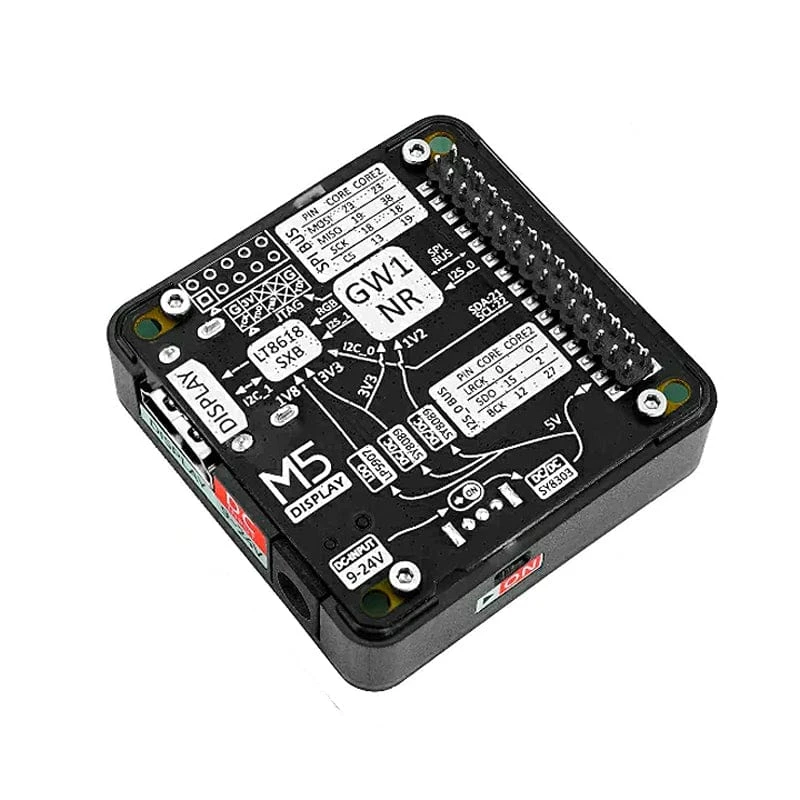

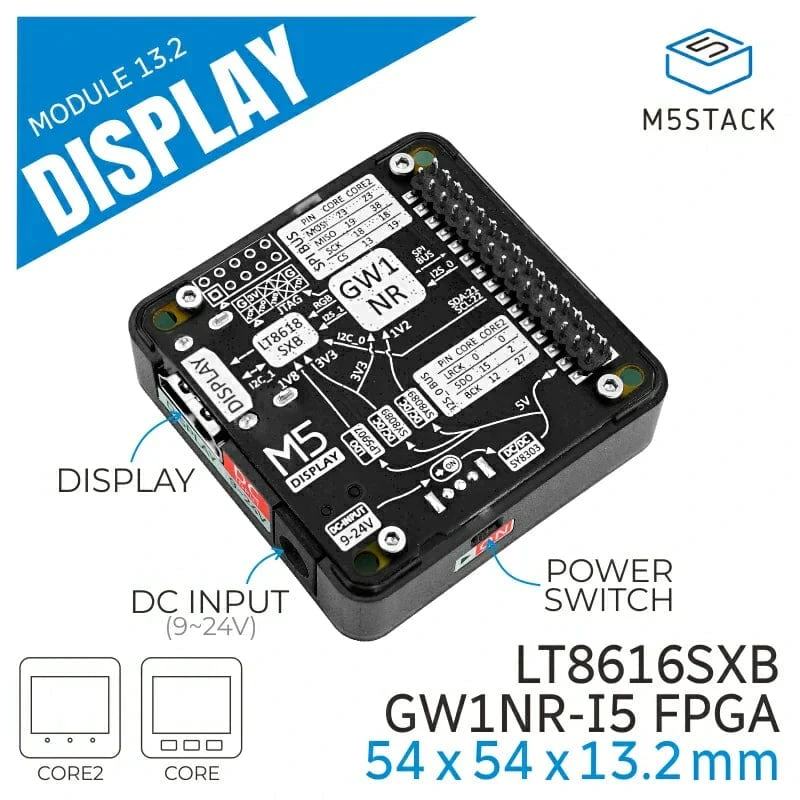

The Display Module 13.2 is an expansion module for HD audio and video, using the GAOYUN GW1NR series FPGA chip to output the display signal, and using the LT8618S chip as signal output conditioning, which has a 24-bit colour depth display signal, an 8-channel audio signal output, and a resolution of up to 1080P.

Features

• Supports 24-bit RGB input
• Resolution of up to 1080P
• Supports up to 8 channels of audio input
• Includes 9-24V to 5V, 3.3V and 1.2V DC-DC circuits, and 5V to 1.8V LDO circuits
• HD audio and video interface, JTAG download interface
• 9-24V DC power interface
• Power switch

Specifications

Resources	Parameters
Audio and video signal acquisition chip	GW1NR-LV9QN88C6-I5 FPGA
Audio and video signal processing chip	LT8616SXB
9-24V to 5V DCDC buck chip	SY8303
5V to 3.3V and 1.2V DCDC buck chips	SY8089
5V to 1.8V LDO buck chip	LP5907
Resolution	MAXIMUM 1080P (1920×1080)
The power supply	9-24V
Product Size	54mm × 54mm × 14.2mm
Package Size	93mm × 63mm × 25mm
Product Weight	21.6g
Package Weight	41.2g

Resources

• Product Wiki

Package Contents

• 1x Display Module 13.2
