KKSB Tall Aluminium Case For Raspberry Pi 4

The KKSB Raspberry Pi 4 Aluminium Case is a high-quality and durable case designed to protect your

Raspberry Pi 4

whilst also providing optimal cooling and functionality. Made from black anodized aluminium, this case is both sleek and durable.

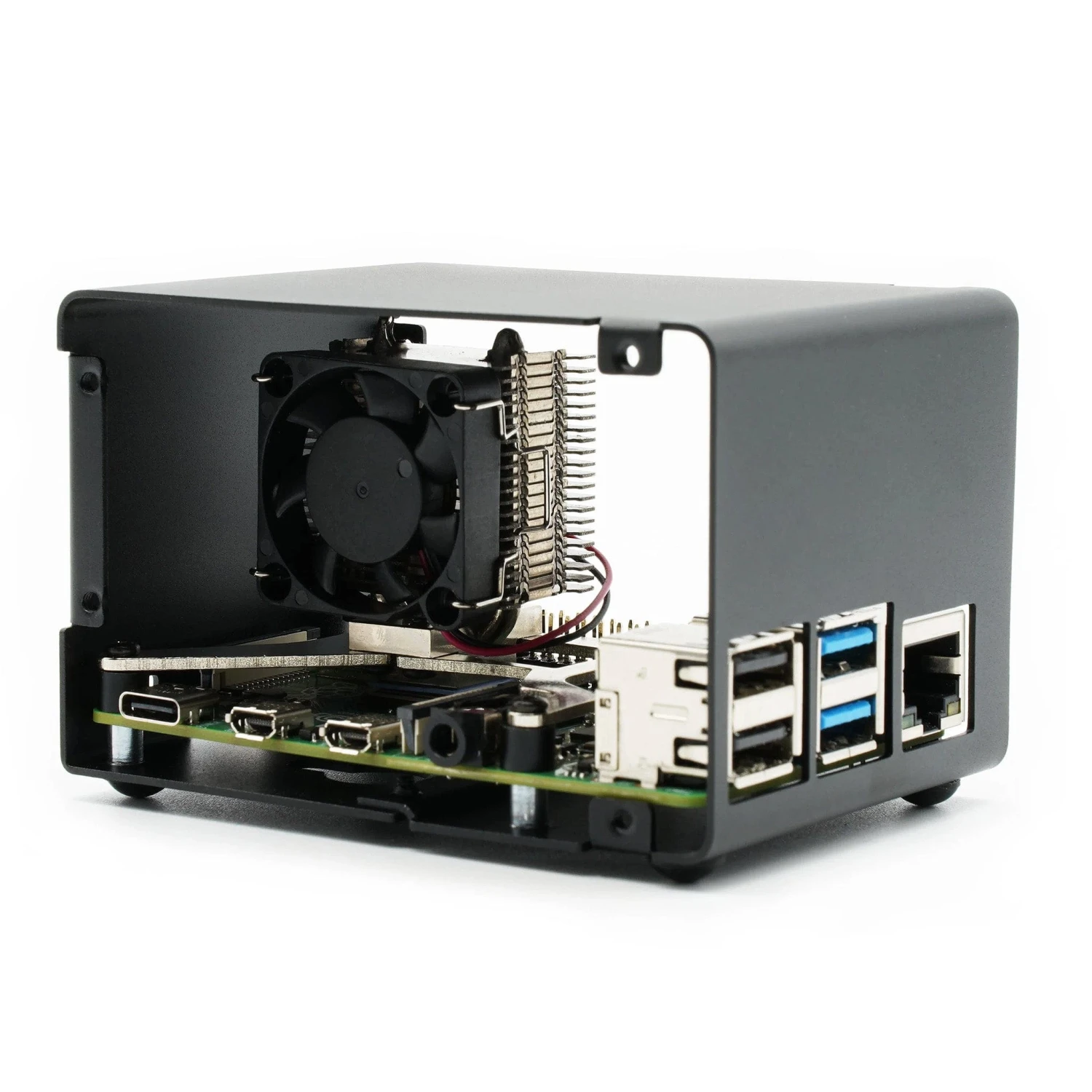

It is specifically designed to support the

KKSB PWM High-Performance Cooling Tower with PWM Fan

 (not included), which has an automatic start and stop function depending on the CPU temperature. This means that even during extensive processing, you can keep your Raspberry Pi processor cool and running smoothly.

Note: The KKSB Raspberry Pi 4 Tall Case has space for a cooler of up to a height of 45mm (maximum). The case does not fit the 52Pi ICE Tower cooler without modification

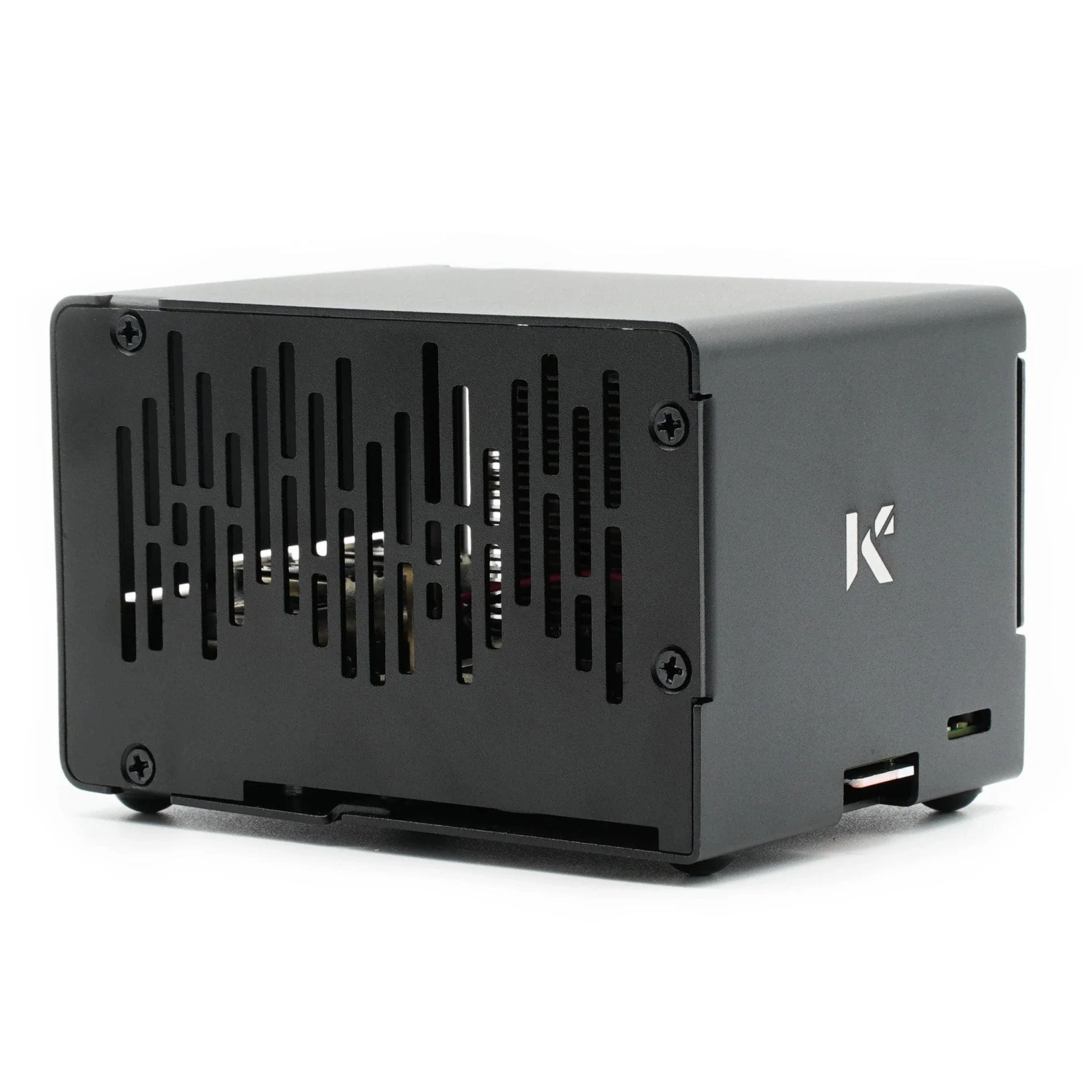

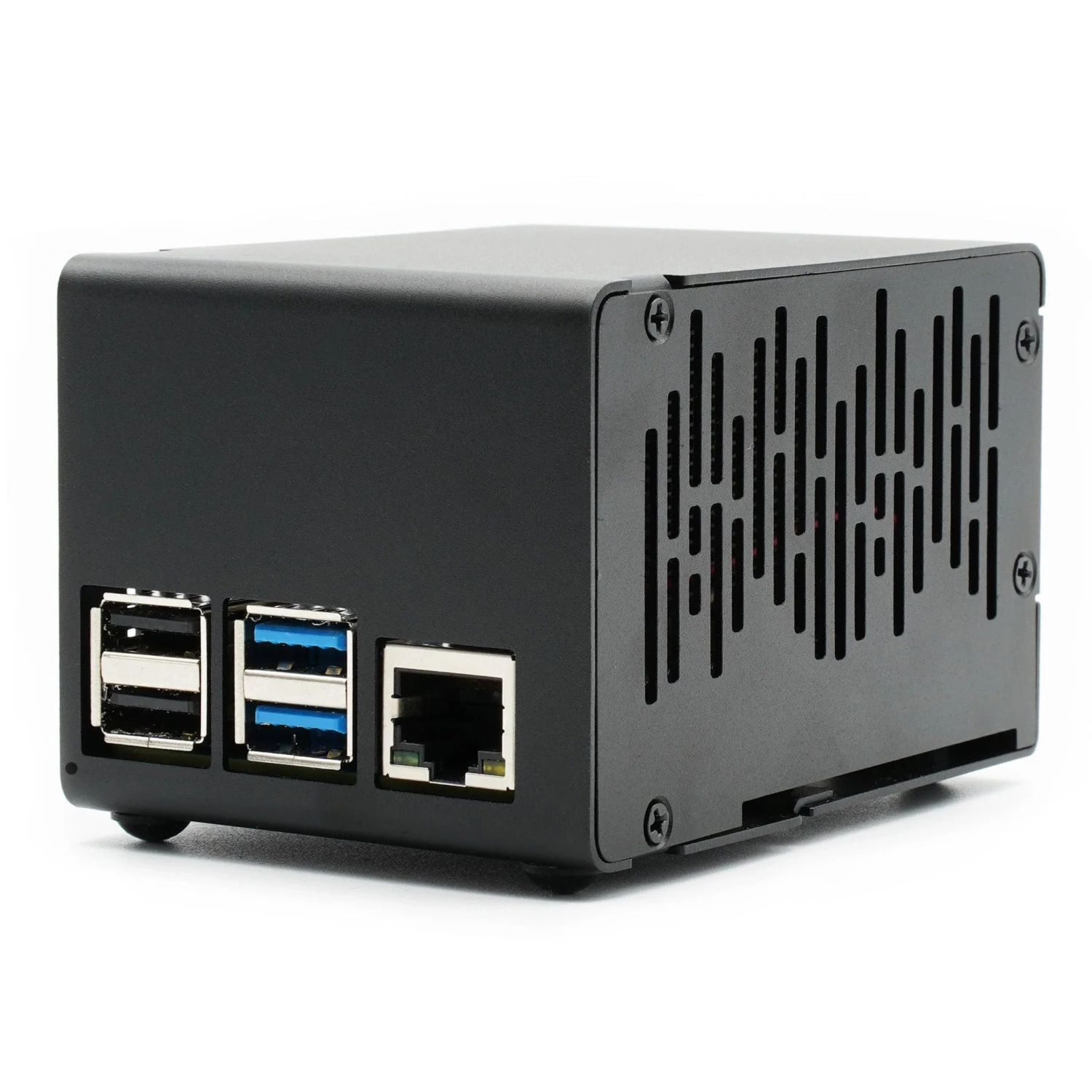

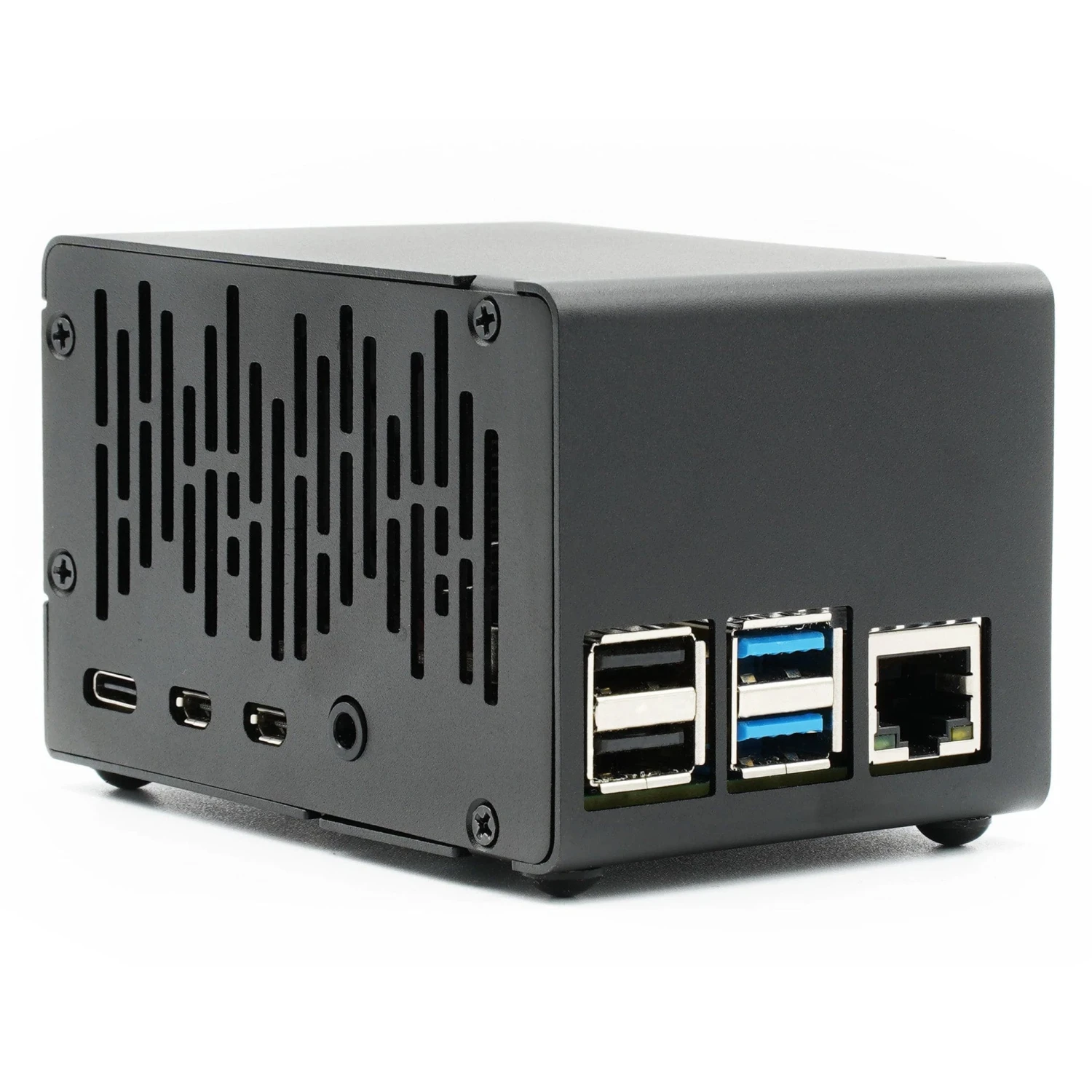

The removable case walls have plenty of ventilation slots for optimal cooling, and the rear wall of the case has space for a 40-Pin GPIO cable, allowing you to access the Raspberry Pi 4 Pin Header without having to remove the case. Additionally, the case features cutouts for most Raspberry Pi 4 ports and interfaces, providing optimal functionality without having to remove the parts of the case.

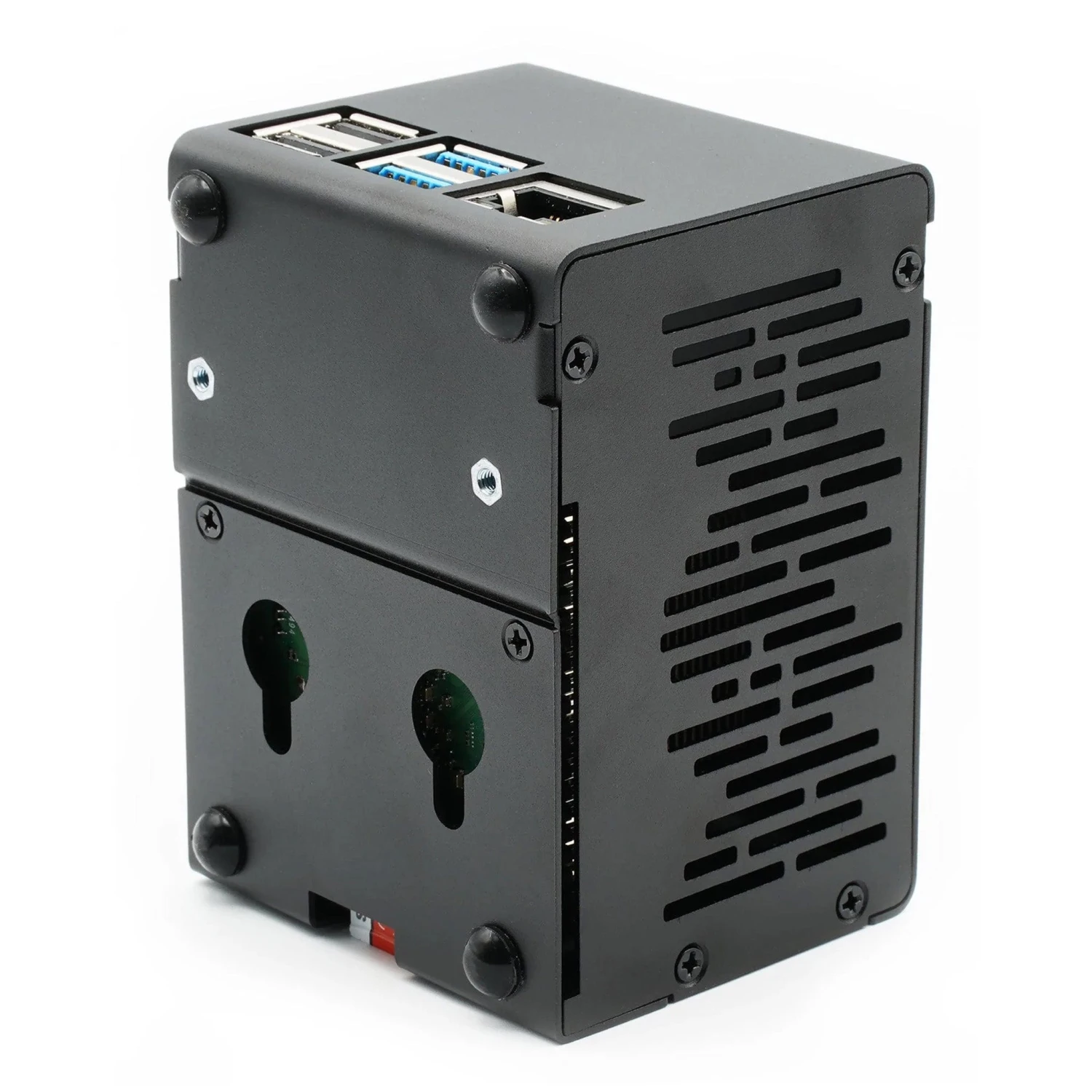

The rubber feet along the base of the enclosure help to avoid scratches and keep the case stable. It also has two pre-cut mounting holes, allowing you to fit the case to a wall or on the back of a monitor. This gives you the flexibility to use the case in a variety of settings, whether you’re using it as a desktop computer or as a wall-mounted device.

Assembly instructions are available here.

Features

• Material: Aluminium
• Finishing: Anodized Black
• Board Compatibility: Raspberry Pi 4
• Interface Support: Cutouts for most ports and interfaces including space for a 40-Pin GPIO cable
• Ventilation: Space for PWM Tower Cooling Fan | Large air vents on the front and rear wall
• Orientation: Rubber Feet for desktop orientation | Precut keyholes for wall mounting

Benefits

• The cooler will keep the Raspberry Pi processor cool even during extensive processing
• The case provides optimal functionality and compatibility with most ports and interfaces
• The case is easy to install and has ample ventilation, which helps to keep your Raspberry Pi running smoothly

Contents

• 1x KKSB Raspberry Pi 4 Aluminium Case
• Fasteners

Raspberry Pi and tower cooler/fan not included

Resources

• Assembly Instructions
