Grove – Solid State Relay

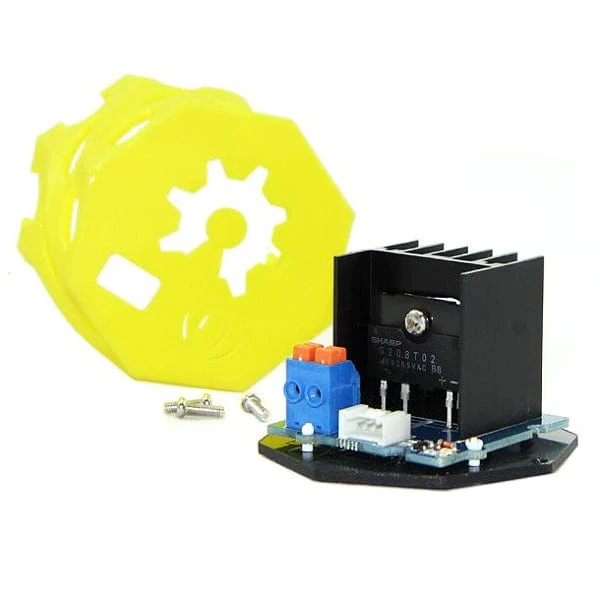

Grove – Solid State Relay is a non-contact electronic switch module that has relay features. Based on S208T02, it has a maximum output of 250VAC/4A, with a switching speed less than 10ms. This module is equipped with acrylic base and a 3D-printed protection insulation shield, for user’s safety. The featured LED indicates that the relay is on. It can be widely used in various areas such as computer peripheral interfaces, temperature/speed/light adjustment, servo control, petrochemical, medical instrumentations, financial devices, coal, meters, traffic signals, etc.

Features

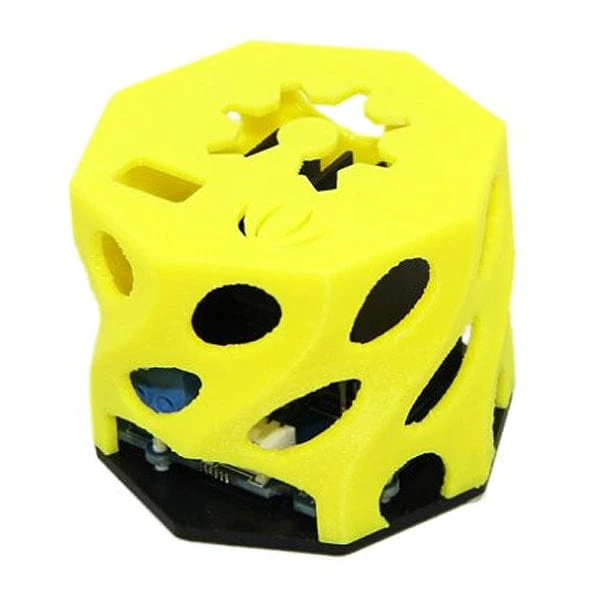

• 3D-printed protection insulation shield
• Compatible with both 3.3V and 5V control level
• Low switching latency (?10ms)
• LED on-state indicator
• Featured radiator provide better stability
• Acrylic base and insulation paper increase safety performance
• Grove compatible
• Product number: Seeed 103020004
