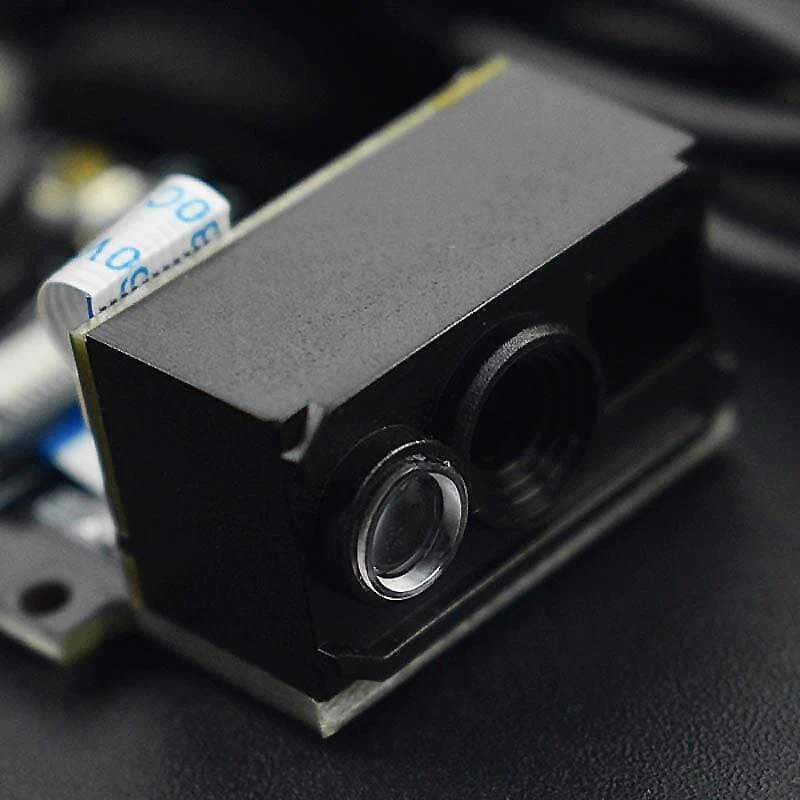

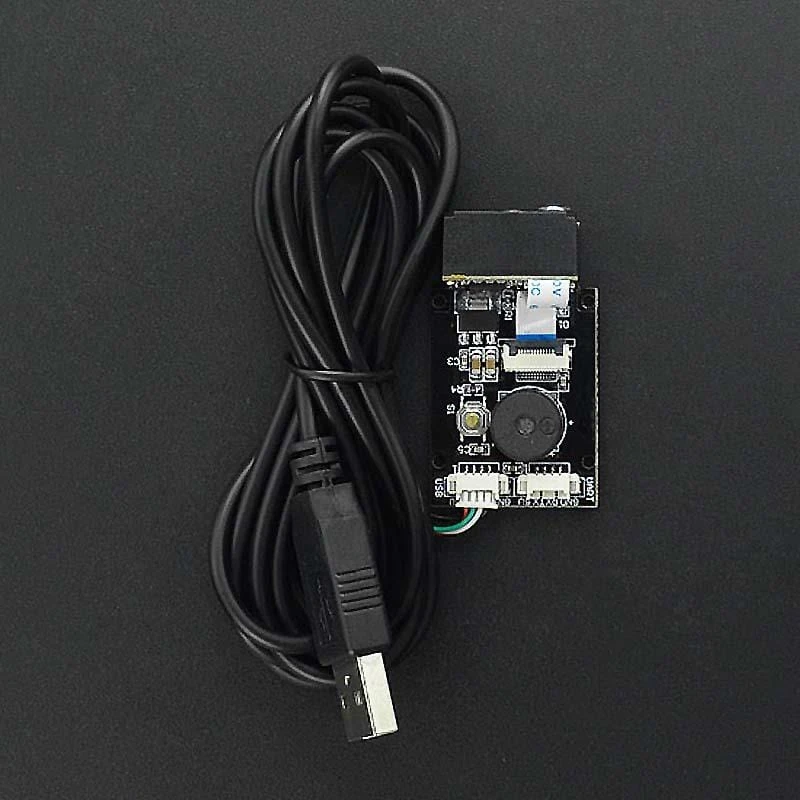

GM77 Barcode And QR Code Scanning Module

This scanning module reads barcodes or 2D codes with a scan speed of 15m/min. With small size and high-efficiency recognition, it is easy to be integrated into various industrial equipment and applications.

The module is equipped with a 0.3megapixel camera and auxiliary lights, white light illumination, and red light focusing which makes it able to effectively identify codes in low-light environments.

The module automatically senses and scans and identifies the surrounding environment. Once auto-triggered, it quickly recognizes and reads code. The scanner also has TTL-232 and USB two communication interfaces for more actual scenarios. It uses CMOS image recognition and core decoding algorithms to quickly recognize various barcodes and QR codes. It’s also Plug and play, requiring no drivers. The module is compatible with many mainstream operating systems such as Windows, Linux, Android, and Mac.

In addition to recognizing ordinary QR codes and barcodes, it can also recognize laser codes and other high-density code systems, which is applicable to various embedded environments such as mobile payment, access control, and self-service shopping.

Features

• Small size
• High-efficiency recognition
• Automatically senses and scans
• Driver-free

Specifications

• Sensor: 640×480 CMOS
• Illumination: White LED
• Focus: Red LED
• Support 1D code types: EAN, UPC, Code 39, Code 93, Code 128, UCC/EAN 128, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, ISSN, MSI-Plessey,
• GS1 Databar, Code 11, Industrial 25, Standard 25, Plessey, Matrix 2 of 5
• Support 2D code types: QR Code, Micro QR, Data Matrix, PDF417, MicroPDF417, Aztec
• Reading Accuracy: ≥4mil
• Reading Depth of Field: EAN-13: 50mm- 200mm (13mil); Code39: 40mm 90mm (5mil 10 bytes); QR Code: 25mm- 200mm (20mil 16 bytes); Data
• Marix: 50mm- 90mm (10mil 20 bytes) ); PDF 417: 30mm- 120mm (6. 67mil 7 bytes)
• Scanning Angle: rotation angle 360°, elevation angle ±55°, deflection angle ±55°
• Field of View: 47° (horizontal), 36° (vertical)
• Contrast: ≥25%

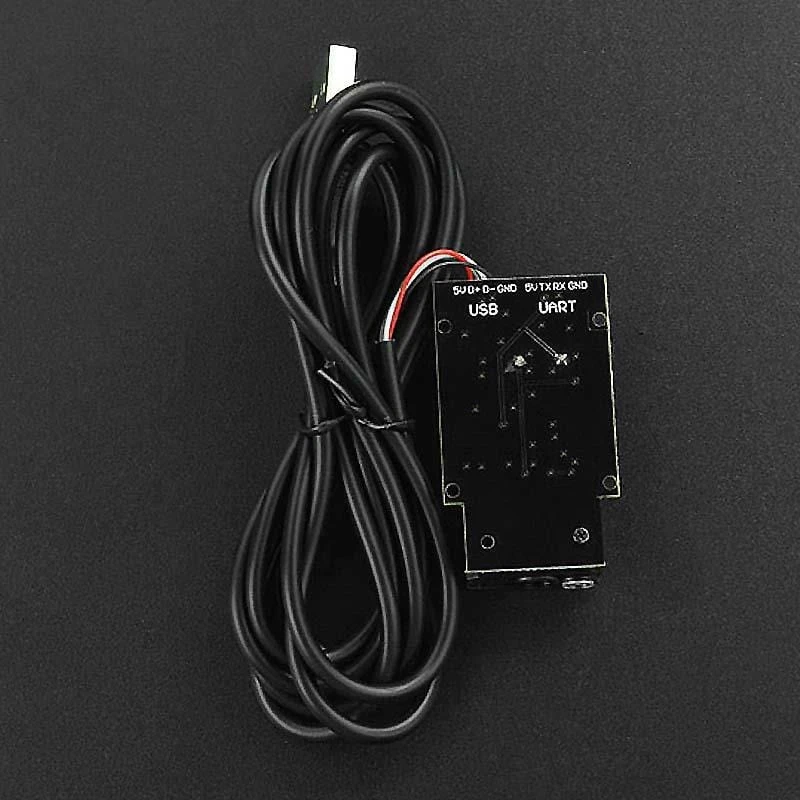

• Communication Interface: TTL-232, USB (HID-KBW, virtual serial port)
• Size: 48.5*27.5*14mm/1.91*1.08*0.55 inch
• Working Voltage: DC 5V
• Working Current: 180mA
• Standby Current: USB: 50mA; TTL: 10mA
• Ambient Light: 0~100000lux
• Working Temperature: -20℃~50℃
• Storage Temperature: -40℃~70℃
• Working Humidity: 5%~95% (non-condensing)

Package Contents

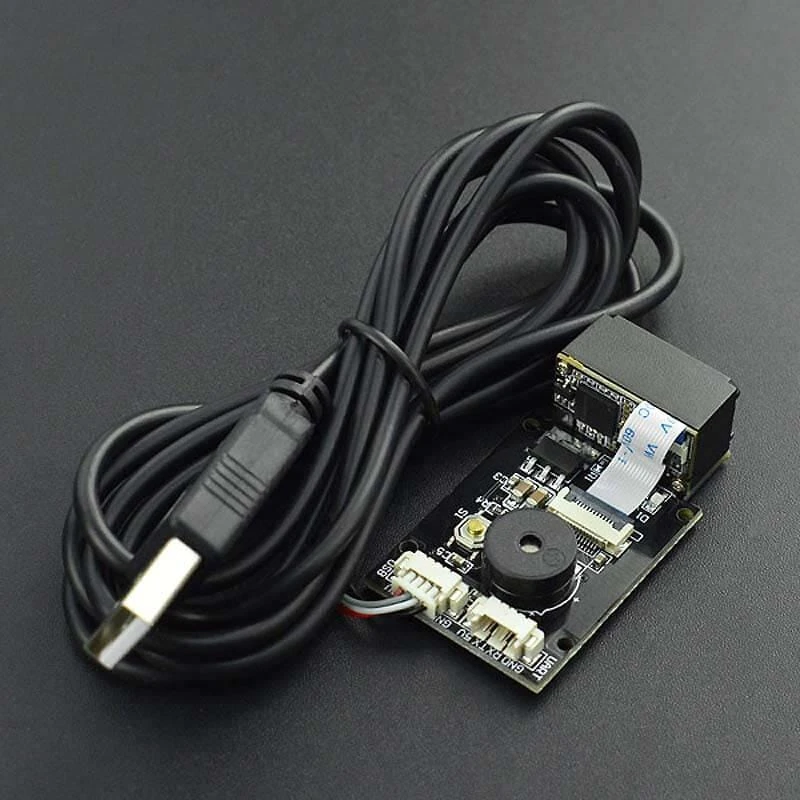

• 1x GM77 Barcode & QR Code Scanning Module
• 1x USB Adapter Cable
• 1x TTL Adapter Cable
