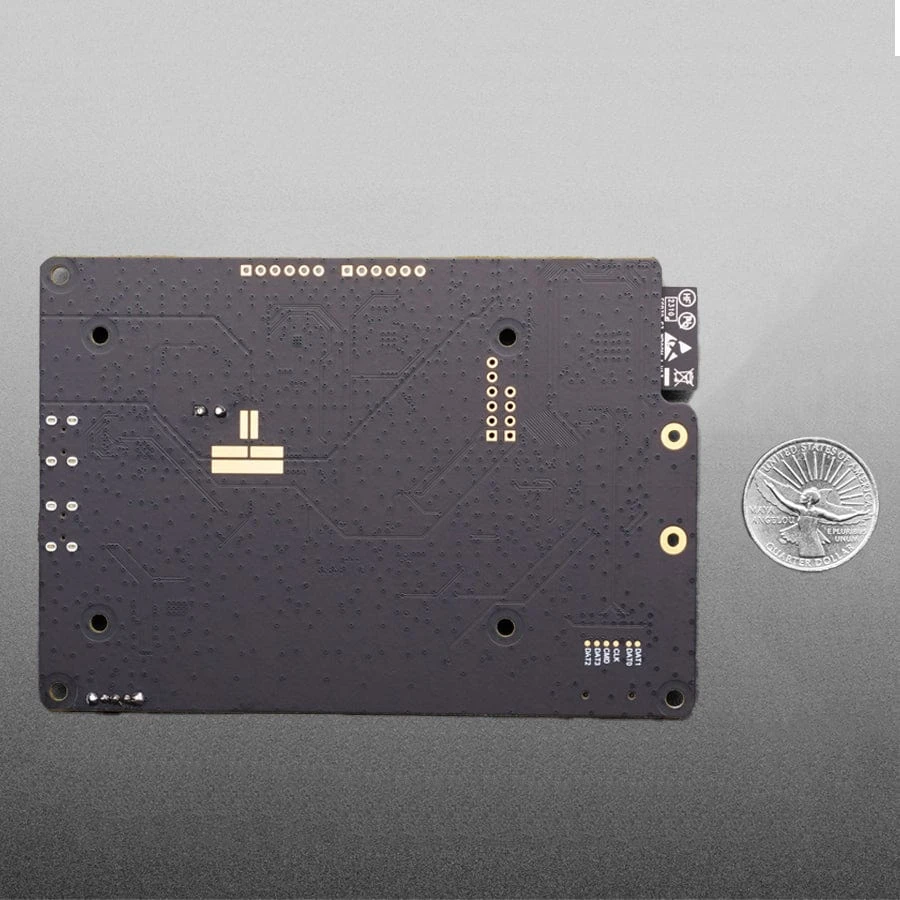

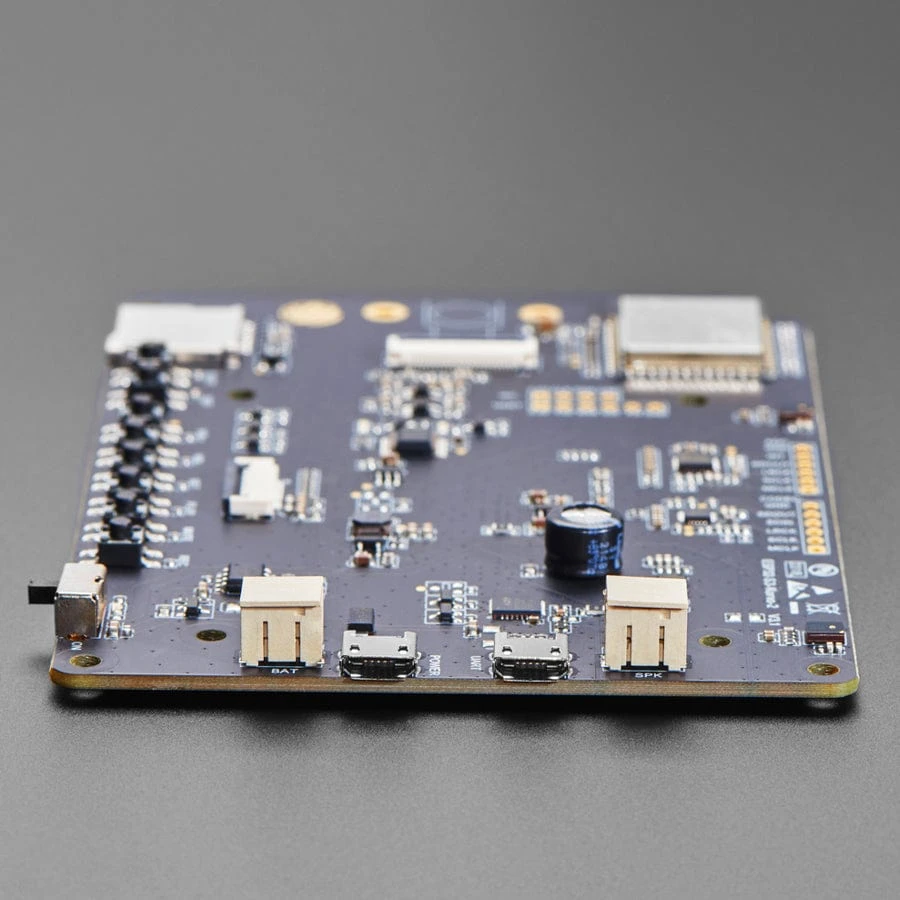

ESP32-S3 Korvo 2 Main Development Board

The ESP32-S3-Korvo-2 is a multimedia development board based on the ESP32-S3 chip. It is equipped with a two-microphone array, which is great for voice recognition and near/far-field voice wake-up applications. The board can integrate multiple peripherals such as LCD, camera, and

microSD card

. It also supports JPEG video stream processing. With all of its outstanding features, the board is an ideal choice for the development of low-cost and low-power network-connected audio and video products.

Please Note: this is a ‘barebones’ dev board, and does not come with a camera, speaker, or LCD module – it’s for advanced hackers who have that hardware already!

Resources

• Getting Started Guide and more documentation

• GitHub

Package Contents

• 1 x ESP32-S3-Korvo-2 V3.0 (LCD display NOT included)

Optional Hardware (NOT included):

• MicroSD card

• 3.7V

  / 4.2V Li-ion or LiPoly battery

• Camera Module (can be used with ‘standard’ 24-pin 8-bit camera modules such as the

  OV5640

  or

  OV2640

  )

• Speaker with JST PH connection

• 2 x

  USB 2.0 cable (Standard-A to Micro-B)

• LCD Display
