ESP32-S2 Saola 1R Dev Kit Featuring ESP32-S2 WROVER

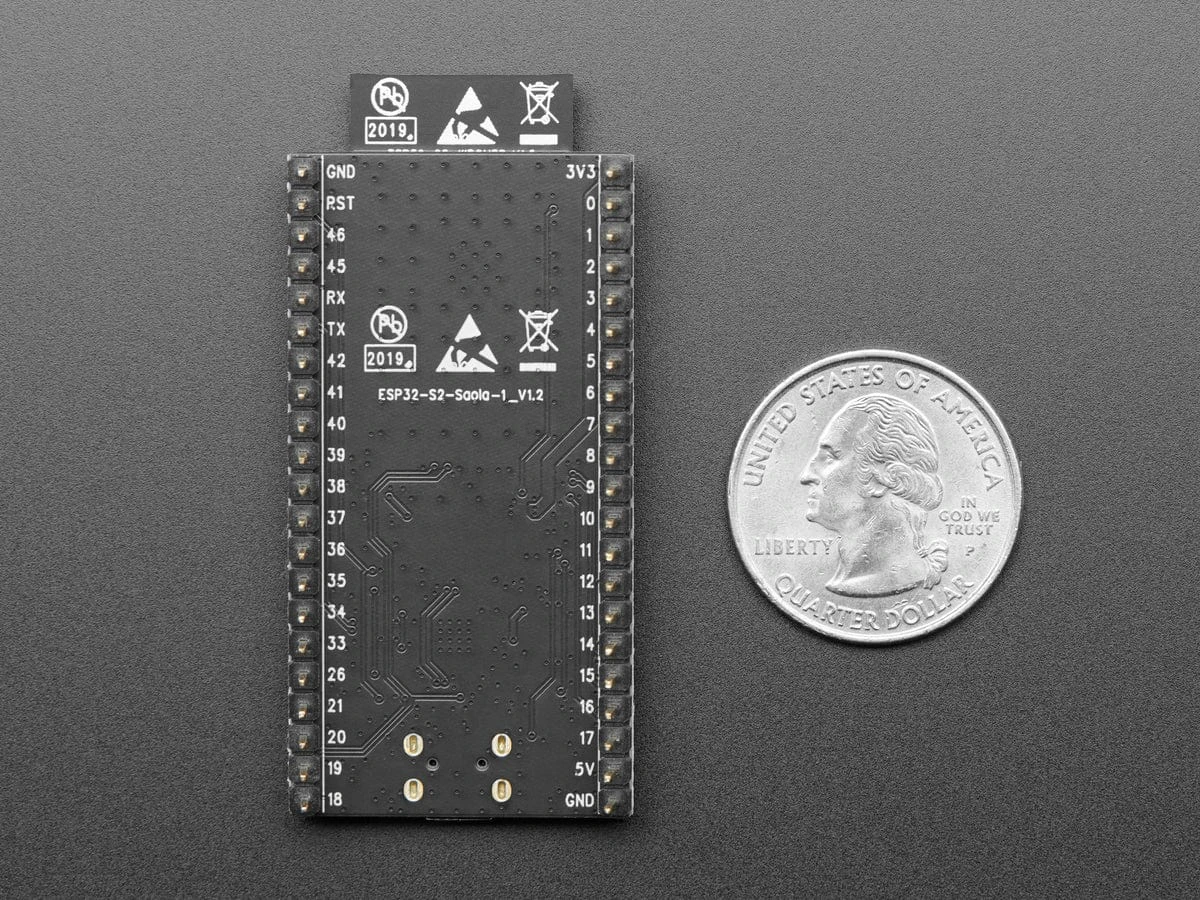

ESP32-S2 Saola-1 is a small-sized ESP32-S2 based development board produced by Espressif. Just about all of the I/O pins are broken out to the pin headers on both sides for easy interfacing. Developers can either connect peripherals with jumper wires or mount ESP32-S2 Saola-1 on a breadboard – we recommend two breadboards ‘side-by-side’ since the Saola is a bit wide and you won’t have extra holes on one side for wiring.

This particular Saola comes with a WROVER module, which has 2 MB (16 Mbit) PSRAM mounted for a roomy development environment!

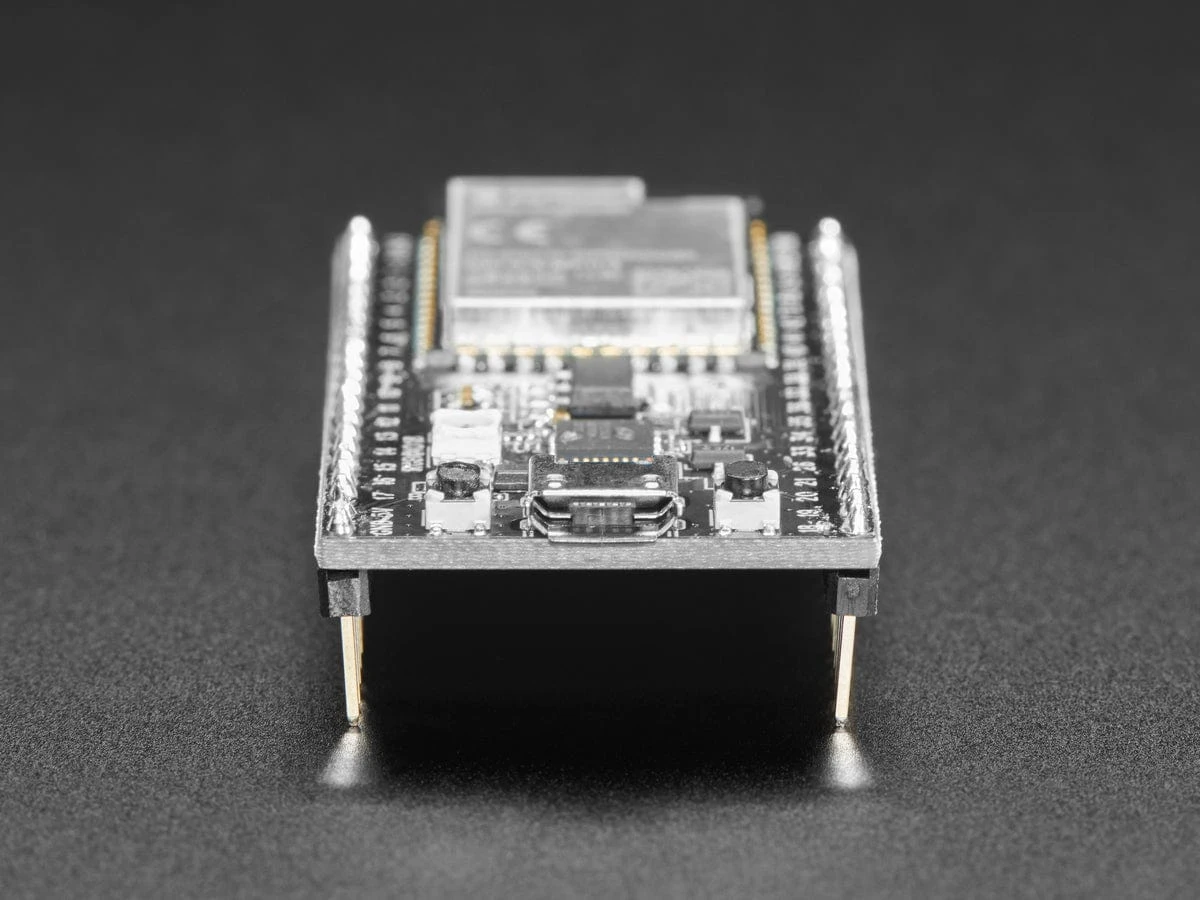

The micro USB connector on the Saola is wired through a CP210x USB to serial converter chip for debugging and programming. The native USB is not available on a USB connector – instead you’ll want to pick up a

Micro B USB

connector breakout,

Type C USB

connector breakout or

USB data cable

and hand-wire D19/D20 to D- and D+ pads.

We do have CircuitPython support for this board, but as mentioned above, you will have to wire up the USB connectivity to access the CircuitPython disk drive and serial port.

Espressif ESP32-S2 supports ESP-IDF master or version v4.2 and higher. You’ll find information to get started with ESP32-S2-Saola-1 board and hardware documentation (e.g. schematics) in Espressif’s Documentation website.
