ESP32-S2-Saola-1M Development Board
Original price was: £15.83.£11.08Current price is: £11.08.
- Safe and Secure Payments, Always
- Quality You Can Trust
- The Quality Choice for Smart Shoppers
- fast shipping

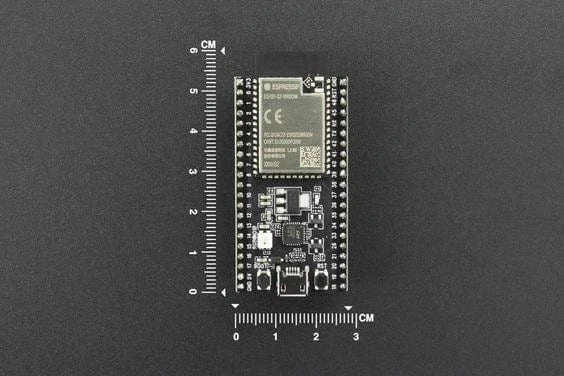

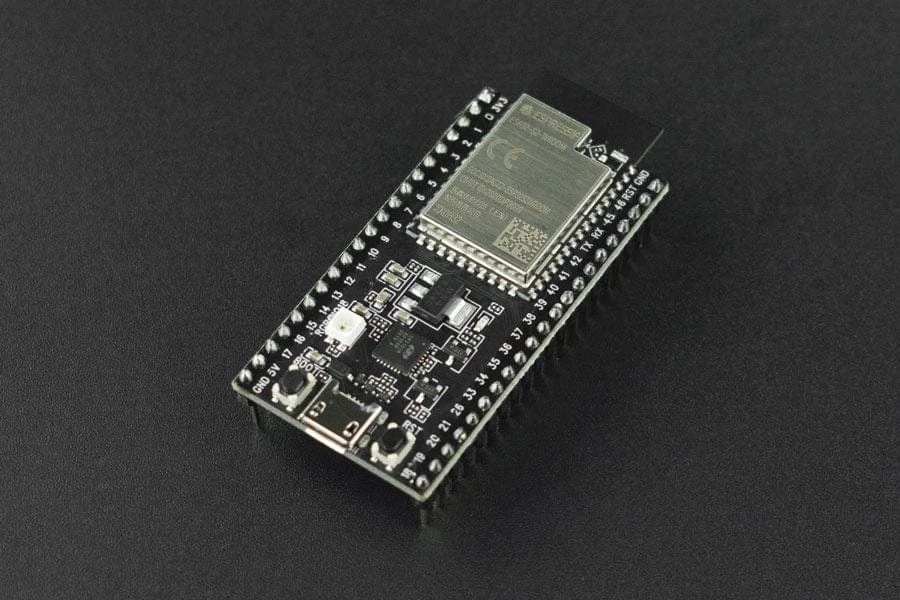

ESP32-S2-Saola-1 is a small-sized ESP32-S2-based development board. Most of the I/O pins are broken out to the pin headers on both sides for easy interfacing. Developers can either connect peripherals with jumper wires or mount ESP32-S2-Saola-1 on a breadboard.

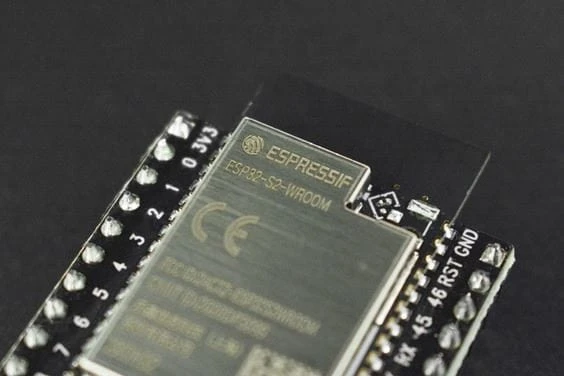

ESP32-S2-Saola-1 is equipped with ESP32-S2-WROOM module, a powerful and generic Wi-Fi MCU module that has a rich set of peripherals. It’s an ideal choice for a wide variety of application scenarios like wearable electronics and smart home. The board has PCB onboard antenna, and 4MB SPI flash.
| Key Component | Description |
|---|---|
| ESP32-S2-WROVER | ESP32-S2-WROVER is a powerful, generic Wi-Fi MCU module that integrates ESP32-S2. It has a PCB antenna, a 4 MB external SPI flash and an additional 2 MB PSRAM. |

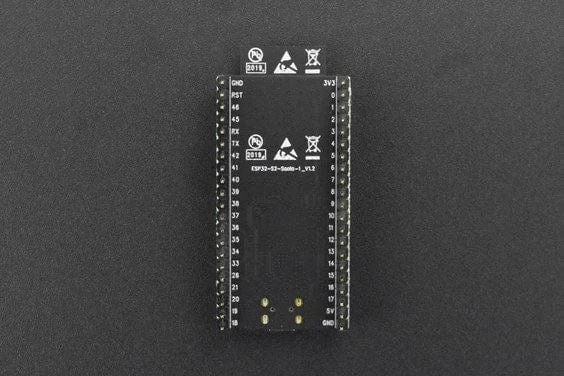

| I/O Connector | All available GPIO pins (except for the SPI bus for flash and PSRAM) are broken out to the pin headers on the board. Users can program ESP32-S2 chip to enable multiple functions such as SPI, I2S, UART, I2C, touch sensors, PWM etc. |
| USB to UART Bridge | Single USB-UART bridge chip provides transfer rates up to 3 Mbps. |
| Boot Button | Download button. Holding down Boot and then pressing Reset initiates Firmware Download mode for downloading firmware through the serial port. |
| Reset Button | Reset button. |
| 3.3 V Power On LED | Turns on when the USB power is connected to the board. |

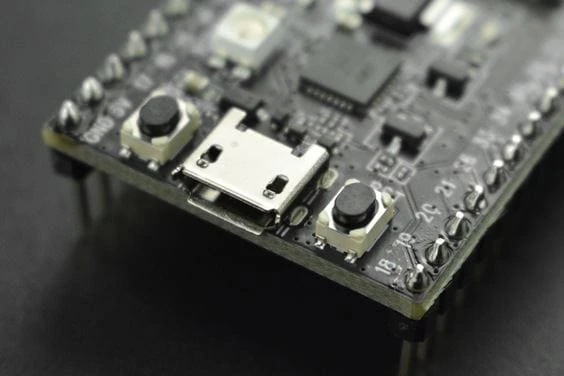

| Micro-USB Port | USB interface. Power supply for the board as well as the communication interface between a computer and the ESP32-S2 chip. |
| RGB LED | Addressable RGB LED (WS2812), driven by GPIO18. |
Specification
- ESP32-S2 chip, Xtensa single-core 32-bit LX7 Microcontroller
- 128 KB ROM
- 320 KB SRAM
- 16 KB RTC SRAM
- 40 MHz crystal oscillator integrated
- 4 MB SPI flash
- Operating/Supply Voltage: 3.0 ~ 3.6 V
- Recommended Operating Temperature: –40 ~ 85 °C
Documents
-
Product wiki
Shipping List
- ESP32-S2-Saola-1M Development Board x1
