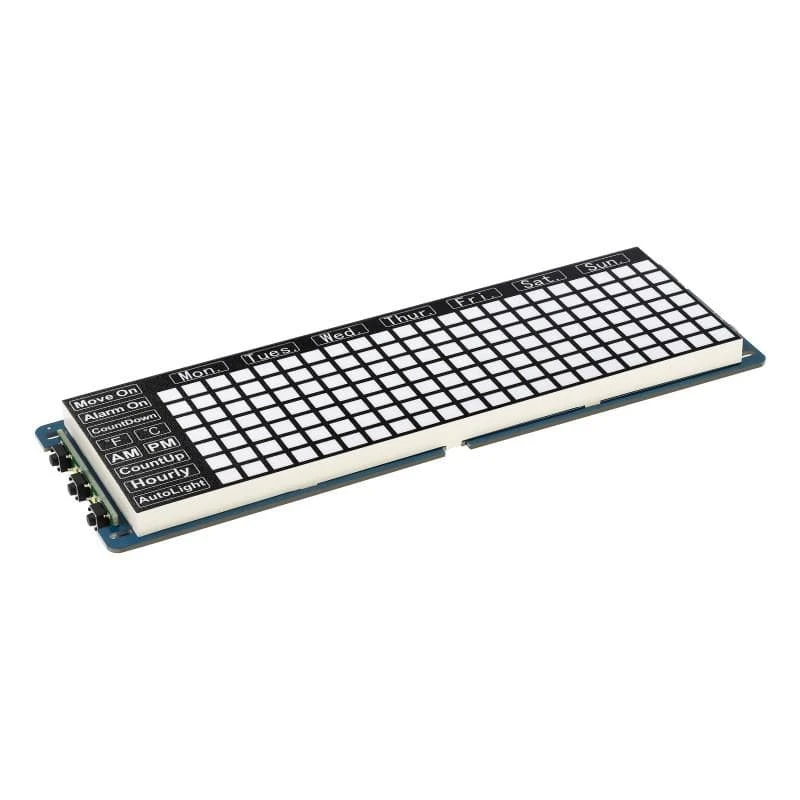

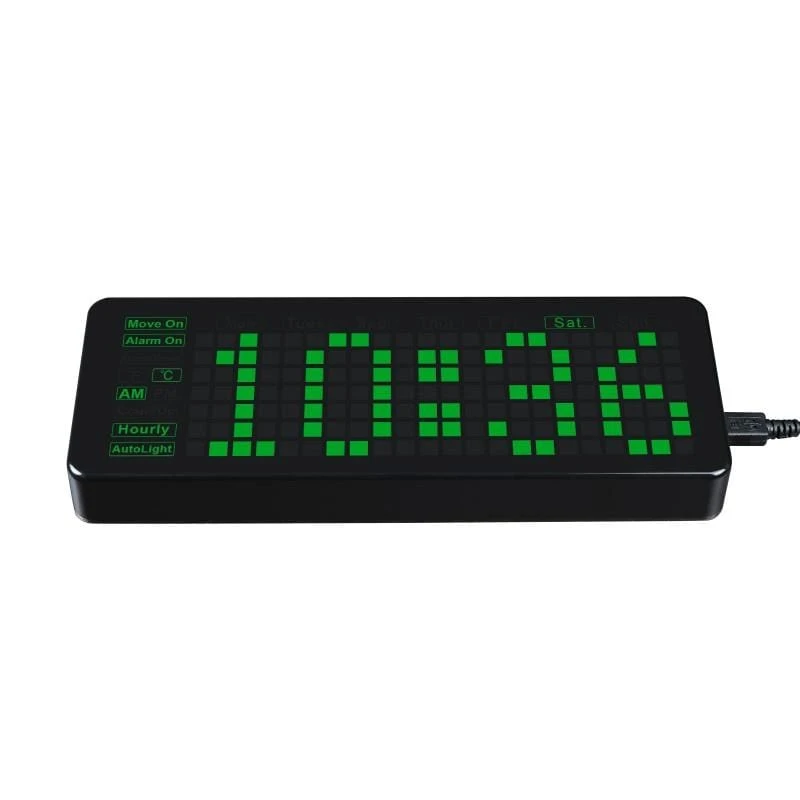

Electronic Clock For Raspberry Pi Pico

The Electronic Clock for Raspberry Pi Pico is an LED digit electronic clock project designed for the

Raspberry Pi Pico

!

It incorporates a high-precision Real-time Clock (RTC) chip, photosensor, buzzer and buttons, and features multiple functions including an accurate electronic clock, temperature display, auto-brightness adjustment, alarm and custom button configuration.

Open-source code and development tutorials

are provided to help you get started and make your very own original electronic clock! The USB connection provides both power and a debugging interface for programming.

Not compatible with the Pico W (the taller debug header gets in the way!).

A Raspberry Pi Pico is not included –

click here

if you’d like to buy one. Your Pico will need to have

male headers

soldered to it with the pins pointing downwards (or grab one of our

pre-soldered Picos

).

Note: Some simple assembly required.

---

Lithium Battery Shipping: Due to courier restrictions, this product can only be shipped within England/Wales. With this item in your cart, your shipping options will be limited and may cost more than our usual rates.

Why?

---

Features

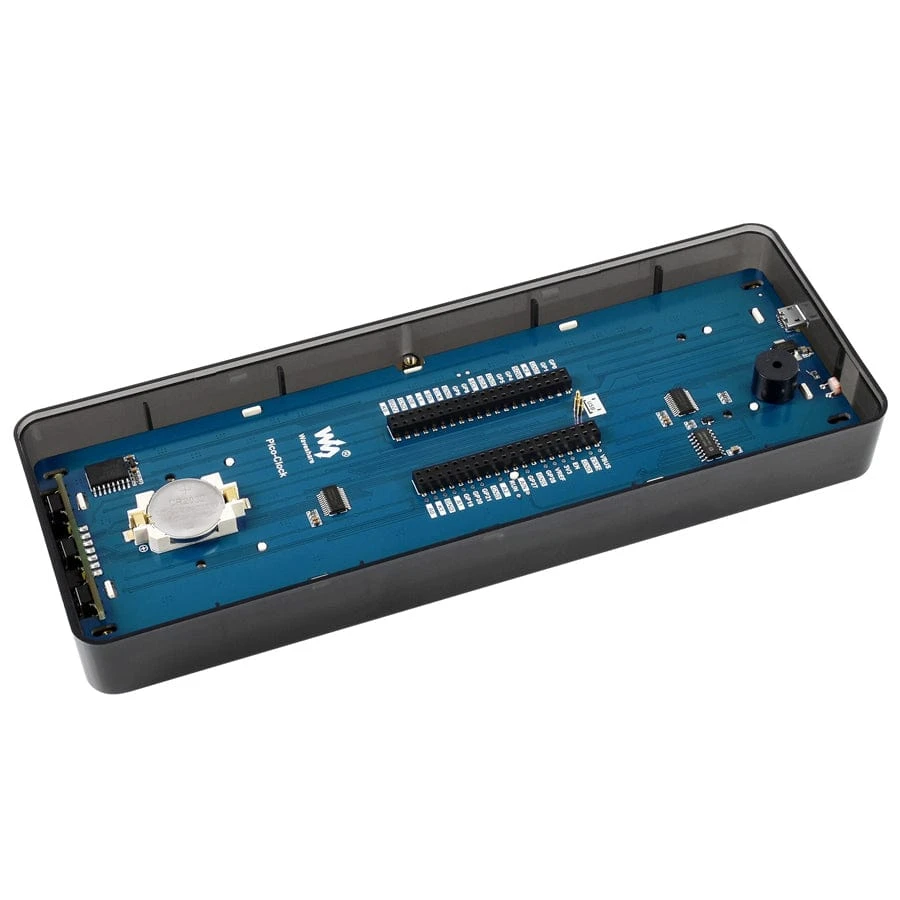

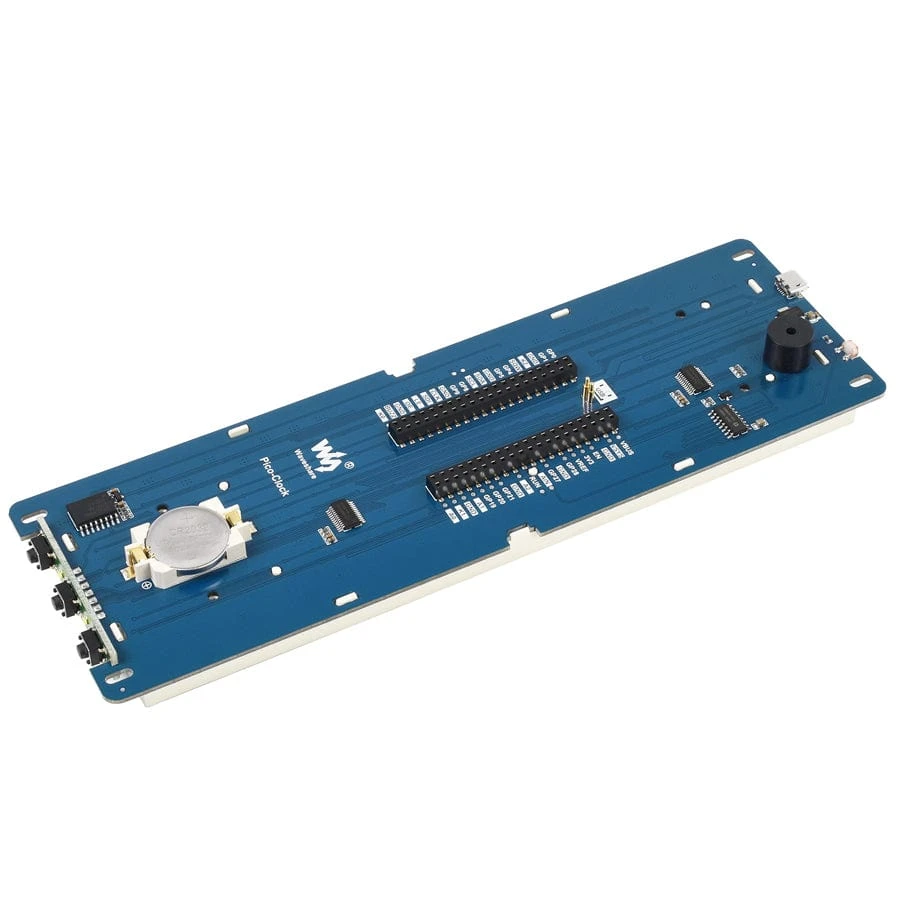

• Female header for Raspberry Pi Pico
• Onboard high precision RTC chip DS3231 with backup battery, maintains accurate timekeeping when main power is off
• Real-Time Clock Counts Seconds, Minutes, Hours, Date of the Month, Month, Day of the Week and Year with Leap-Year Compensation Valid Up to 2100
• Optional format: 24-hour OR 12-hour with an AM/PM indicator
• 2x programable alarm clock
• Digital temperature sensor output: ±3°C accuracy

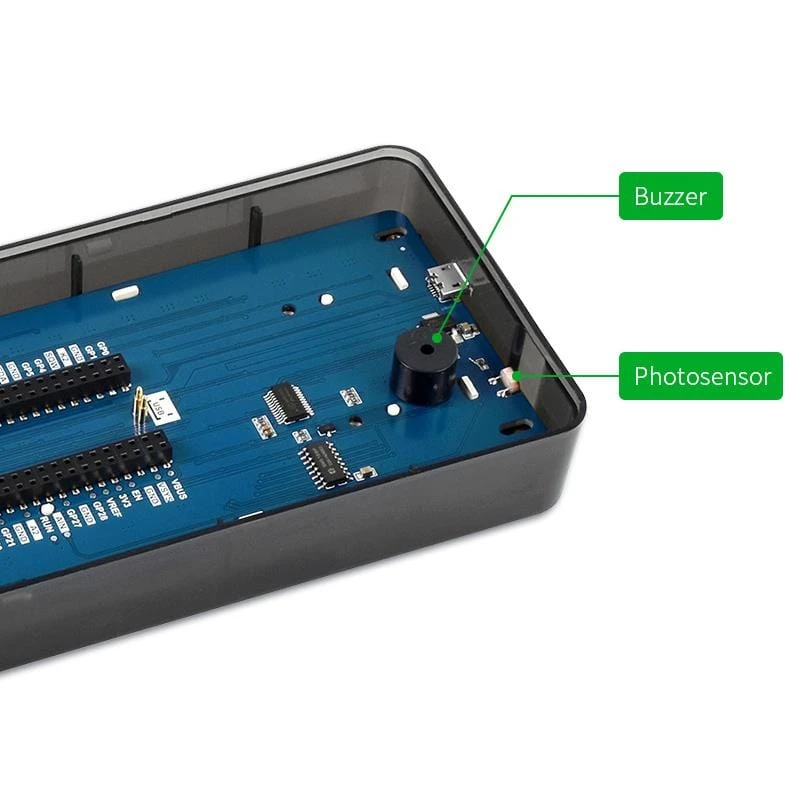

• Embedded photosensor for auto brightness adjustment – power saving and eye care
• Embedded buzzer for alarm or hourly ring etc
• 3x buttons for custom configuration

• Online development resources and manual

  (Raspberry Pi Pico C/C++ examples)

Resources

• Product Wiki and user guide

Dimensions and Information

Package Contents

• 1x Pico Clock Module
• 1x Case
• 1x USB-A to micro-B cable 1.2m
• 1x Screws pack
• 1x CR2032 battery (installed)

Raspberry Pi Pico not included

Specifications

• Power Supply: 5V via USB
• Program / Debug Port: USB
• Outline Dimensions: 216 x 79 x 25mm
• Display Size: 190 x 60mm

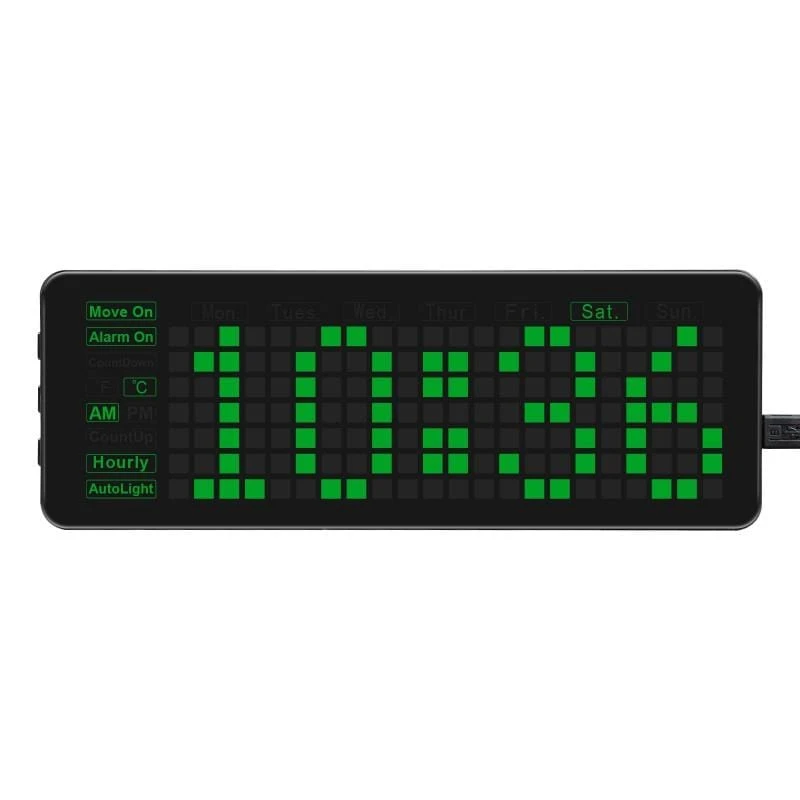

• LED Digit: Jade green
• Functions:
  • Scrolling display
  • Alarm/hourly ring
  • Temperature in ℉ or ℃ format
  • 12/24 time format
  • Day of week auto adjustment
  • Timekeeping without main power
  • Timer configuration
  • Manual/auto brightness adjustment
  • Button configuration

Revisions

• As of 17/10/2023: This product now ships with a CR2032 lithium battery
