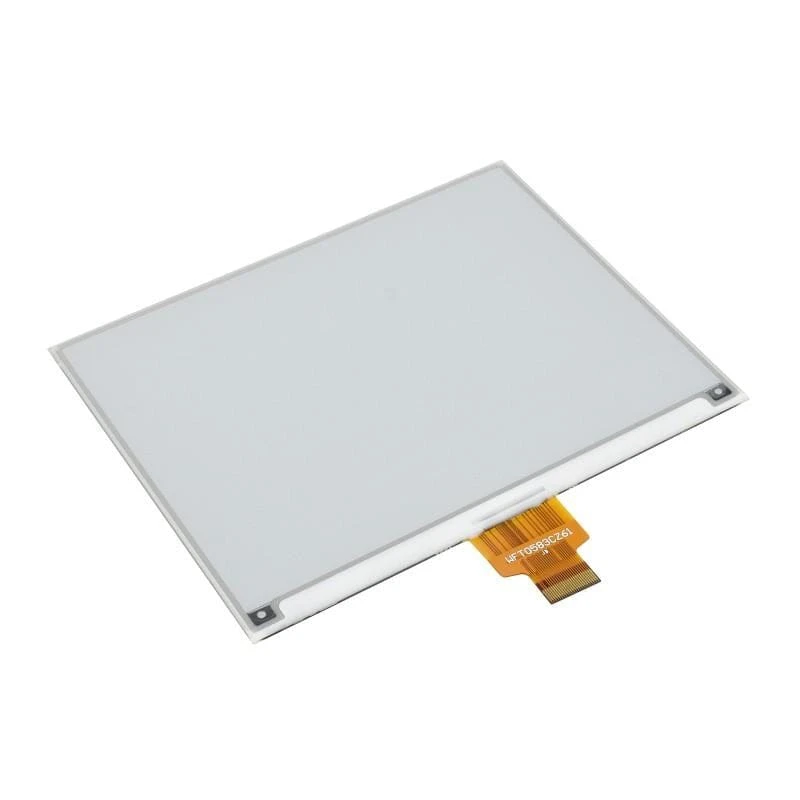

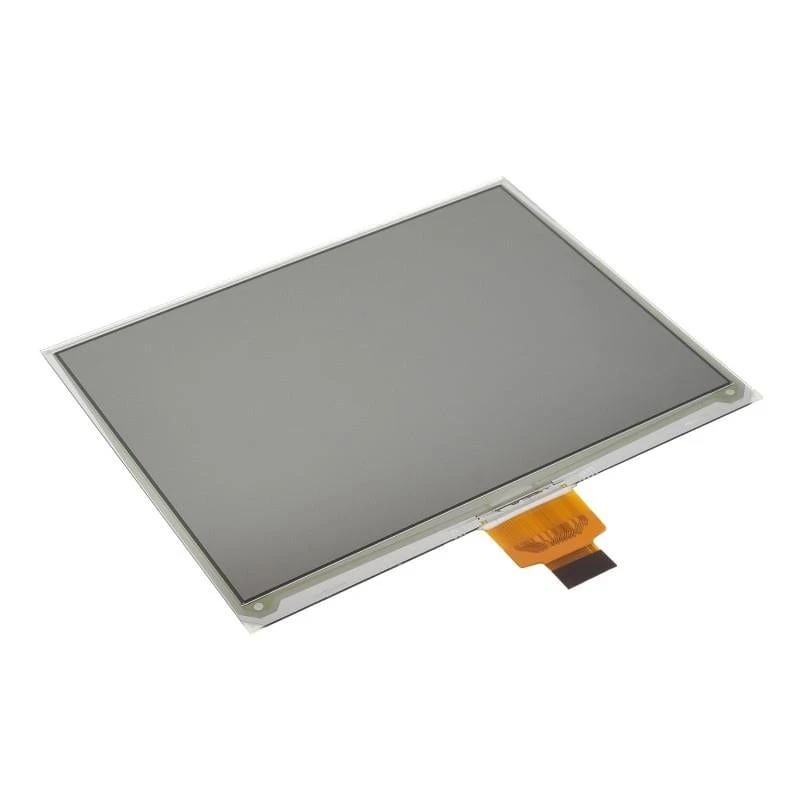

E-Ink Display Raw Panel 5.83″ (648×480)

This is for the screen only! This item does not come with a controller PCB (but you can grab one here for the

Raspberry Pi

or

Arduino

).

Looking for an eInk / ePaper display for your Raspberry Pi or Arduino project? Look no further! These handy eInk / ePaper displays from Waveshare are available in a range of sizes, so you’re bound to find the perfect fit for your project.

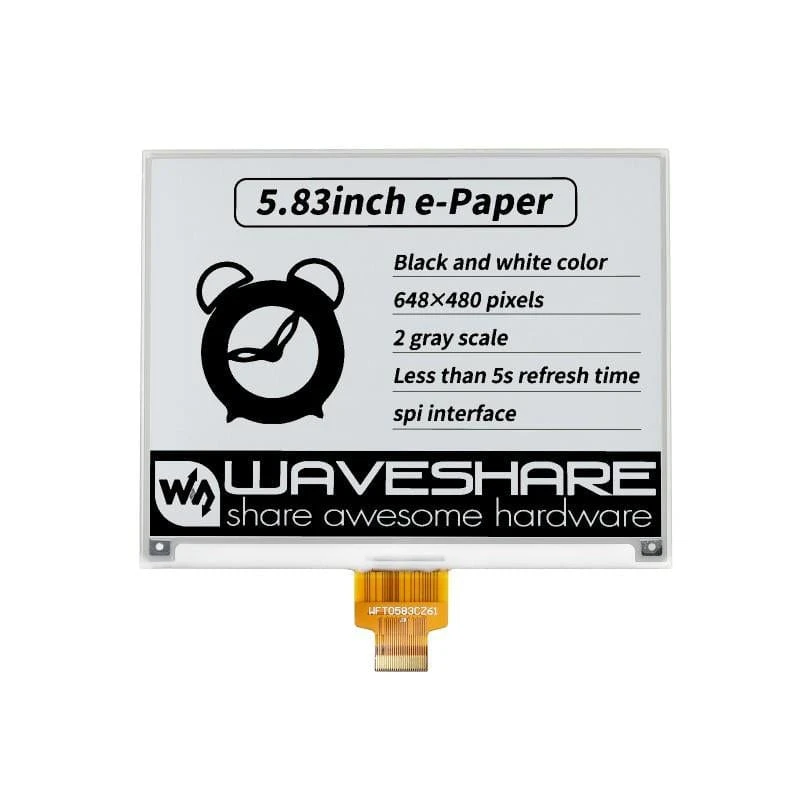

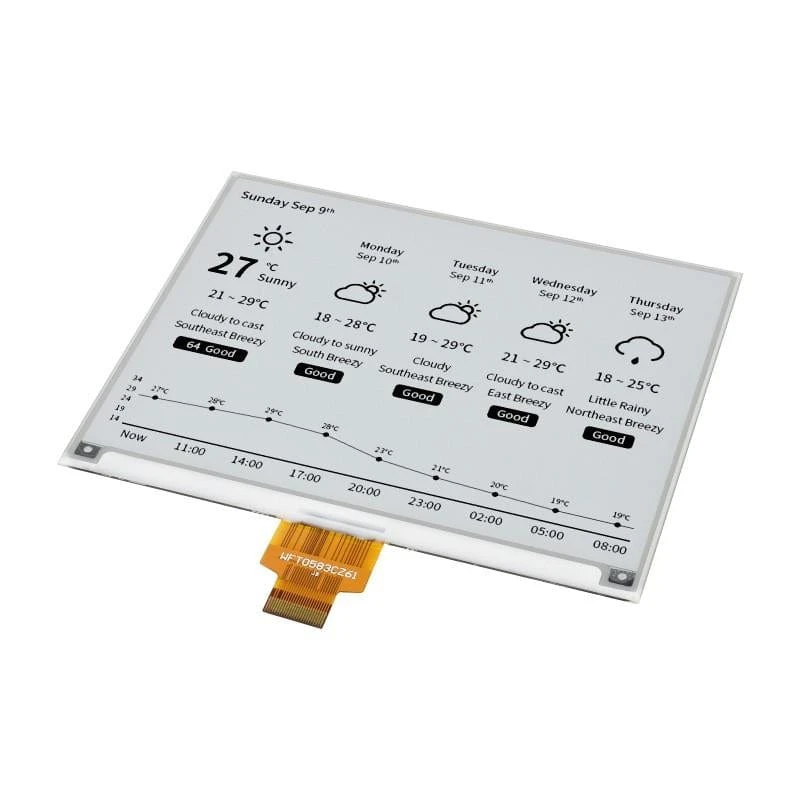

This is one of the larger panels in the range with a 5.83″ 648×480 display – great for those bigger projects with lots of data to display! Just add a controller board and you’re ready to make the ultimate low-power display.

ePaper / eInk displays are designed to replicate the appearance of ink on paper. Unlike regular displays, which lose their image when power is removed, E-Ink screens are able to hold text and images indefinitely, even without power. ePaper screens are therefore ultra low power, designed to have a wide viewing angle and additionally have limited reflection under sunlight. The applications are limitless!

Features

• No backlight – keeps displaying last content for a long time even when powered down
• Ultra-low power consumption – power is only required for refreshing

• Online development resources and manual

  (driver board schematic, examples for Raspberry Pi/Arduino/STM32)

Resources

• Product Wiki and user guide

Package Contents

• 1x 5.83″ Display Panel (panel only, no controller)

Specifications

• Operating voltage: 3.3V
• Interface: 3-wire SPI, 4-wire SPI

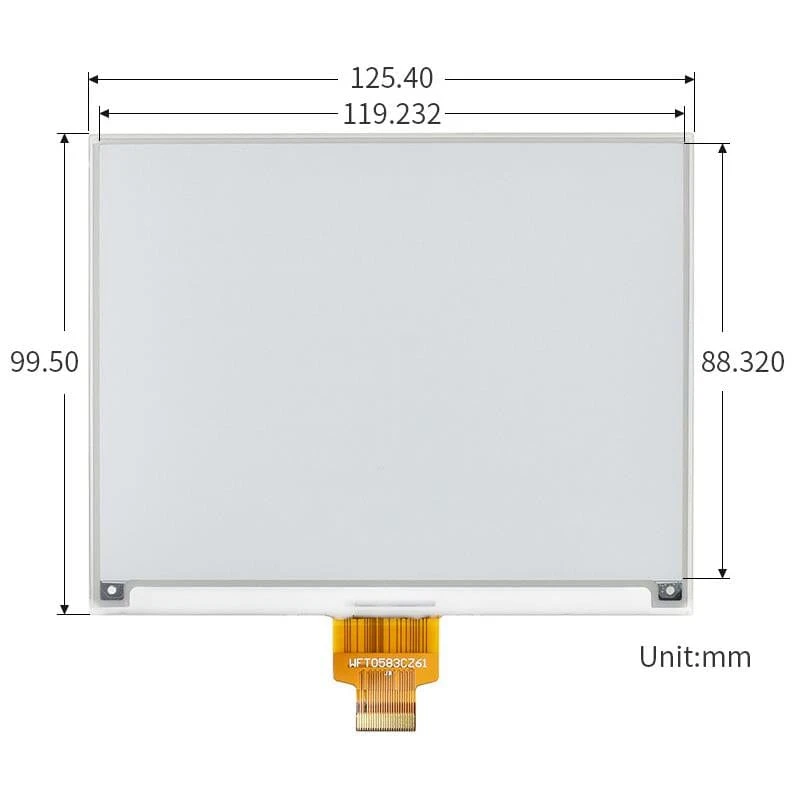

• Outline dimension: 125.40 × 99.50 × 1.18mm
• Display size: 119.232 × 88.320mm
• Dot pitch: 0.184 × 0.184mm
• Resolution: 648 × 480 pixels
• Display colour: black, white
• Grey level: 2
• Full refresh time: 5s
• Refresh power: 26.4mW(typ.)
• Standby power: <0.01uA (almost none)
• Viewing angle: >170°
