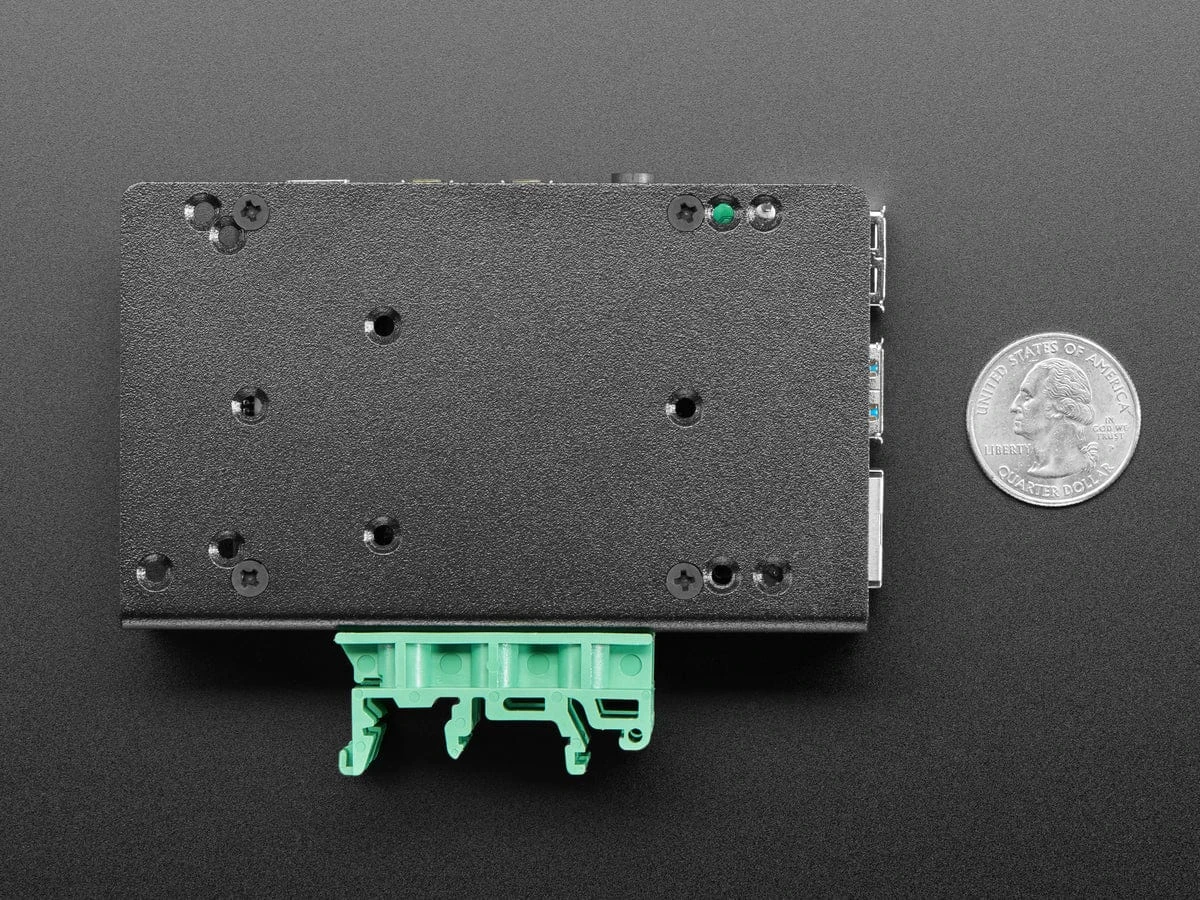

DIN Rail Mount Bracket For Raspberry Pi / BeagleBone / Arduino

This one’s going out to all the makers and designers who use DIN railing in their builds. This adapter plate is perfect for simplifying complex wiring. It’s pretty neat and compatible with a slew of microcontrollers and microcomputers:

Raspberry Pi

(any modern ones with 4 mounting holes such as the Zero, Pi 4, etc), Adafruit Metro or Arduino Uno, Adafruit Grand Central Express or Arduino Mega, or

BeagleBone

.

Please note that this product is only the mounting bracket – No breakout terminal blocks are included! For Raspberry Pi, match it up with a

2×20 IDC to Terminal Block Adapter

and a

GPIO Ribbon Cable

to get started on your DIN rail project.

No soldering required! Take your favourite microcontroller and mount it to the bracket using the 10mm standoffs.

Includes:

• 1 x Aluminum bracket
• 1 pair DIN rail adapter legs and mount screws
• 6 x M2.5x10mm standoffs
• 6 x M2.5x6mm flat head screws
• 6 x M2.5x6mm pan head screws

Note: DIN Rail itself, terminal block breakout and microcontroller / Pi board are not included!
