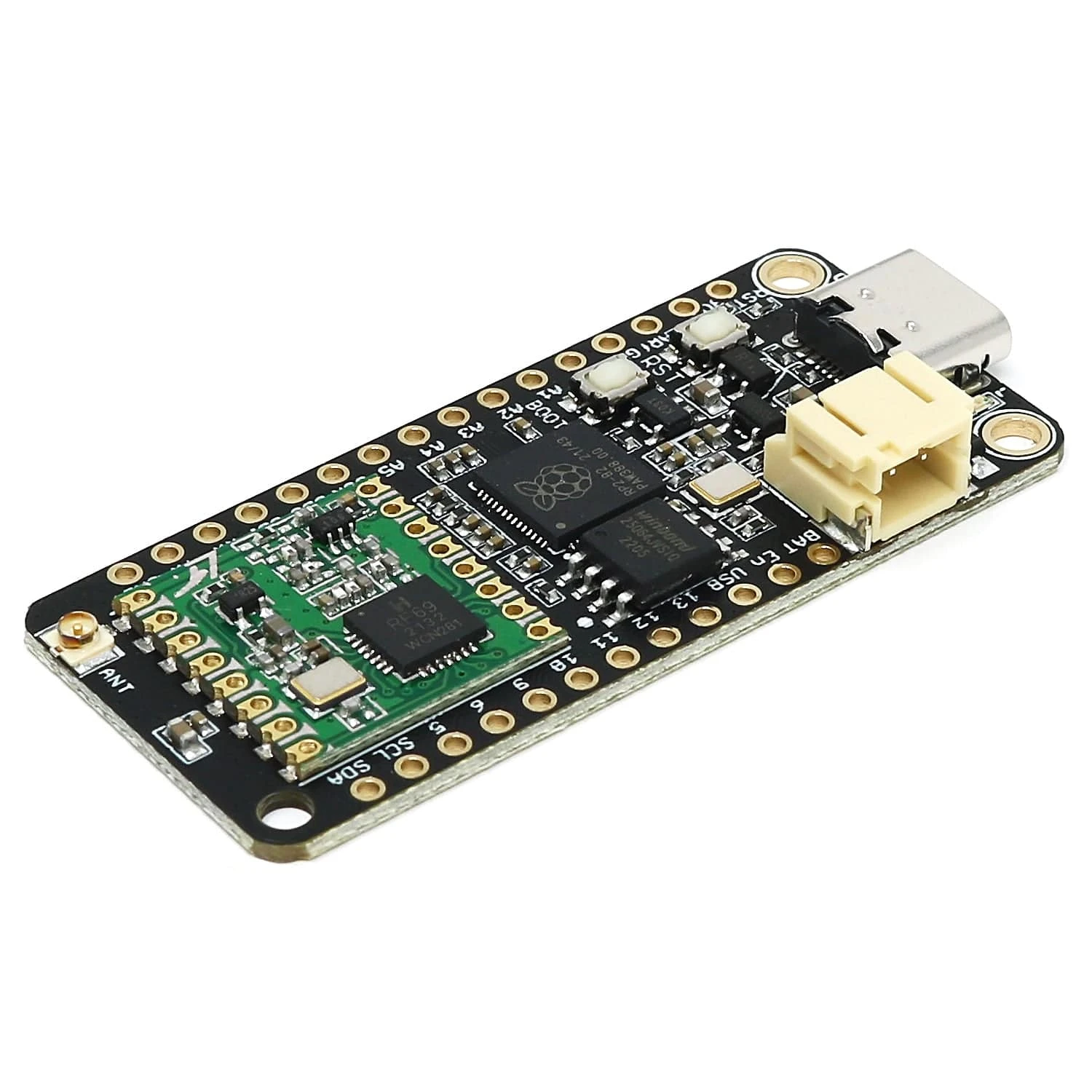

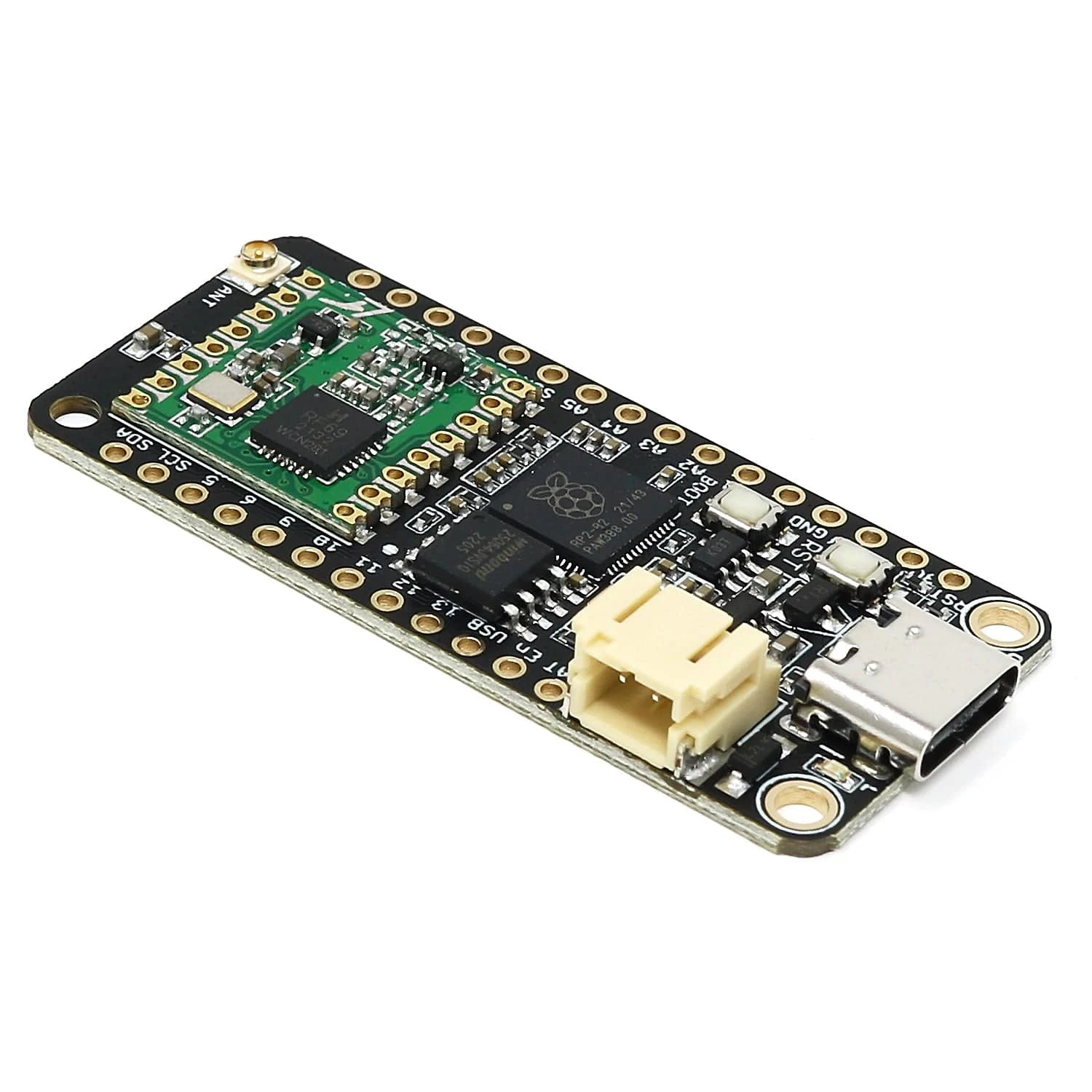

Challenger RP2040 Sub-GHz (915MHz, U.FL Connector)

The

iLabs

Challenger

RP2040 Sub-GHz 915MHz board is an Arduino/Micropython compatible

Adafruit Feather

 format microcontroller board based on the RP2040 chip used in the

Raspberry Pico

.

This is a spin-off from our

Challenger RP2040 LoRa

board, but in this case, we’ve replaced the LoRa module with a low-power Sub-GHz radio module also from Hope RF. The transceiver features a proprietary long-range modem that provides ultra-long-range spread spectrum communication and high interference immunity whilst minimizing current consumption.

This is the Sub-GHz 915MHz version.

We also offer a Sub-GHz 868MHz option

…or

view the entire Challenger range here

!

SubGHz radio

The RFM69HCW is a transceiver module capable of operation over a wide frequency range, including the 315, 433, 868 and 915MHz license-free ISM (Industry Scientific and Medical) frequency bands. Currently, we are only supporting the 868 and 915MHz bands but this may change in the future.

All major RF communication parameters are programmable and most of them can be dynamically set. The RFM69HCW offers the unique advantage of programmable narrow-band and wide-band communication modes.

The RFM69HCW is connected to the RP2040 via SPI channel 1 and a few GPIOs that are required for signalling. A U.FL connector is used to attach your

antenna

to the board.

• +20 dBm – 100 mW Power Output Capability
• High Sensitivity: down to -120 dBm at 1.2 kbps
• High Selectivity: 16-tap FIR Channel Filter
• Bullet-proof front end: IIP3 = -18 dBm, IIP2 = +35 dBm,80 dB Blocking Immunity
• Low current: Rx = 16 mA, 100nA register retention
• Programmable Pout: -18 to +20 dBm in 1dB steps
• Constant RF performance over the voltage range of the module
• FSK Bit rates up to 300 kb/s
• Fully integrated synthesizer with a resolution of 61 Hz
• FSK, GFSK, MSK, GMSK and OOK modulations
• Built-in Bit Synchronizer performing Clock Recovery
• Incoming Sync Word Recognition
• 115 dB+ Dynamic Range RSSI
• Automatic RF Sense with ultra-fast AFC
• Packet engine with CRC-16, AES-128, 66-byte FIFO
• Built-in temperature sensor

Power

The board can be powered by multiple sources. The most obvious way to run the board is by plugging it into a

USB cable

 and attaching it to your computer. In this mode, you can write software and test the board with all its functionality.

You can also supply the board with 5V via the header connectors on the PWR pin.

There is a third way to supply the board too. This way is more invasive and will disable the onboard 3.3V power regulator. When doing this you will have to pull the EN header pin low and then supply your own 3.3V voltage on the 3.3V header pin. Please note that when disabling the onboard power regulator you will have to supply the 3.3V also when running the system on battery power.

Battery

As described earlier the board can be powered by a

LiPo battery

. The battery can be connected using a standard 2.0mm JST connector through the battery connector on the right side of the board or if the battery is an integral part of the system that you are designing it is possible to connect the battery through the BAT pin instead.

Switching between the battery voltage and the applied USB voltage or external 5V is done seamlessly by the onboard circuitry.

Charging of the battery is achieved by either connecting a USB cable or by connecting a 5V power source to the header pin marked USB on the board. If you do this make sure you connect your voltage through a 1A schottky diode to avoid any excessive current draw in the system when the two levels are slightly different.

Please note that providing external charger circuitry could destroy the internal charger on the Challenger board.

LEDs

On each side of the USB connector, there is a small indicator LED. The LED which is marked CHG is the charge control indicator. This red LED will light whenever the connected battery is being charged, and when the battery is fully charged the LED will turn off again. If you haven’t connected a battery to the board this LED will not come on at all.

On the other side of the USB connector, there is a user-programmable green LED. This LED is connected to pin D15 and can easily be controlled by the user program.

USB Type-C

In recent years we have noticed that we are seeing more and more USB Type-C cables laying around the lab due to the fact that most new phones and accessories use them. So iLabs decided to go for a USB Type-C connector for this board. A bonus of this is that they are more durable and you don’t have to fiddle with the cable before plugging it in!

The board comes with loose headers that can be soldered to the board if your application requires it.

Pinout

Specifications

Board Size	50,80 mm x 22,86 mm x 3,20 mm
Main microcontroller	RP2040 from Raspberry Pi
SPI	Two SPI channels configured
I2C	One I2C channel configured
UART	One UART channel configured
Analog inputs	4 analog input channels
Radio module	RFM69HCW from Hope RF
FLASH Memory	8MByte 133 MHz
SRAM Memory	264KByte
USB 2.0 controller	Up to 12MBit/s full speed
JST Battery connector	2.0mm pitch
On board LiPo charger	450mA standard charge current

Resources

• Datasheet

• Design files

• Using CircuitPython on the Challenger RP2040 SubGHz to send and receive data packets

MicroPython

The Challenger is fully compatible with both the micropython package

found at the Raspberry Pi site

 as well as

Adafruit’s CircuitPython

. Instruction on how to install the python interpreter of your choice is available on the respective websites.

Using the Arduino environment

iLabs teamed up with

Earle F. Philhower over at his Github page

 to provide Arduino support for their RP2040/Pico based boards. All instructions on how to install the board support package as well as multiple examples on how to use the Raspberry Pi Pico processor.

Package Contents

• 1x Challenger RP2040 Sub-GHz 915MHz
• 2x Pin headers
