Bitboard Kit

Turn everything into a keyboard with the Bitboard kit!

The Bitboard helps to teach young engineers about electric circuits, allowing you to use your own touch as an input or via conductors using the included crocodile clips – great for making your own inputs for games, music and more!

Connection Example – Computer Keyboard Button

Specifications

Rated voltage	5V
Rated current	15mA
Power supply interface	Micro-USB
Number of contacts	8
Programming method	ecode, Scratch
Size (Approx)	140mm x 76mm
Net weight	31g

Resources

• Product Wiki

  • Quick Start

• eCode website

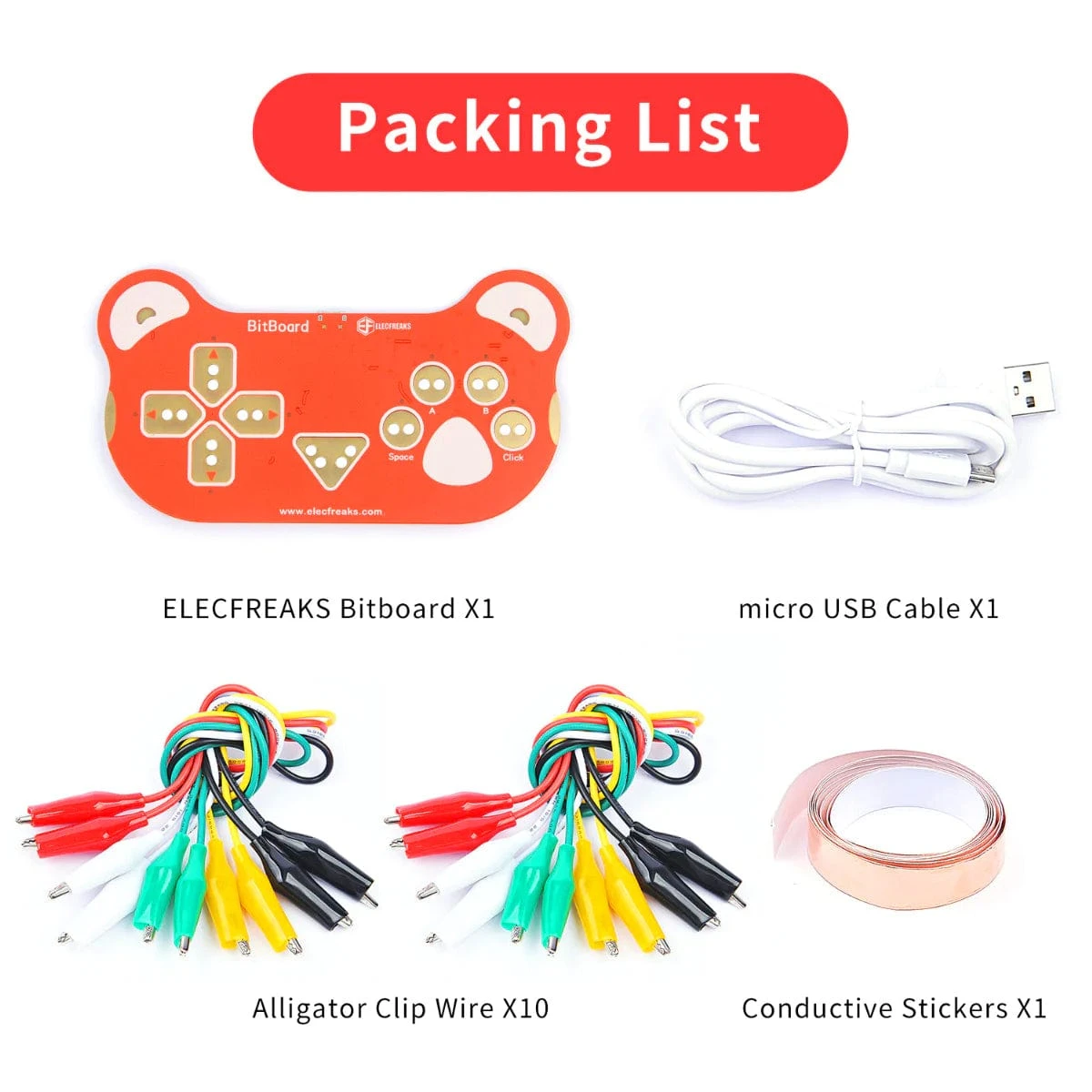

Package Contents

• 1x Bitboard motherboard
• 10x alligator clip cable
• 1x Micro-USB cable
• 1x Conductive stickers
