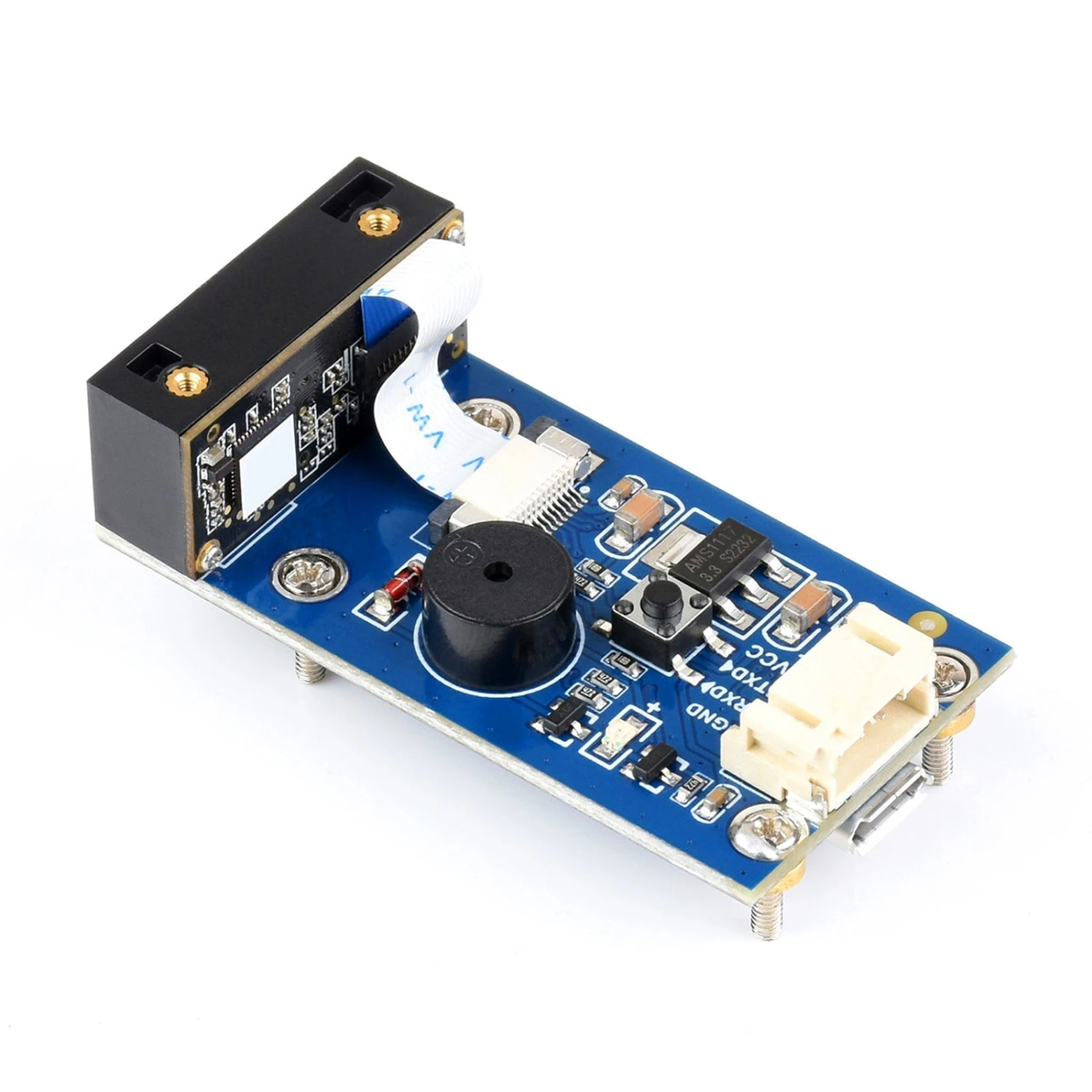

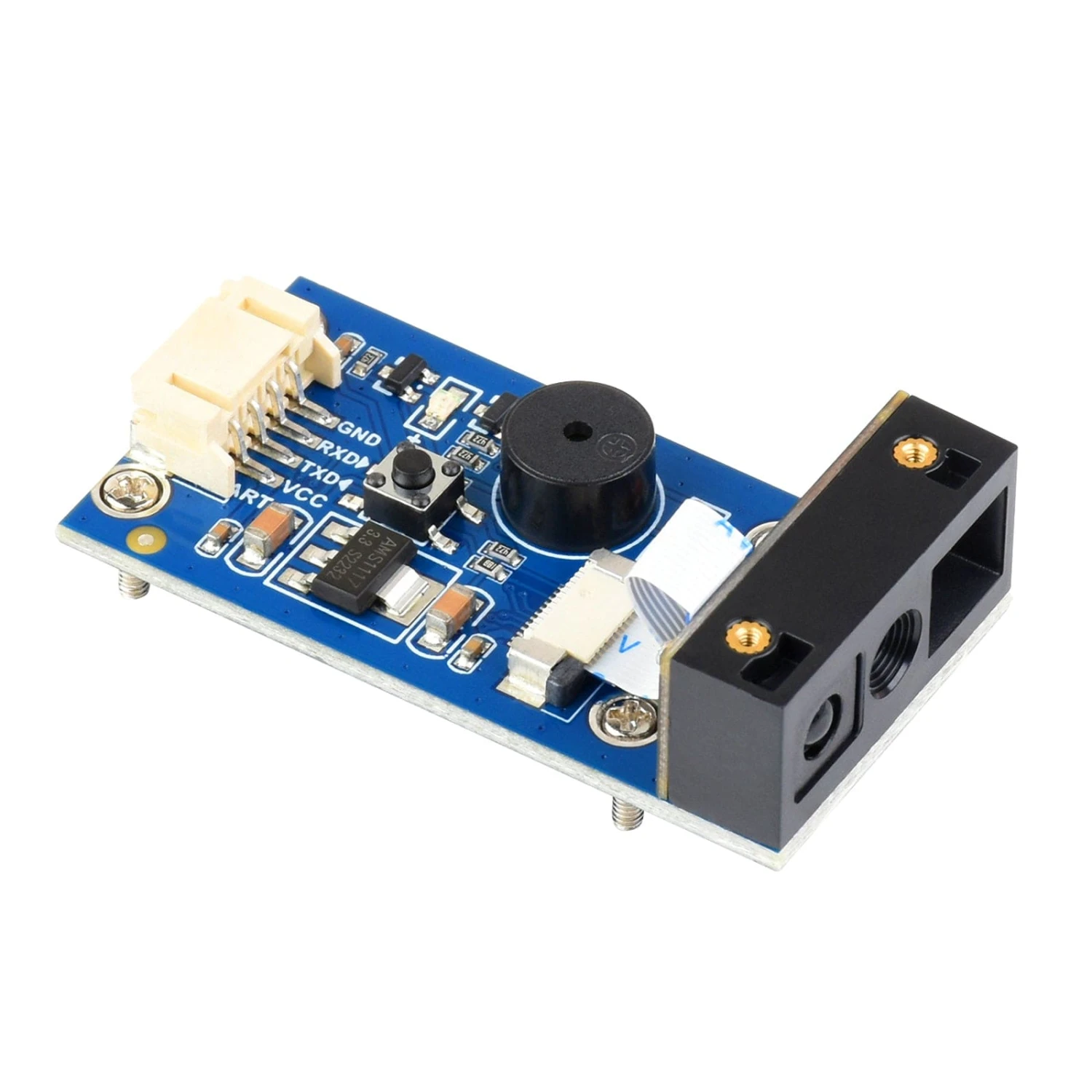

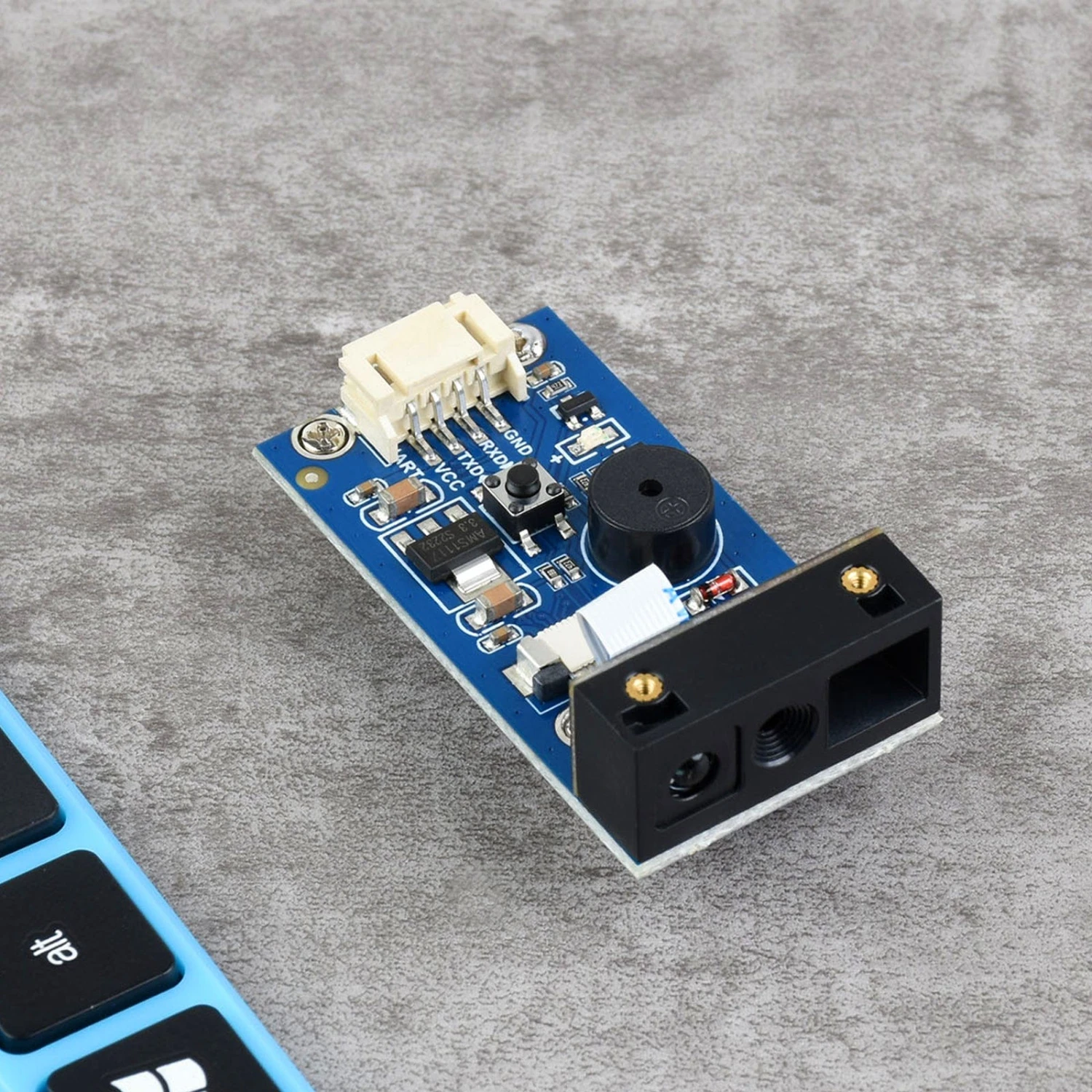

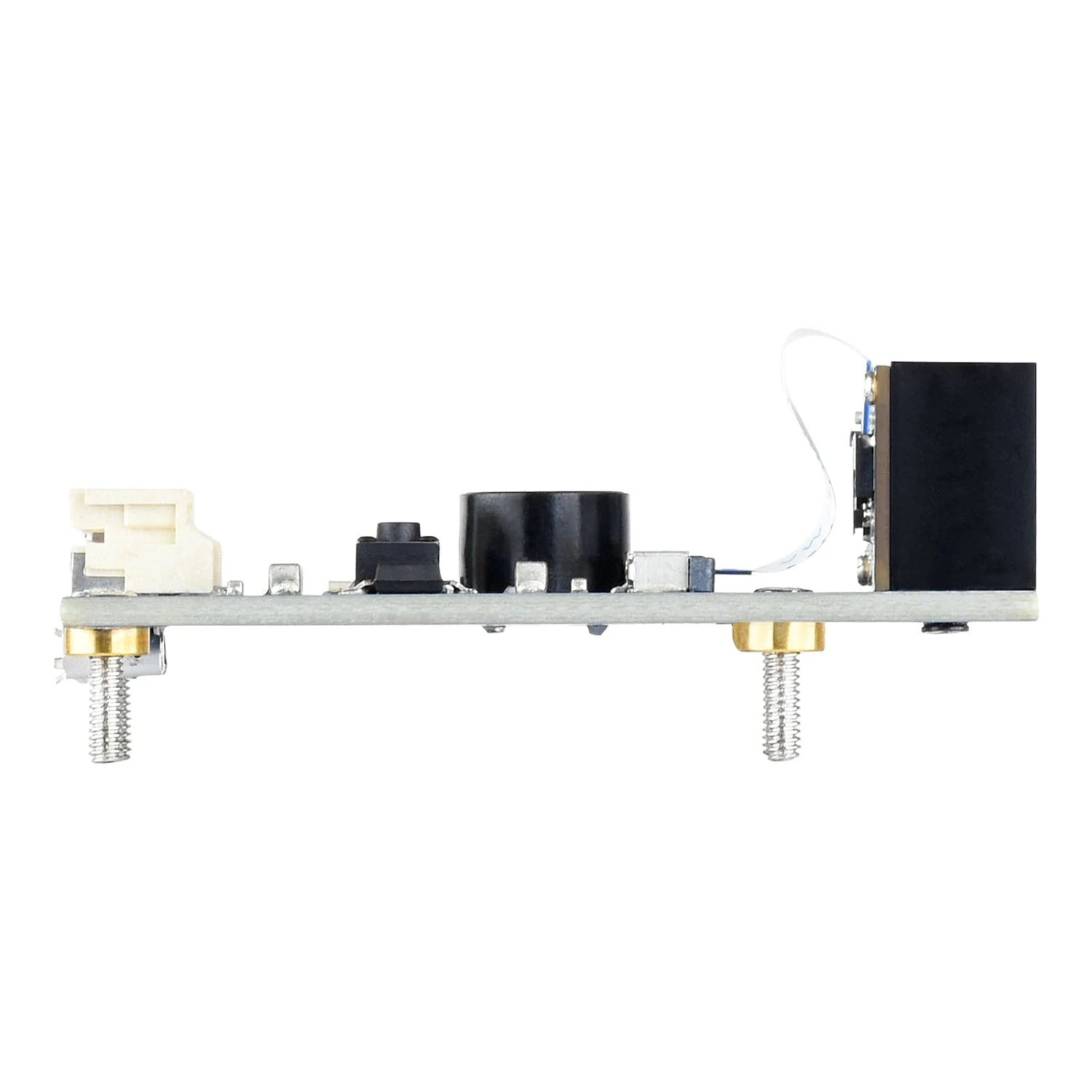

Barcode Scanner Module (1D/2D Barcodes)

This is a small 1D/2D code reader that utilizes an intelligent image recognition algorithm. It will decode both barcodes and 2D codes that have been printed on paper or displayed on a screen, fast and accurately.

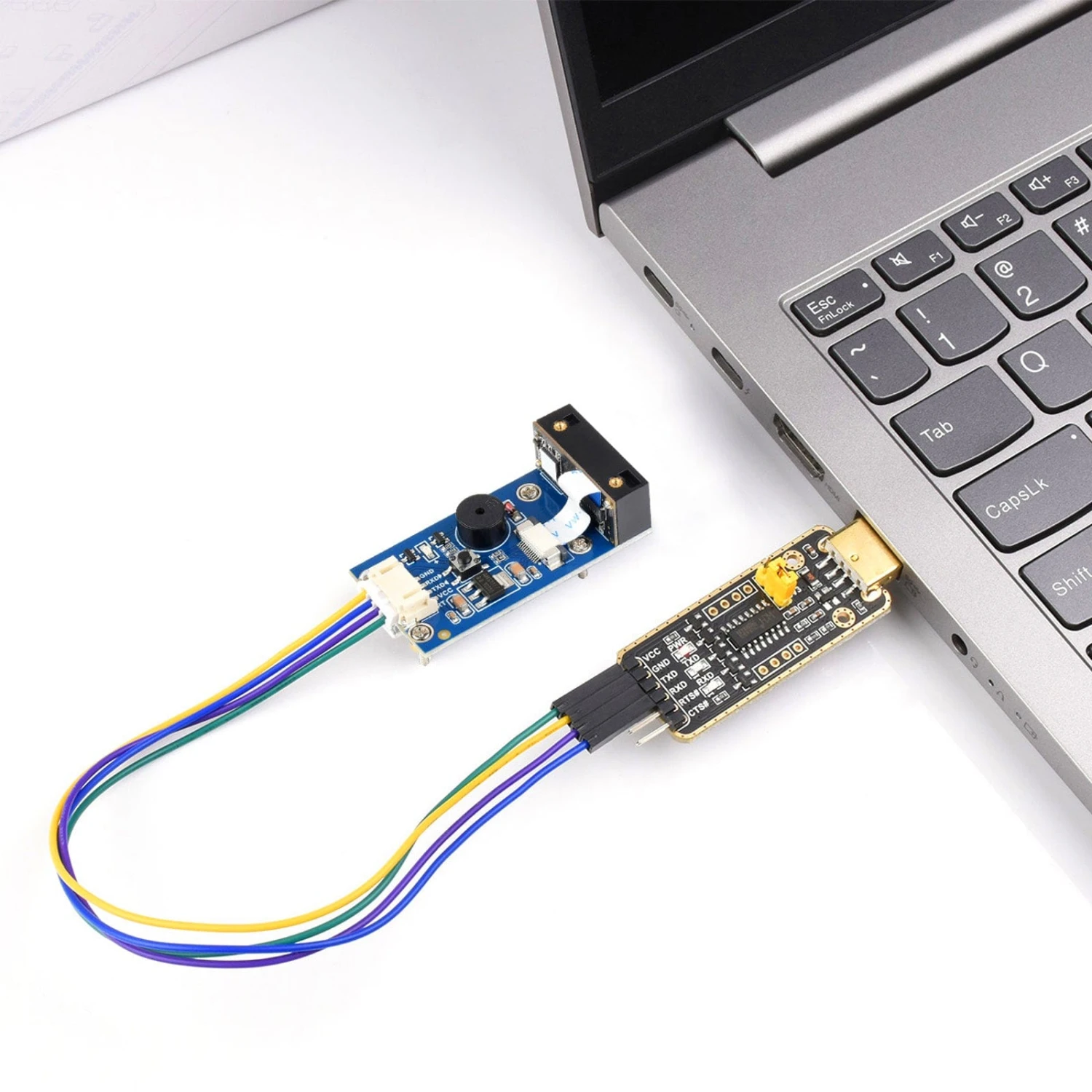

An onboard USB and UART interface makes this little reader quite versatile as it can be directly plugged into a computer, or be easily integrated with popular SBC’s like the

Raspberry Pi

,

Raspberry Pi Zero

, or the

Beagle Bone Black

.

Online resources including datasheets, example code, and connection information can be found on the

Waveshare Wiki page

for this module.

UART cable is NOT included

Features

• Easy to use and requires no knowledge of image recognition
• Decodes various common 1D/2D codes such as Barcode, QR codes, etc.

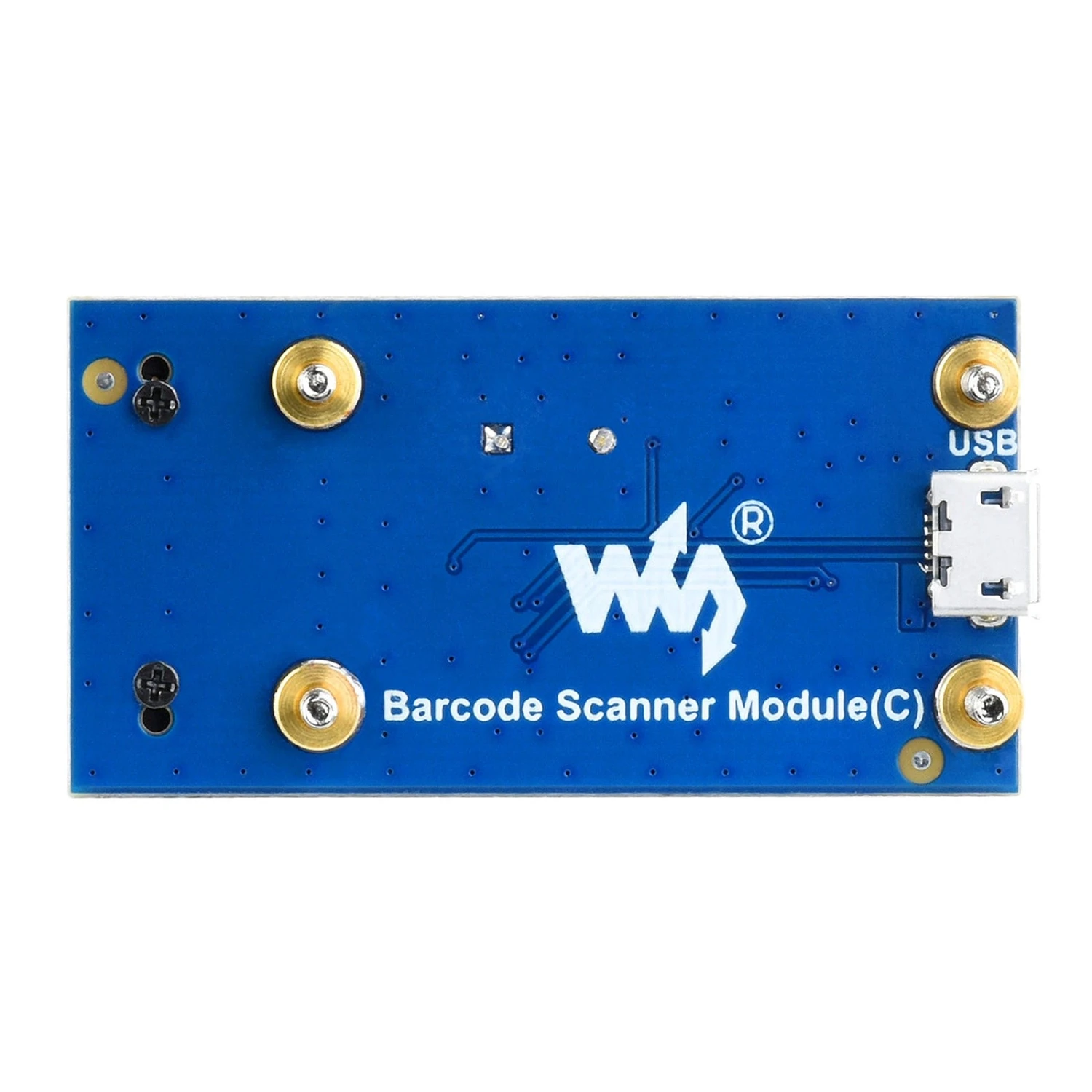

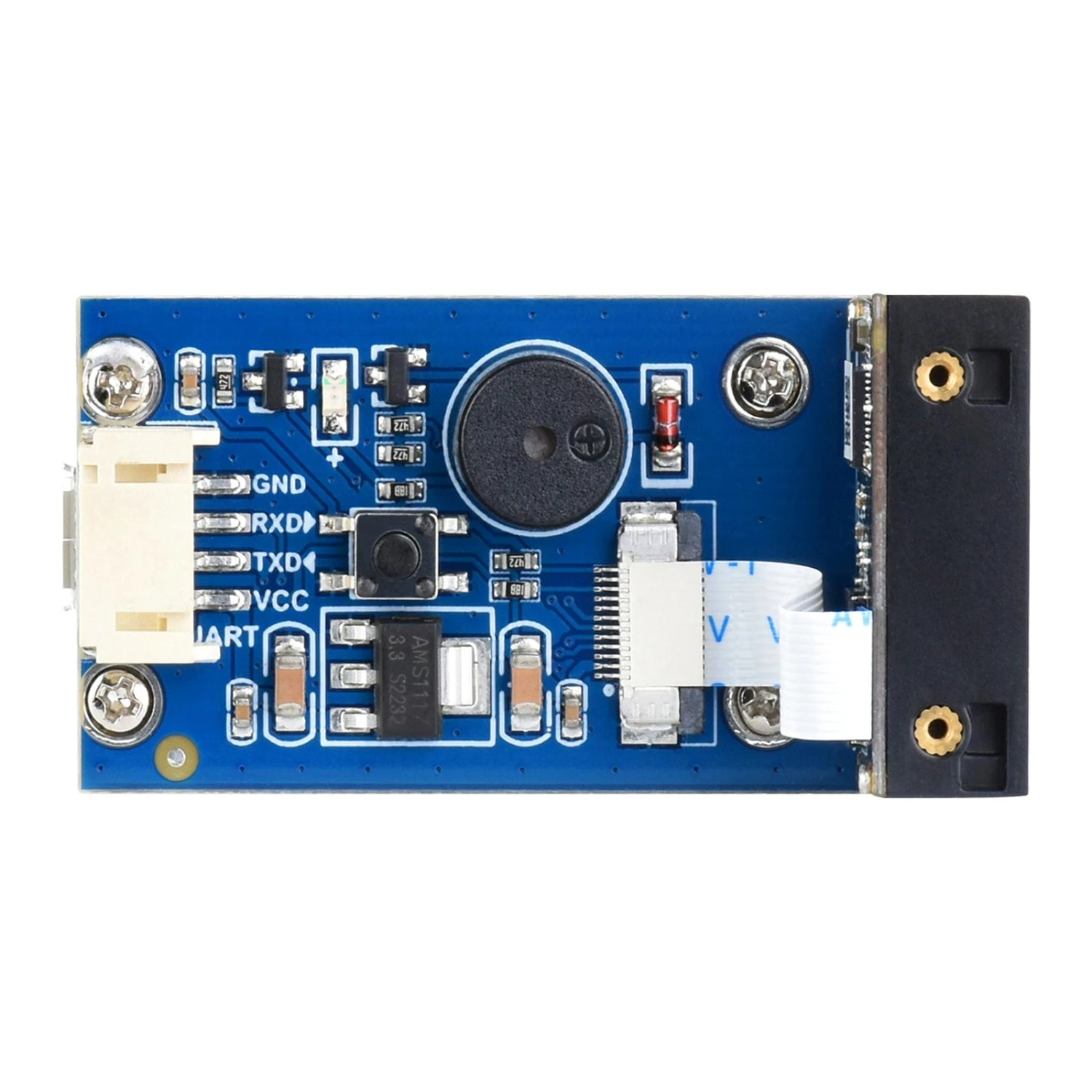

• Onboard micro USB and UART serial port, allows for connections to computers or embedded devices
• Configurable via scanning of various “configuration codes”
• The onboard light source means no artificial lighting is needed

Specifications

• Operating voltage: 5V
• Operating current: 135mA (scanning), 58mA (standby), 2mA (sleep)
• Operating temperature: 0°C~60°C
• Operating humidity: 5%~95% (Non-condensing)
• Communication interface: UART, USB
• Decodes 1D codes: Codebar, Code 11, Code 39/Code 93, UPC/EAN, Code 128/EAN128, Interleaved 2 of 5, Matrix 2 of 5, MSI Code, Industrial 2 of 5, GS1 Databar(RSS)
• Decodes 2D codes: QR code, Data Matrix, PDF417
• Light source: white
• Scan angels: roll 360°, skew ±65°, pitch ±60°
• Field of view: 28° (horizontal), 21.5° (vertical)

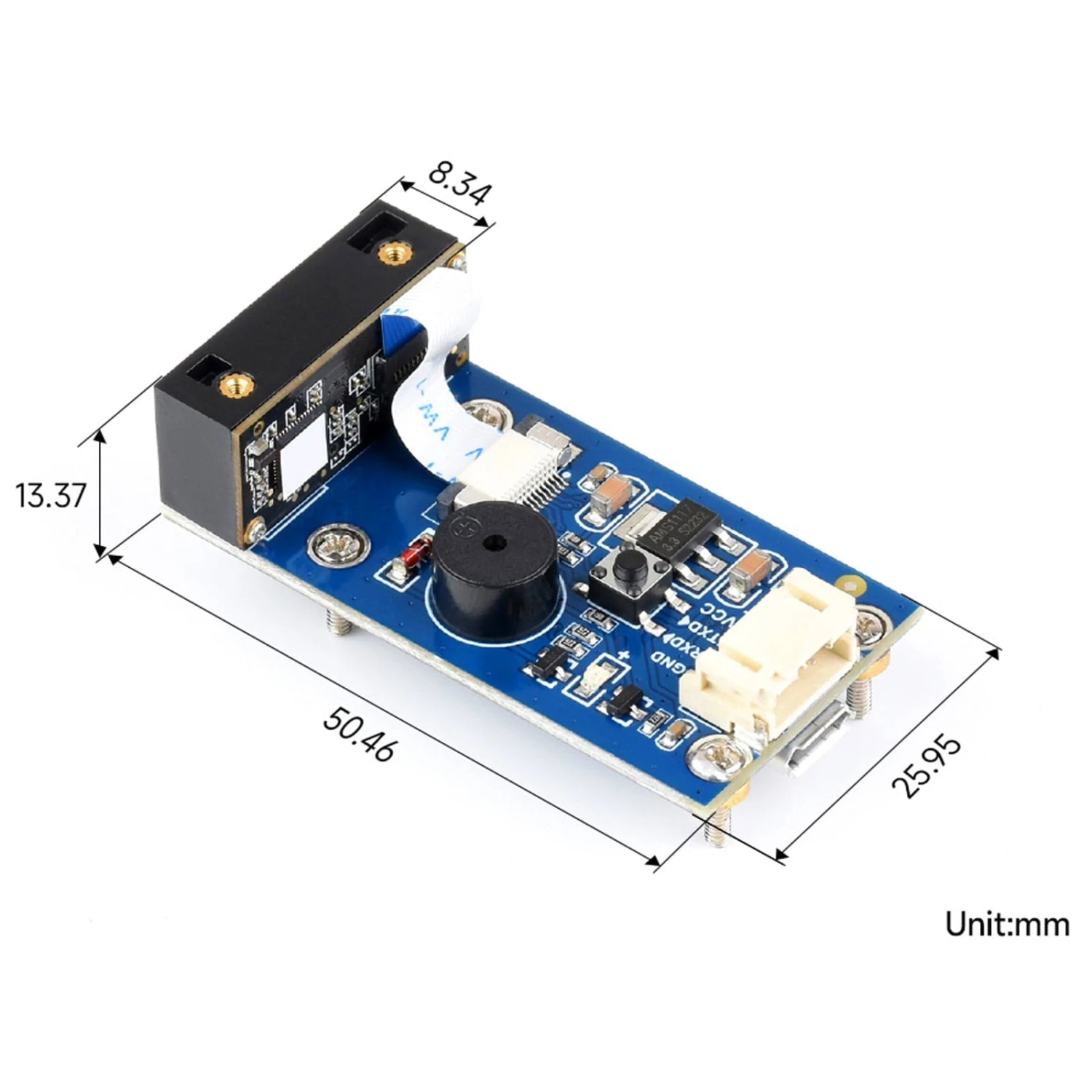

• Dimension: 53.3mm x 21.4mm

Resources

• Waveshare Wiki

Package Contents

• 1x – Barcode Scanner Module
• 1x – USB type A plug to micro B plug cable
• 1x – PH2.0 4-Pin
