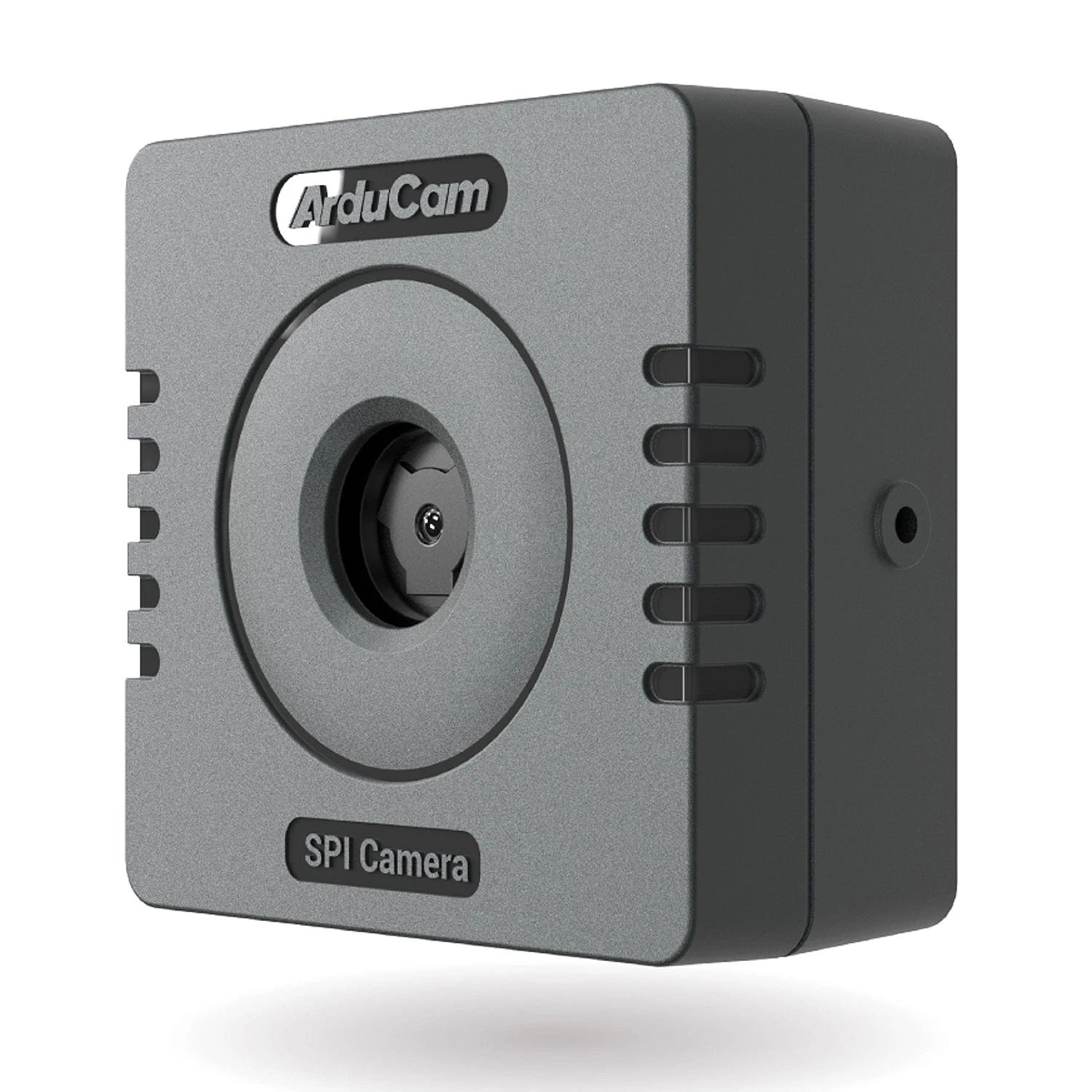

Arducam Mega 5MP SPI Camera Module – Autofocus

One camera for all! Arducam’s MEGA SPI cameras offer makers an easy-to-use, compact camera solution that works with any standard SPI interface, allowing use on most SBCs and

microcontrollers

(as long as they have SPI – most do!).

No memory is required for register settings or frame buffers, and they are fully compatible with 3.3 and 5V systems. High-level commands are built-in allowing you to manipulate the camera through API access like using a DSLR camera via button clicks.

This is the autofocus version (we will also be stocking an M12 lens and a NOIR M12 lens option).

Features

• Extremely easy to use – High-level commands were built in so you manipulate the camera through API access like using a DSLR camera via button clicks.

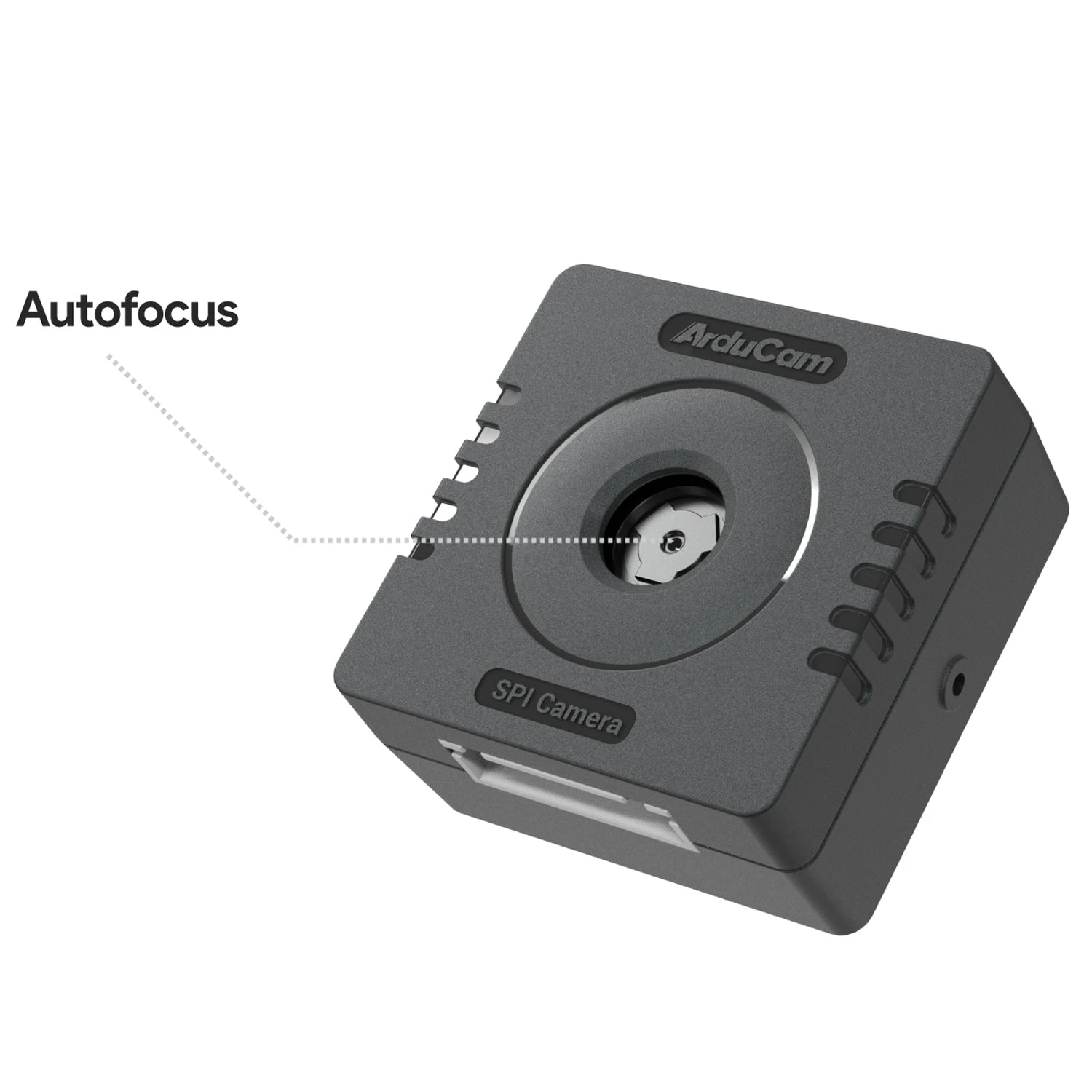

• Programmable Autofocus – Equipped with an Autofocus Lens which can achieve autofocus at different distances. Suitable for the IoT activities.
• Multiplexing Made Easy – Up to 4 cameras running on a single MCU by using an adapter board. They capture at the same time with sequential readout.
• Open Source SDK: The SDK is fully open-source with lean architecture with a hardware abstraction layer, which allows you to add a new MCU without effort.
• One Fits All: It fits any microcontroller with a single standard SPI interface (either native or mimic). 8-bit, 16-bit or 32-bit, ARM, RISC-V, or others. Arduino, STM8/STM32, ESP8266/ESP32, MSP430, Nordic, Renesas, and countless more!

Specifications

Optical Size	1/4”
Speed	8Mhz
Number of effective pixels	2592×1944
Power Supply	3.3V/5V
Interface	SPI(4-wire)
Shutter Type	Rolling Shutter
Colour Filter	Colour
Power Consumption(ldle/Working)	182mW-650mW
Field of View	68.75°(D)
F.NO	F2.0
Lens Type	Stock Lens
Focal Length	3.3mm
Focus Distance	8cm-INF
Electric Current (Idle/Working)	55mA-154mA
Output Format	RGB/YUV/JPEG
Camera Board Size	33x33x17 mm

Package Contents

• 1 x Arducam Mega 5MP SPI Camera – Autofocus version
• 1 x 300mm 6-pin cable

MCU not included

Resources

• Arducam Mega SPI Camera

• Arducam Mega SPI Camera Quick Start Guide

• Troubleshooting
