ANSMANN Power Bank 10.8 Mini (10,000mAh)

Whether you’re powering a development board in a Robotics or Camera Project,

charging some batteries

or just stuck on the beach with your phone is lingering at a measly 4% – a power bank is an incredibly useful source of power for makers and muggles alike!

This practical and elegantly styled Powerbank 10.8 Mini from

ANSMANN

is light, powerful and always close at hand. Thanks to the compact construction, this lightweight energy store can fit in the pocket of any jacket, trousers or handbag. With a Micro-USB cable included, it’s the ideal companion when out and about with electronics.

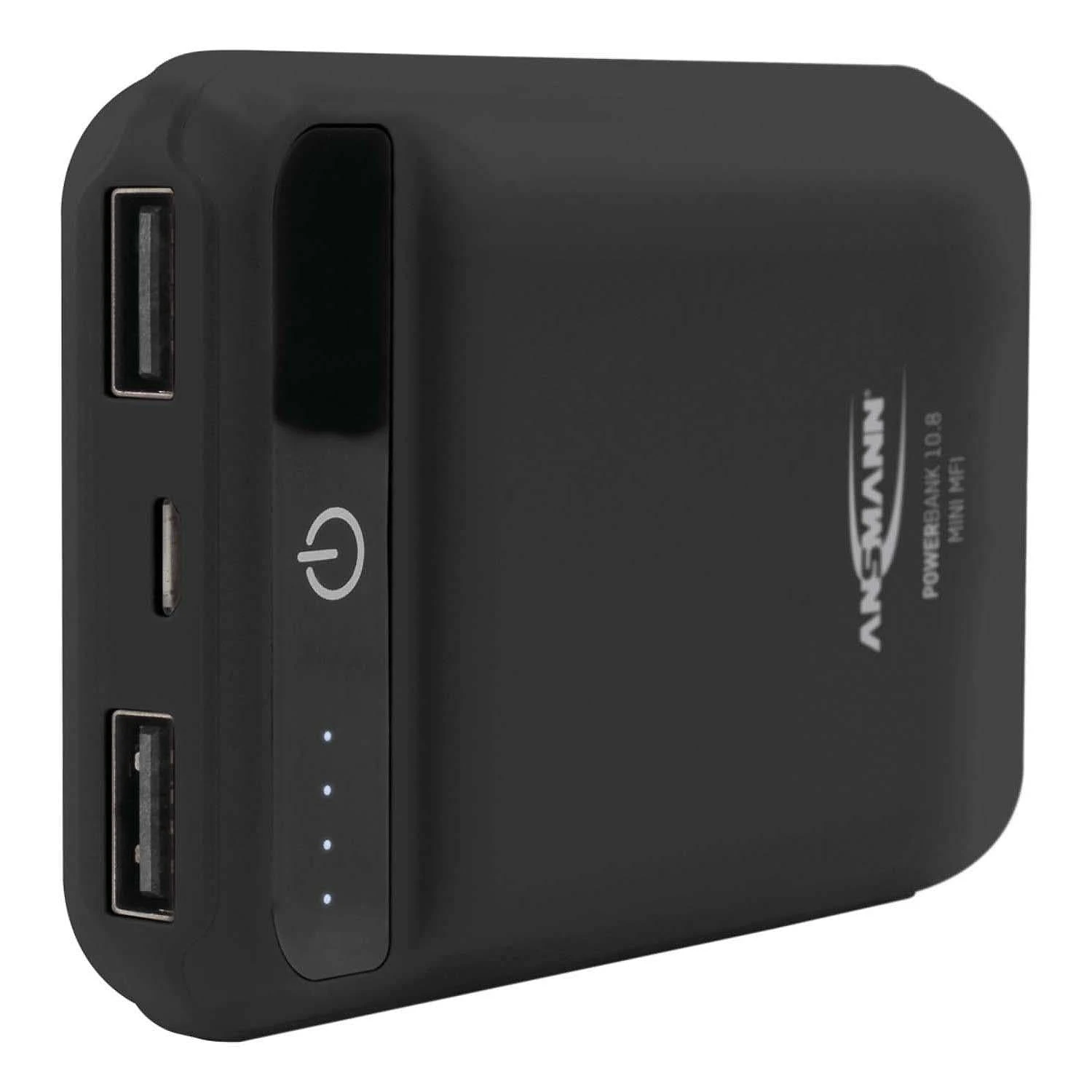

Alongside the two output USB-A ports, the Powerbank 10.8 Mini also has an integrated Micro-USB port for recharging the unit. It measures just 92.5mm x 64mm and is 23.5mm thick – great for fitting into a Raspberry Pi robot chassis!

This power bank offers a 10,000mAh capacity with two 5V USB outputs (2x 2.1A). The maximum current draw across all ports combined at any one time is 2.4A.

Whilst this can power most

Raspberry Pi Zero

projects, users should keep an eye on current consumption and take measures to reduce if required. If the output current falls below approx. 50mA, the output will switch off automatically.

---

Lithium Battery Shipping: Due to courier restrictions, this product can only be shipped within England/Wales. With this item in your cart, your shipping options will be limited to DHL.

Why?

---

Great variety of applications

With a charge capacity of 10,000 mAh and output of up to 2,400 mA (at 5V DC) max (2.1A max per port, 2.4A max across all ports combined), the compact powerpack is able to power or charge mobile devices several times. The high-quality external battery pack with sturdy housing is compatible with all standard USB devices such as development boards, smartphones, tablets, mobile phones, navigation units and many other devices that can be charged via USB.

Multi-Safe technology

You’re in safe hands with ANSMANN. The integrated over-charging protection ensures that the Powerbank stops the charging process automatically once charging has been successfully completed. The deep discharge protection switches the Powerbank off as soon as the voltage of the Powerbank drops below a defined value when charging the connected device, thus preventing damage to both the rechargeable battery and the product. The short-circuit protection completes the safety functions and ensures maximum safety along with the automatic shut-off.

LED capacity display

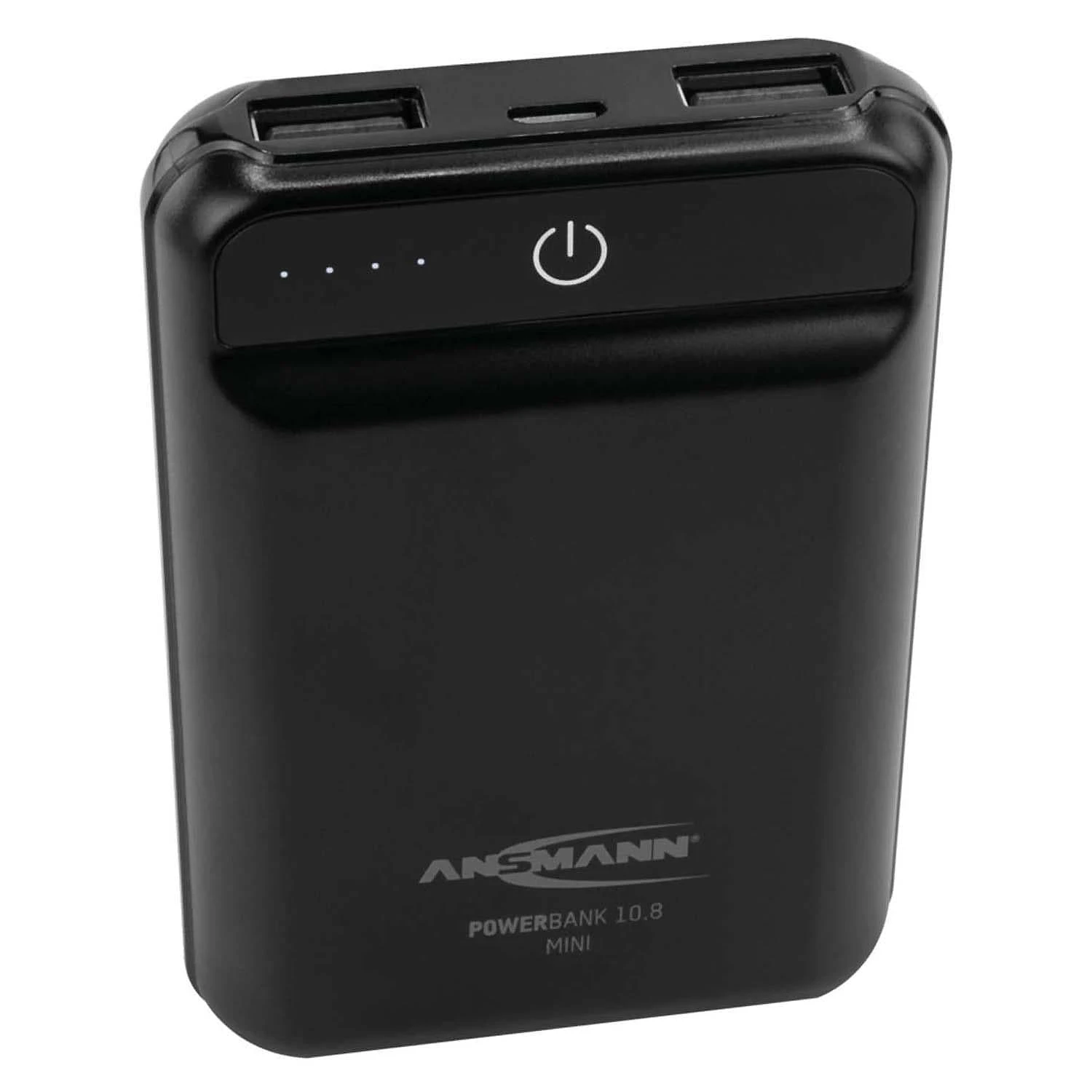

The charge status indication can be activated with the push of a button enabling the current capacity to be reliably displayed in 25% steps via four integrated LEDs.

Package Contents

• Powerbank 10.8 Mini (10,000mAh)
• Micro-USB cable
• Operating manual

Specifications

Colour	Black
Cell Chemistry	Lithium polymer
Voltage	3.7V
Nominal Capacity	10,000 mAh
Packaging	Cardboard Box
Charging Cycles	500
Ports	2× USB
Output Voltage	5V DC
Input Voltage	5V DC
Output	5V DC: 2× USB @2.1A
Maximum Output Current	2.4A
Energy Content	37 Wh
Dimensions	92.5mm x 64mm x 23.5mm
MPN	1700-0091
EAN	4013674133840

Resources

• User Manual

• EU Declaration of Conformity
