ANSMANN 10,000mAh Type-C 20W PD Power Bank

Whether you’re powering a

Raspberry Pi

in a Robotics or Camera Project, juicing up your favourite dev board,

charging some batteries

or just stuck on the beach with your phone lingering at a measly 4% – a power bank is an incredibly useful source of power for makers and muggles alike!

This practical and elegantly styled Powerbank from

ANSMANN

is light, powerful and always close at hand. Thanks to the compact construction, this lightweight energy store can fit in the pocket of any jacket, trousers or handbag. With a Micro-USB cable included ready for recharging the power bank, it’s the ideal companion when travelling with electronics.

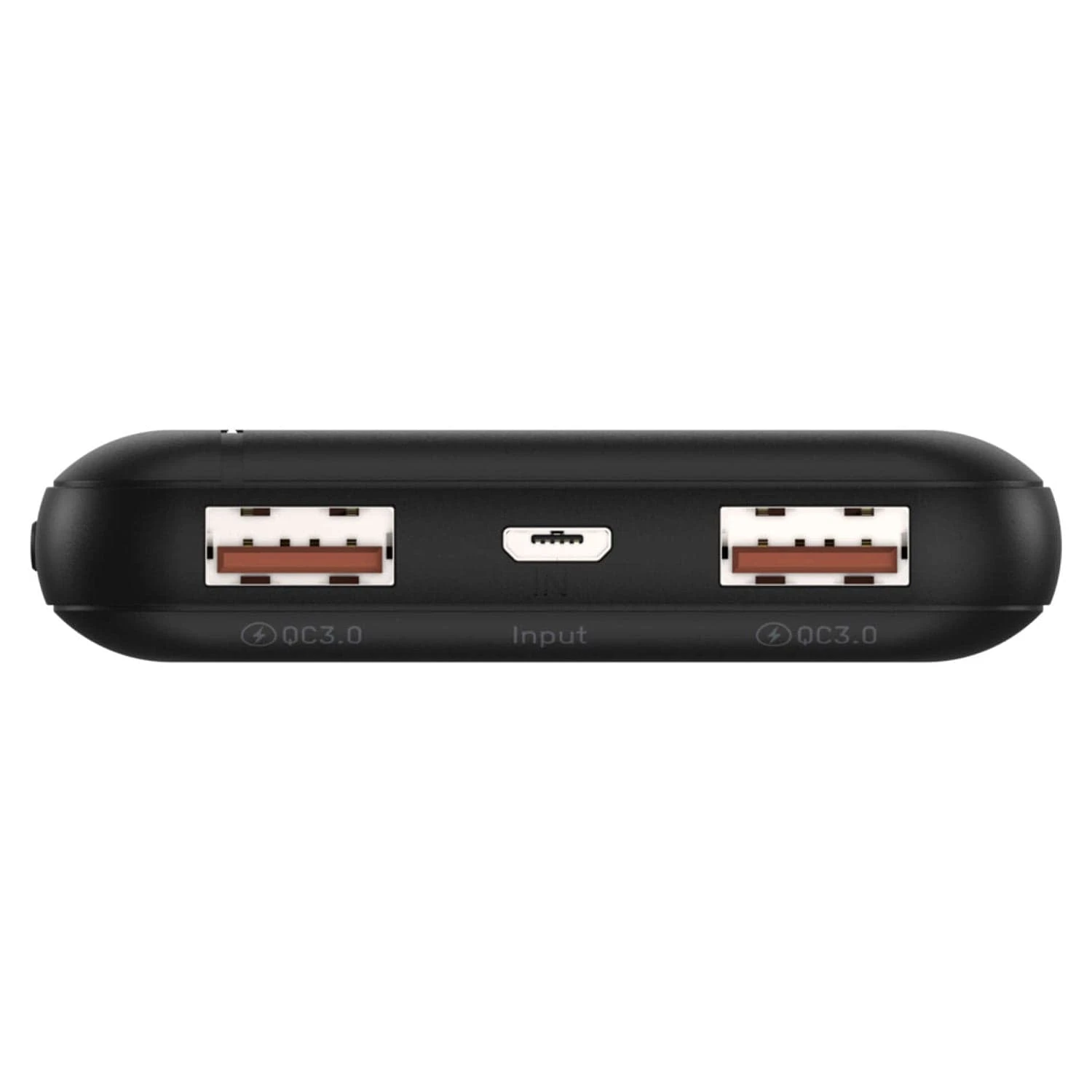

This power bank offers 10,000mAh capacity with 2x USB output ports, 1x USB-C PD output./input port and 1x Micro-USB input port.

With

Qualcomm Quick Charge 3.0

(via USB-A ports) and

USB PD

(via USB-C port), you can safely and quickly charge compatible PD/QC devices from 5V to 12V including smartphones and notebooks.

---

Lithium Battery Shipping: Due to courier restrictions, this product can only be shipped within England/Wales. With this item in your cart, your shipping options will be limited to DHL.

Why?

---

High charge speeds

Alongside the two USB-A ports, this ANSMANN Powerbank also has a USB Type-C and a micro-USB port integrated. Energy is fed from the USB or Type C connections to your smartphone and/or tablet via a charge cable. All ports support end devices that are capable of being quick-charged with the fastest possible charging. Thanks to the new Power Delivery (PD) protocol, notebooks can also be charged via the Type C port.

The rechargeable battery pack can be conveniently recharged via the Micro-USB or Type C ports by a PC or a standard USB charger plugged into the mains. The Powerbank can be particularly quickly charged with a quick-charge device (QC or PD) USB-C input.

Great variety of applications

With a charge capacity of 10000 mAh and output power of up to 3.000 mA (at 5V), the compact powerpack is able to charge mobile devices several times. The high-quality external battery pack with sturdy housing is compatible with all standard USB devices such as development boards, smartphones, tablets, mobile phones, navigation units and many other devices that can be charged via USB. Thanks to the new Power Delivery (PD) protocol, notebooks can now also be charged via the Type C port too!

Multi-Safe technology

You’re in safe hands with ANSMANN. The integrated over-charging protection ensures that the Powerbank stops the charging process automatically once charging has been successfully completed. The deep discharge protection switches the Powerbank off as soon as the voltage of the Powerbank drops below a defined value when charging the connected device, thus preventing damage to both the rechargeable battery and the product. The short-circuit protection completes the safety functions and ensures maximum safety along with the automatic shut-off.

LED capacity display

The charge status indication can be activated with the push of a button enabling the current capacity to be reliably displayed in 25% steps via four integrated LEDs.

Package Contents

• 1x Powerbank 10Ah Type-C 20W PD
• 1x Micro-USB cable

Specifications

Colour	Anthracite
Cell Chemistry	Lithium polymer
Voltage	3.7 V
Nominal Capacity	10000 mAh
Packaging	Cardboard box
Charging Cycles	500
Ports	2x USB-A / 1x Type-C / 1x Micro USB
Output Voltage	5 – 12V DC
Input Voltage	5 – 9V DC
Output	Output Type-C (PD): 5V – 3.0A / 9V – 2.0A / 12V – 1.5A
	Output USB 1/2 (QC3.0): 5V – 3.0A / 9V – 2.0A / 12V – 1.5A
	Max output: 5V 3A / 9V 2.22A / 12V 1.67A
Maximum Output Current	5V 3A / 9V 2.22A / 12V 1.67A
Energy Content	37 Wh
Max Input Current	2A (micro-USB) / 3A (USB-C)
Dimensions	146mm x 69mm x 15mm
MPN	1700-0148

Resources

• User Manual

Revision History

• As of 01/11/2022, we are stocking the updated 20W version from ANSMANN
