Allo Boss2 Player Basic

This is the new Allo Boss2 Player – the ultimate Raspberry Pi DAC, which comes with an acrylic case with OLED and remote!

We also offer a premium version with an aluminium case and Raspberry Pi 4 2GB included.

The Original

Allo Boss DAC

is/was the most successful DAC made for the Raspberry Pi. The combination of great sound and great value proved very successful.

After 3 years Allo felt the need to upgrade the Boss. The only questions was, how could they make the Boss2 sound even better?

For sound quality, they decided to use the new Cirrus Logic DAC CS43198 as a master (another first from the Allo team). Unlike the PCM5122, it has excellent THD (-120 vs – 83). Unlike Ess, the sound is “darker” (not bright, low out of band noise).

Allo are using over 30 LDOs (as usual), two super caps and countless filters. They also upgraded the power input filtering with common mode chokes.

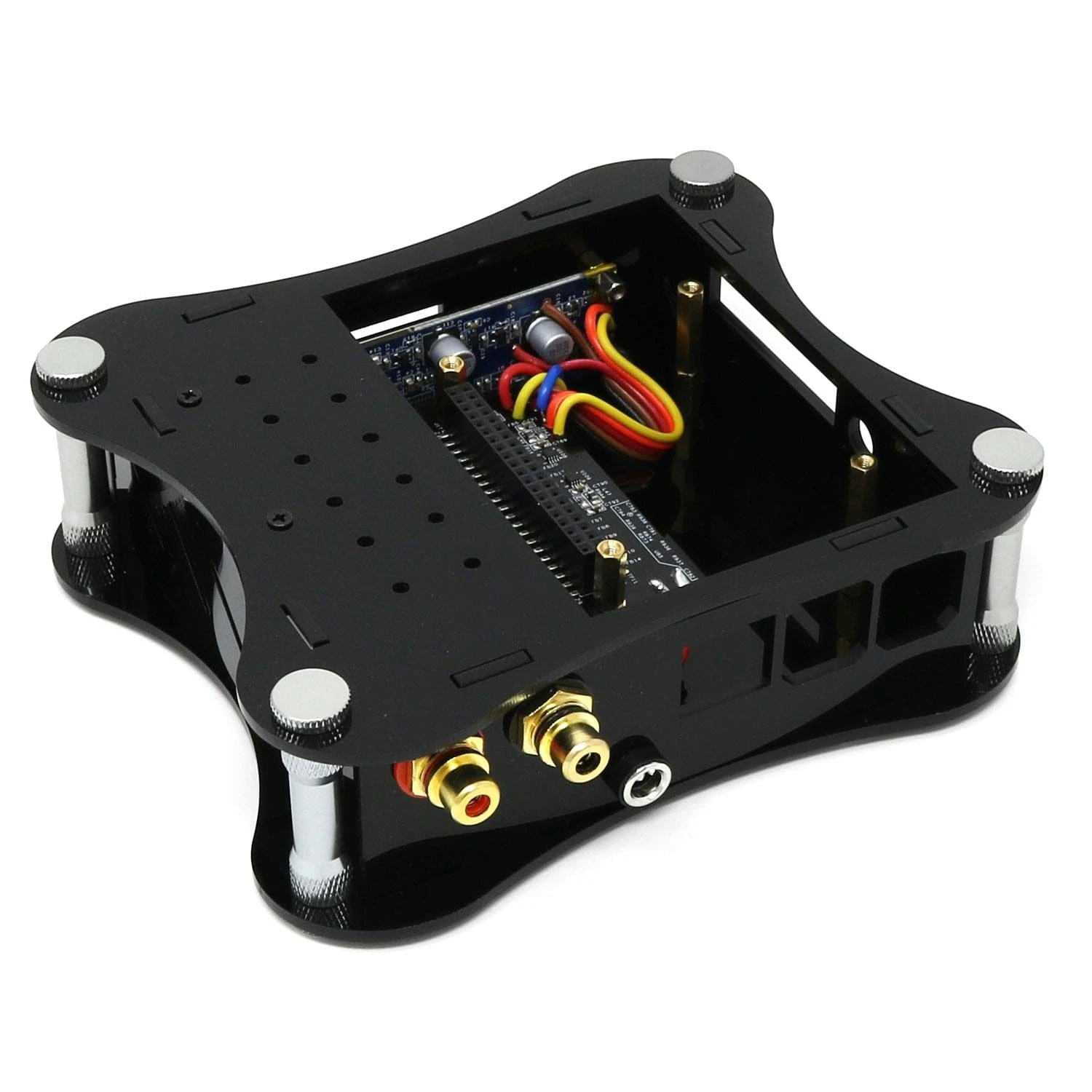

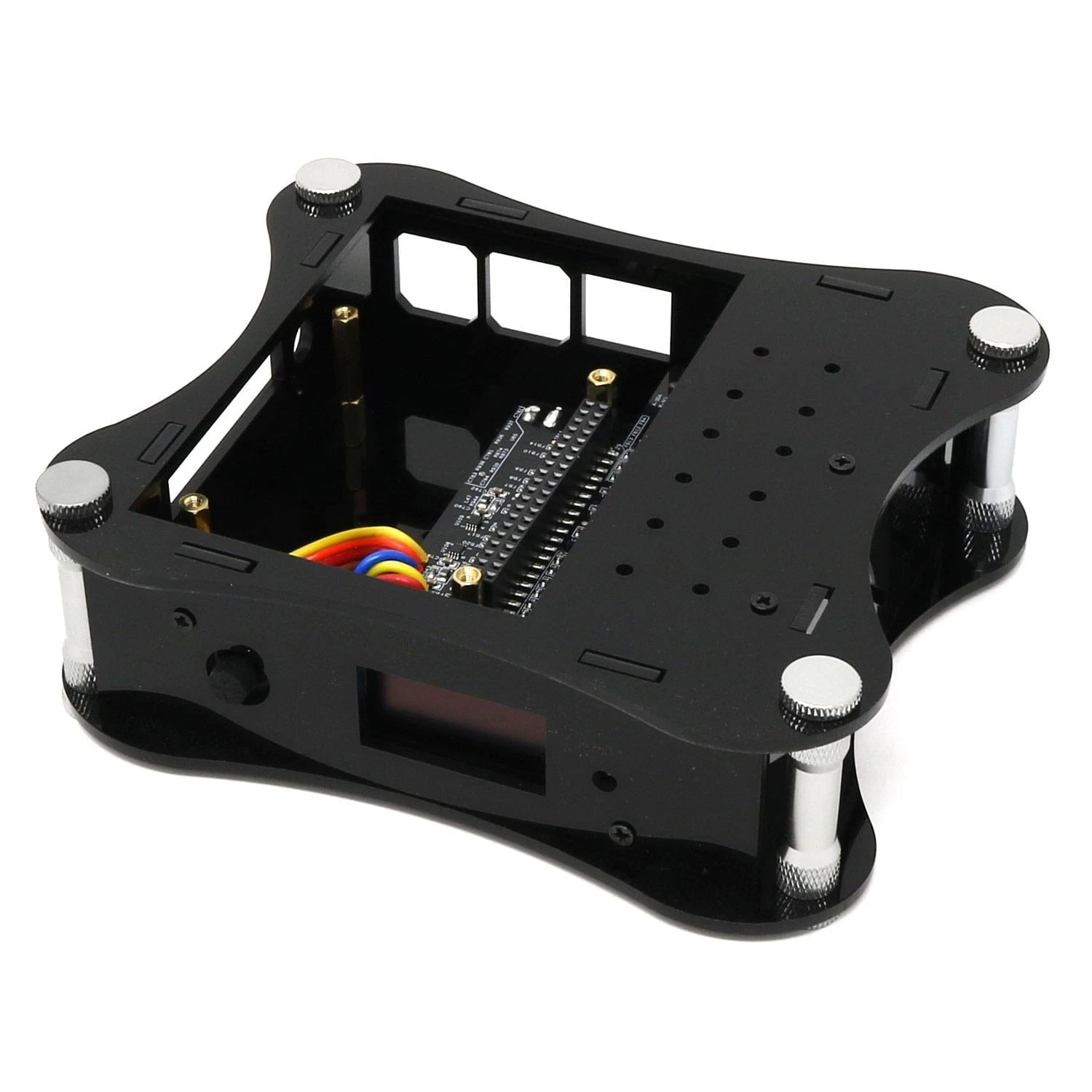

The Boss2 Player Basic comes with an acrylic case along with an OLED screen and IR remote (no PSU included). Whilst specialist low-noise power supplies are the ideal power source, standard USB-C power supplies are perfectly compatible (may degrade the THD by 1-2db).

The Boss2 Player is a meaningful upgrade over the original Boss in terms of sound quality (measurements, THD / Jtest) and value.

Features

• Includes acrylic case with OLED display

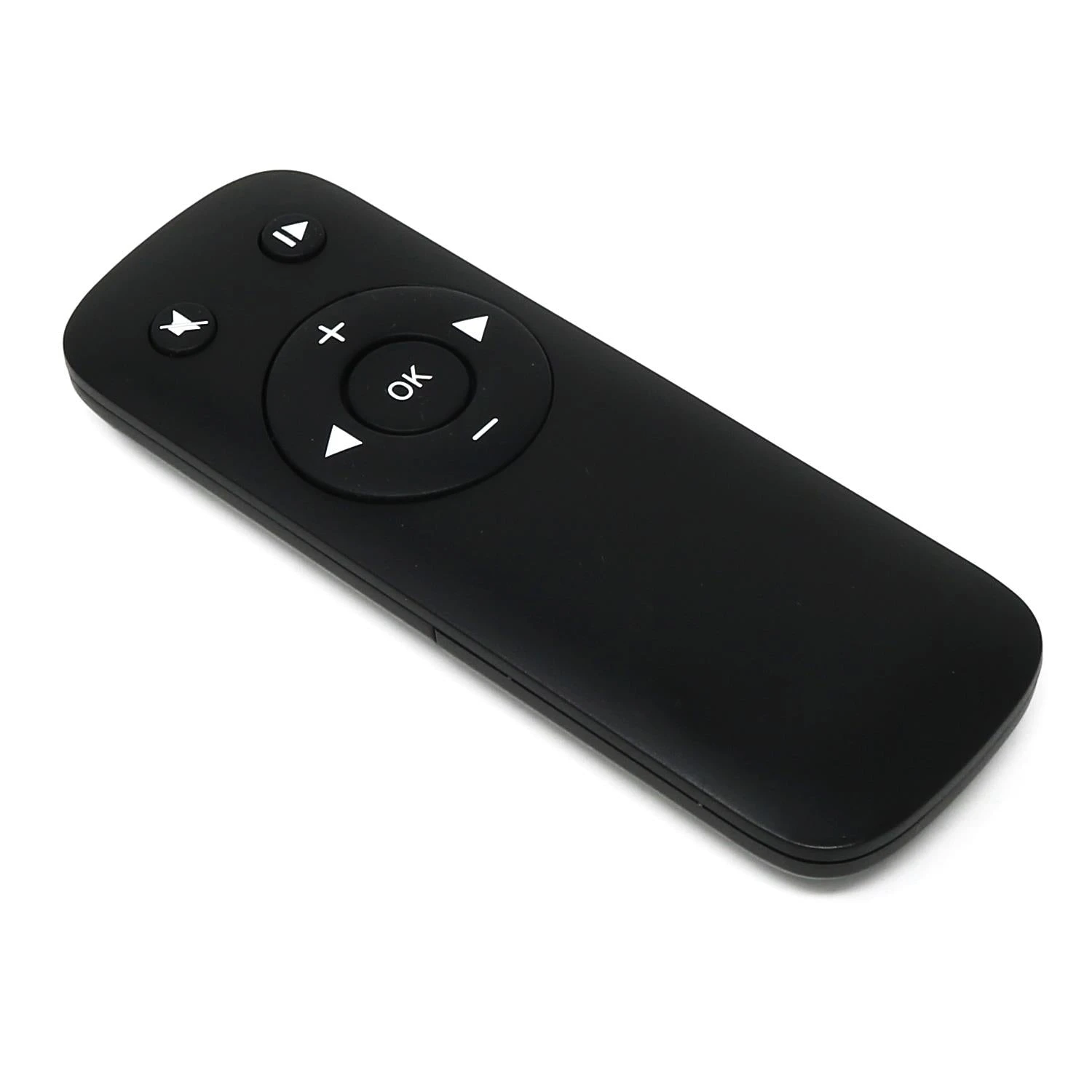

• Remote control included
• DAC CS43198 (192 kHz/32bit )
• DAC output is selectable (1.7Vrms or 2Vrms) .
• Sampling Frequency 44.1 kHz to 192 kHz range.
• Dual Ultra-low Phase noise NDK SDA oscillators are used for master
• Clock generation.(MCLK)

Package Contents

• Boss2 Player DAC board
• Acrylic Case with OLED
• Remote (batteries not included)

Raspberry Pi and power supply not included

Resources

• User Manual including setup and software configuration
