ADS1115 16-Bit ADC – 4 Channel With Programmable Gain Amplifier – STEMMA QT / Qwiic

For microcontrollers without an analog-to-digital converter or when you want a higher-precision ADC, the ADS1115 provides 16-bit precision at 860 samples/second over I2C. The chip can be configured as 4 single-ended input channels, or two differential channels. As a nice bonus, it even includes a programmable gain amplifier, up to x16, to help boost up smaller single/differential signals to the full range. We like this ADC because it can run from 2V to 5V power/logic, can measure a large range of signals and its super easy to use. It is a great general-purpose 16-bit converter.

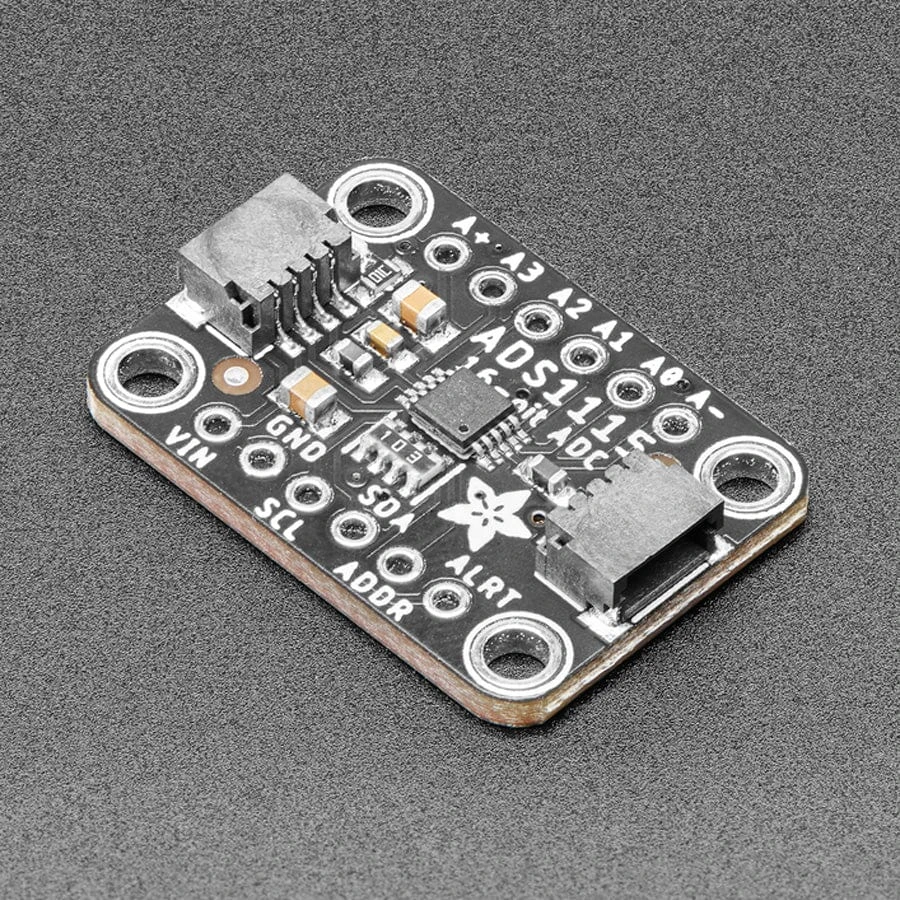

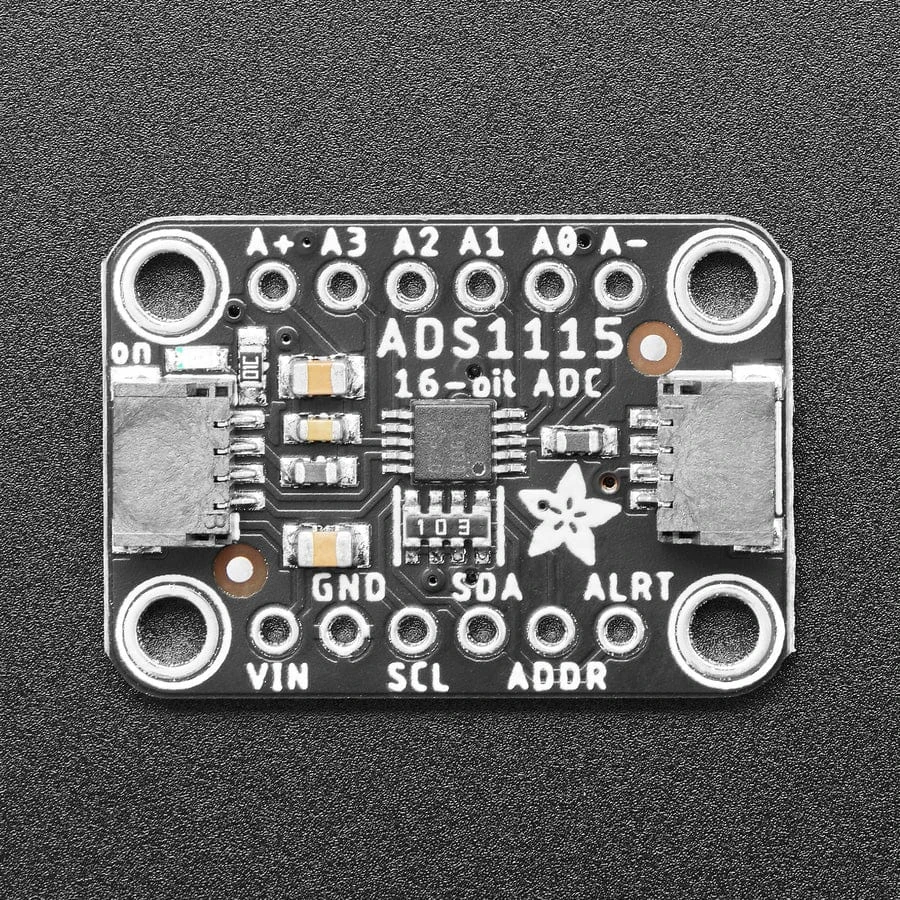

The chip’s fairly small so it comes on a breakout board with ferrites to keep the AVDD and AGND quiet. Interfacing is done via I2C. The address can be changed to one of four options (see the datasheet table 5) so you can have up to 4 ADS1115’s connected on a single 2-wire I2C bus for 16 single-ended inputs.

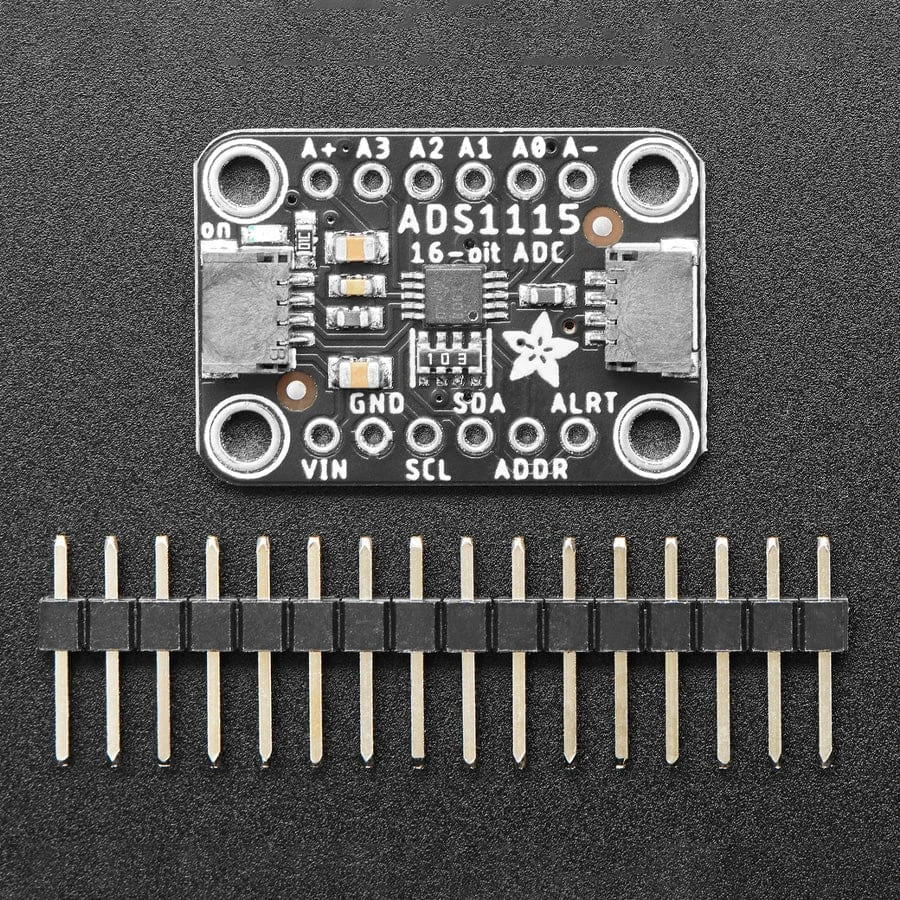

Comes with a bit of 0.1″ standard header in case you want to use it with a breadboard or perfboard. Four mounting holes for easy attachment.

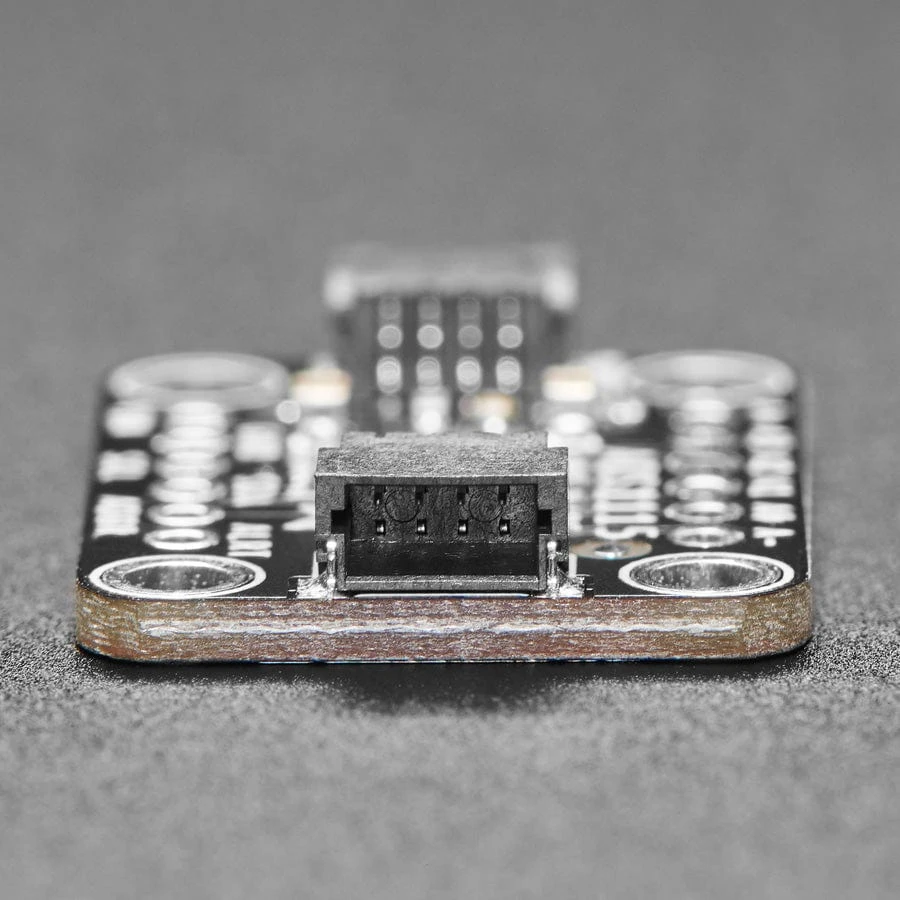

To get you going fast, we spun up a custom-made PCB in the STEMMA QT form factor, making it easy to interface with. The STEMMA QT connectors on either side are compatible with the SparkFun Qwiic I2C connectors. This allows you to make solderless connections between your development board and the ADS1115 or to chain it with a wide range of other sensors and accessories using a compatible cable.

QT Cable is not included, but we have a variety in the shop.

We have

example code for both the Raspberry Pi, Arduino, and CircuitPython

. Simply connect GND to ground, VDD to your logic power supply, and SCL/SDA to your microcontroller’s I2C port and run the example code to start reading data.

Our detailed guide will get you started with wiring diagrams, example code for Arduino & CircuitPython, datasheets, and more!

Specifications

• WIDE SUPPLY RANGE: 2.0V to 5.5V
• LOW CURRENT CONSUMPTION: Continuous Mode: Only 150µA Single-Shot Mode: Auto Shut-Down
• PROGRAMMABLE DATA RATE: 8SPS to 860SPS
• INTERNAL LOW-DRIFT VOLTAGE REFERENCE
• INTERNAL OSCILLATOR
• INTERNAL PGA
• I2C INTERFACE: Pin-Selectable Addresses
• FOUR SINGLE-ENDED OR TWO DIFFERENTIAL INPUTS
• PROGRAMMABLE COMPARATOR
• This board/chip uses I2C 7-bit addresses between 0x48-0x4B, selectable with jumpers

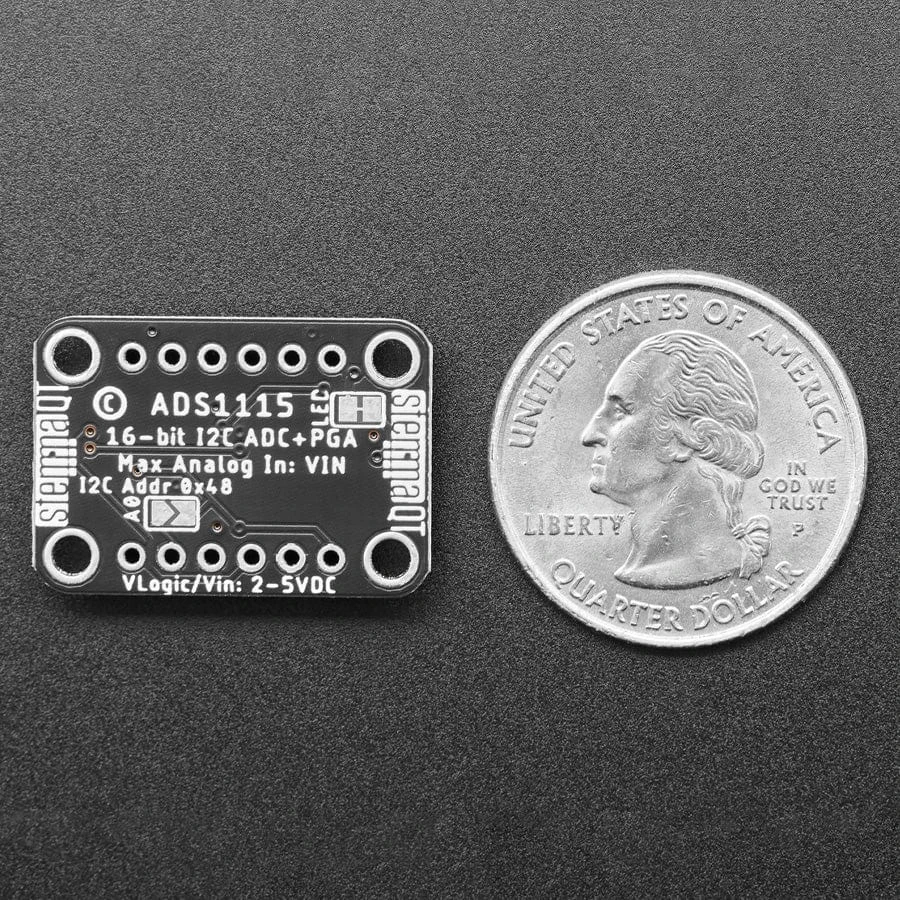

• Product Dimensions: 25.4mm x 17.8mm x 4.6mm
• Product Weight: 1.8g / 0.1oz

Resources

• Datasheets, Fritzing object, and EagleCAD PCB files available in the product tutorial

Revision History

• As of 4th October 2022 – we’ve updated this breakout to be STEMMA QT compatible – which means there’s now an easy way to plug-and-play this device without any soldering! The physical shape and pinout have changed a little but the overall functionality is identical.
