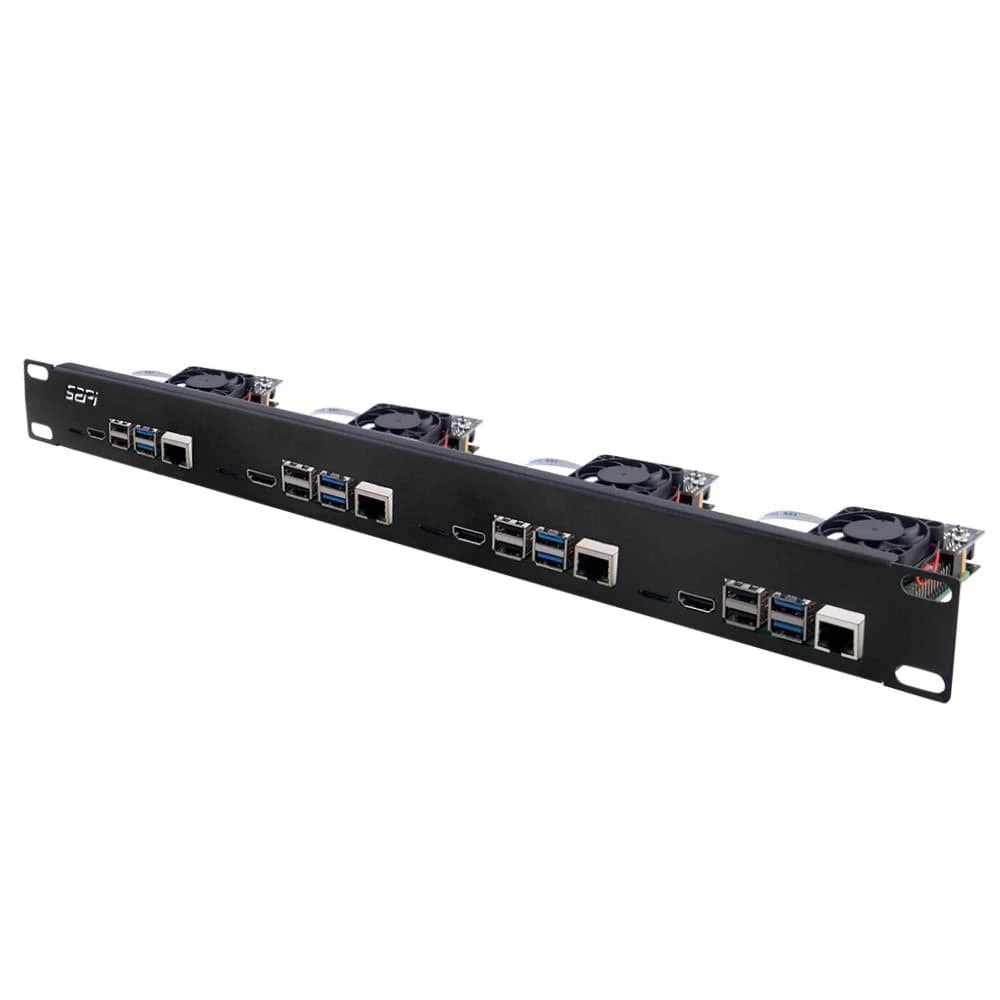

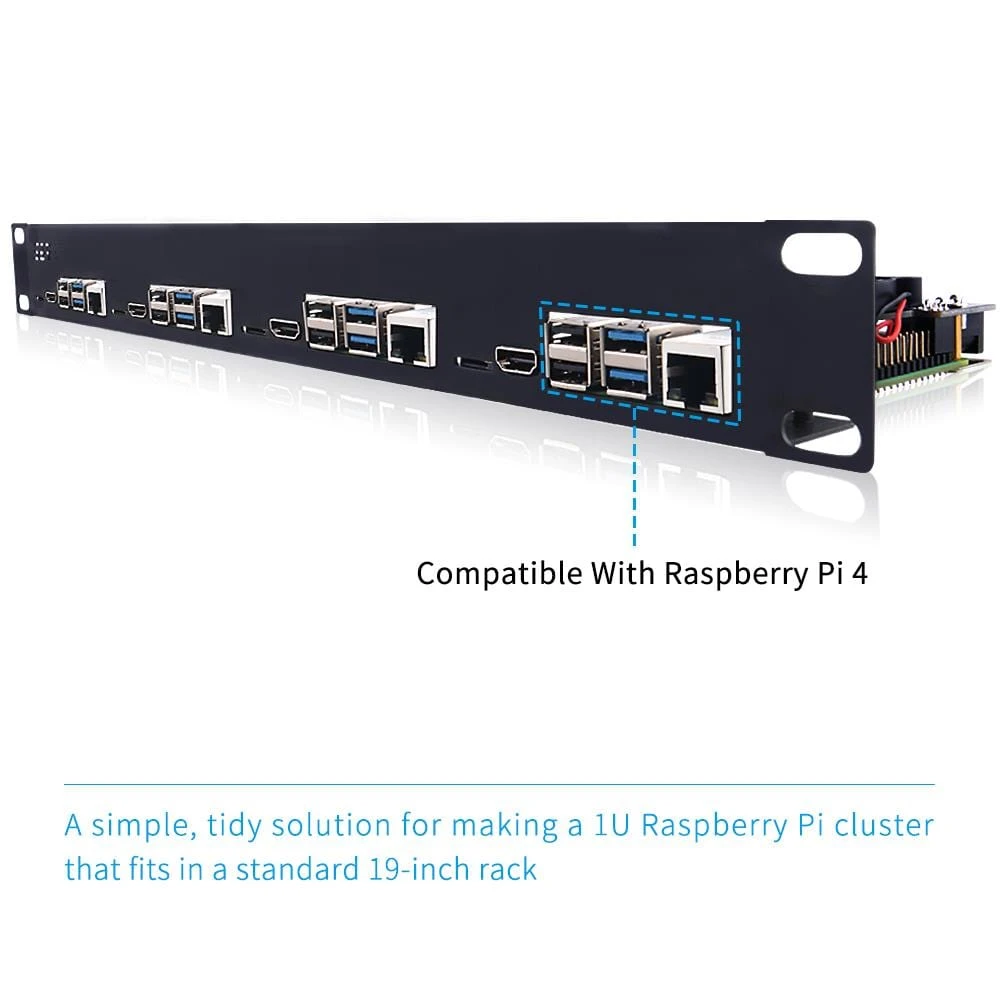

52Pi 1U 19″ Rack Mount For Raspberry Pi 4

Mount four

Raspberry Pi 4 boards

in a single 19″ 1U rack with this new rackmount from 52Pi!

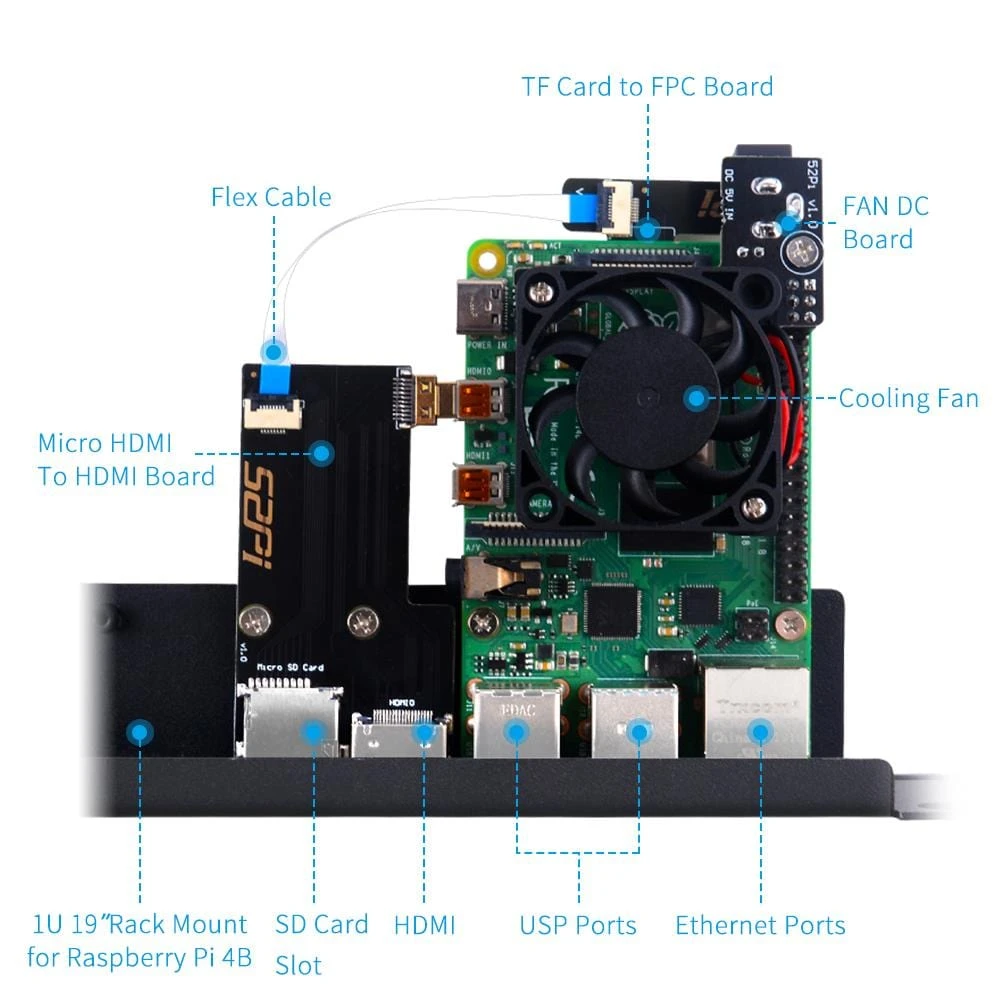

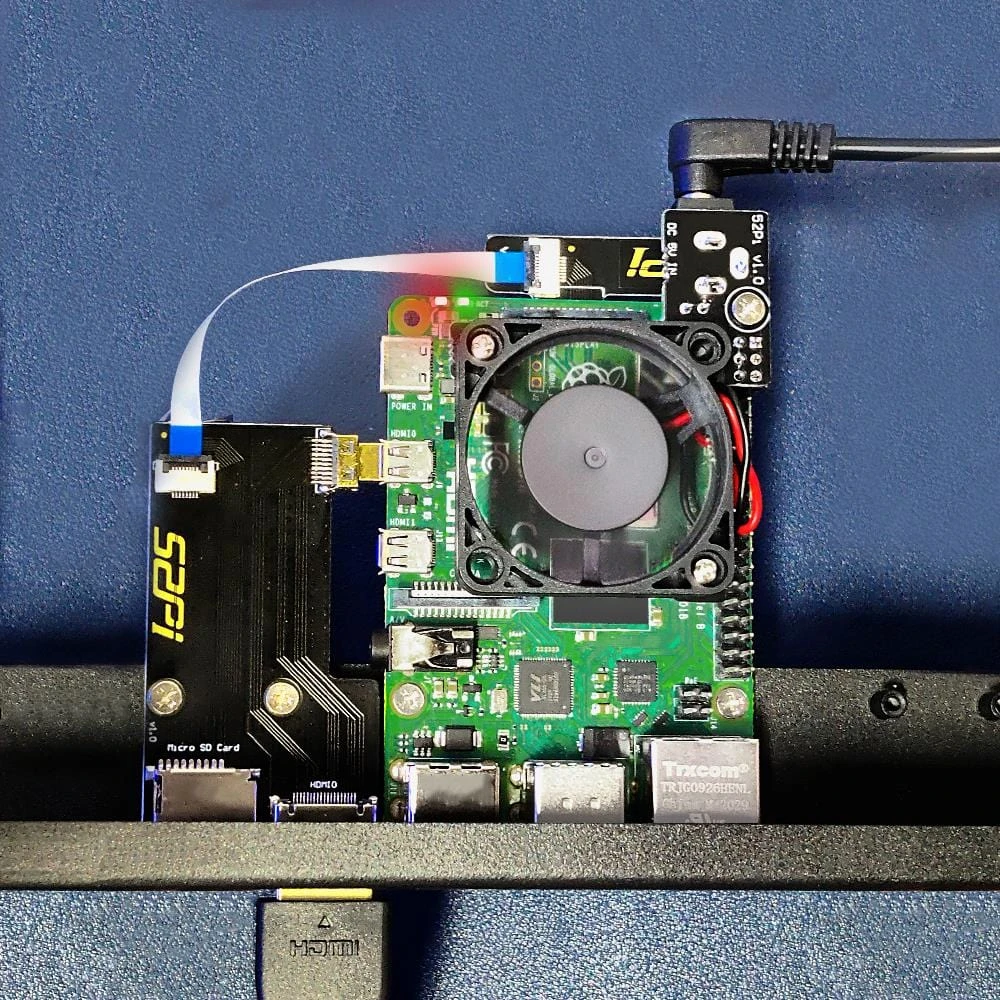

The all-metal rackmount supports 4x Raspberry Pi 4 boards and includes 4x adapter PCBs to relocate the SD card and HDMI0 ports on each Pi to the front of the unit, giving you USB, Ethernet, HDMI and Micro-SD access from the front of your rack.

The package also includes a fan board and a heatsink set for each Pi, ensuring your boards stay cool whilst also providing a 2.1mm DC option for powering your boards (regulated 5V only, no regulation onboard).

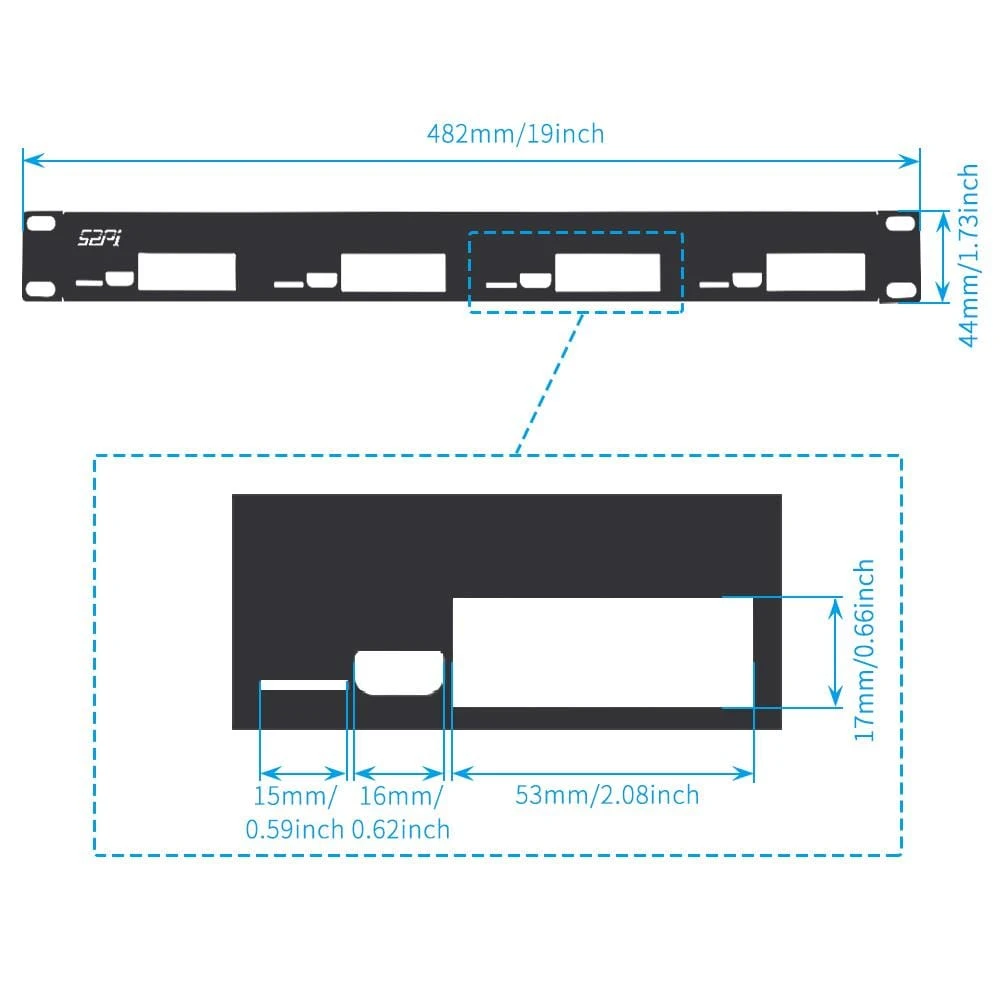

The rack is standard 1U size (19″×1.75″ / 482.6×44.5mm) and is the perfect fit for a server rack.

Raspberry Pi boards are not included!

Features

• 19″ rackmount is fit for Raspberry Pi 4B only, and each rackmount can hold 4 pcs Raspberry Pi 4B.
• Rackmount Size is 1U standard, the dimension is 19″ x 1.75″ (482x44mm), fully compatible with 19″ server racks.
• Power Input: 5V DC
• Easy to assemble with attached screw pack.
• Application: Raspberry Pi clusters,server farm， home assistance control center and so on.
• Cooling Fan included.
• Micro HDMI to HDMI board provides easy access to HDMI port
• TF card to FPC board provides easy access to TF card slot

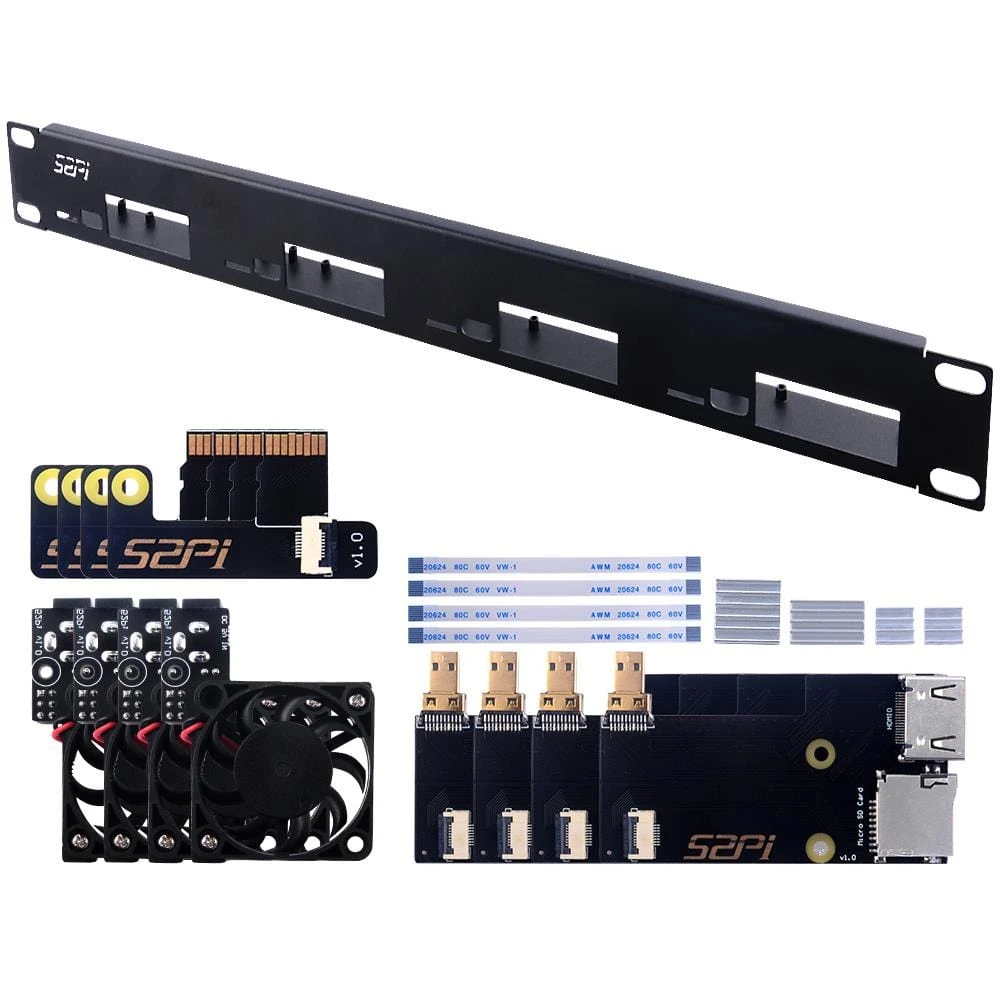

Package Contents

• 1 x 1U 19″ Rack Mount for Raspberry Pi 4
• 4 x Fan DC Board
• 4 x Micro HDMI to HDMI board
• 4 x TF card to FPC board
• 4 x Cooling Fan boards
• 4 x HeatSinks
• 4 x Flex Cable
• Fixings
• 1 x Quick Guide

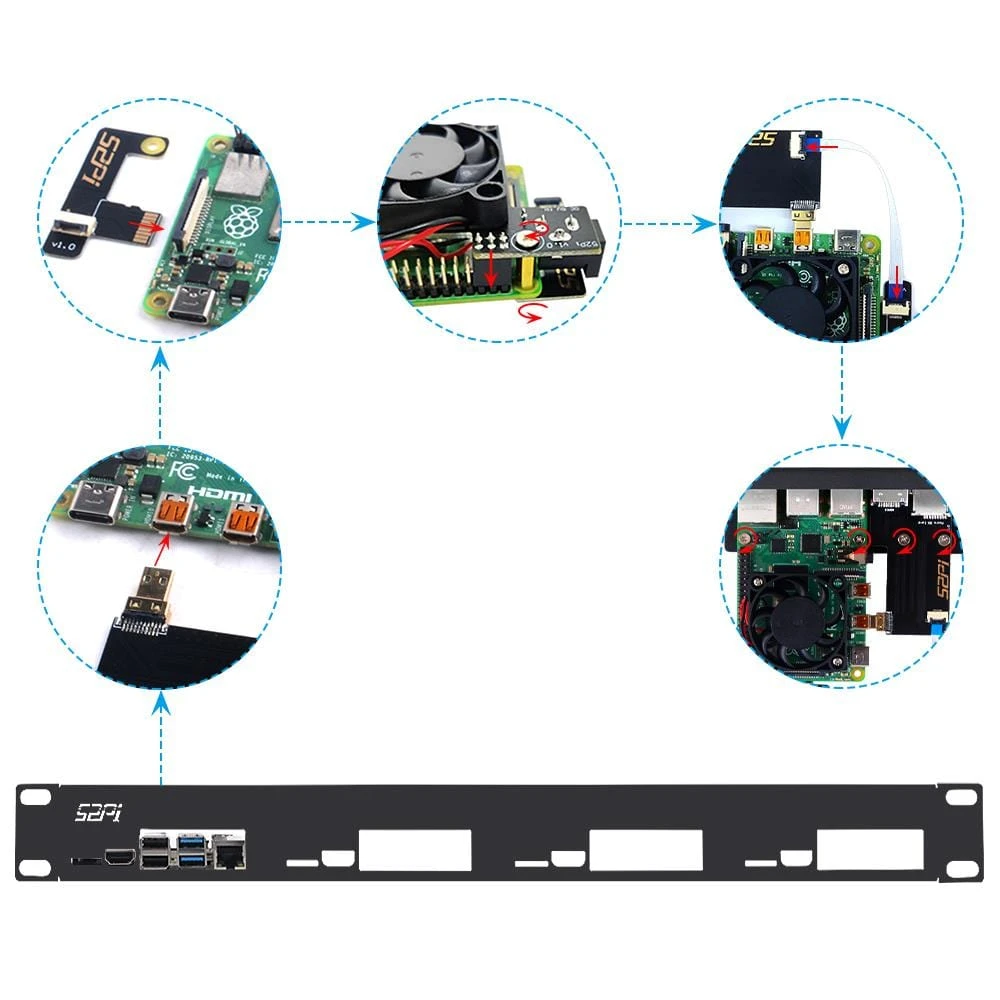

Assembly

Printed instructions are also included in the package.
