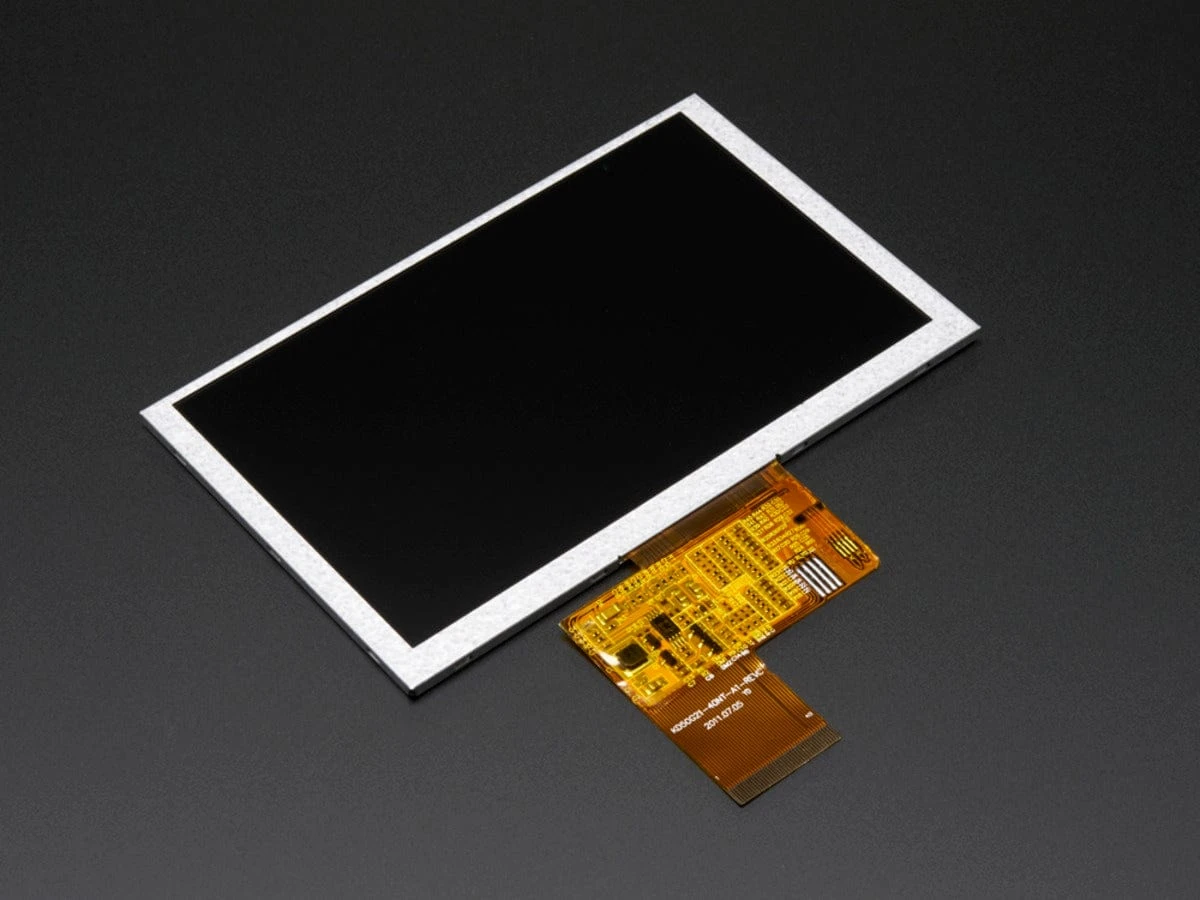

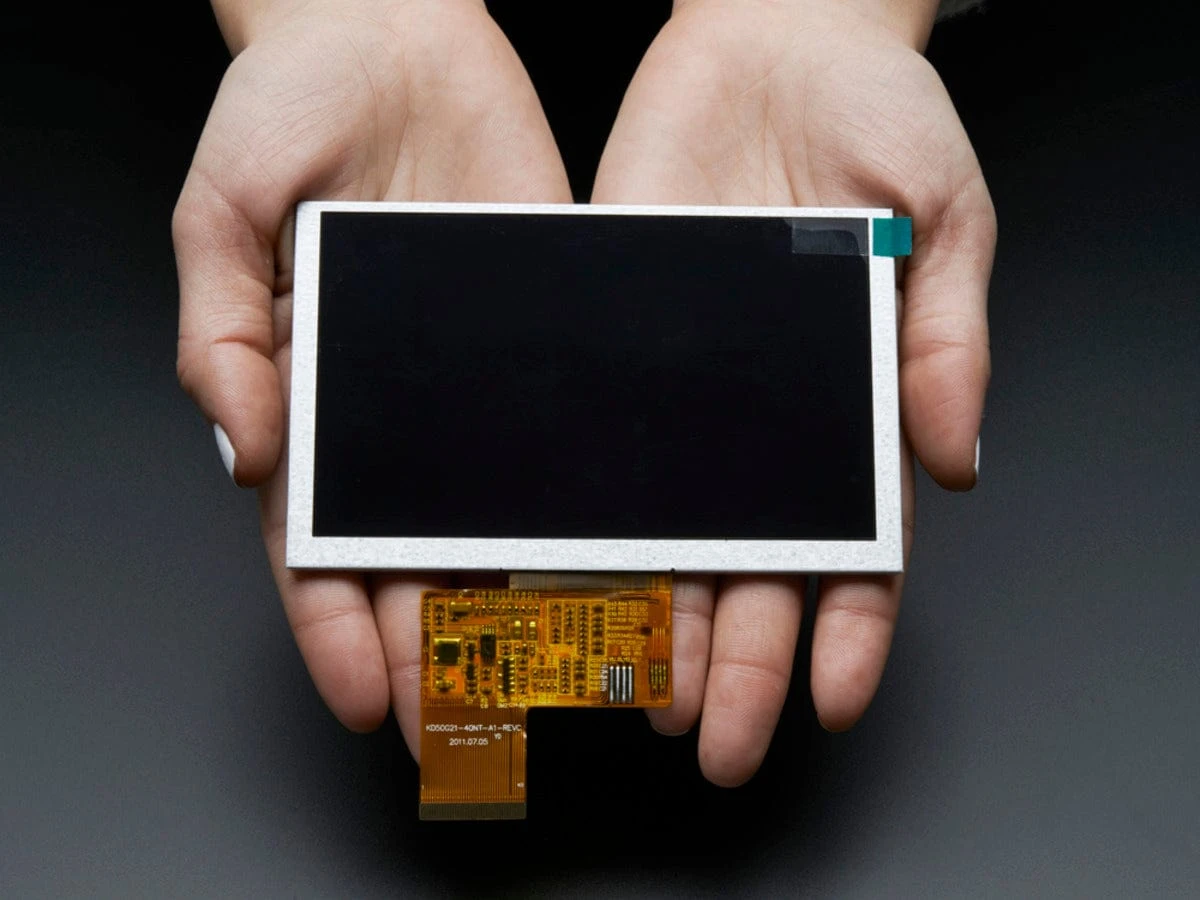

5.0″ 40-pin 800×480 TFT Display Without Touchscreen
Original price was: £24.83.£17.38Current price is: £17.38.
- Safe and Secure Payments, Always
- Quality You Can Trust
- The Quality Choice for Smart Shoppers
- fast shipping
This 5.0″ TFT screen has lots of pixels, 800×480 to be exact, and an LED backlight. Its great for when you need a lot of space for graphics. These screens are commonly seen in consumer electronics, such as miniature TV’s, GPS’s, handheld games car displays, etc. A 40-pin connector has 8 red, 8 green, and 8 blue parallel pins, for 24-bit colour capability.
This version does not have touchscreen attached.
Technical Details
- Dimensions with Screen Backing: 120mm x 75mm / 4.7″ x 3.0″
- Screen Dimensions: 110mm x 67mm / 4.3″ x 2.6″
- Weight: 61g
-
There is no resistive touch screen so pins 37-40 are NC.
