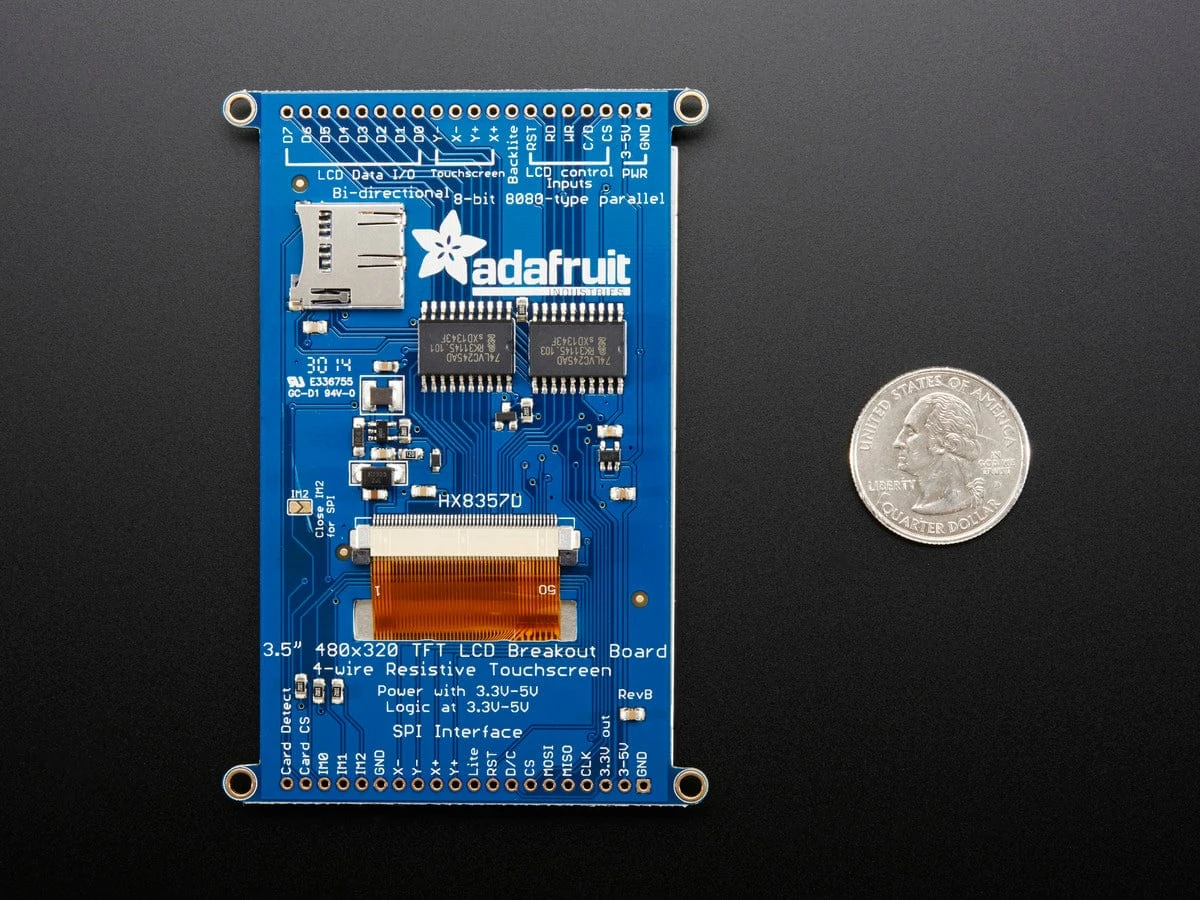

3.5″ TFT 320×480 + Touchscreen Breakout Board W/MicroSD Socket (HXD8357D)

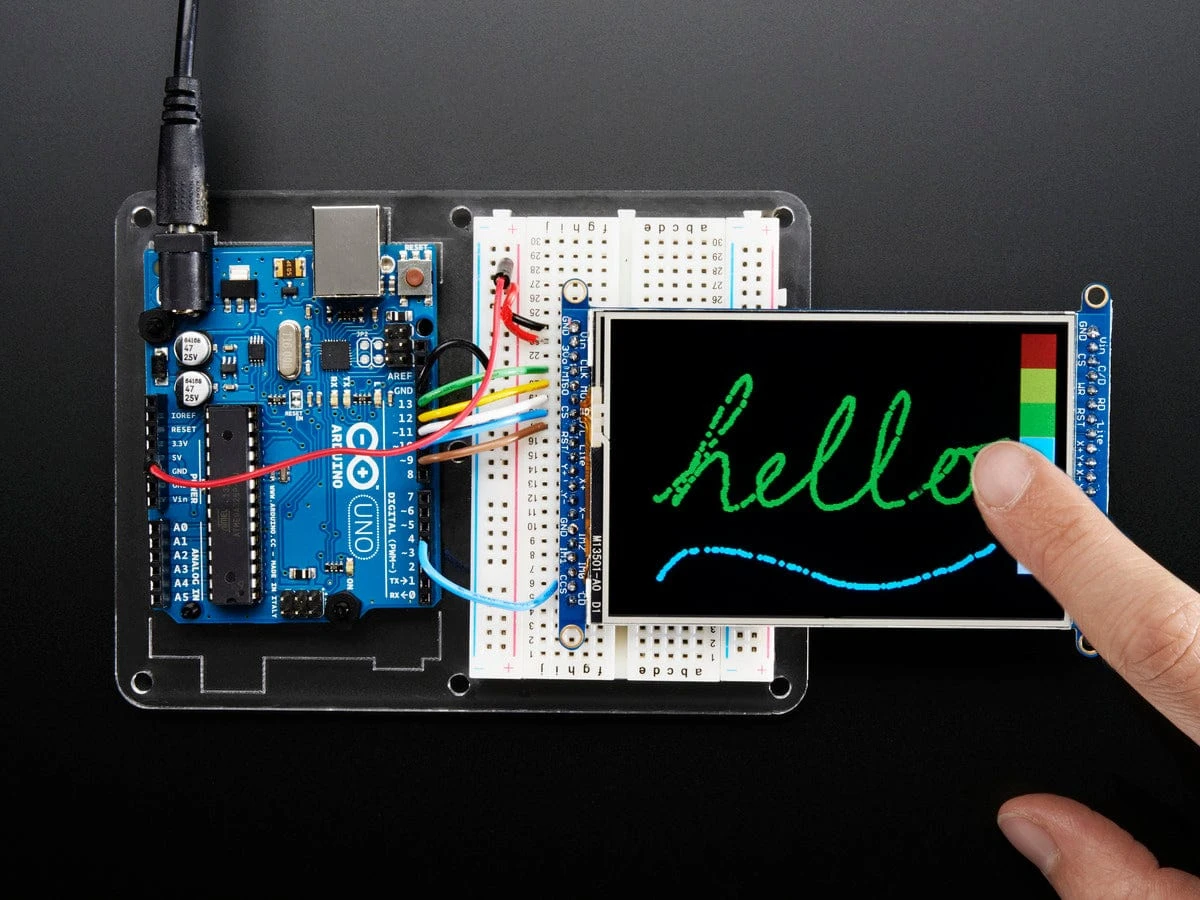

Add some jazz & pizazz to your project with a color touchscreen LCD. This TFT display is big (3.5″ diagonal) bright (6 white-LED backlight) and colorful! 480×320 pixels with individual RGB pixel control, this has way more resolution than a black and white 128×64 display, and double our 2.8″ TFT. As a bonus, this display has a resistive touchscreen attached to it already, so you can detect finger presses anywhere on the screen.

This display has a controller built into it with RAM buffering, so that almost no work is done by the microcontroller. The display can be used in two modes: 8-bit or SPI. For 8-bit mode, you’ll need 8 digital data lines and 4 or 5 digital control lines to read and write to the display (12 lines total). SPI mode requires only 5 pins total (SPI data in, data out, clock, select, and d/c) but is slower than 8-bit mode. In addition, 4 pins are required for the touch screen (2 digital, 2 analog) or

you can purchase and use our resistive touchscreen controller (not included) to use I2C or SPI

.

Of course, we wouldn’t just leave you with a datasheet and a “good luck!”. Check out our detailed tutorial for wiring, test and example code!

For 8-bit interface fans

we’ve written a full open source graphics library that can draw pixels, lines, rectangles, circles, text, and more

. For

SPI users, we have a library as well

, its separate from the 8-bit library since both versions are heavily optimized. We

also have a touch screen library that detects x, y and z (pressure)

and example code to demonstrate all of it.

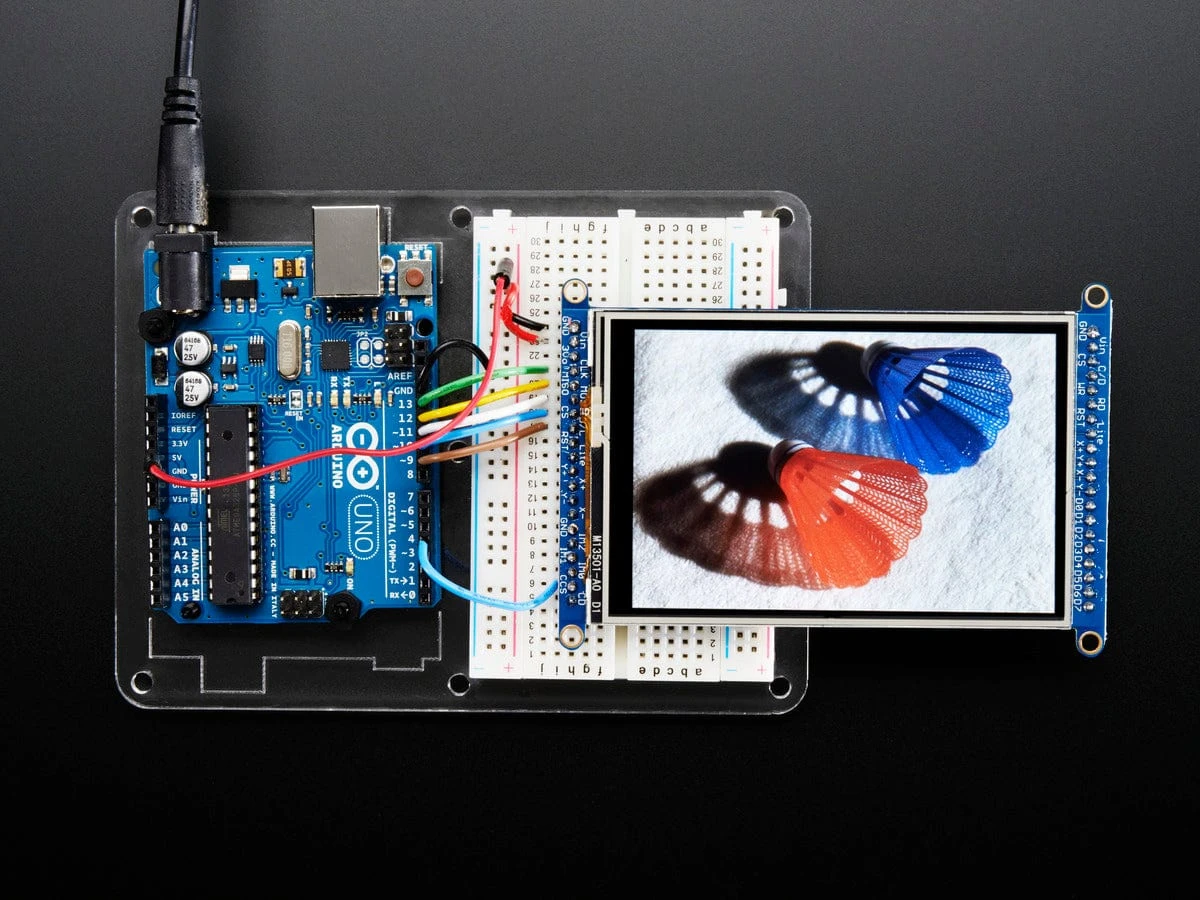

Note: Arduino and breadboard not included. TFT and header only.
