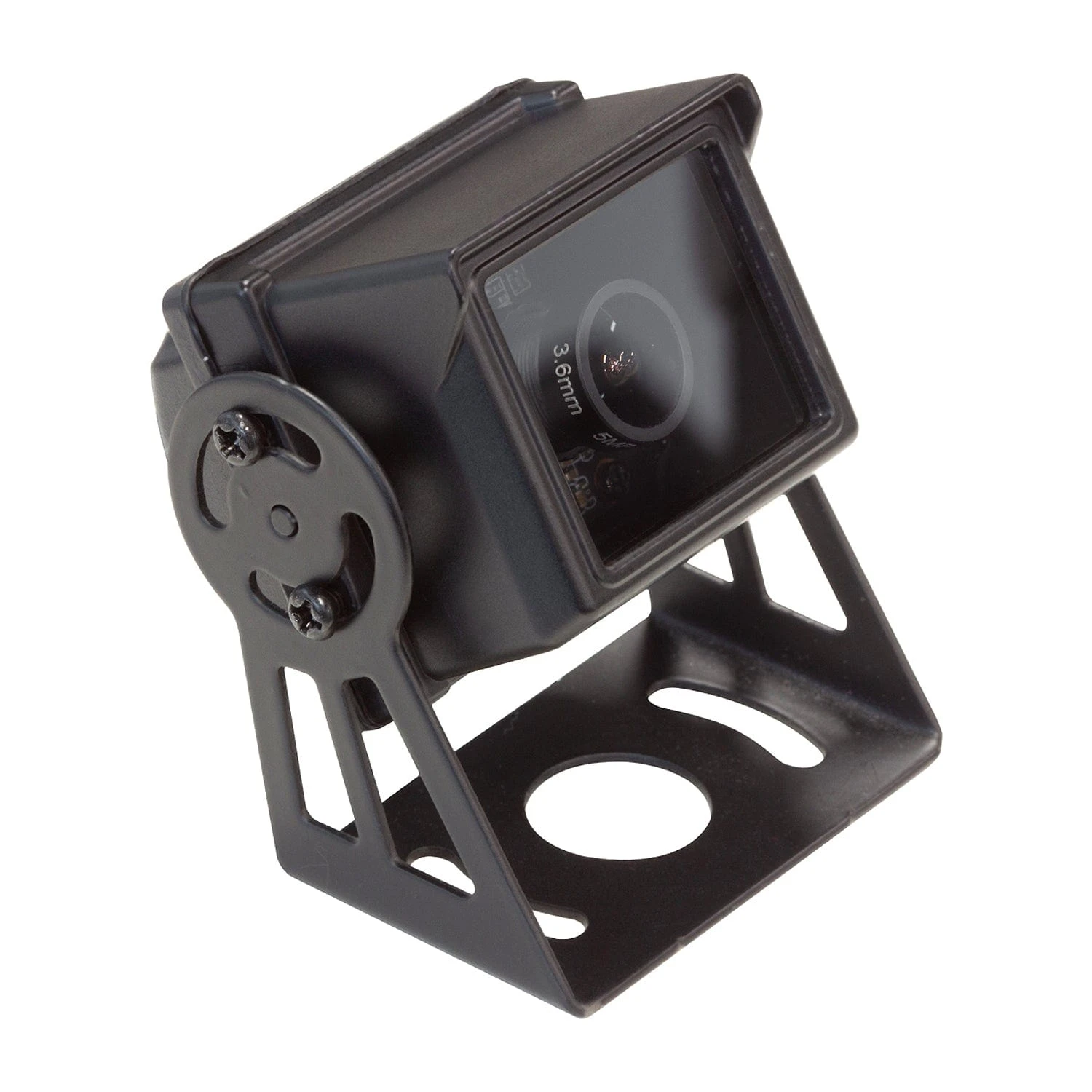

2MP Wide Angle USB Camera Module With Waterproof Metal Case

This camera module is a versatile and robust imaging solution designed for a variety of projects where high-quality video capture and wide-angle viewing are needed. It is equipped with a 2-megapixel Sony IMX291 image sensor, known for its impressive low-light performance and high sensitivity. It excels in capturing clear and detailed images and videos even in challenging lighting conditions. The camera features a 120° diagonal field of view (DFOV) M12 lens, providing a wide-angle perspective that’s perfect for applications where a broader view is required.

The camera supports multiple frame rate options for video capture, including H.264 at 30fps in 1920×1080 resolution, MJPG at 30fps in 1920×1080 resolution, and YUV2 at 30fps in 640×480 resolution. It also has a plug-and-play functionality and is housed in a durable and waterproof metal case, making it suitable for outdoor and rugged environments.

With its durability, ease of use, and high-quality video capabilities, it makes an excellent choice for a wide range of projects, from outdoor surveillance to industrial use.

Features

• HD Resolution and Low Light: This camera adopts the 2MP IMX291 Color CMOS sensor with an 80DB wide dynamic range, which can capture the minimum illumination at 0.001Lux.
• Wide Angle: High-quality 120-degree wide view angle (diagonal) M12 lens integrated with IR-cut filter.
  Capture Video with Audio: High frame rates: H.264 30fps@1920×1080; MJPG 30fps@1920×1080; YUY2 30fps@640x 480; Audio, single microphone (optional dual channel).

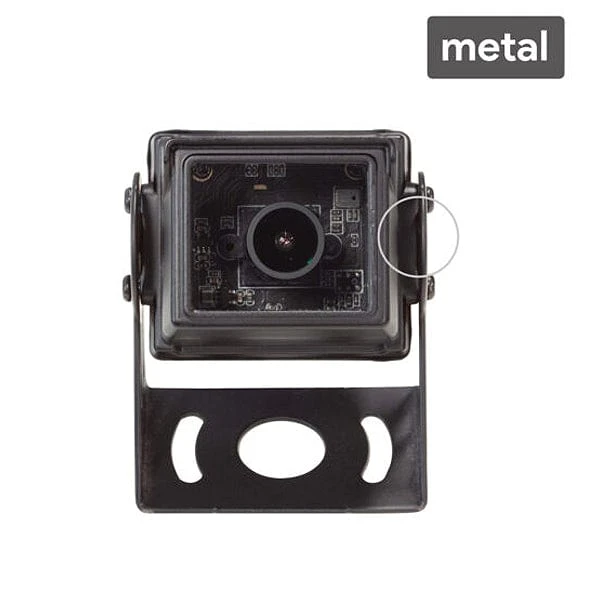

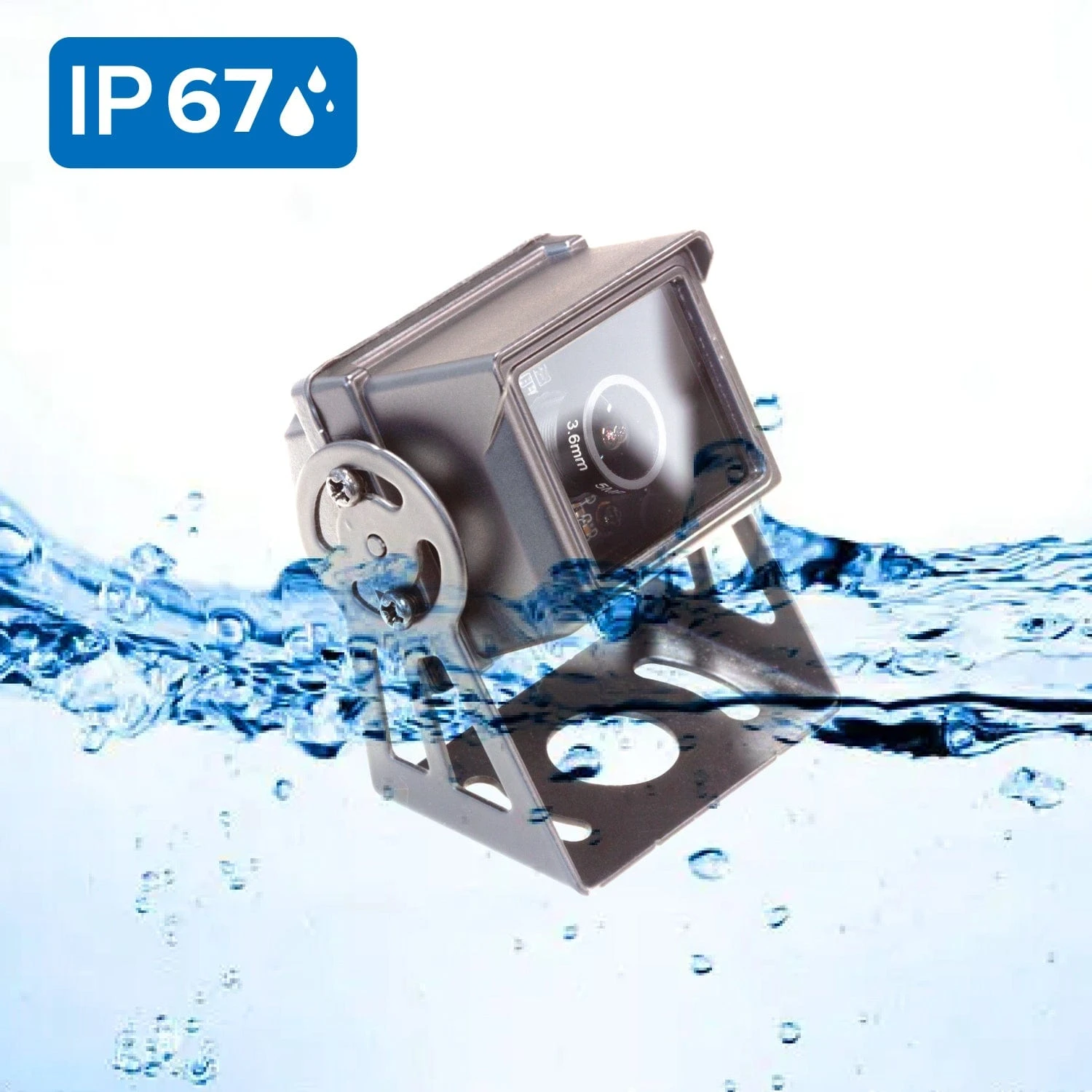

• Waterproof Metal Case: This UVC camera comes with a waterproof metal case, which makes it look more textured and safe. The case keeps it away from wetness and dust, making use more reassuring.
• More Applications: This tiny camera board can be installed in the most hidden and narrow position for a home video surveillance system, day and night low light vision security camera system, dashcam or other machine vision application.

Specifications

Sensor	IMX291
Resolution	2MP
Color Filter Type	Colour
Shutter Type	Rolling shutter
Optical Size	1/2.8″
Output Format	MJPG/YUY2/H.264
Pixel Size	2.9 µm x 2.9 µm
Sensor Active Area	1947(H)x1109(V)
Frame Rate	H.264 30fps@1920×1080; MJPG 30fps@1920×1080;
	YUY2 30fps@640×480
Focus Type	Fixed focus
FOV	120°(D)
Lens Mount	M12
F.NO	2
E.F.L	3.6mm
Interface	USB 2.0 device
Connector	B4B-ZR
UVC Compliant	No additional drivers required
Operating Voltage	DC 5V +/- 5%
Working Current	Max 300mA
Operating Temp.	-4°F-158°F(-20°C to 70°C)
Camera Board Size	38mm x 38mm
Audio	Single Microphone
Supported OS	Windows, Linux, Android, and Mac OS
Sample Application	AMCap-Windows Camera application for Video and Still Capture
UVC Controls	Brightness, Contrast, Hue, Saturation, Sharpness, Gamma, White Balance, Backlight Comp, Gain

Resources

• Quick Start for UVC USB Camera

• How to Modify the Serial Number

Package Contents

• 1 x Arducam 2MP USB Camera Module with Waterproof Metal Case
• 1 x USB Cable (1m)
• 1 x Quick start guide
