2.66″ Red/Black/White E-Ink Display Module (B) (296×152)

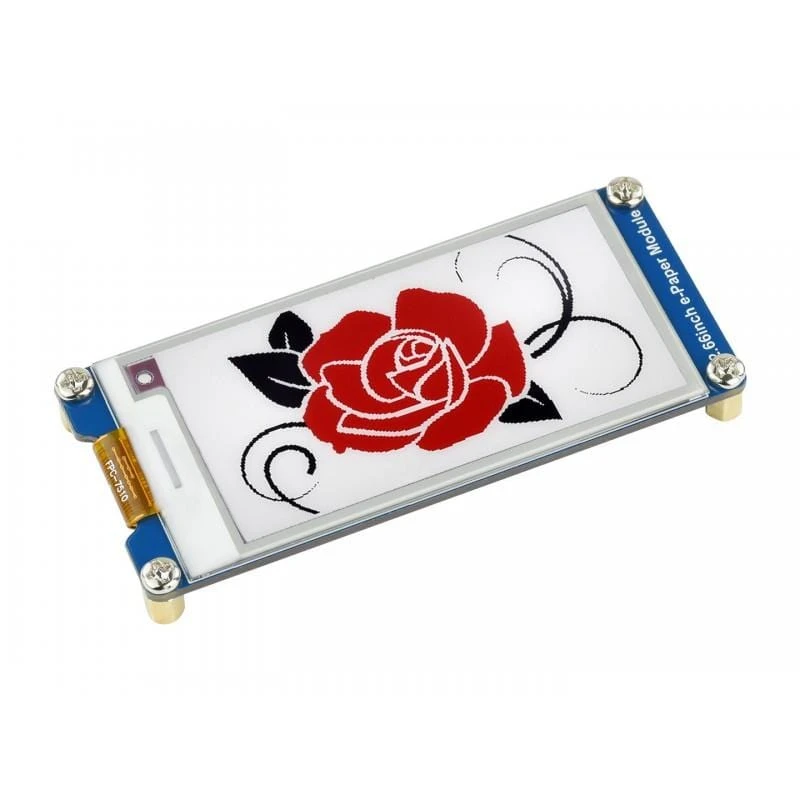

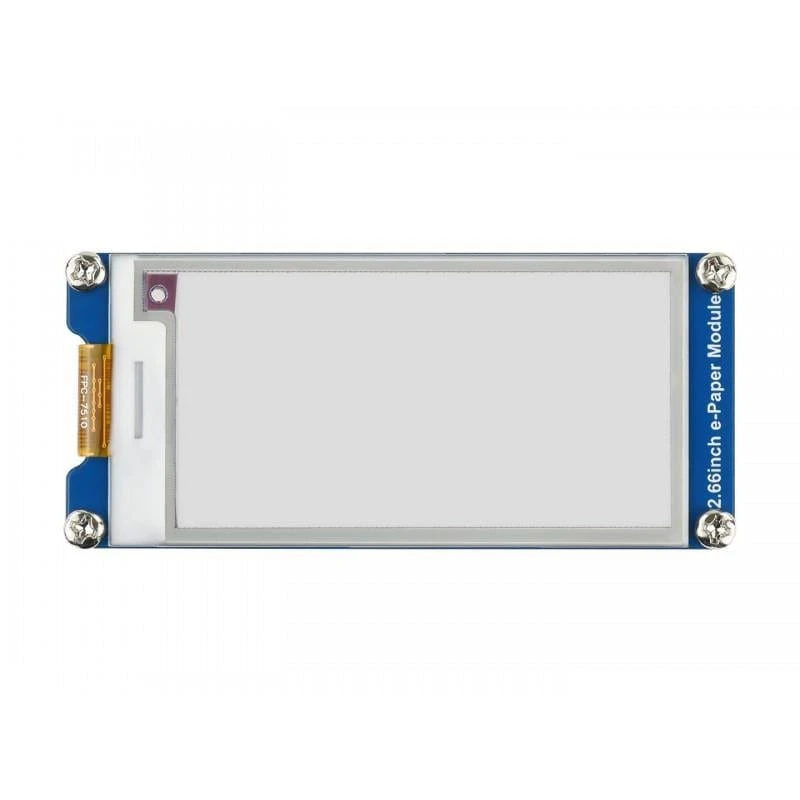

This is a Red/Black/White 2.66″ E-Ink display module with a 256×152 resolution.

Due to the advantages like ultra-low power consumption, wide viewing angle and clear display without electricity, it is an ideal choice for low-power applications.

The module communicates via an SPI interface (making it great for a number of different development boards such as the

Raspberry Pi

). The display also offers 170° viewing angles combined with the limited reflection under sunlight for excellent viewing no matter the scenario.

This ‘B’ version doesn’t support partial refresh –

you might want to check out this version instead if partial refresh is important for your project

.

This module comes with a PH2.0 20cm 8-pin cable for connecting to your microcontroller.

Features

• No backlight – keeps displaying last content for a long time even when powered down
• Ultra-low power consumption – power is only required for refreshing
• SPI control interface – works with a number of boards such as Raspberry Pi/Arduino
• Onboard voltage translator, compatible with 3.3V/5V MCUs

• Online development resources and manual

  (examples for Raspberry Pi, Arduino, Jetson Nano etc)

Package Contents

• 1x 2.66″ Red/Black/White E-Ink Display (B)
• 1x PH2.0 20cm 8-pin cable

Resources

• Product Wiki including code examples

Pinout

VCC	3.3V/5V
GND	Ground
DIN	SPI MOSI pin
CLK	SPI SCK pin
CS	SPI chip selection, low active
DC	Data / Command selection (high for data, low for command)
RST	External reset, low active
BUSY	Busy status output, high active

Specifications

• Operating voltage: 3.3V / 5V
• Interface: 3-wire SPI, 4-wire SPI
• Outline dimension: 37.0 × 83.5mm
• Display size: 30.704 × 60.088mm
• Dot pitch: 0.202 × 0.203mm
• Resolution: 296 × 152 pixels
• Display colour: red, black, white
• Grey scale: 2
• Full refresh time: 15s
• Refresh power: 16mW(typ.)
• Standby power: <0.01uA (almost none)
• Viewing angle: >170°
