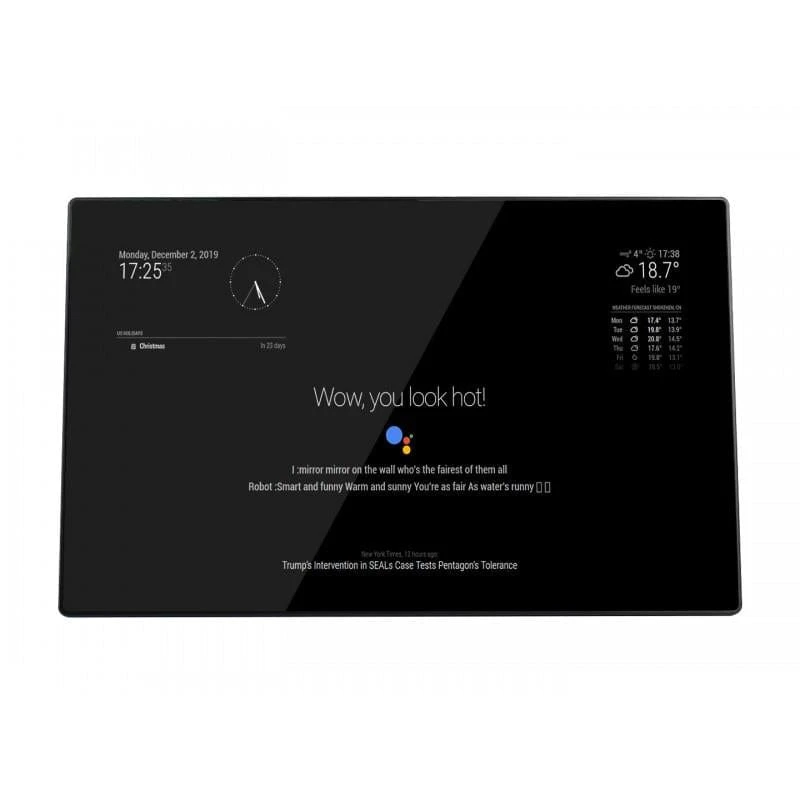

13.3″ Magic Mirror (with Built-in Raspberry Pi 3A+)

Owning your very own Raspberry Pi Magic Mirror is easier than ever thanks to this purpose-built Raspberry Pi Magic Mirror from the clever folks at

Waveshare

!

Including a built-in

Raspberry Pi 3A+

(including dual-band WiFi and Bluetooth connections) this Magic Mirror features a one-way mirrored front panel which shows information from your Google Assistant (using

snowboy

hotword detection) on the 13.3″ 1920×1080 IPS touchscreen display, and turns back into a mirror when not in use.

The mirror includes built-in ferrite Hi-Fi speakers and MEMS microphone for interacting with Google Assistant and other applications. Up to 10-point capacitive touch (dependant on operating system) allows you to freely and easily interact with your project without the need for traditional peripherals.

Thanks to the built-in Raspberry Pi 3A+ and internal supporting PCB, the mirror offers 3x USB 2.0 ports, an Ethernet port and a 3.5mm headphone jack. The included SD card is also easily accessible for simple swap-out. Power is provided by the included 12V UK power supply.

The Magic Mirror can be used landscape or portrait and features a simple built-in 75-degree angle stand. The unit also features mounting holes for mounting on a wall/surface. A Keyboard/Mouse can be connected for traditional screen use with Raspberry Pi OS (mirrored glass not ideal for long periods of Raspberry Pi OS usage).

The rear of the unit features a power button as well as menu/direction buttons to control the on-screen display to adjust brightness/contrast.

Note: Raspberry Pi 3A+ built-in, you do not need to buy this separately. A UK power supply is included with this item.

Features

• 13.3″ 1920×1080 IPS display
• Comes with UK power supply, 16GB SD card and card reader
• 10-point Capacitive Touch (OS dependant)
• One-way mirror glass
• Built-in Raspberry Pi 3A+
  • 64-bit 1.4GHz Quad-core ARM Cortex-A53
  • 512MB RAM
  • Dual-band WiFi
  • Bluetooth 4.2
• 12V UK PSU included
• Built-in ferrite Hi-Fi speakers
• Built-in dual-track MEMS microphone
• Built-in stand for 75-degree viewing angle
• 3x USB 2.0 ports
• Extended Ethernet
• 3.5mm Audio port
• SD card access
• M4 mounting holes for 75x75mm wall mount
• OSD with rear control buttons

Package Contents

• 1x 13.3″ Magic Mirror
• 1x UK three-pin 12V power adapter
• 1x Micro-SD card reader
• 1x 16GB Micro-SD card

Resources

• Product Wiki

  – Including pre-configured Raspberry Pi image, Google Assistant/Snowboy installation, driver installation and FAQs

Dimensions

• 329.5mm x 207.9mm x 22.5mm
