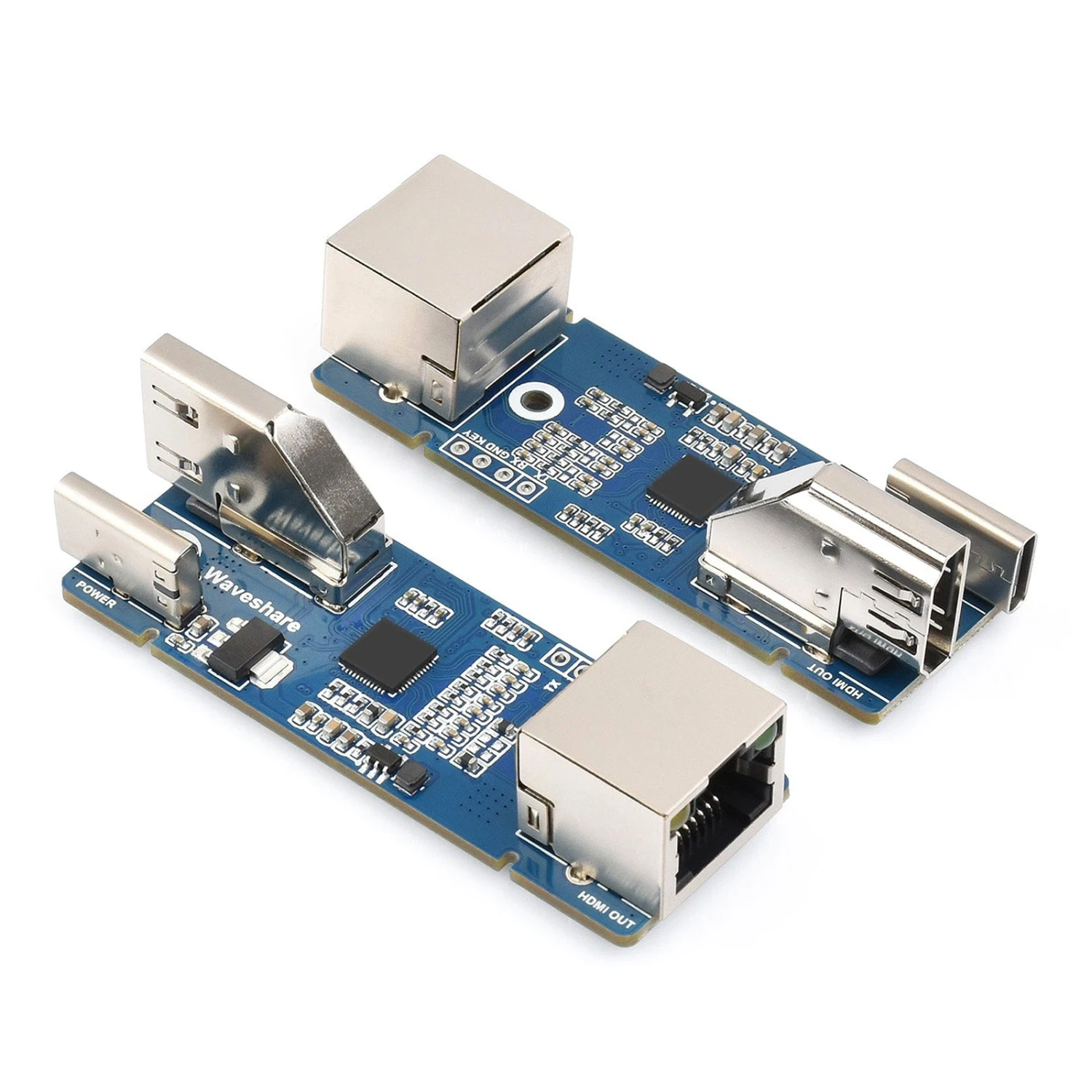

1080p HDMI Signal Extender

With its lossless transmission, this HDMI extender kit offers a stable 50m transmission distance via a CAT-5E/6 network cable whilst maintaining a solid 1080p HD clear and smooth image with no delay in sound. This is the extender you need for your security monitoring, video conferences, home theatres, and many more scenarios.

Power this up using a USB-C cable, plug in your

RJ45 CAT-5E/6 network cables

(CAT-6 recommended) to the transmitter/receiver and you’re good to go.

HDMI cables, network cables, and power supply are not included. Comes as a kit (transmitter + receiver).

Connection Example

Features

• Transmission standard: HDMI 1.4B
• Max. transmission distance: 50M (CAT-6 recommended)
• Supported resolution: 1080p/1080i/720p/576p/576i/480p/480i
• Support colour depth 10/12/16-bit mode
• Support DVI/HDMI
• Power input: DC 5V 1A

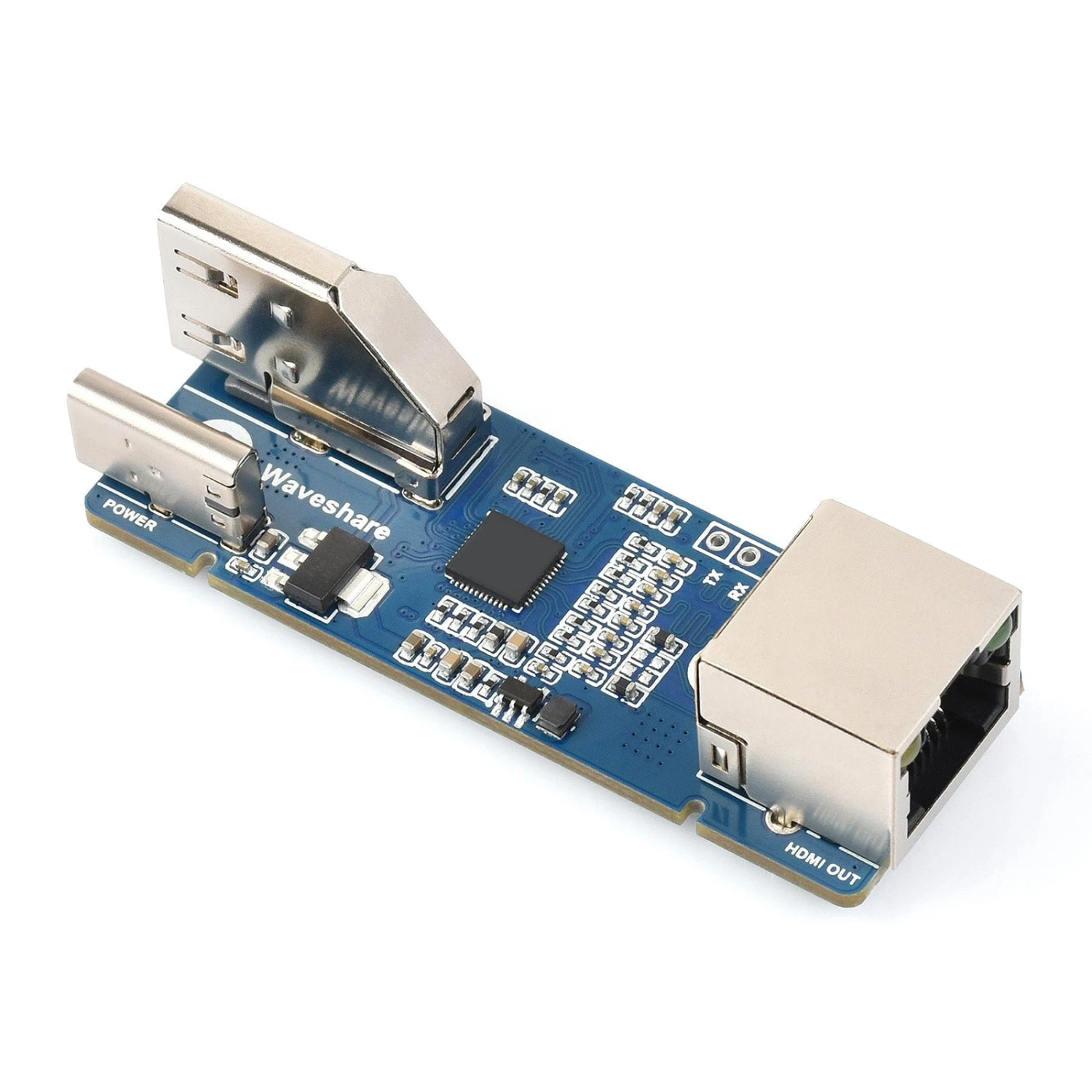

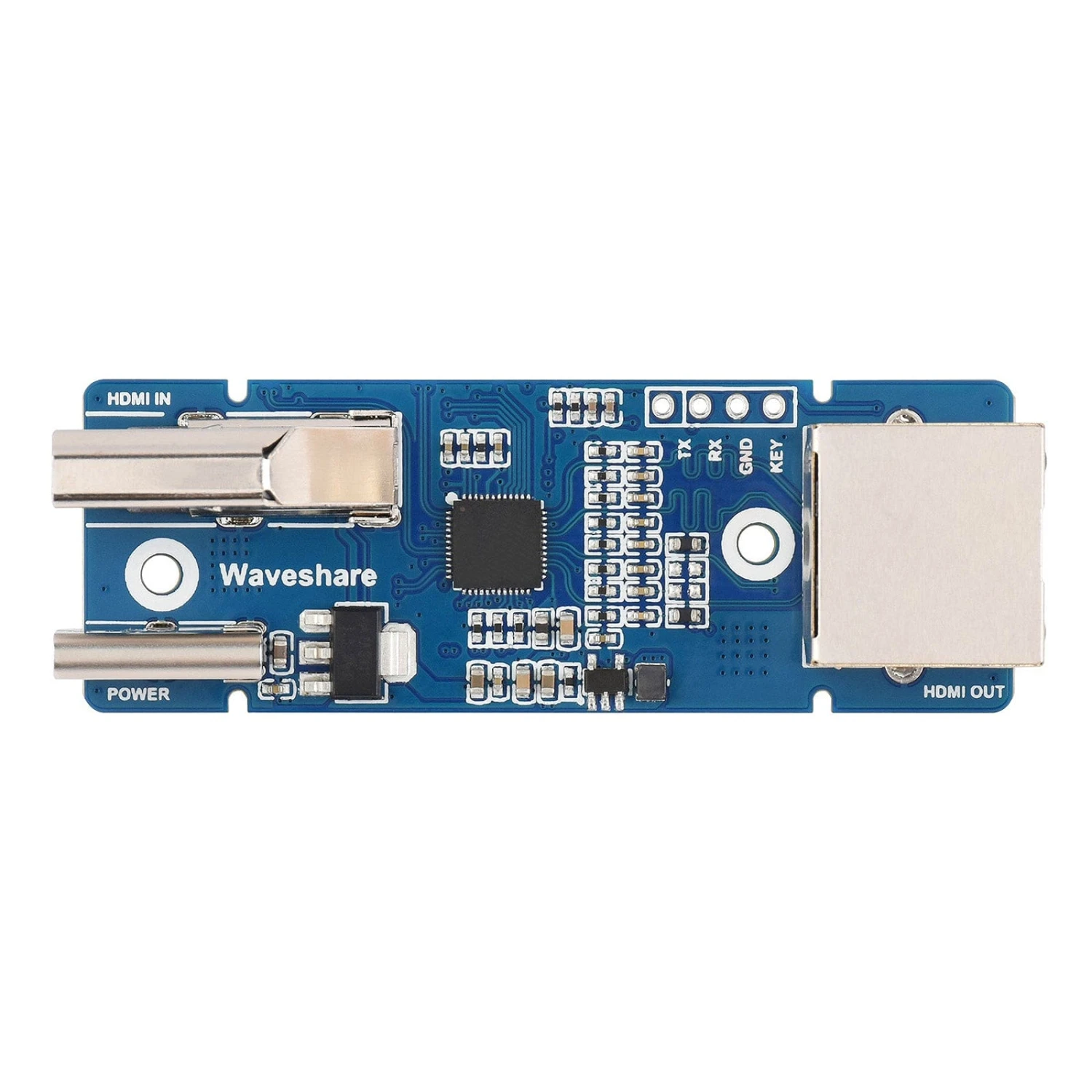

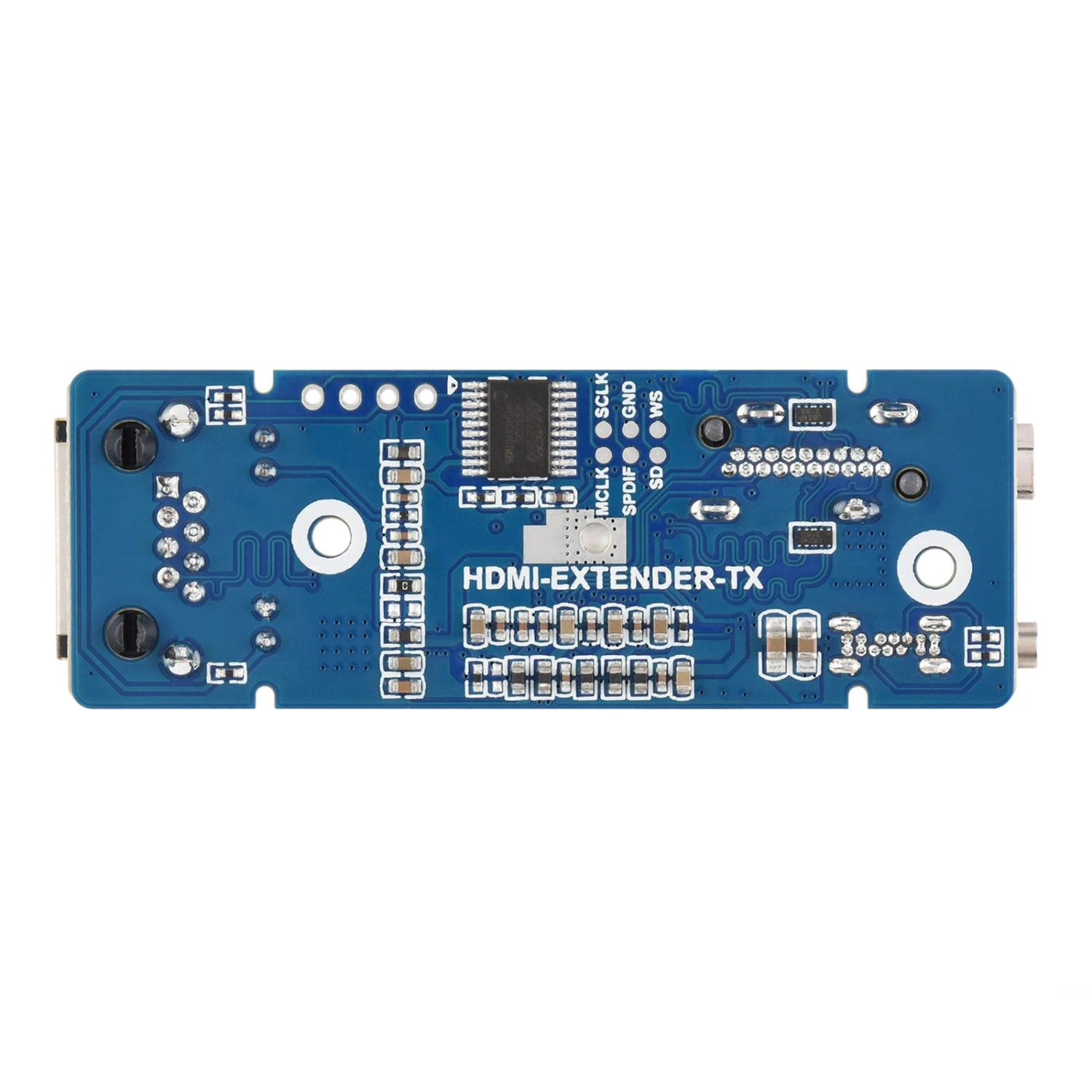

What’s on Board

Specifications

Transmission Standard	HDMI 1.4B
Video Input	1080p/1080i/720p/576p/576i/480p/480i
Signal Transmission	Supports using CAT-5E/6 network cable (CAT-6 recommended) instead of HDMI cable, the distance between transmitter and receiver up to 50m
Power Input	Type-C port (DC 5V 1A)
Applicable Scenarios	Security monitoring, Video conferences, Multimedia teaching, Home theatre and many more

Package Contents

• 1x HDMI Signal Extender Kit (2-parts)

HDMI cables, network cables, and power supply are not included
