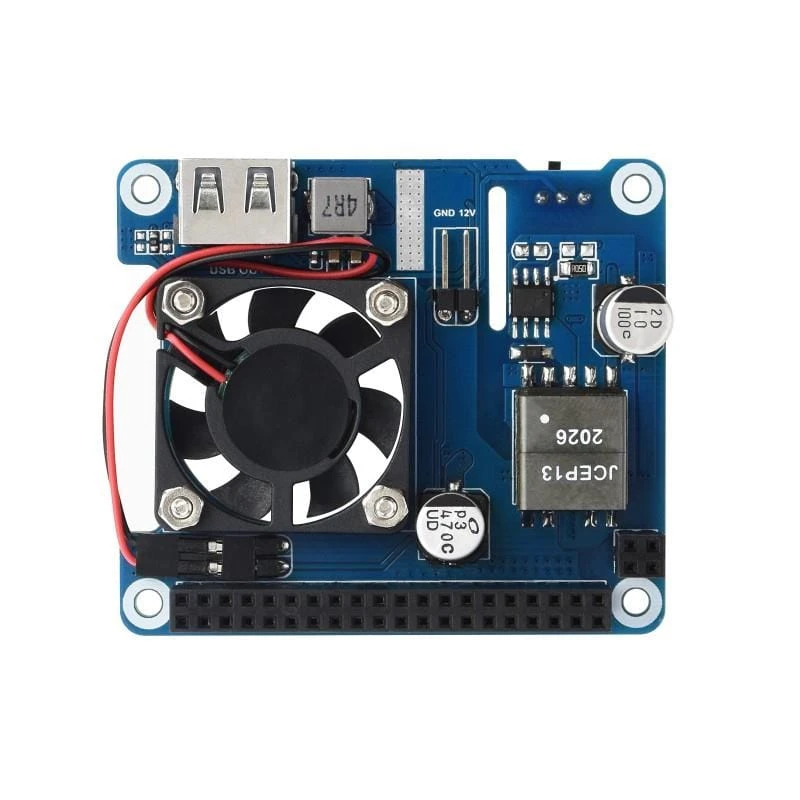

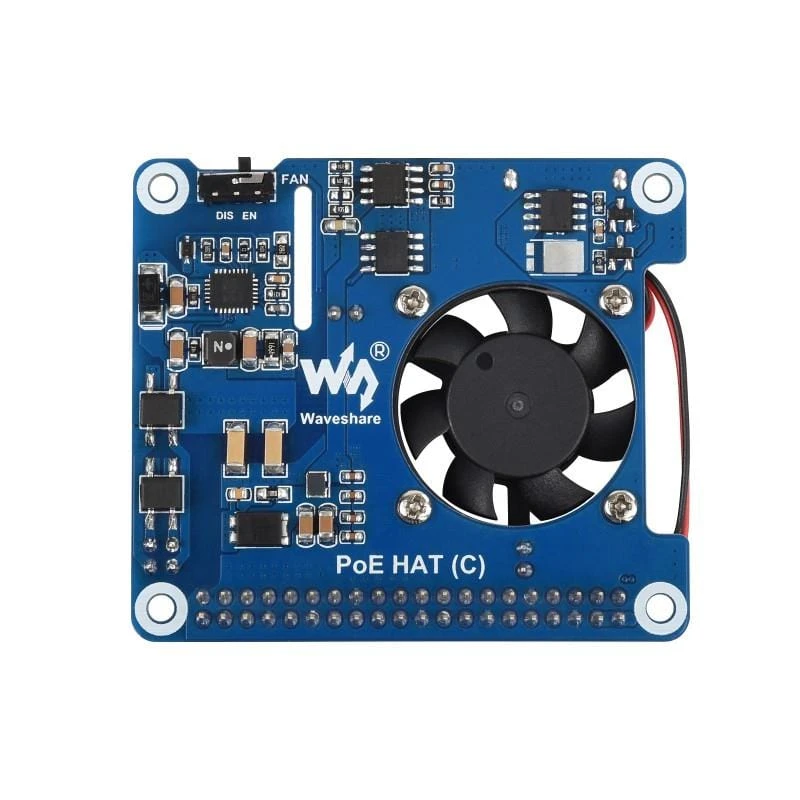

Power Over Ethernet HAT For Raspberry Pi 4/3B+ (12V & 5V Outputs)

The  PoE HAT (C)  is a 802.3af/at-compliant Power Over Ethernet HAT for the

Raspberry Pi

3B+/4B.

By using this small HAT and proper 802.3 af/at-compliant power sourcing equipment, it is possible to provide both network connection and power supply for your Raspberry Pi in only one Ethernet cable.

Online development resources are available, which include wiring guidance and example code, with additional information being found on the

Product Wiki & Manual.

Note: Not compatible with Raspberry Pi 5, and the Raspberry Pi 4 is NOT included.

Features

• Standard Raspberry Pi 40-pin GPIO header, supports Raspberry Pi 3B+/4B
• PoE (Power Over Ethernet) capability, IEEE 802.3 af/at-compliant
• Fully isolated switched-mode power supply (SMPS)

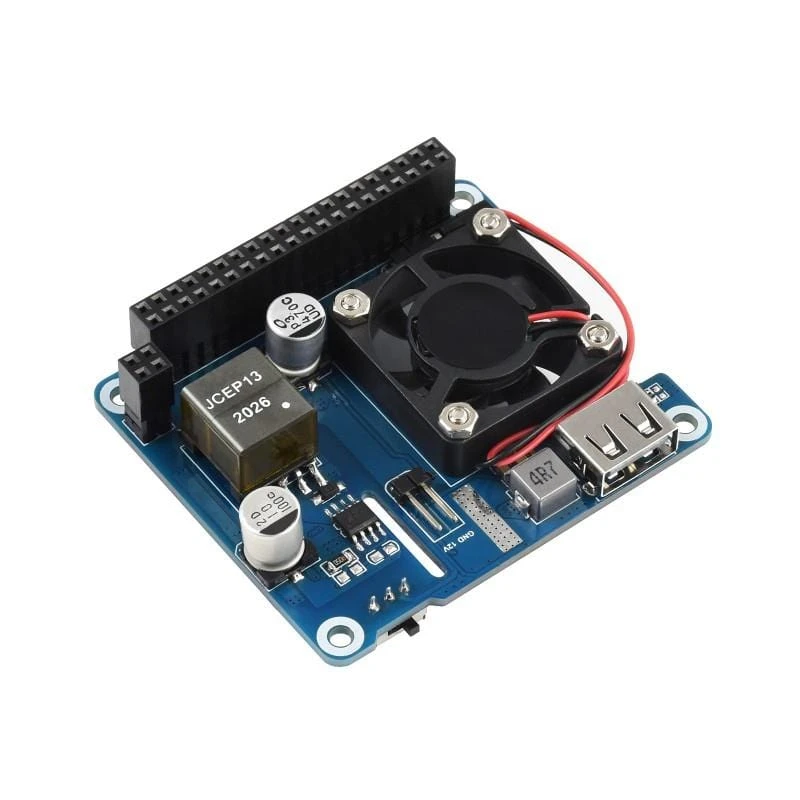

• While providing stable power for the Raspberry Pi, there’s also a USB-A port for powering an extra external device
• Onboard high speed active cooling fan, better heat dissipation

Specifications

POE Power Input	37V ~ 57V DC in
Power Output	USB-A: 5V 4A (MAX)
	2P header: 12V 2A (MAX)
Network Standard	IEEE 802.3af/at PoE
DIME	56.5 × 65mm

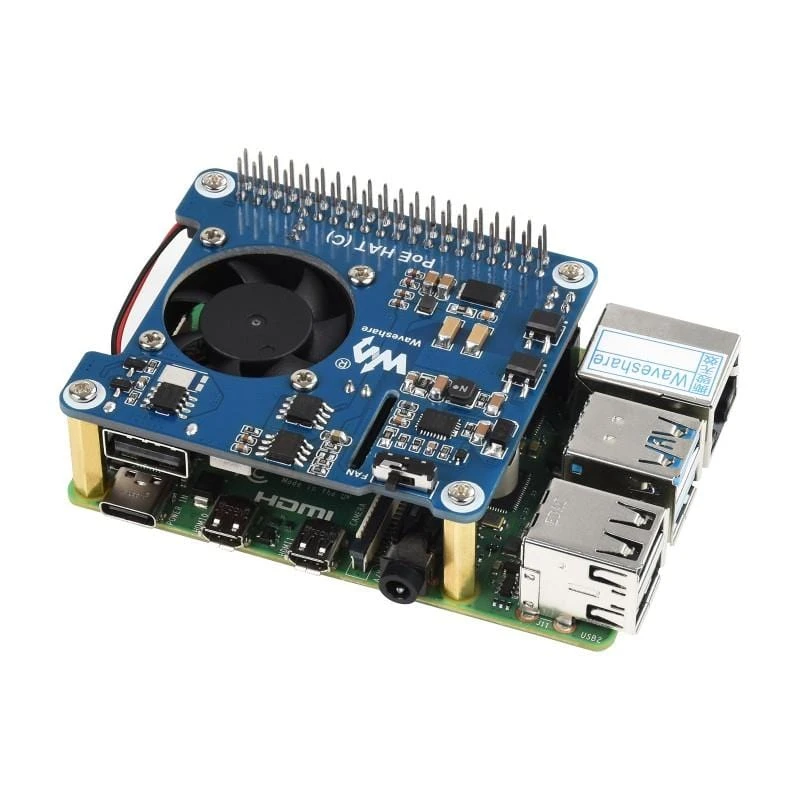

Connection Example

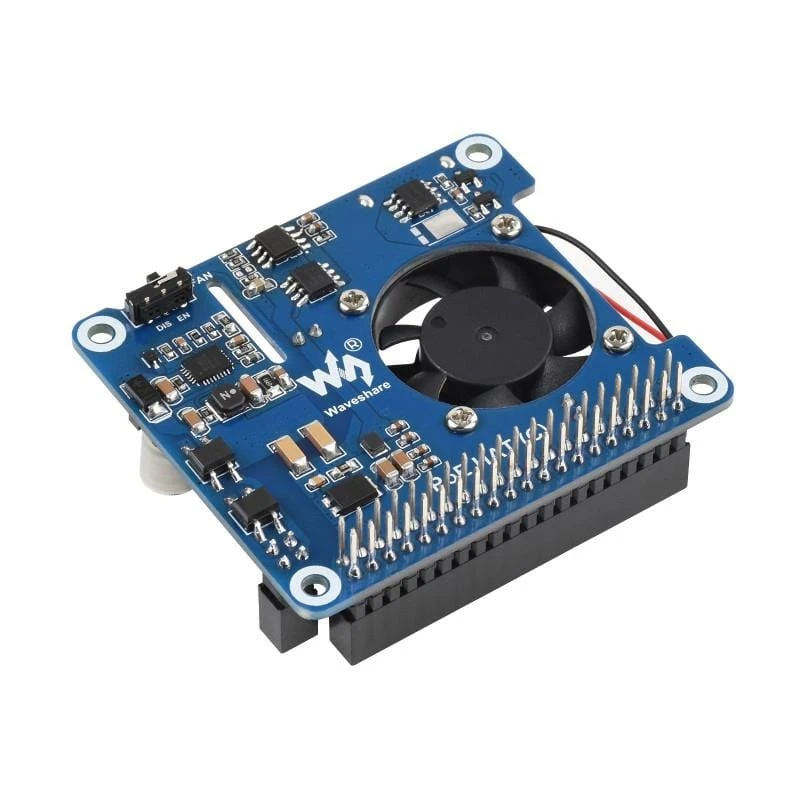

Standard Raspberry Pi 40PIN GPIO Stackable Header, Allows Connecting Other HATs

Resources

• Product Wiki & Manual

Package Contents

• 1x PoE HAT (C)
• 1x Heatsink
• 1x Standoffs pack
