Power Over Ethernet HAT (E) For Raspberry Pi 4/3B+

This compact PoE HAT (E) from Waveshare is 802.3af-compliant and compatible with the

Raspberry Pi 4

and

Raspberry Pi 3B+

. This HAT allows you to power the Raspberry Pi 4/3B+ via an Ethernet cable whilst also providing a wired network connection (when used in conjunction with compatible PoE power-sourcing equipment).

Not compatible with Raspberry Pi 5.

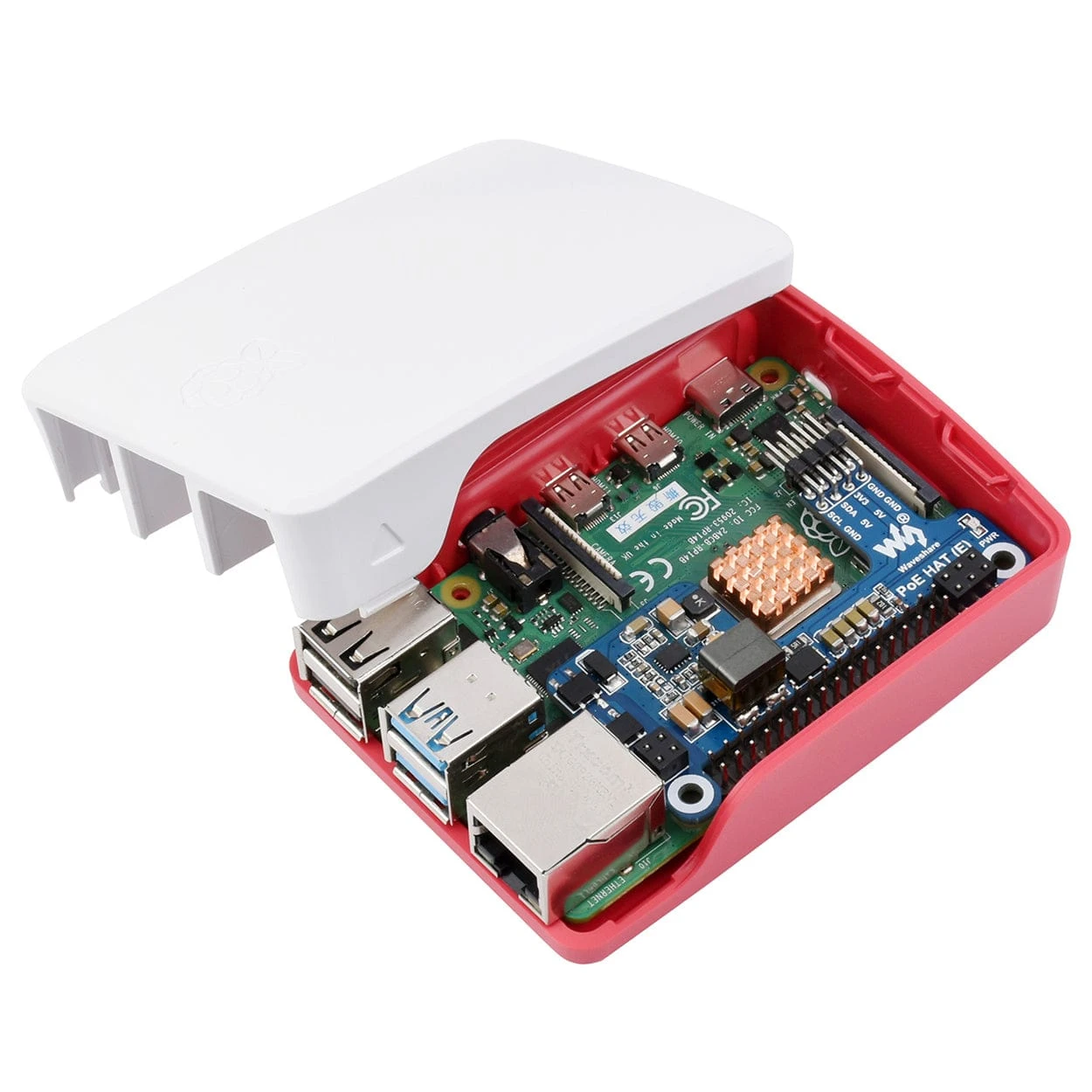

The HAT is small enough to fit inside the

official Raspberry Pi 4 case

providing a compact, flexible power and network option for projects in awkward spots away from sockets and WiFi range.

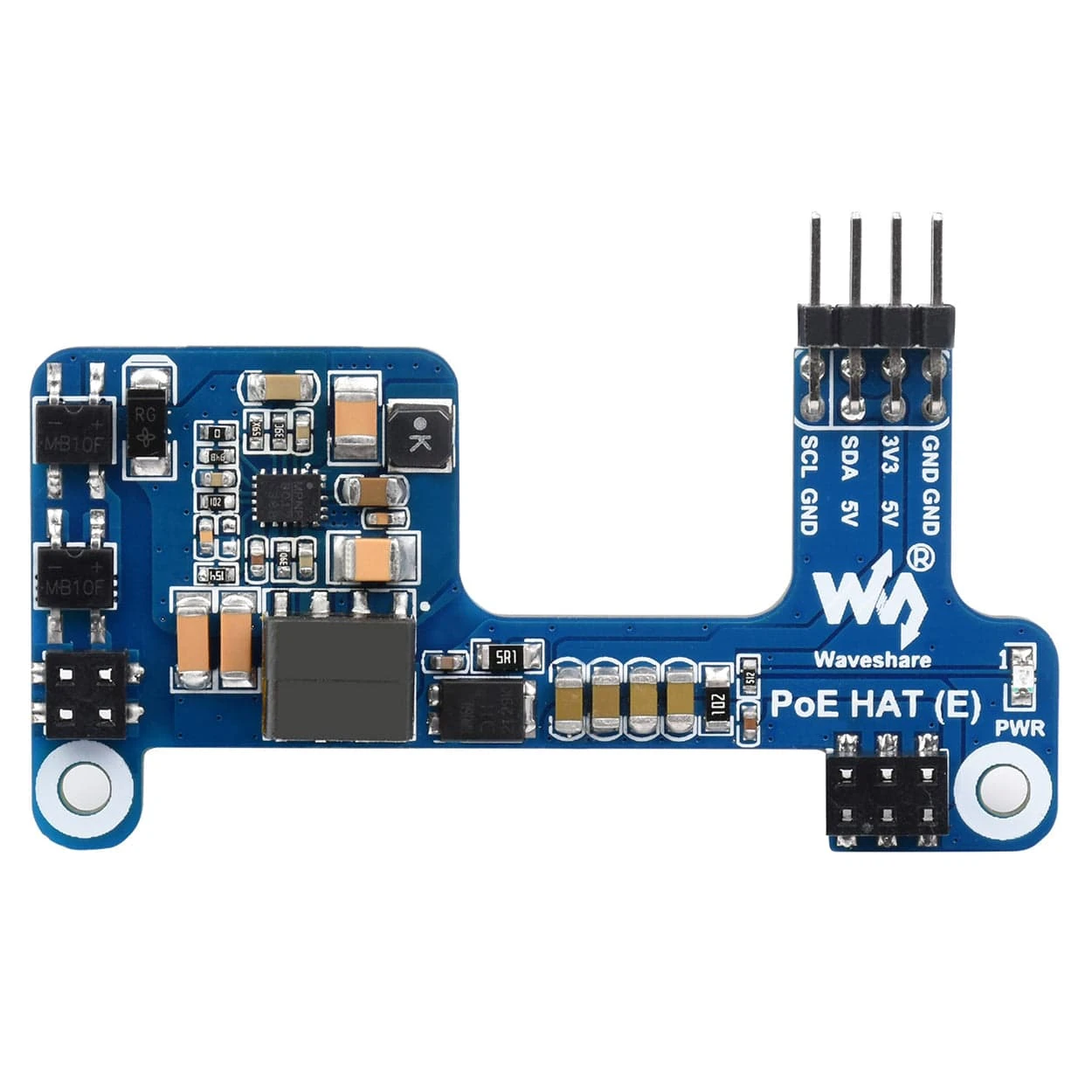

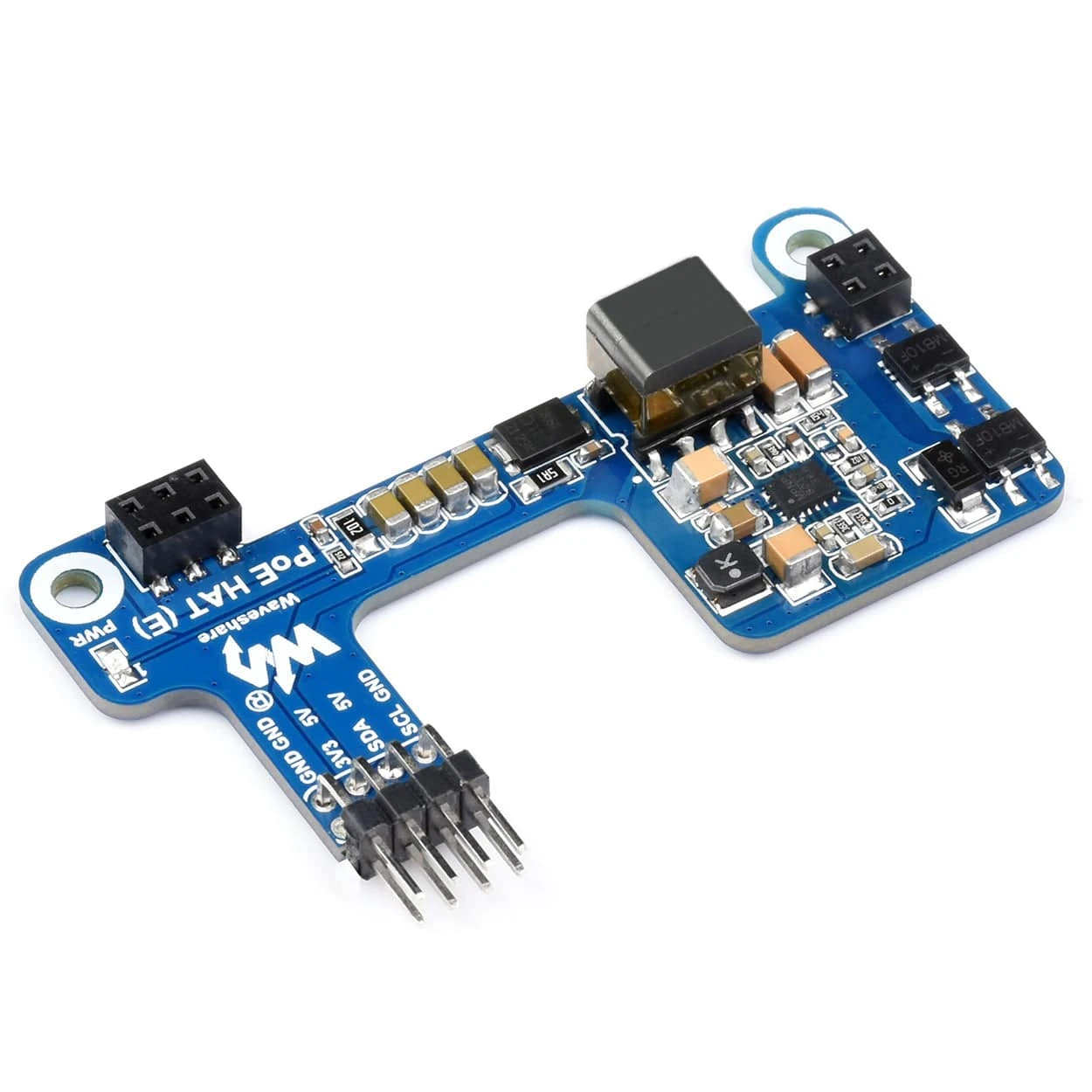

The HAT features a fully isolated switched-mode power supply (SMPS). It also includes an 8-pin breakout including headers for a

5V fan

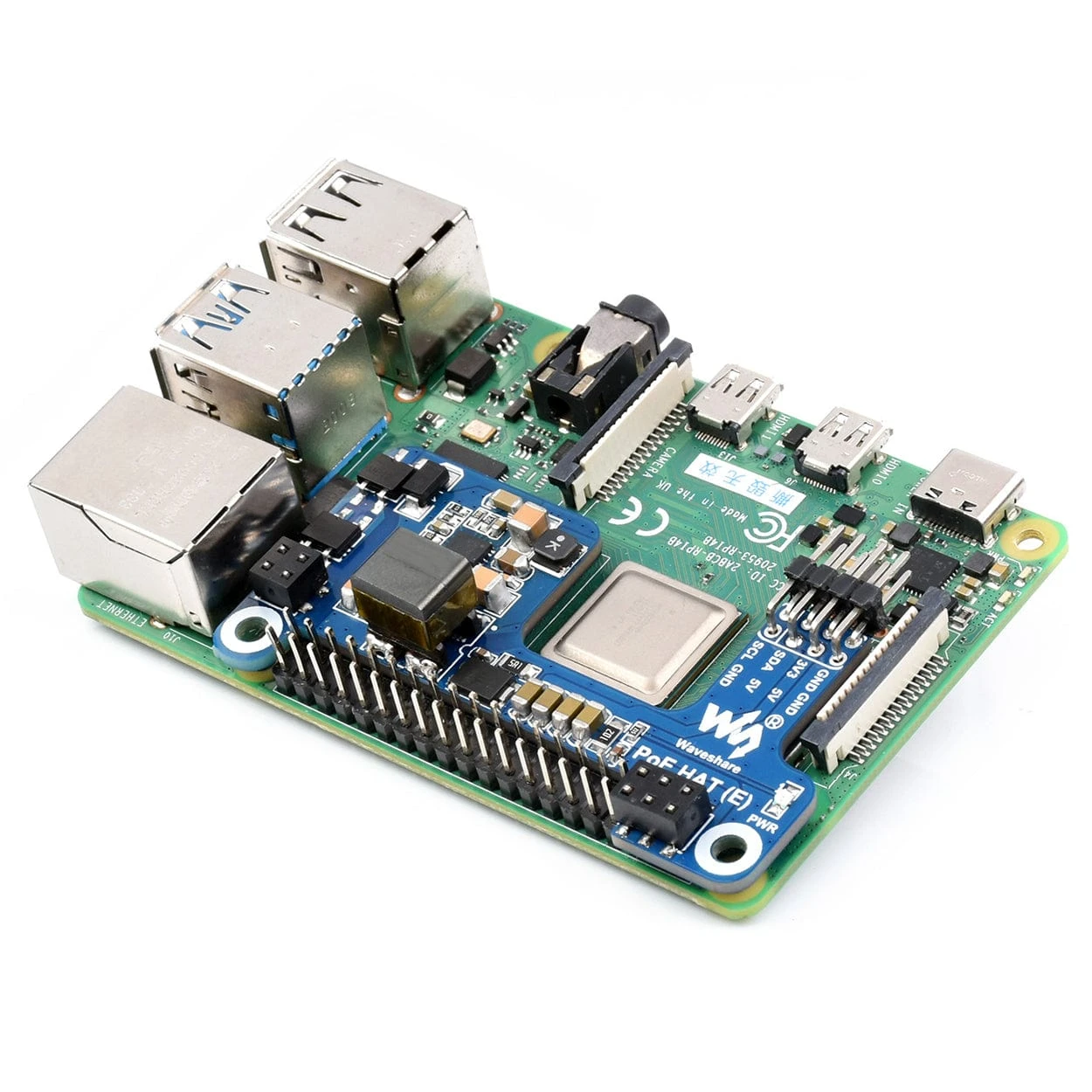

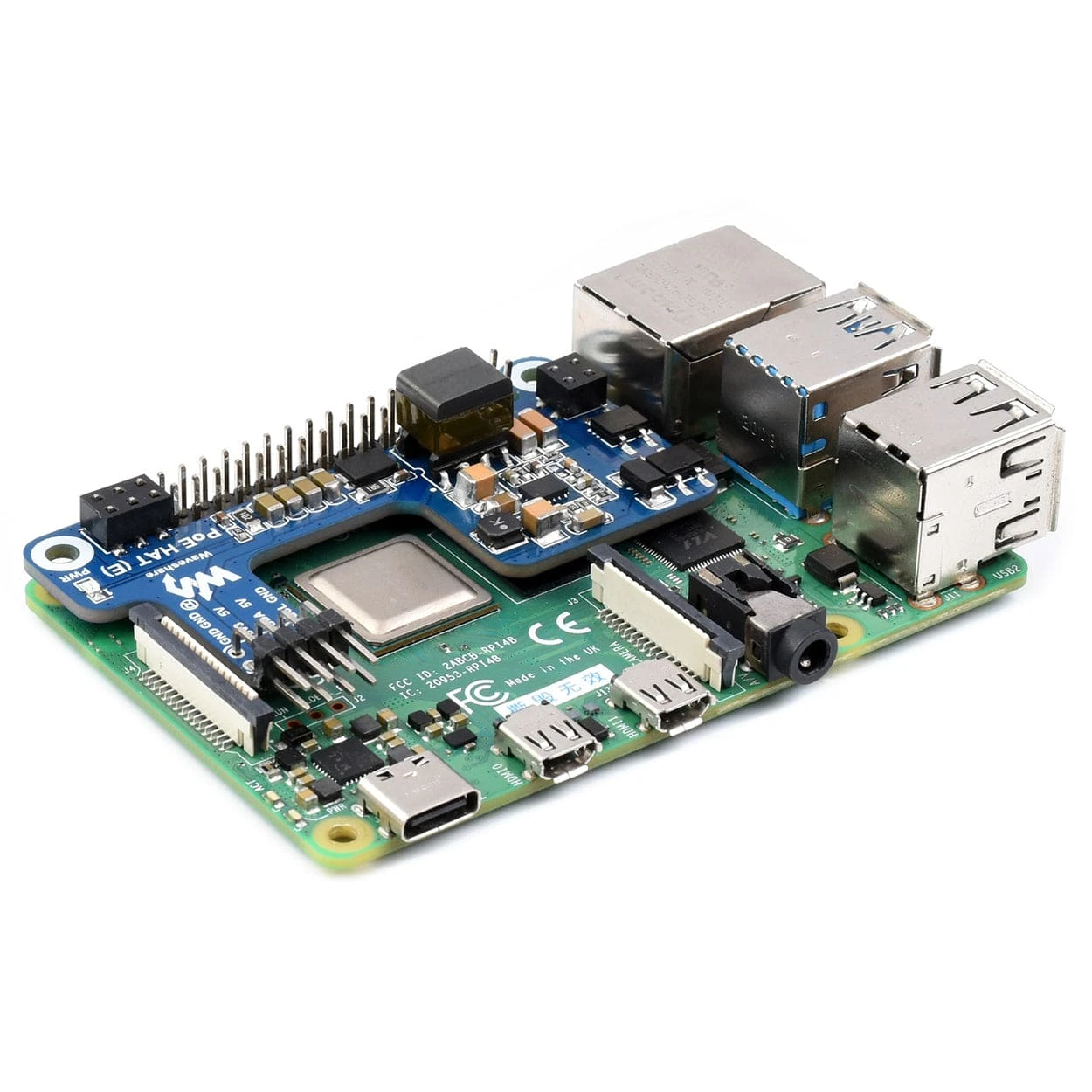

. Most of the Raspberry Pi GPIO header pins are not consumed by the HAT, just the first 6 pins and PoE header are taken by the HAT.

Onboard Features

Specifications

• POE power input: 37V ~ 57V DC in
• Power output: 5V 2.5A DC out
• Network Standard: IEEE 802.3af PoE
• Dimensions: 65x32mm

Resources

• Product Wiki

Package Contents

• 1x PoE HAT (E)

Raspberry Pi and case not included
