M5Stack M5GO IoT Starter Kit V2.7

The M5GO IoT Starter Kit v2.7 is a cost-effective IoT starter development kit. The kit contains a Core Controller M5GO plus six expansion units with different functions (sensors/actuators/splitters).

The core controller M5GO has an Espressif ESP32 chip, equipped with two low-power Xtensa® 32-bit LX6 microprocessors, a main frequency of 240MHz, and a 16Mb FLASH memory for a larger program size.

It also supports Wi-Fi, which can be used to build smart wearable devices, smart homes and other applications.

---

Lithium Battery Shipping: Due to courier restrictions, this product can only be shipped within England/Wales. With this item in your cart your shipping options will be limited and may cost more than our usual rates.

Why?

---

Features

• Based on ESP32 development
• 16Mb FLASH
• Integrated HD IPS display panel with various hardware peripherals
• Rich resources interface, compatible with M5Stack stacking modules and sensors, Strong expandability

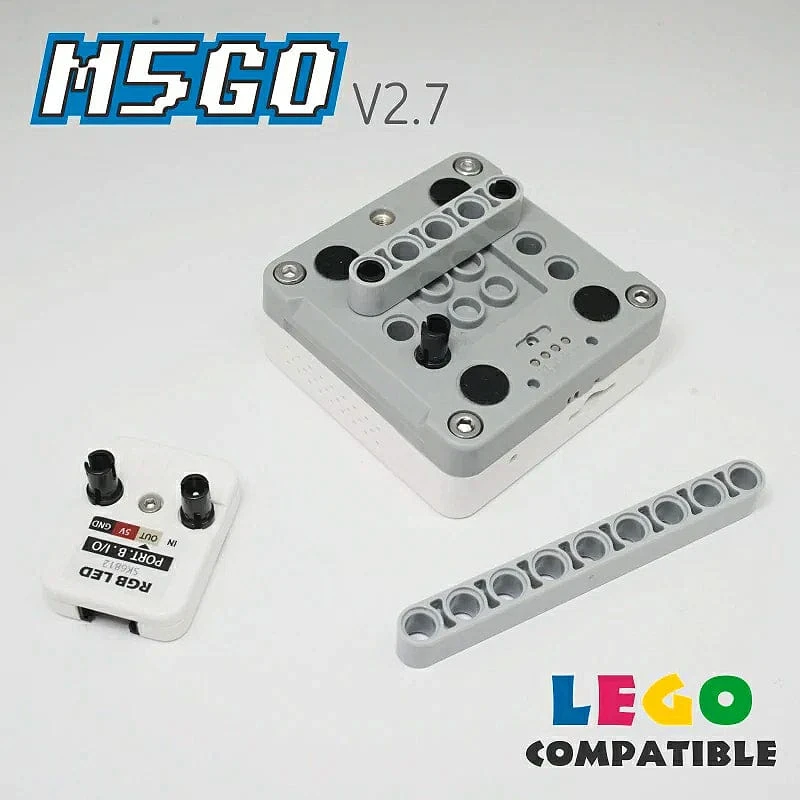

• The base is compatible with 8mm size LEGO blocks
• Microsoft Azure authentication device
• Compatible with multi-platform development:

  • UIFlow

  • MicroPython

  • Arduino

  • .NET nanoFramework

M5GO IoT controller

• Low code development:
  • Supports UIFlow graphical programming platform, scripting-free, cloud push
  • Fully compatible with Arduino, ESP32-IDF and other mainstream development platforms
  • FreeRTOS support, with dual-core and multitasking mechanisms, can perform tasks efficiently and has program optimisation.
• High integration:

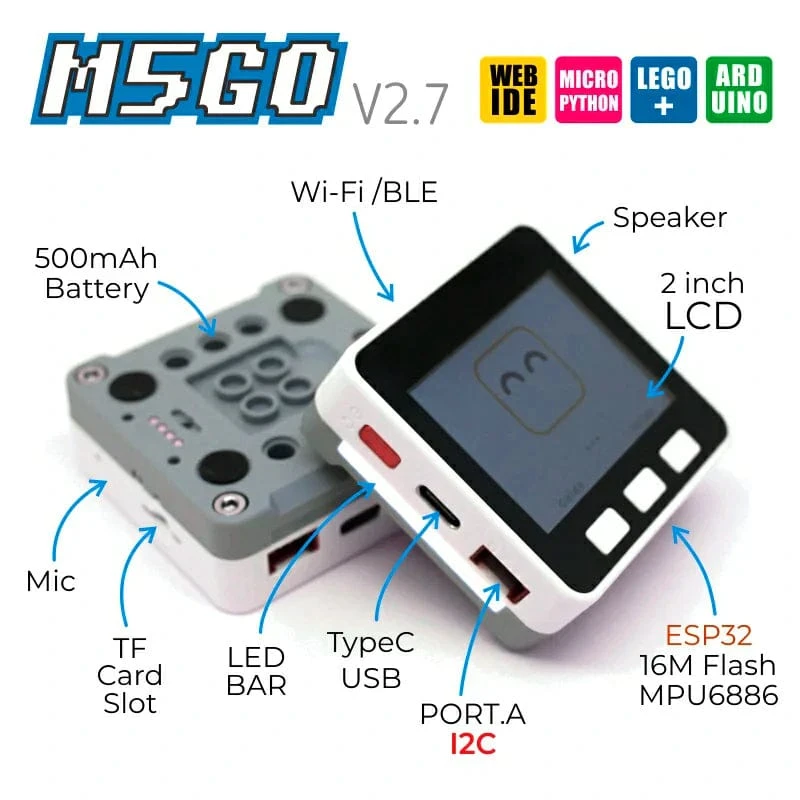

  • 2.0-inch IPS display panel, 6-axis IMU, programmable RGB lights x10, microphone, speaker, custom buttons x3

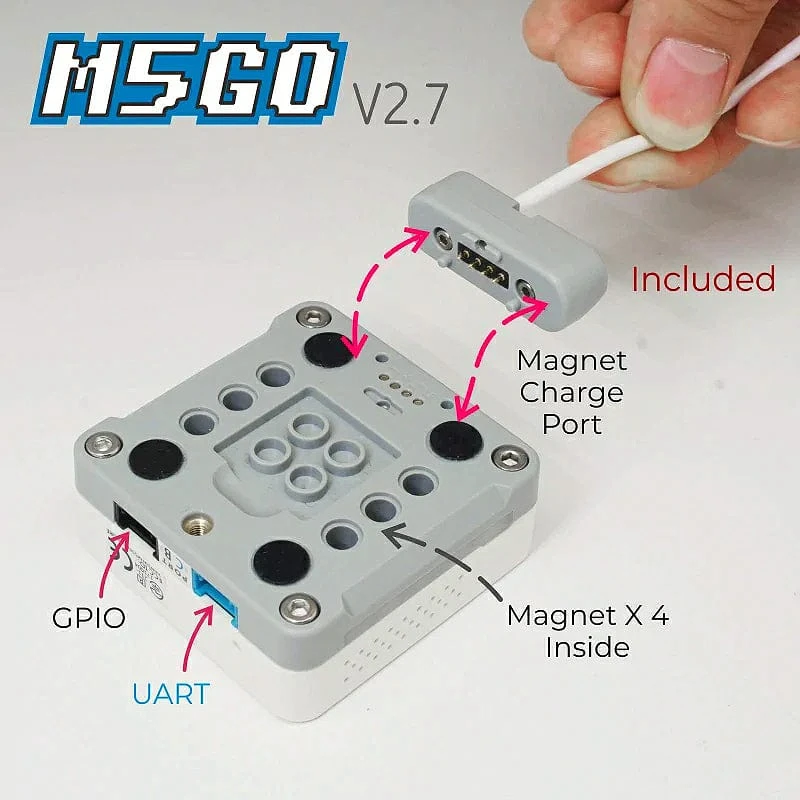

  • Built-in Li-ion power supply, integrated power management chip, supports TypeC interface and POGO PIN interface power supply
  • Finely tuned RF circuitry for stable and reliable wireless communication
• Strong expandability:

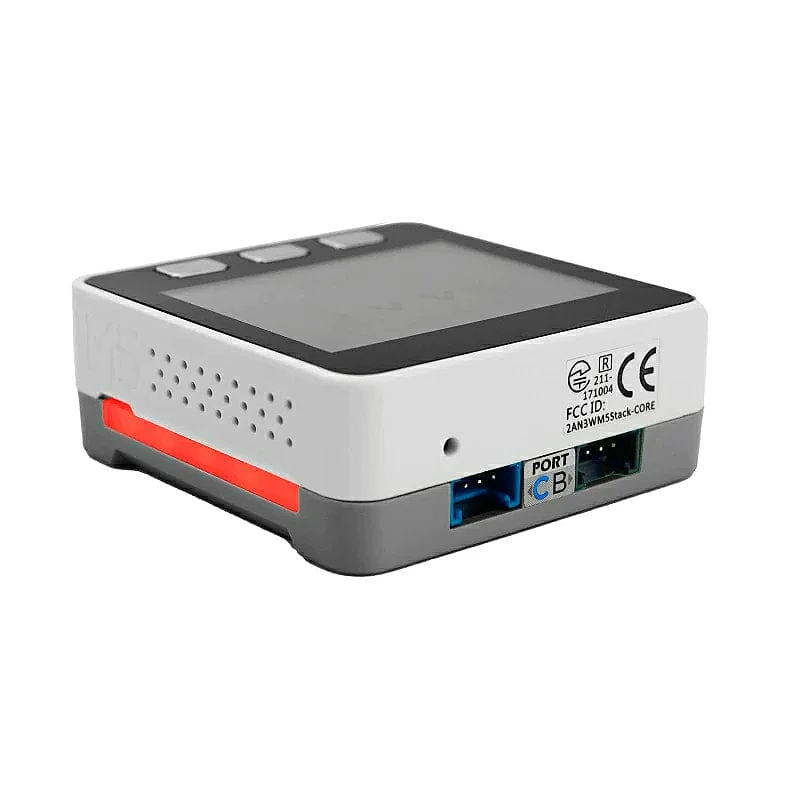

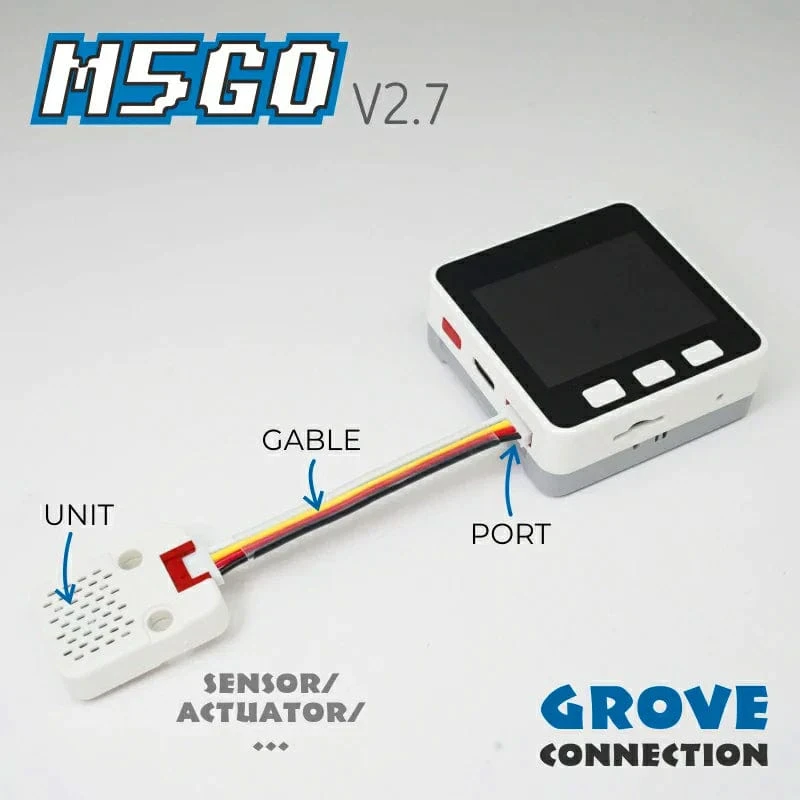

  • GROVE expansion ports x3 (I2C, GPIO, UART)
  • Easy access to M5Stack hardware and software system, stackable module design, plug-and-play sensor expansion

Six Expansion Units

• ENV UNIT III: Temperature, humidity, and atmospheric pressure sensors, with an I2C communication interface for rapid acquisition of environmental information.
• PIR UNIT: Body sensor, passive pyroelectric for human body sensing, digital signal output status.
• ANGLE UNIT: Knob Potentiometer, analogue signal input for music/lighting adjustment
• IR UNIT: Integrated infrared transmitter, and receiver. Free coding, infrared transceiver.
• RGB UNIT: 3x Programmable RGB LED, support programming to control any colour display
• HUB UNIT: I2C device splitter, expand single I2C bus to 3 channels, can access different I2C address devices

Switch On/Off Operation

• Power on: Click the left red button
• Power off: Quickly double-click the left red button
• USB power: By default, It can not be shut down when USB power is on.

Specifications

Specifications	Parameters
ESP32-D0WDQ6-V3	240MHz dual core, 600 DMIPS, 520KB SRAM, Wi-Fi
Flash	16MB
Input Voltage	5V @ 500mA

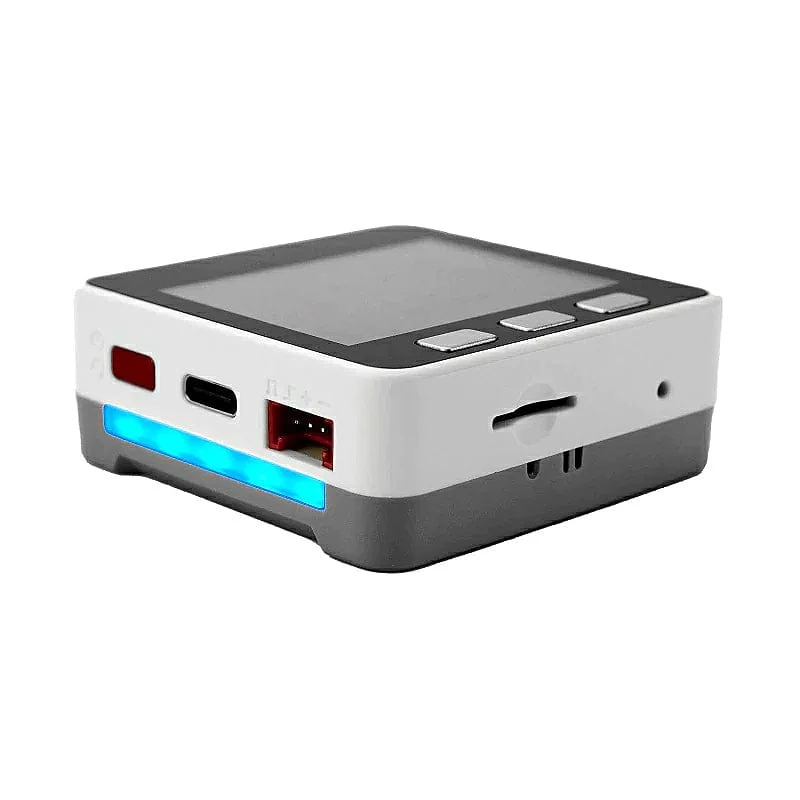

Host Interface	TypeC x1, POGO PIN x1, I2C x1, GPIO x1, UART x1
IPS Screen	2 inch, 320×240 Colorful TFT LCD, ILI9342C, 853nit max brightness
Keys	Custom Keys x 3
Speaker	1W-0928
Microphone	Analog BSE3729 Microphone
IMU	6-axis MPU6886
USB Chip	CH9102F
LED	SK6812 RGB LED x 10
Antenna	2.4G 3D antenna
Battery	500 mAh @ 3.7V
Operating Temperature	0°C to 40°C
Net Weight	56.4g
Gross Weight	228g
Product Dimensions	54 x 54 x 21 mm
Package Size	147 x 90 x 40 mm
Cover Material	Plastic ( PC )

Resources

• Product Wiki

• M5Stack-Lib

Pinout

Driver Installation

Driver Name	Applicable Driver Chip	Download link
CP210x_VCP_Windows	CP2104	Download
CP210x_VCP_MacOS	CP2104	Download
CP210x_VCP_Linux	CP2104	Download
CH9102_VCP_SER_Windows	CH9102	Download
CH9102_VCP_SER_MacOS v1.7	CH9102	Download

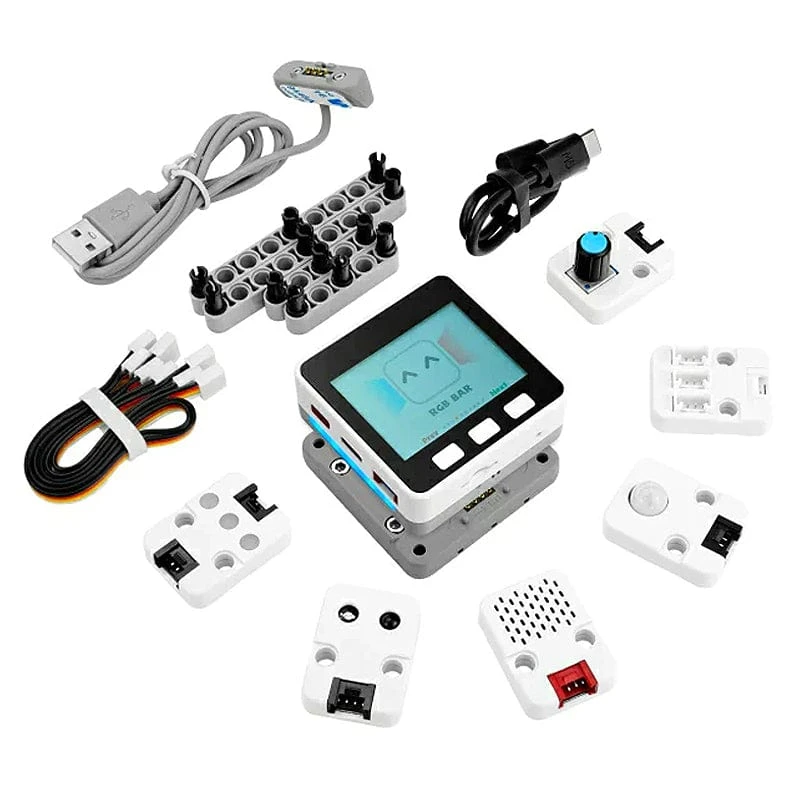

Package Contents

• 1x M5GO
• 6x Units(ENV III, IR, RGB, PIR, ANGLE, HUB)
• 4x LEGO Blocks
• 12x LEGO Connections
• 4x GROVE cable
• 1x Type-C USB (20cm)
• 1x Quick Start Guide
