Glass Unit With 1.51″ Transparent OLED

This Glass Unit is a 1.51″ transparent OLED expansion screen unit. It has an STM32+SSD1309 driver scheme, a resolution of 128 x 64, a monochrome display, and a transparent area of 128 x 56.

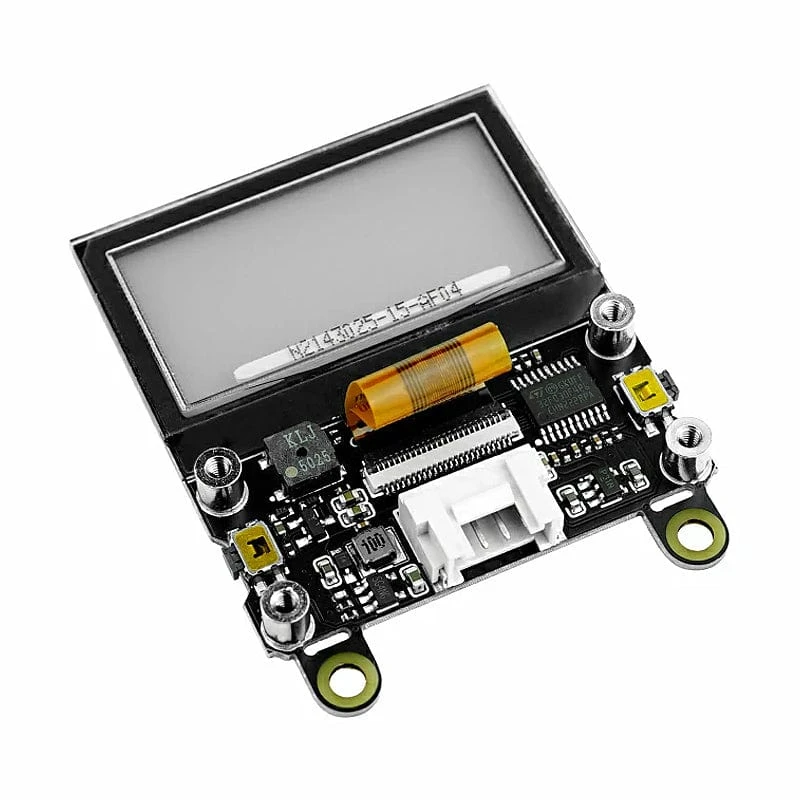

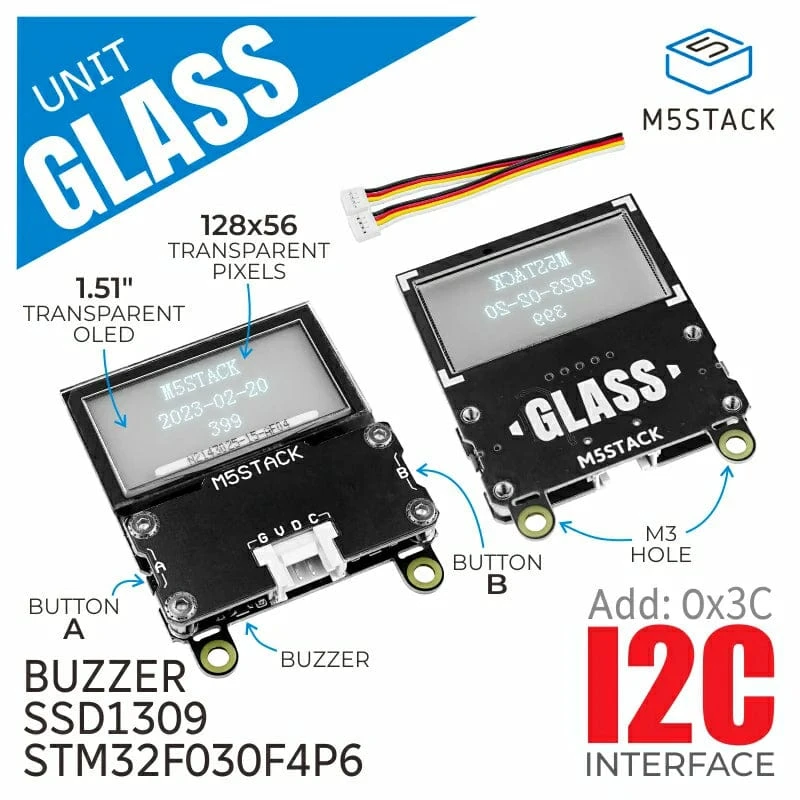

The MCU has an STM32F030F4P6, which integrates two input buttons and a one-way buzzer to give a user interaction with the screen and supports control and firmware upgrades through the I2C communication interface.

This transparent OLED screen extension is suitable for putting in various home products or various control devices as a display panel.

Features

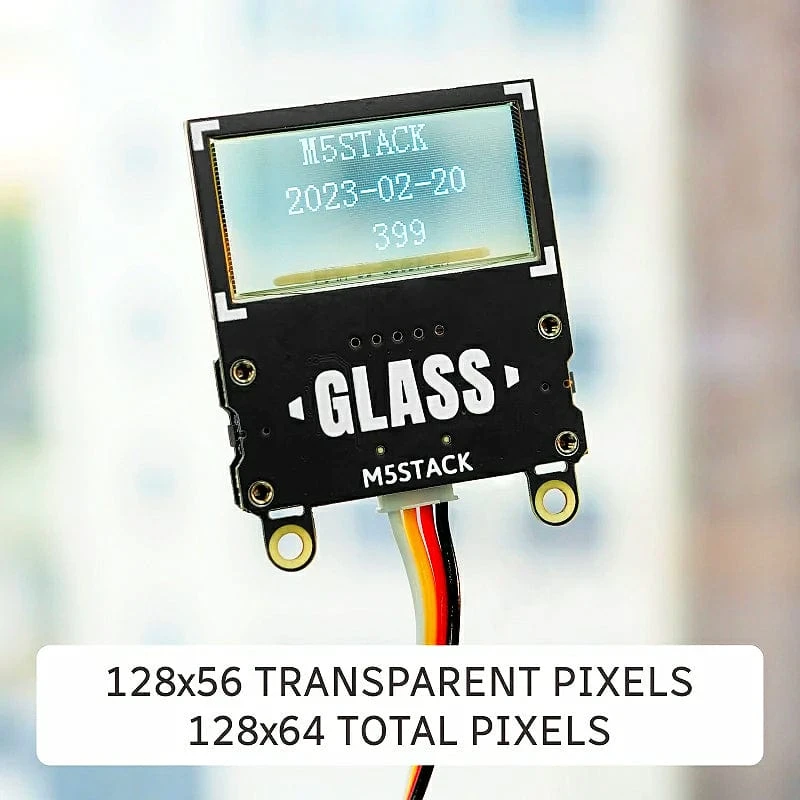

• 128 x 56 transparent pixels (128 x 64 total pixels)
• Display area 35.5 x 18mm
• Glass area 42mm x 27.16mm
• 1-bit colour depth
• I2C operation
• I2C Addresses: 0x3C
• Support for programming platforms: Arduino and UIFlow

Specifications

Resources	Parameters
MCU	STM32F030F4P6
Screen	1.51″ transparent OLED
resolution	128*64
Display color	blue
Display area	35.05*18（mm）
Panel size	42.04*27.16*1.25（mm）
Perspective direction	Full view
Operating temperature	0-40°C
Logic voltage	3.3V
I2C address	0x3C
Product Size	53*42*2.3mm
Package Size	136mm × 92mm ×13mm
Product Weight	10g
Package Weight	15.2g

Resources

• Product Wiki

• STM32F030F4P6 Datasheet

• SSD1309 Driver

• 12864 Transparent OLED

Package Contents

• 1x Glass Unit
• 1x Cable
