FireBeetle 328P With BLE 4.1

Original price was: £15.08.Current price is: £10.56.

SKU: DGHLC 6695423705283 Categories: Development Boards, Maker Store Tags: _MAKE_DEV, _ws5, Brand_DFRobot, Chip Family_AVR

Safe and Secure Payments, Always
Quality You Can Trust
The Quality Choice for Smart Shoppers
fast shipping

Description
Reviews (0)

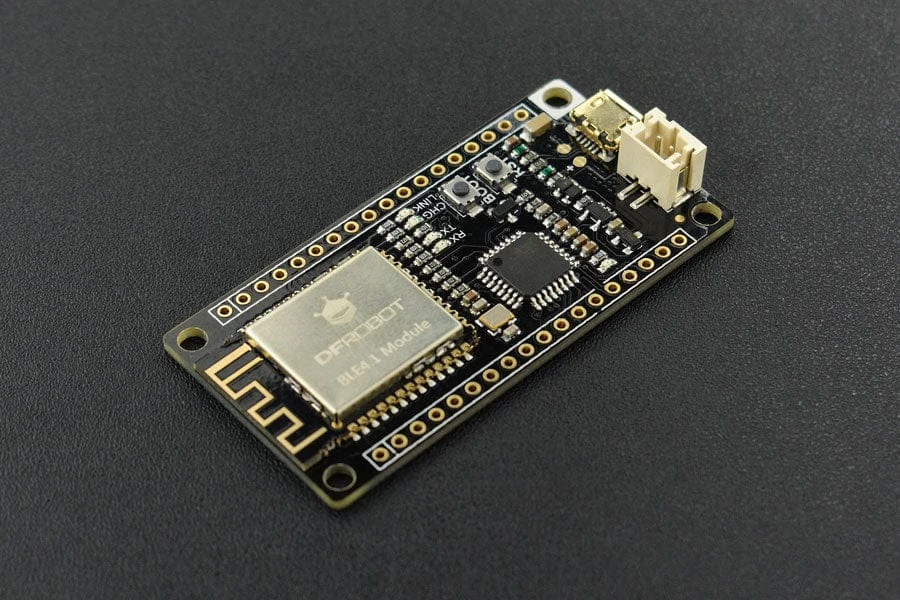

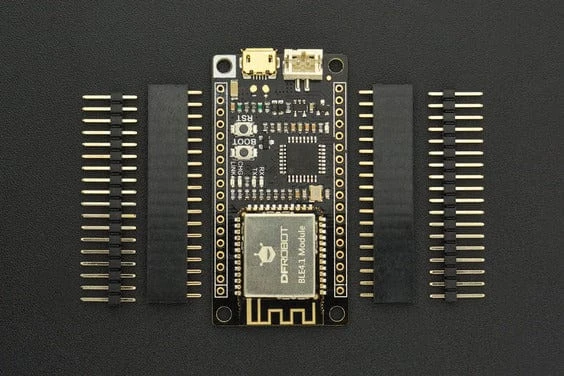

DFRobot FireBeetle series are low power consumption microcontrollers designed for Internet of Things (IoT) development. This Bluetooth controller combines Bluetooth Low Energy 4.1 with Arduino controller, offering functions similar to the former Bluno series but with lower power consumption.

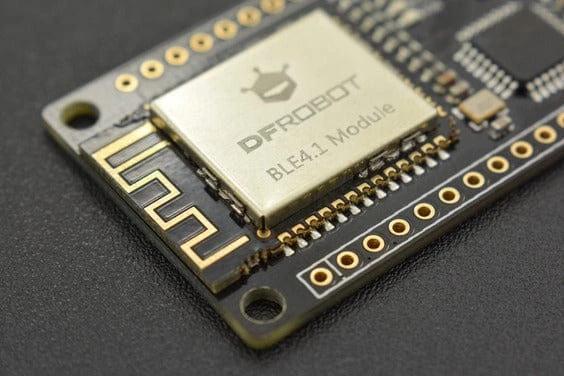

FireBeetle BLE 4.1 is compatible with Bluno series (BLE 4.0) and performs much better. It equipped with more stable DIALOG Bluetooth 4.1 chip, supporting maximum 4Kbyte/s transmission rate and low power consumption (25uA POWER DOWN). It can be directly applied to low power consumption application such as wearable and intelligent tools and so on.

It also supports multiple Bluetooth cascade, KISS connection (approach connection) and compatible with Bluno series. Its connection can be realized by holding host BOOT and moving to the target peripheral device.

Features

Support Arduino IDE program
Support BLE 4.1 central and peripheral switch
Support Bluetooth serial port data transmit
Support Bluetooth peer to peer (P2P) wireless programming
Support Bluetooth 4.1 multiple device cascade (maximum:4)
Support Arduino Bluetooth library (support multiple Bluetooth connection)
Support low power consumption Bluetooth (standby current: 25uA; enabled interrupt current: 70uA)
Double interruption to wake up:
BLE4.1 awake Atmage328P by D2 (high level awake)
Atmage328P awake BLE4.1 by D3 (low level awake)
Support KISS connection (approach connection)
Support Bluetooth firmware update

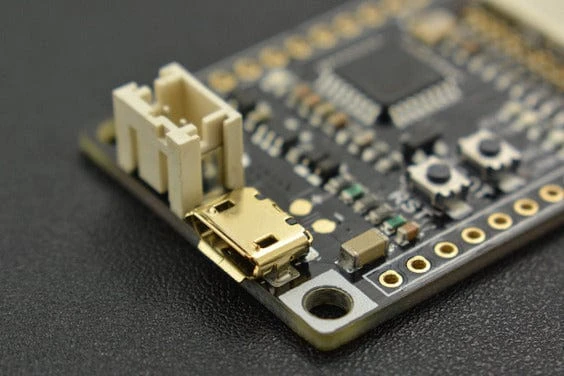

Support USB charge
Support lithium battery power supply
Equipped with status LEDs
