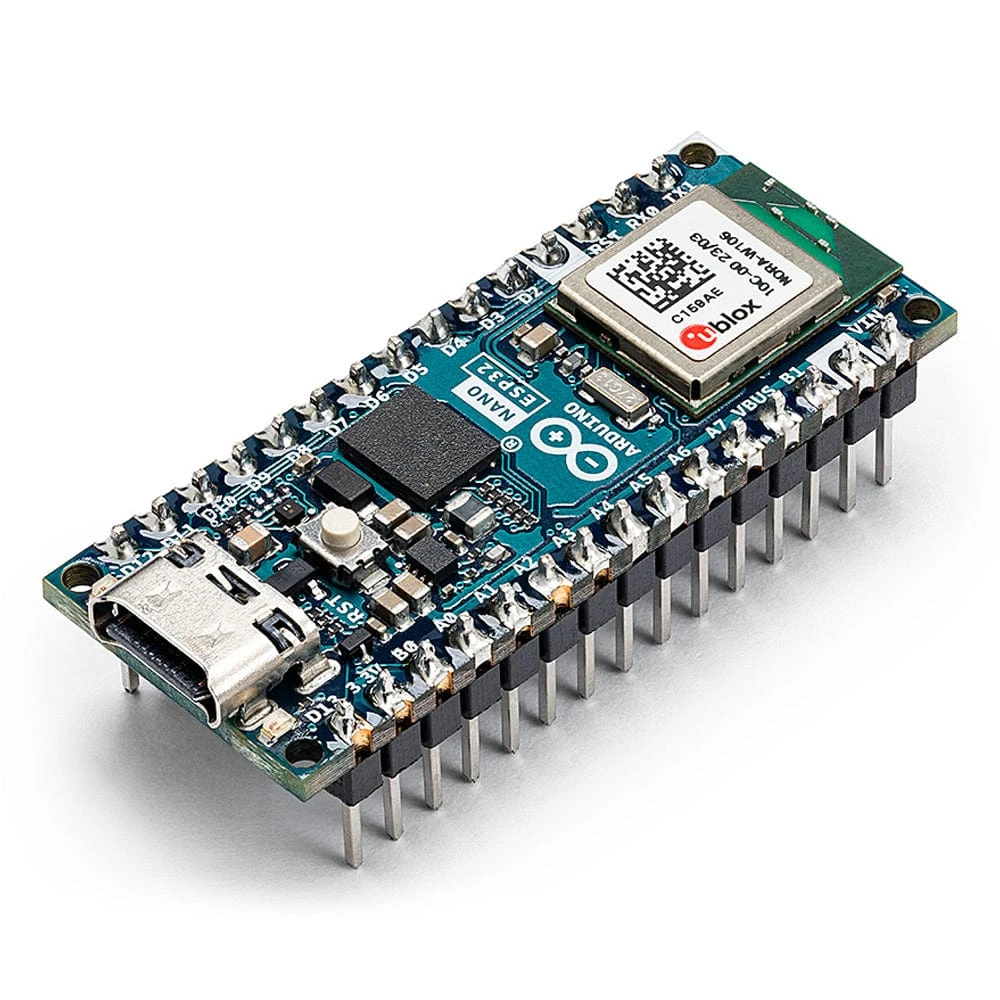

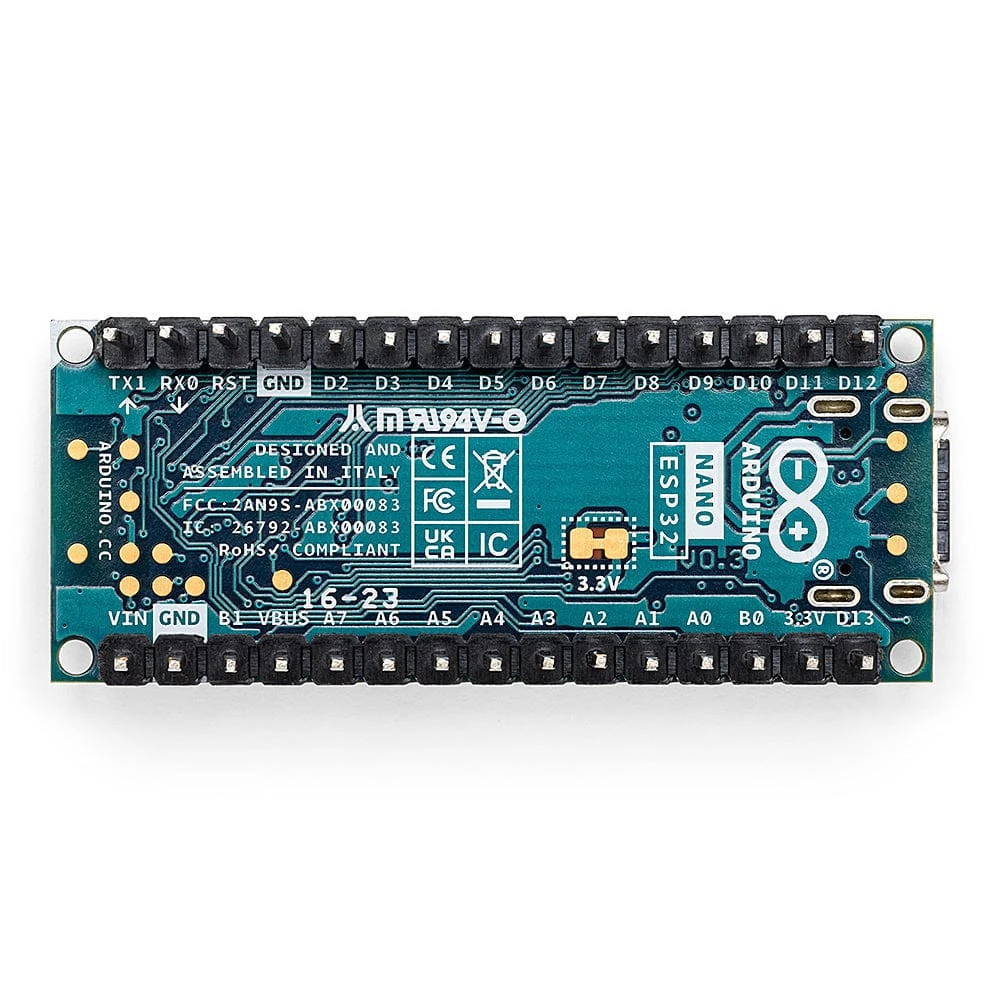

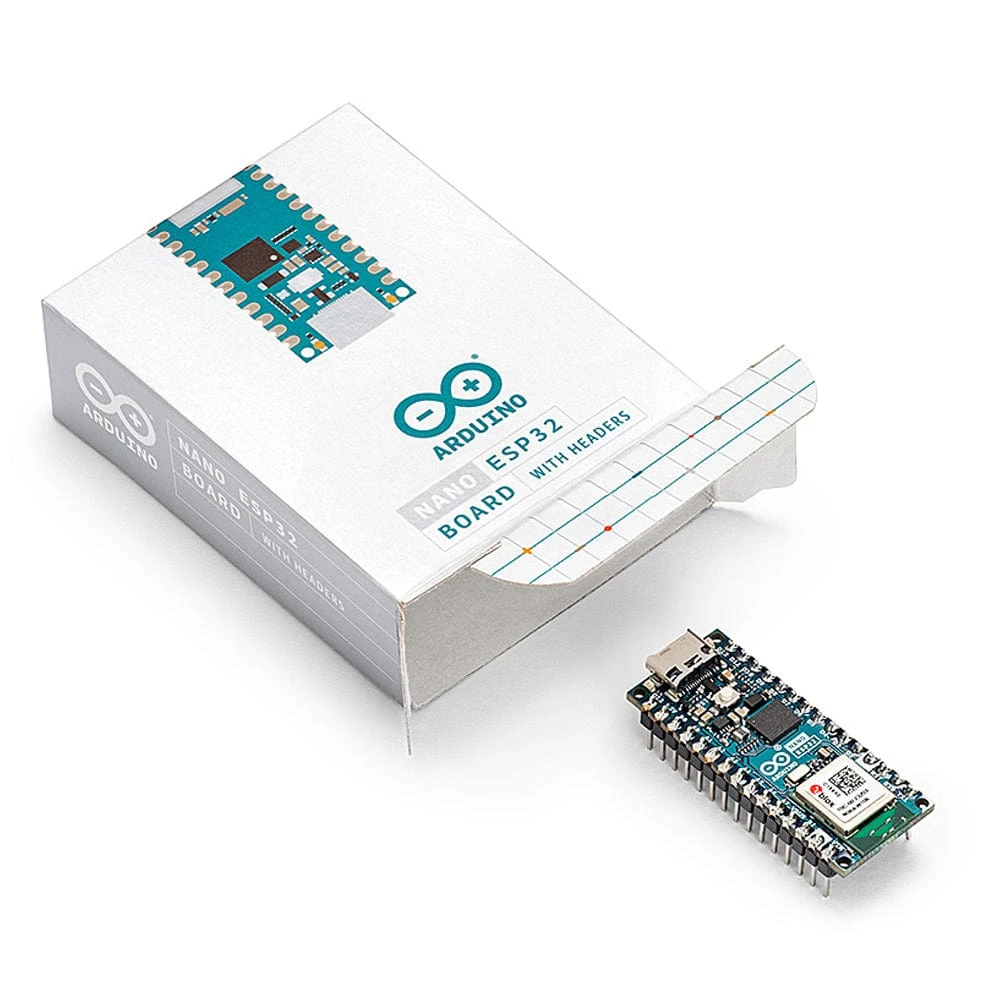

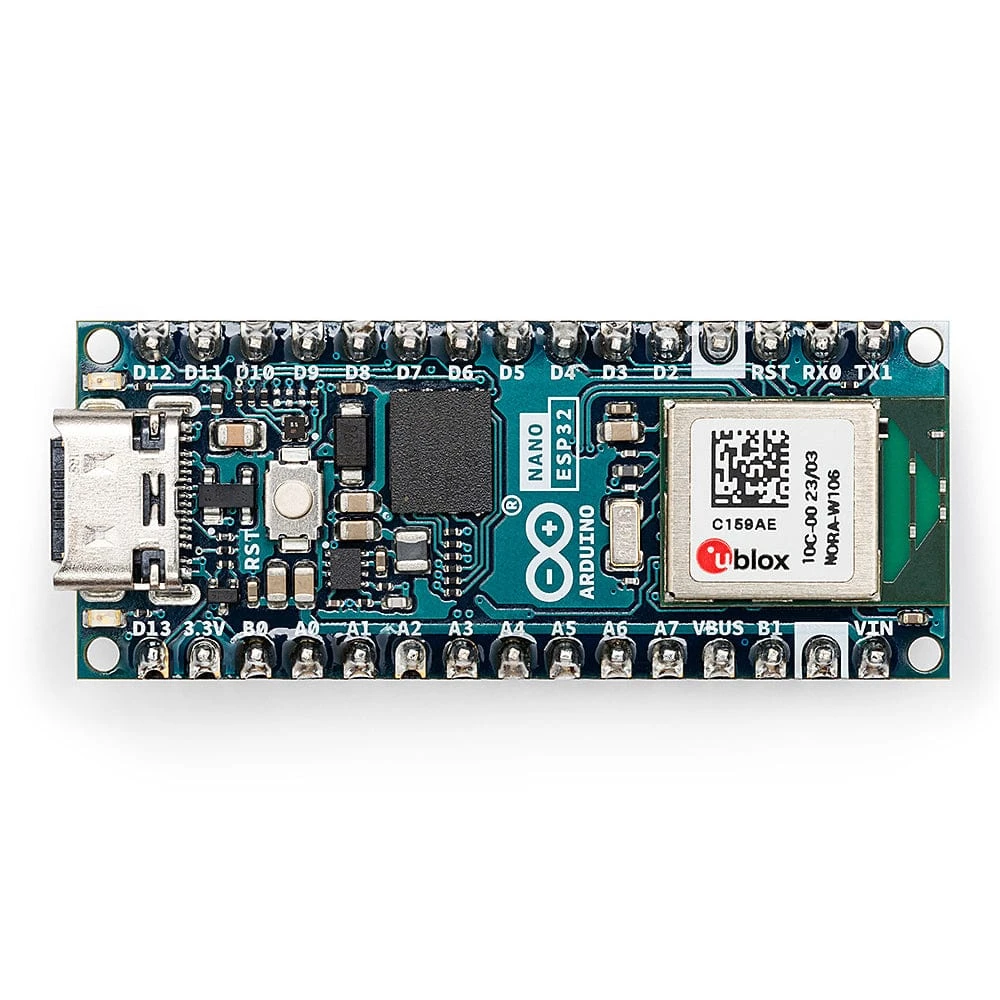

Arduino Nano ESP32 (with Headers)

The new member of our iconic

Arduino

Nano family, the Nano ESP32. This board brings all the power of the well-known ESP32-S3 with the full support of the Arduino ecosystem, allowing makers to explore the world of Arduino and

MicroPython

without any blocker. Just unleash your creativity and start building for the next IoT project.

Whether you’re a beginner stepping into the world of IoT or MicroPython, or an advanced user looking to incorporate it into your next product, the Nano ESP32 is the perfect choice. It covers all your needs to kick-start your IoT or MicroPython project with ease.

The Arduino Nano ESP32 is the first-ever Arduino board based on a ESP32 microcontroller from

Espressif

, the NORA-W106 module from u-blox®. This module supports both Wi-Fi® and Bluetooth® (5.0 and above), making it an ideal device for IoT development. The popular Nano form factor also makes it compatible with many hardware accessories.

With a USB-C connector, 16 MB (128 Mbit) of Flash and support for MicroPython & Arduino IoT Cloud enabled – it is a very versatile development board.

This board is a perfect entry point to learn MicroPython, dive into it with our free course:

MicroPython 101

Features

• Tiny footprint: Designed with the well-known Nano form factor in mind, this board’s compact size makes it perfect for embedding in standalone projects.
• Wi-Fi® and Bluetooth®: Harness the power of the ESP32-S3 microcontroller, well-known in the IoT realm, with full Arduino support for wireless and Bluetooth® connectivity.
• Arduino and MicroPython support: Seamlessly switch between Arduino and MicroPython programming with a few simple steps. We even offer an introductory course for those new to the MicroPython world, find more information in the documentation page.
• Arduino IoT Cloud compatible: Quickly and easily create IoT projects with just a few lines of code. Our setup takes care of security, allowing you to monitor and control your project from anywhere using the Arduino IoT Cloud app. (Available starting August 2023)
• HID support: Emulate human interface devices, such as keyboards or mice, over USB, opening up new possibilities for interacting with your computer.

There are no more excuses to delay your exploration of IoT and MicroPython. The Nano ESP32 provides everything you need to start creating and discovering the endless possibilities.

Arduino IoT Cloud Compatible*

Use your board on

Arduino’s IoT Cloud

, a simple and fast way to ensure secure communication for all of your connected Things.

*available starting August 2023

Specifications

Board	Name	Arduino® Nano ESP32 with headers
	SKU	ABX00083
Microcontroller	u-blox® NORA-W106 (ESP32-S3)
USB connector	USB-C®
Pins	Built-in LED Pin	13
	Built-in RGB LED pins	14-16
	Digital I/O Pins	14
	Analog input pins	8
	PWM pins	5
	External interrupts	All digital pins
Connectivity	Wi-Fi®	u-blox® NORA-W106 (ESP32-S3)
	Bluetooth®	u-blox® NORA-W106 (ESP32-S3)
Communication	UART	2x
	I2C	1x, A4 (SDA), A5 (SCL)
	SPI	D11 (COPI), D12 (CIPO), D13 (SCK). Use any GPIO for Chip Select (CS)
Power	I/O Voltage	3.3 V
	Input voltage (nominal)	6-21 V
	Source Current per I/O Pin	40 mA
	Sink Current per I/O Pin	28 mA
Clock speed	Processor	up to 240 MHz
Memory	ROM	384 kB
	SRAM	512 kB
	External Flash	128 Mbit (16 MB)
Dimensions	Width	18 mm
	Length	45 mm

Resources

• Development Environments

  • Arduino IDE

  • Arduino CLI

  • Arduino Web Editor

  • Arduino IoT Cloud

• Documentation

• Datasheet

• Schematics

FAQs

• Is the Nano ESP32 compatible with MicroPython?

  • Absolutely! This board fully supports MicroPython. For detailed information on setting it up and getting started with MicroPython, please visit docs.arduino.cc/nano-esp32.

• How can I power the Nano ESP32?

  • The Nano ESP32 can be powered in two ways. Firstly, you can power it via the USB port, which activates the VBUS pin as an output. Alternatively, you can supply power through the VIN pin, accepting an input voltage range of 5 to 18 Volts.

• Does it use the official ESP32 core?

  • Yes, if you are an ESP32 user, simply install the latest version of the Arduino Nano ESP32 core through the board manager in the Arduino IDE. For more information, please refer to the official documentation page.

• Will the Nano ESP32 be compatible with sketches from generic ESP32 boards?

  • The Arduino Nano ESP32 can run code written for other ESP32 devices without any fuss. It’s designed to be fully compatible with the ESP32 ecosystem, making it easy to port existing code.
