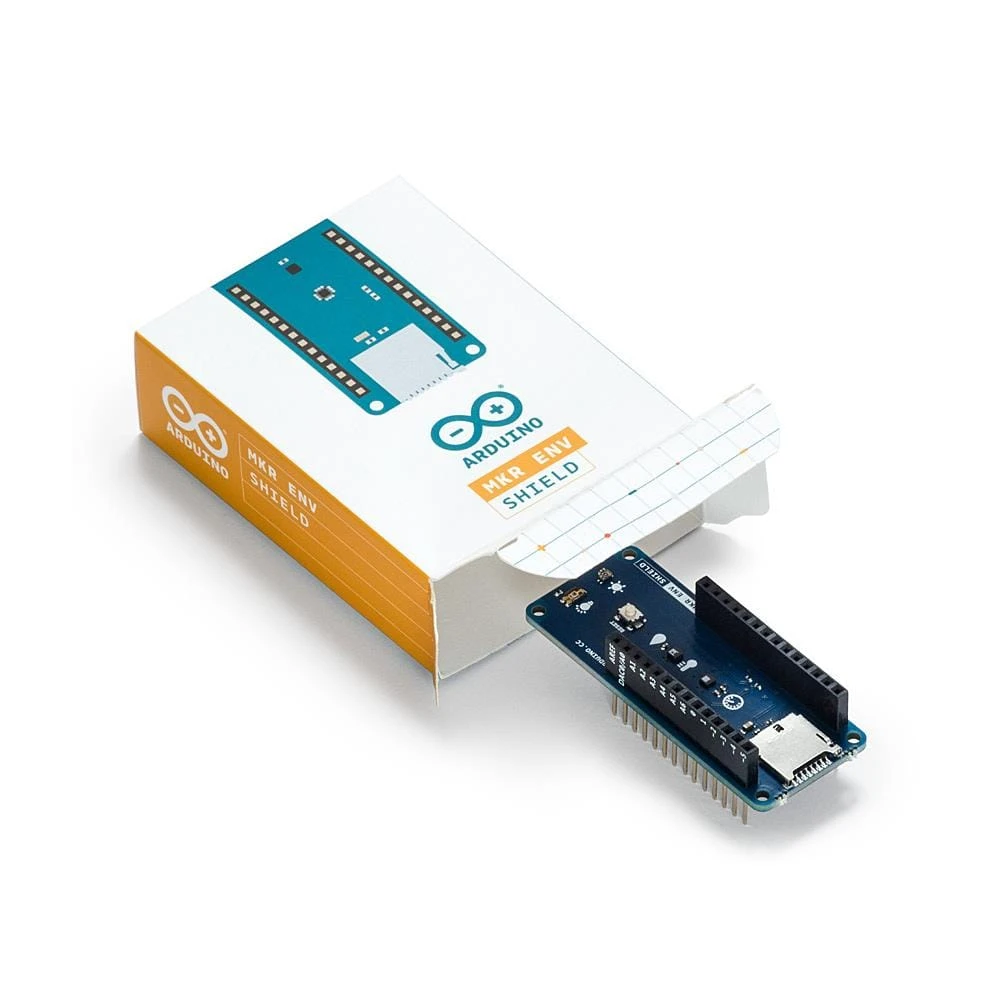

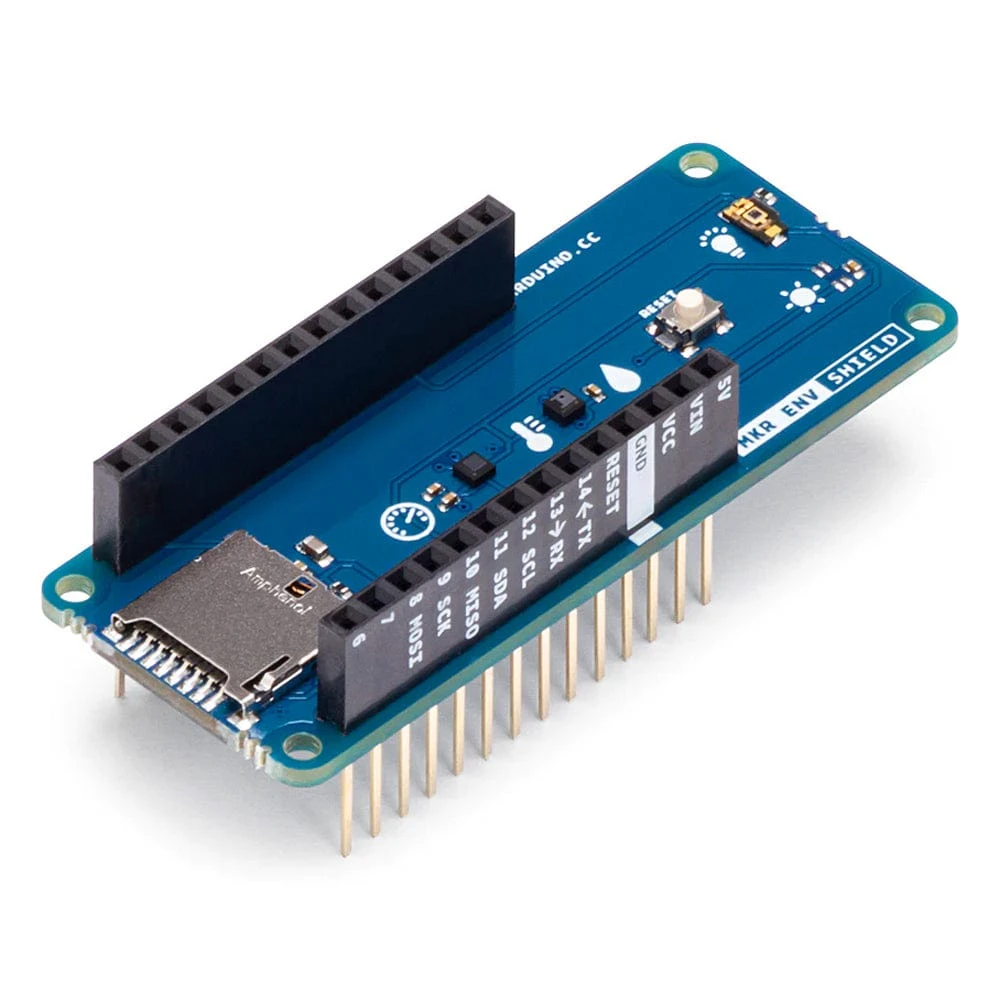

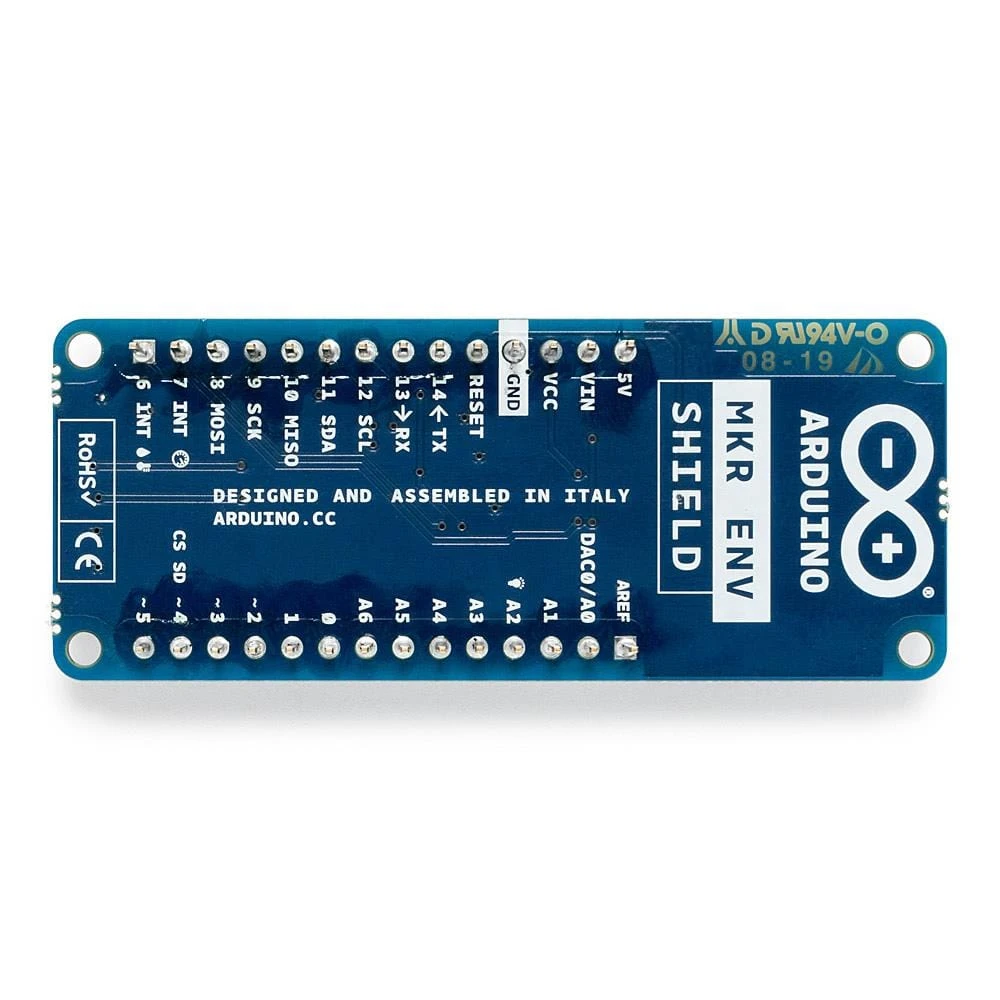

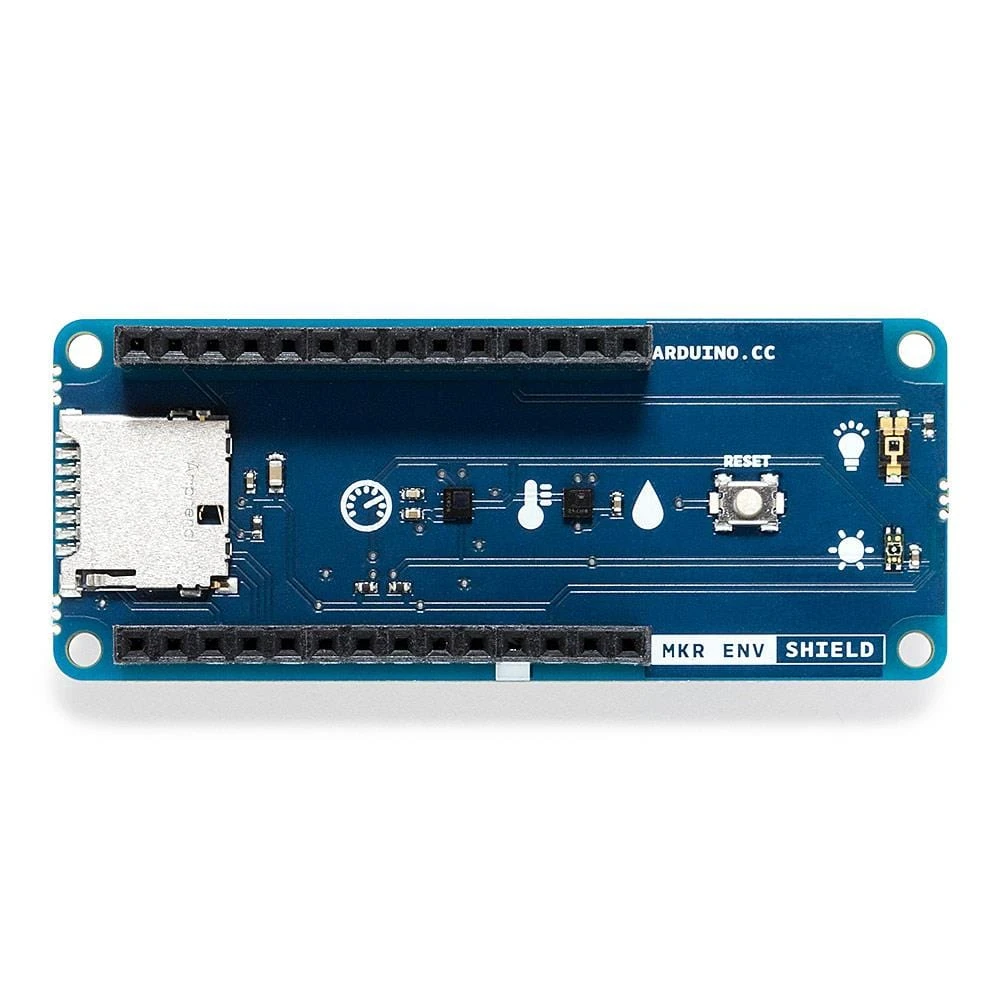

Arduino MKR ENV Shield Rev2

The MKR ENV Shield Rev2 allows an

Arduino MKR board

to acquire environmental data collected by an array of sensors.

These sensors are of the latest generation and measure:

• Atmospheric pressure
• Temperature and humidity
• Light intensity (in LUX)

To help you build projects and store the data collected locally, this shield has a slot for a

microSD card

(not provided).

There is a ready to use library with examples and methods to read values from the different sensors, that provides an easy and smooth integration path.

Sensors used

• ST

  LPS22HB

  : atmospheric pressure

• ST

  HTS221

  : temperature and humidity


• VISHAY

  TEMT6000

  : Lux of the ambient

Resources

• Development Environments

  • Arduino IDE

  • Arduino CLI

  • Arduino Web Editor

  • Arduino IoT Cloud

• Schematics

• Getting Started

Specifications

ICs	LPS22HB TEMT6000
Input Voltage	3.3V
Operating Voltage	3.3V
Ranges	Pressure: 260 to 1260 hPa rH sensitivity: 0.004% rH/LSB Humidity accuracy: ± 3.5% rH, 20 to +80% rH UVA, UVB and UVBI measurment 0 to 650 Lux
Communication	I2C/Analog
Length	61 mm
Width	25 mm
Weight	32 gr.
