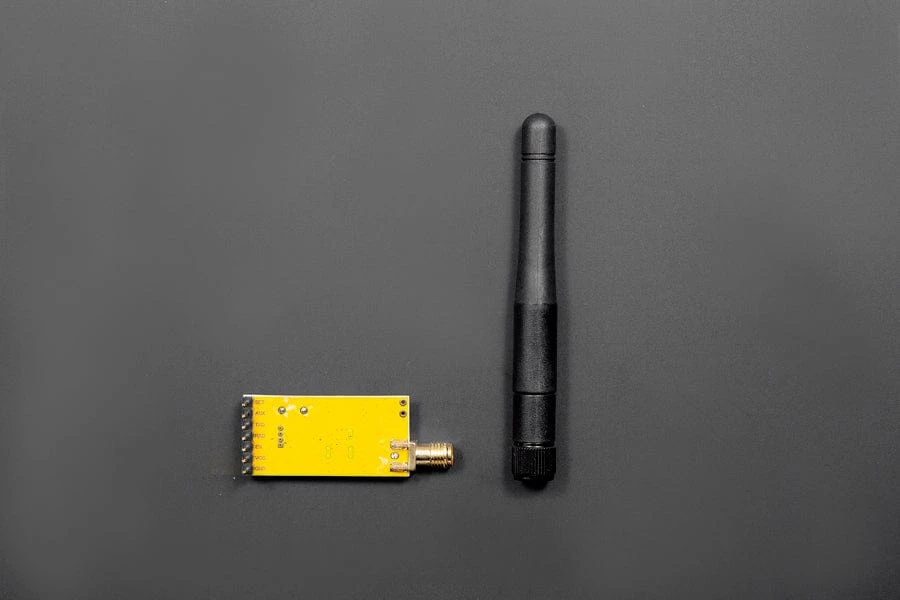

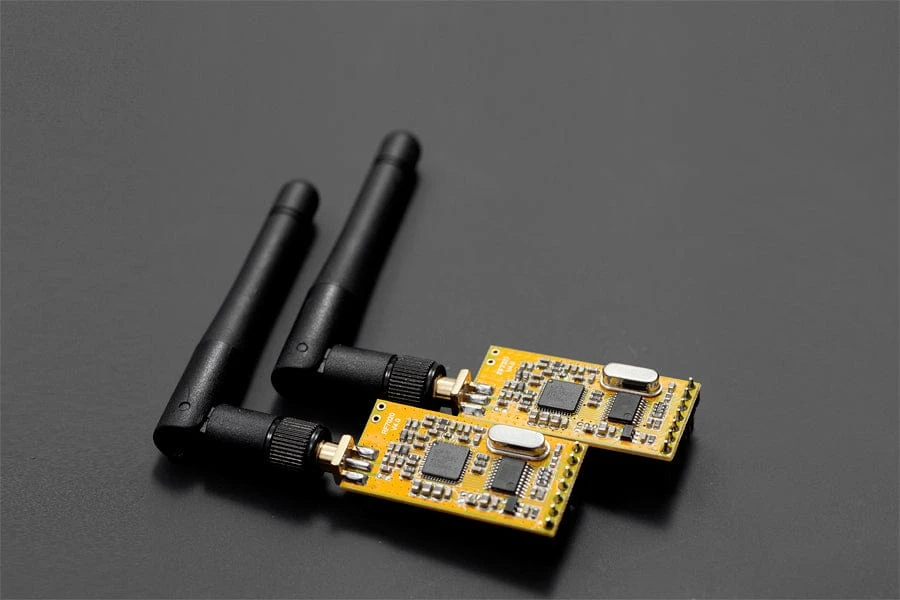

APC220 Radio Communication Module

The APC220 radio module provides a simple and economic solution to wireless data communications. Integrates an embedded high speed microprocessor and high performance IC that creates a transparent UART/TTL interface, and elminates any need for packetizing and data encoding. If you are looking for a low-cost solution with better range performance, this has being our customer choice for a long time now.

With this module, you can build wireless projects in an easy way.

• Voltage: 5V
• Transmit distance up to 1000m (line of sight) @9600 bps
• 256 bytes data buffer
• High sensitivity (-112dbbm @9600 bps)
• GFSK modulation
• UART/TTL interface
• Embedded watch dog
• Size: 37 x 17 x 6.5 mm (1.46x 0.67x 0.26 in)

• User guide

• Datasheet

• Wiki (APC220 Radio Communication Module)

• RF-Magic Configure software

• APC220 module x2
• Antenna for radio communication x2

• USB to TTL Converter (CP210)

  x1

• Setting it up and initial testings
