Adafruit MCP9600 I2C Thermocouple Amplifier (K, J, T, N, S, E, B And R Type T)

Thermocouples are very sensitive, requiring a good amplifier with a cold-compensation reference. The Adafruit MCP9600 does all that for you, and can be easily interfaced with any microcontroller or single-board-computer with I2C. Inside, the chip handles all the analog stuff for you, and can interface with just about any thermocouple type: K, J, T, N, S, E, B and R type are all supported! You can also set various alerts for over/under temperature, and read the thermocouple (hot) temperature and the chip (cold) temperature. All this over common I2C

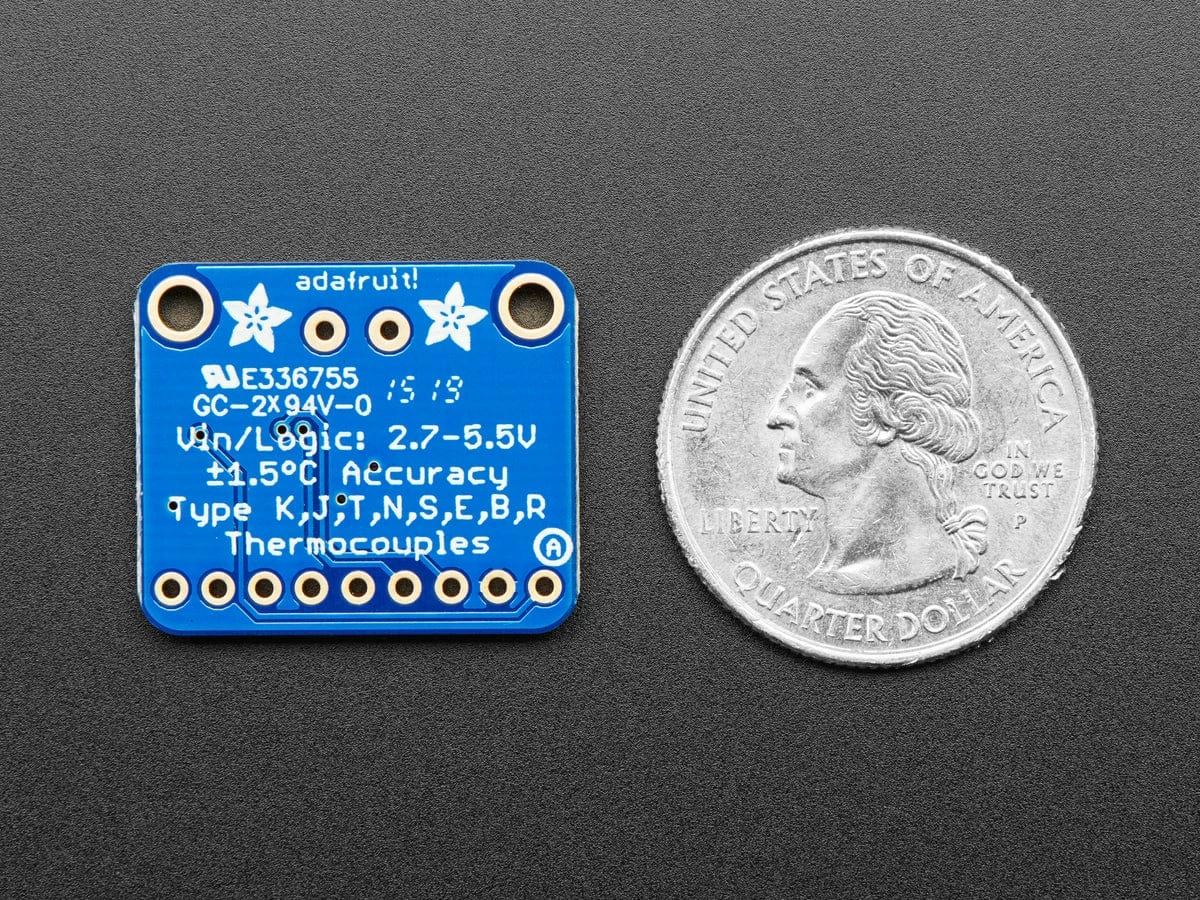

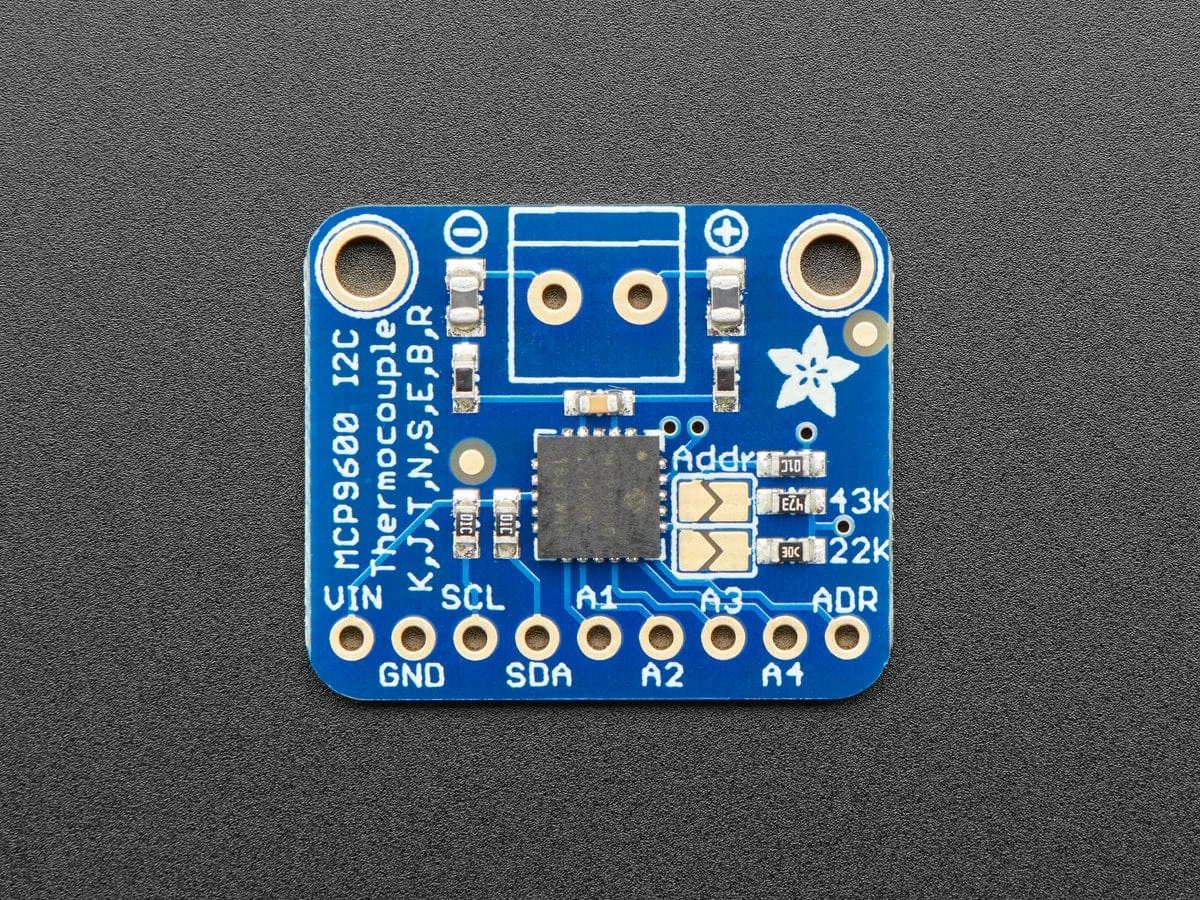

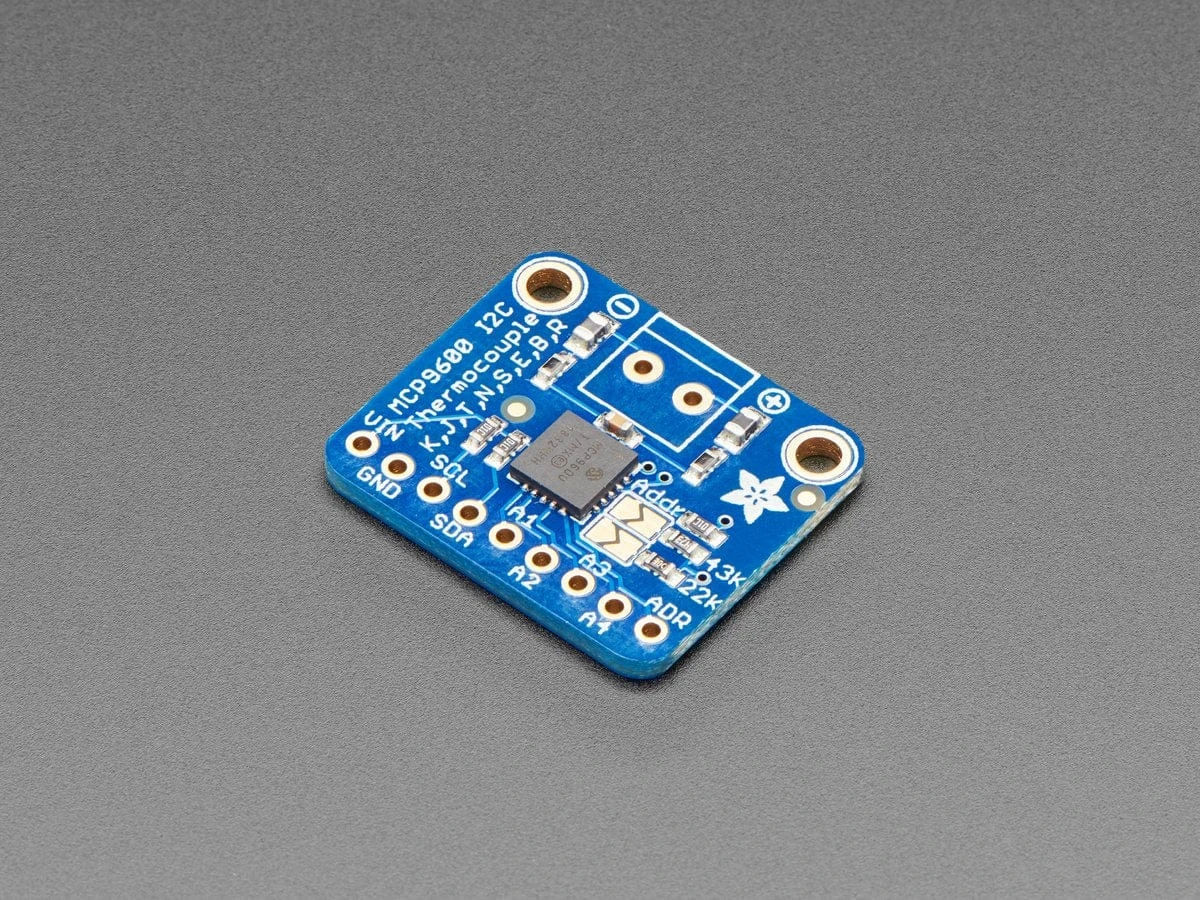

This breakout board has the chip itself, a 3.3V regulator and level shifting circuitry, all assembled and tested. Works great with 3.3V or 5V logic. Comes with a 2 pin terminal block (for connecting to the thermocouple) and pin header (to plug into any breadboard or perfboard).

Match it up with our 1m K-type thermocouple

.

• Works with any K, J, T, N, S, E, B and R type thermocouple
• Datasheet rated for:
  K Type: -200°C to +1372°C
  J Type: -150°C to +1200°C
  T Type: -200°C to +400°C
  N Type: -150°C to +1300°C
  E Type: -200°C to +1000°C
  S Type: +250°C to +1664°C
  B Type: +1000°C to +1800°C
  R Type: +250°C to +1664°C
• Resolution of ±0.0625 °C – note that K thermocouples have about ±2°C to ±6°C accuracy
• Internal temperature reading
• 3.3 to 5v power supply and logic level compliant
• I2C data connection
