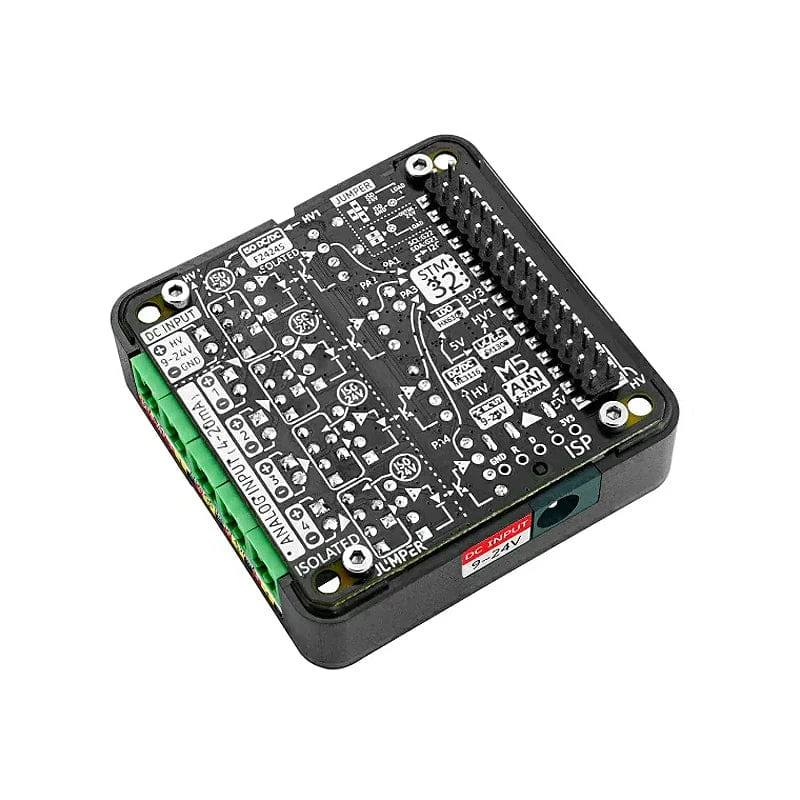

4-Channel Analog To 12C 13.2 Module 4-20mA Input (ST32G030)

The 4-Channel Analog to 12C 13.2 Module is a quad-channel 4~20mA current analogue acquisition module. It has the STM32G030F6 main control chip and a dedicated acquisition chip with isolation to communicate with the M5 host for I2C communication. It supports switching to internally or externally powered wiring via jumper caps. There’s an onboard power isolation chip and built-in op amp circuitry that accurately measures external current sensors and provides signal accuracy and system safety. In terms of power supply, the DC-JACK interface and the corresponding DC-DC boost circuit can provide power to the entire device. It’s suitable for power system equipment monitoring, motor control, energy management and automation, and industrial process control.

Features

• STM32G030F6® 32-bit Cortex®-M0+ CPU
• I2C communication

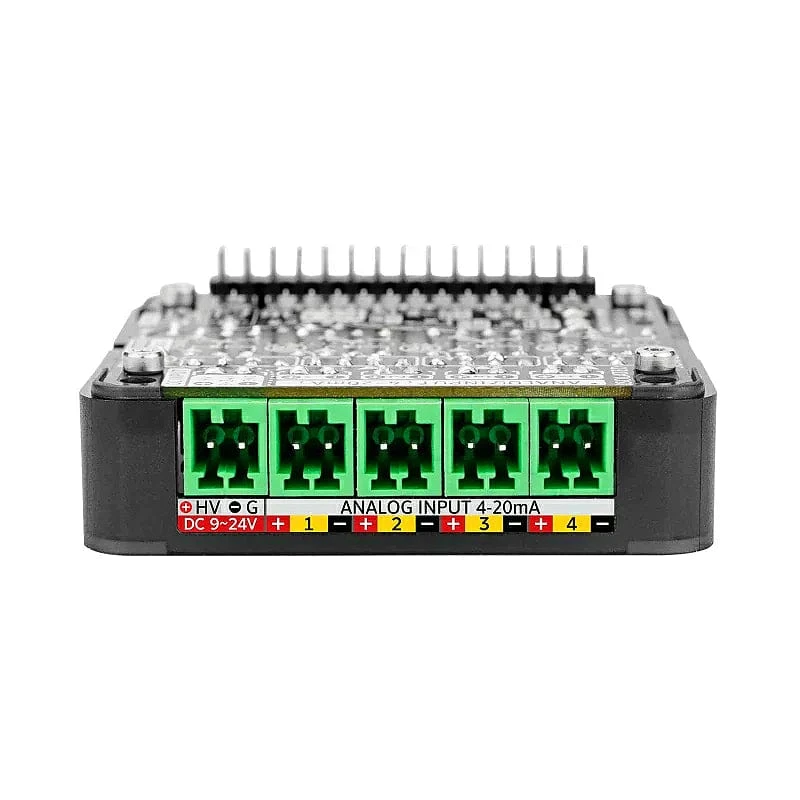

• Support four 2 or 4-wire sensors, jumper cap switching
• Built-in galvanic isolation chip
• Support Arduino, UIFlow and other programming platforms

Specifications

Resources	Parameters
MCU	STM32G030F6（64 Kbytes of Flash/8 Kbytes of SRAM）
Power isolation chip	F2424S-2WR3
Signal isolation chip	HCNR200
Op amp chip	SGM321YC5/TR
I2C mailing address	0x55
Operating temperature	0-40°C
External DC supply voltage	9-24V
Product Size	54 x 54 x 13mm
Package Size	95 x 65 x 25mm
Product Weight	26.9g
Package Weight	51.7g

Resources

• Product Wiki

• STM32G030F6 Datasheet

• HCNR200 Datasheet

• SGM321YC5 Datasheet

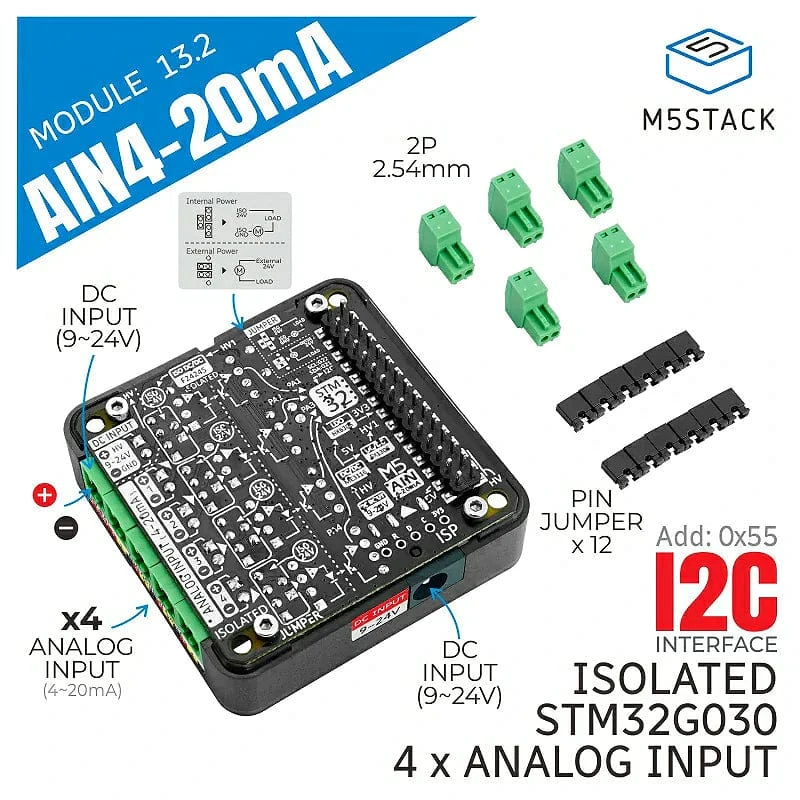

Package Contents

• 1x 4-Channel Analog to 12C 13.2 Module
• 12x Jumper cap
• 5 x 2.54mm plug-in terminal block
