2 DoF Full Metal Pan Tilt Kit For Raspberry Pi 4

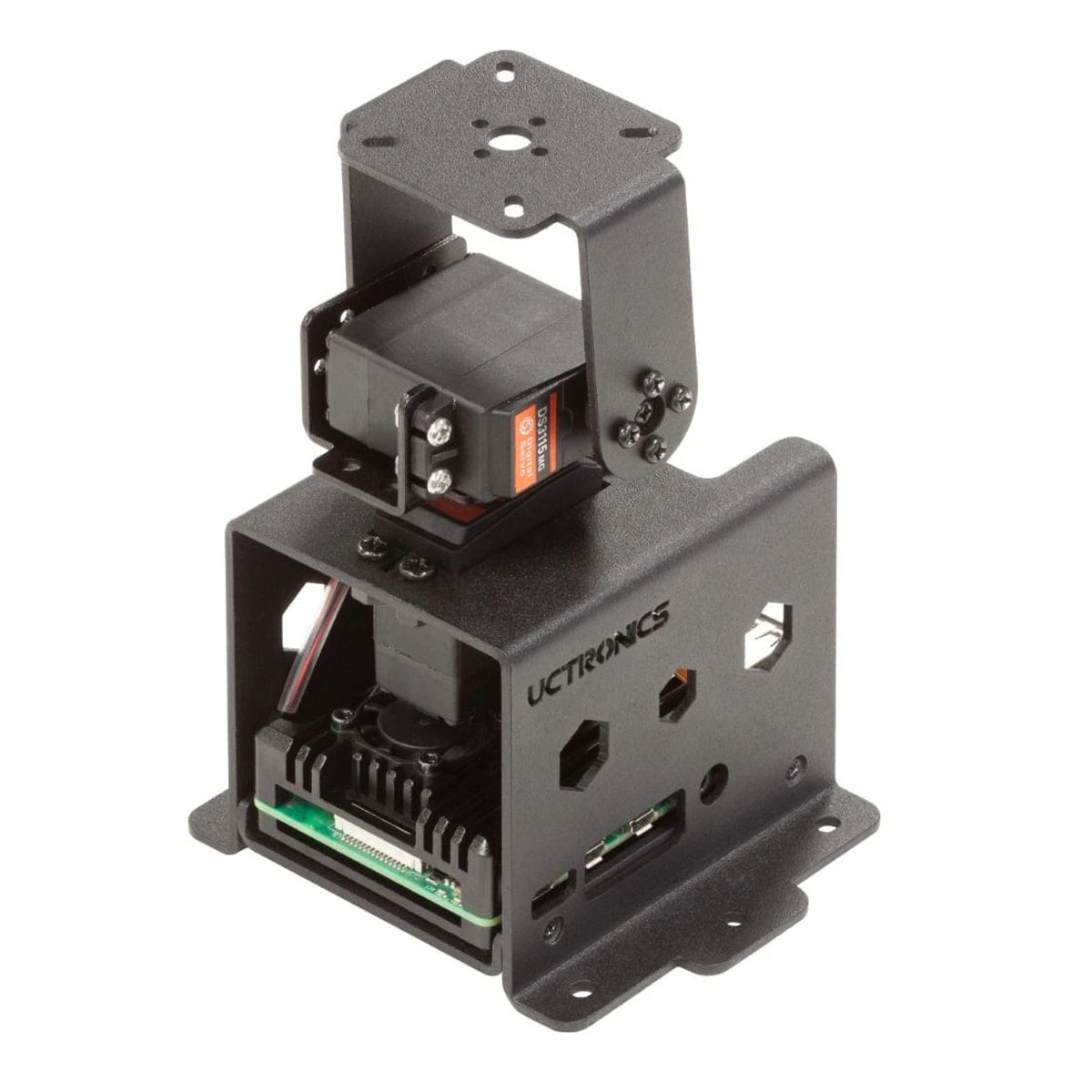

Give your Raspberry Pi 4 PTZ camera project a full range of motion with this 2 DoF kit from Uctronics. The unit can rotate and tilt your camera module freely 180° both horizontally and vertically.

Designed to be combined with most camera modules, including the

Arducam OV5647 PTZ camera

, this full metal kit includes a robust servo mounting base which is secured to the included cooling fan armour case base for your Raspberry Pi 4 (not included). The U-type bracket provides 36-40mm space for you to mount a camera, and reserves 4 holes for mounting other U-type brackets of a robot arm or whatever devices you like.

With many predrilled holes on the set bracket, the PTZ kit can be stably fixed onto a panel, table, wall or another surface to give your project stability.

When assembling a camera to this PTZ kit, you will be able to create home security systems, webcam interfaces for streaming or monitoring 3D printing and many other projects.

This pan-tilt kit is an easy way to give whatever you’re making both left-right and up-down motion on your PTZ project.

Note: Depending on the camera module you wish to fit, you may also need to source a set of standoffs and screws to fix the camera to the top of this bracket.

Specifications

General

• Compatible with Raspberry Pi 4 only

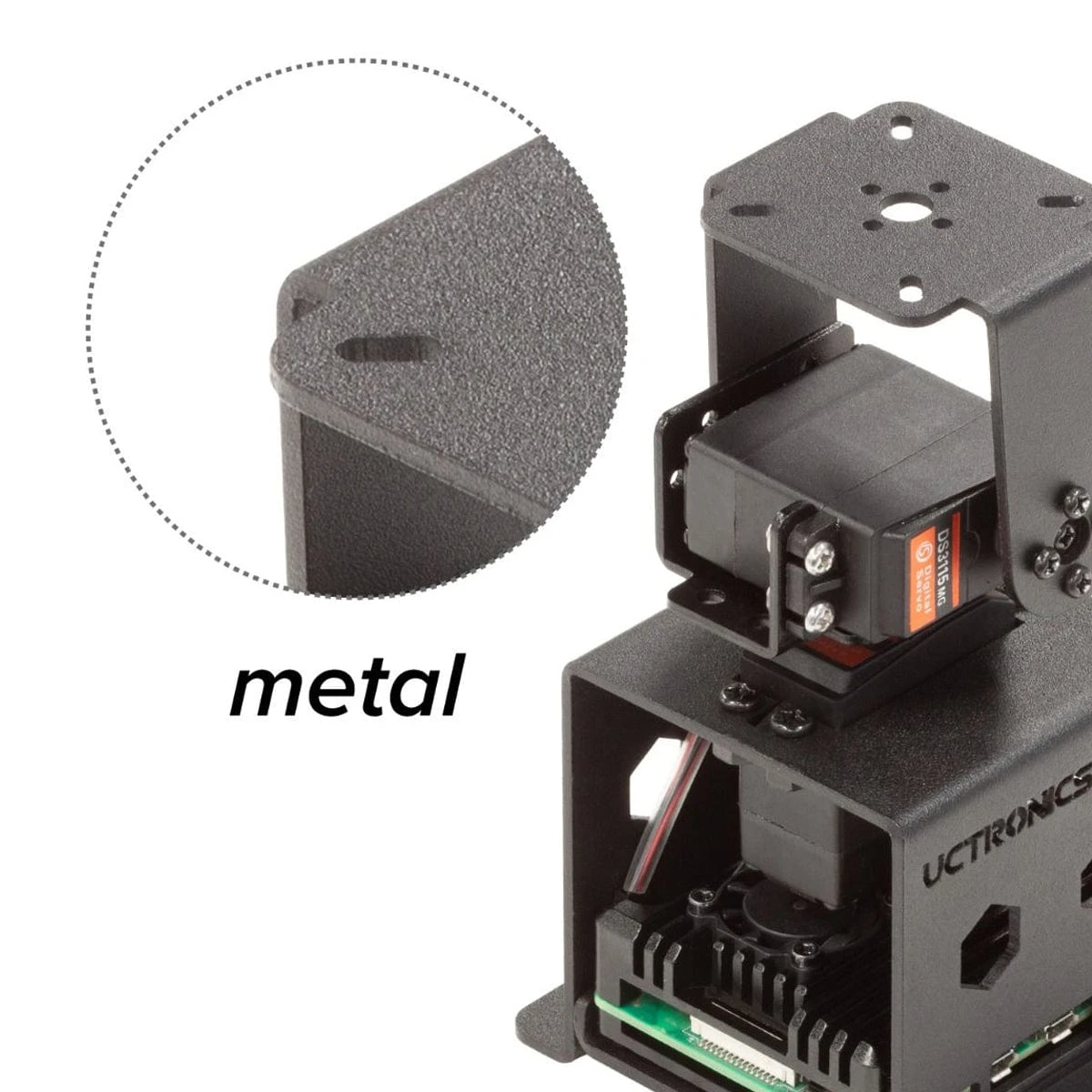

• Material: Full metal
• Shipping Weight: 704g
• Overall Size: 10.8cm x 8.8cm x 7.3cm

Digital servos

• DS-3115MG Digital servos – higher speed and acceleration than analogue servos
• Higher torque and consequently better-holding capability
• Weight: 60g
• Operating Voltage: 4.8 ~ 7.2 DC Volts
• Operating Current: ＞600mA
• Stall Torque: 15 kg/cm (4.8-7.2V)
• Speed: 15KG 0.15sec/60° 4.8-7.2V
• Size: 40 x 20 x 40.5mm

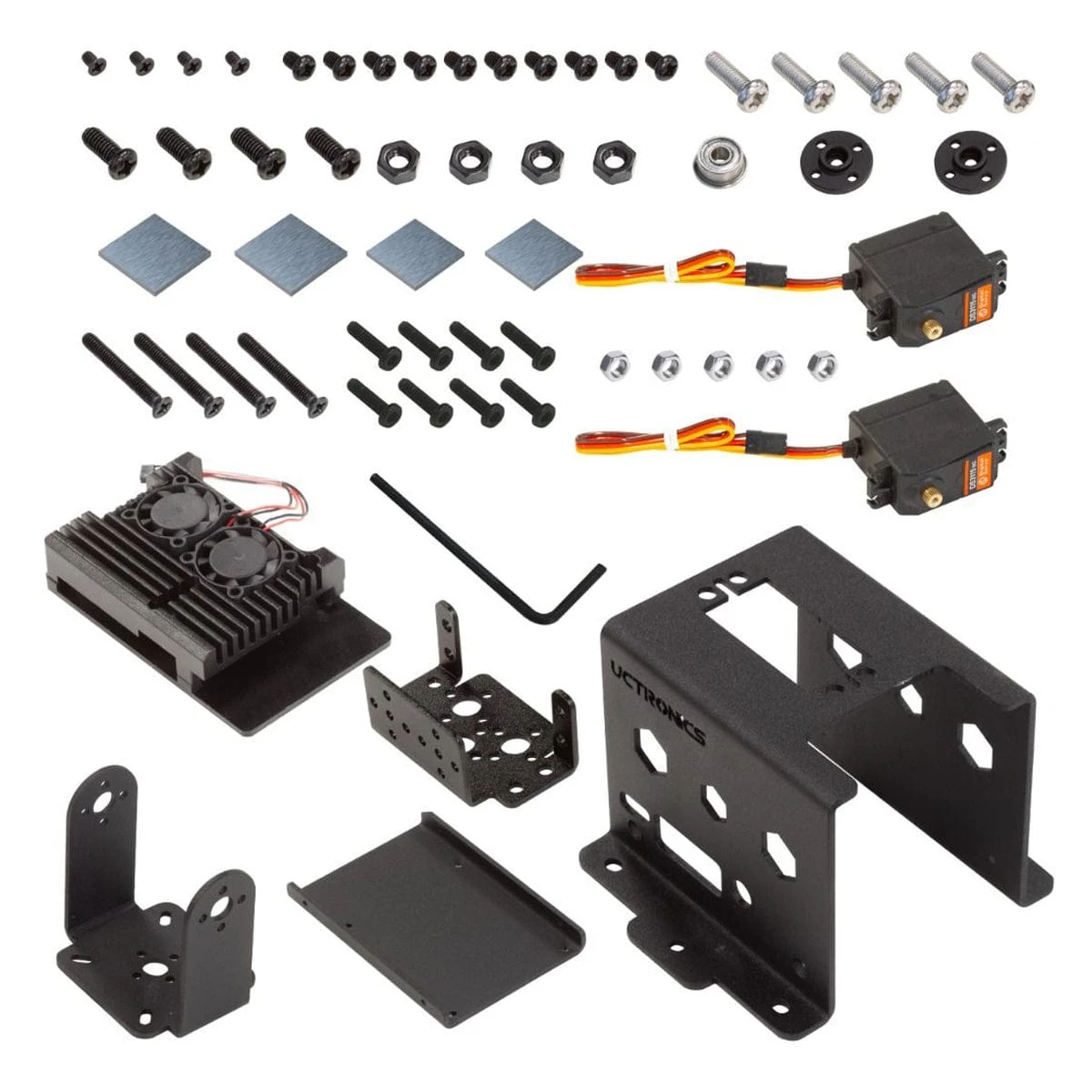

Package Contents

• 1x Set bracket
• 1x Short U-type servo bracket
• 1x Raspberry pi mounting plate
• 1x multi-function servo bracket
• 1x Raspberry Pi 4 Armor Case with accessories
• 2x 15KG Metal Single-axis Digital Servos
• 2x Metal Servo horn
• 1x pack of Screws

Note: Depending on the camera module you wish to fit, you may also need to source a set of standoffs and screws to fix the camera to the top of this bracket.

Raspberry Pi and camera module not included

Resources

• Manual
